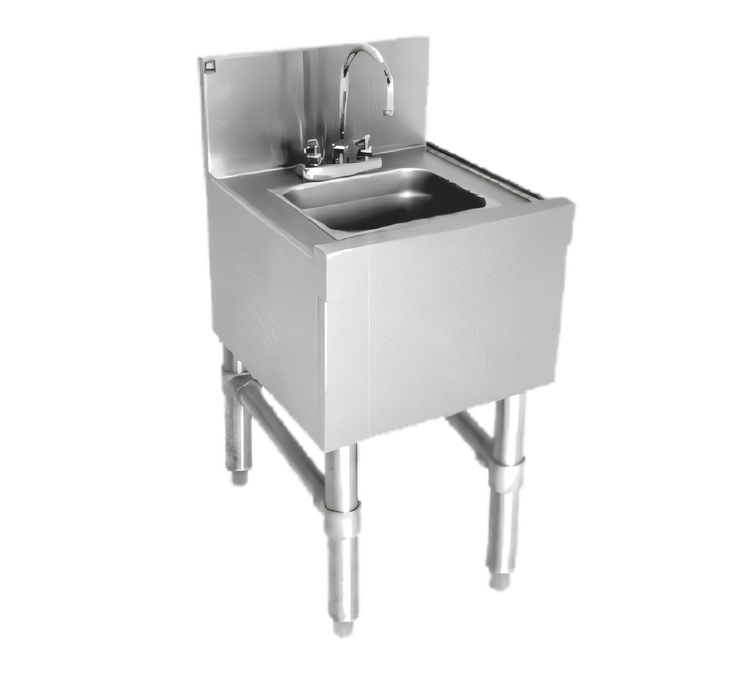

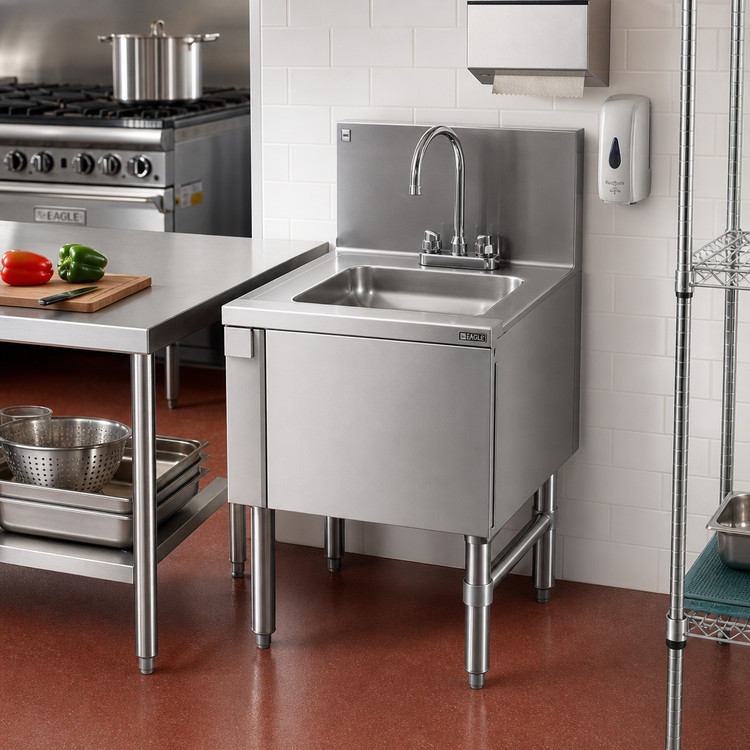

Eagle Group Spec-Bar Freestanding Underbar Hand Sink with Front Door, Soap Dispenser, and Paper Towel Dispenser, 18 x 24 Inches

SKU: HSD18-24
$1,847.52
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Bar Equipment Best Sellers Beverage Equipment Beverage Equipment Eagle Group Ice Machines & Beverage Equipment New Arrivals Restaurant Equipment Underbar Equipment Underbar Hand & Dump Sinks

Eagle Group Spec-Bar Freestanding Underbar Hand Sink with Front Door, Soap Dispenser, and Paper Towel Dispenser, 18 x 24 Inches

304 Stainless Steel Construction, Splash-Mount T&S Faucet, 6-Inch Deep Bowl

A compact, freestanding underbar hand sink that combines durable stainless steel construction with built-in dispenser storage for efficient handwashing.

  • Freestanding underbar hand sink sized for compact beverage and bar service spaces.
  • Heavy-duty 304 stainless steel body, legs, leg channels, and cross rails for long service life.
  • Includes a splash-mounted T&S gooseneck faucet plus integrated paper towel and soap dispensers.
  • 9-1/2" x 11-1/2" x 6" deep bowl with a 1-1/2" I.P.S. threaded drain.
  • Adjustable stainless steel bullet feet help keep the sink level during installation.

Overall Dimensions:

18.0"W x 24.0"D x 36.5"H

Product Weight:

51.0 lb

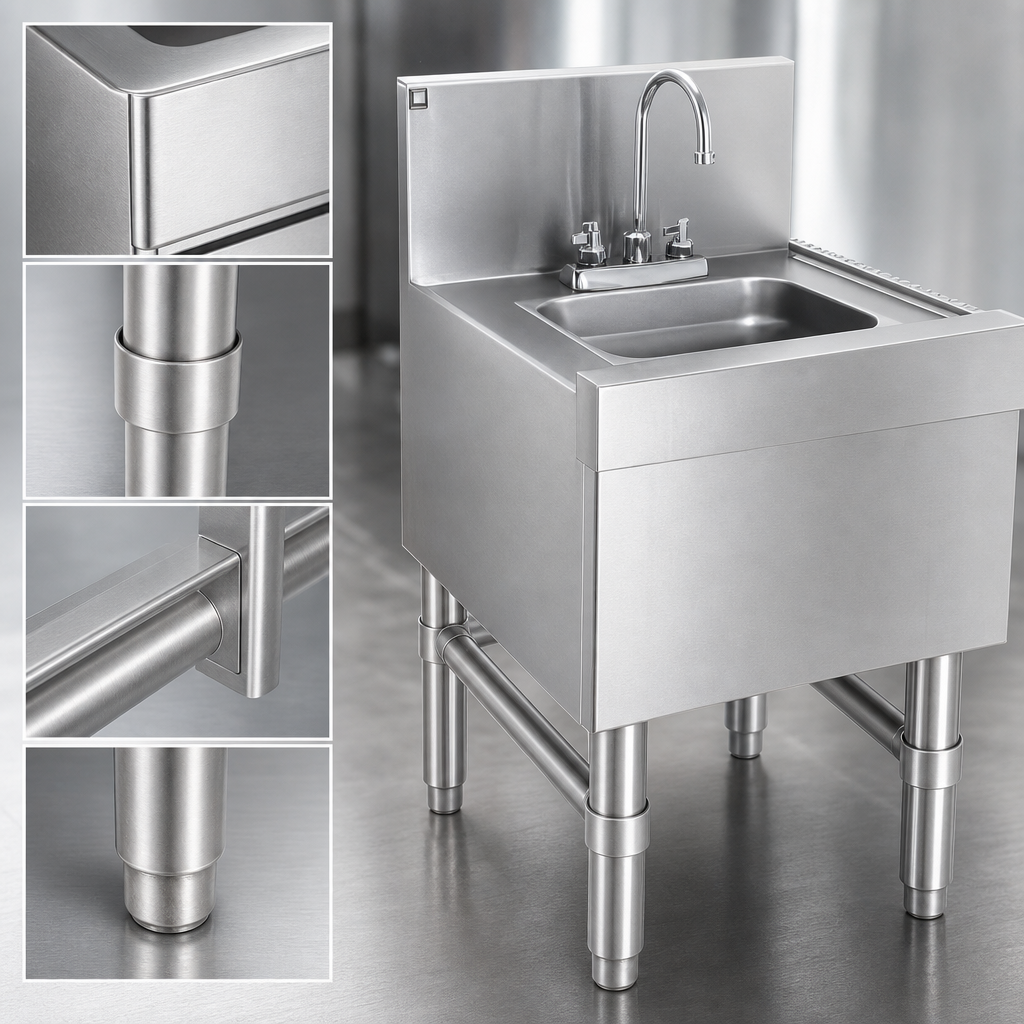

304 Stainless Steel Construction

Body, legs, leg channels, and cross rails are built from type 304 stainless steel for strength and corrosion resistance.

304 Stainless Steel Construction

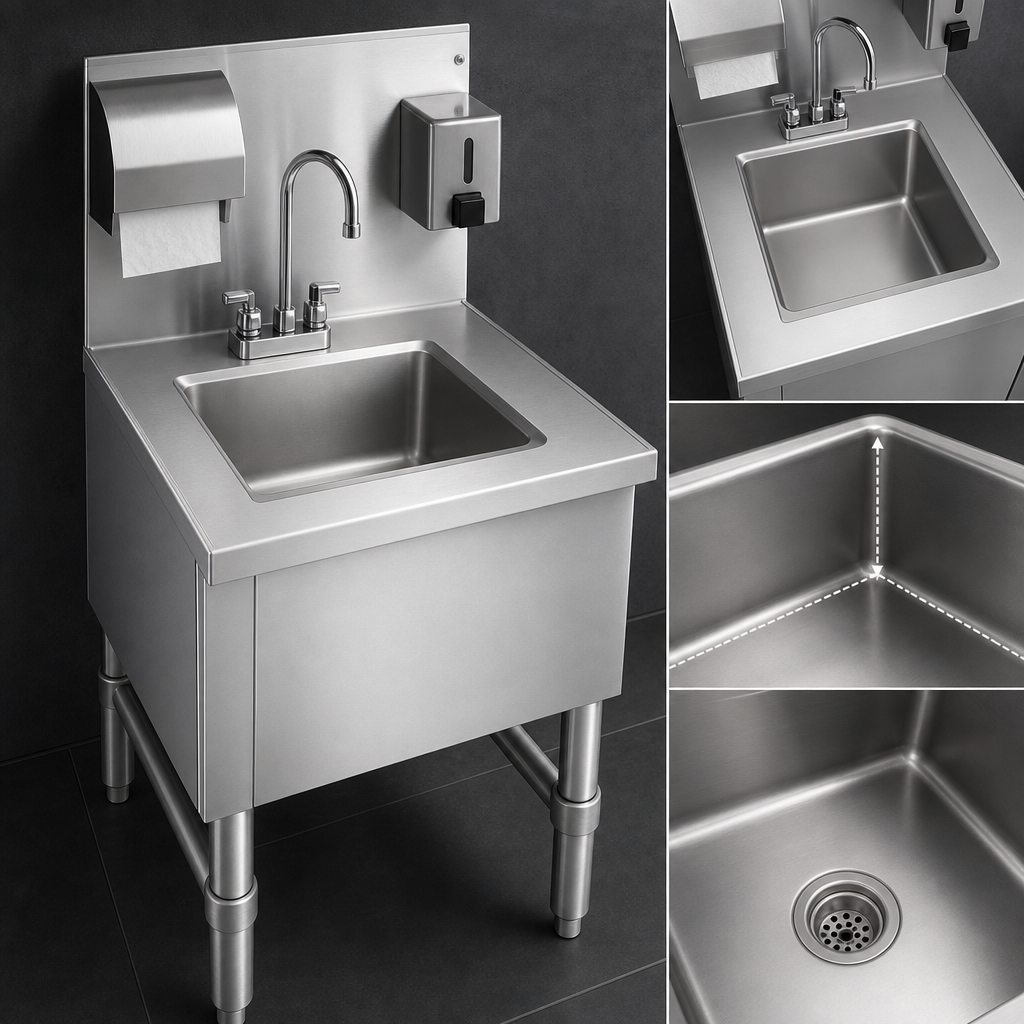

6-Inch Deep Sink Bowl

The hand sink bowl measures 9-1/2" x 11-1/2" x 6" deep for quick and convenient washing.

6-Inch Deep Sink Bowl

Splash-Mounted T&S Gooseneck Faucet

Includes a splash-mounted T&S faucet with hot and cold water connections and a 1/2" NPT inlet.

Front Access Door with Dispensers

The HSD model includes a hinged front access door, a paper towel dispenser, and a deck-mounted soap dispenser.

Threaded Drain Assembly

Equipped with a 1-1/2" I.P.S. threaded drain with nut and washer.

Adjustable Stainless Steel Bullet Feet

Bullet feet make it easier to level the sink on uneven floors.

Type Hand Sink
Style Underbar
Installation Type Freestanding
Material 304 Stainless Steel
Water Inlet Size 1/2 Inch NPT
Water Connection Required
Drain Connection Size 1-1/2 Inches IPS
Drain Connection Required
Selling Unit Each
Units Per Case 1
Shipping Width 18 Inches
Shipping Depth 24 Inches
Shipping Height 37 Inches
Shipping Weight 51 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year limited warranty from original installation, not to exceed 18 months from shipment.

Documents

PDF Cutsheet PDF Download PDF Brochure PDF Download PDF Spec-bar® modular bar die PDF Download PDF Instructions PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It includes a splash-mounted T&S faucet, a front access door, a paper towel dispenser, and a deck-mounted soap dispenser.
The sink bowl measures 9-1/2" x 11-1/2" x 6" deep.
It uses a 1-1/2" I.P.S. threaded drain with nut and washer.
Yes. The faucet has a 1/2" NPT inlet and hot and cold water connections are required.
Yes. A removable stainless steel perforated strainer is listed as an option/accessory.
