Eagle Group HSAP-10-EYE Wall Mount Hand Sink with Electronic Eye Faucet, Skirt & Dispensers

Compact, 16 Gauge Stainless Steel, ADA Compliant

Ensure hygienic hand washing in commercial spaces with this ADA compliant wall mount hand sink featuring touchless operation and integrated dispensers.

  • Equipped with a splash-mounted electronic-eye faucet for touchless, hygienic operation.
  • Constructed from durable 16 gauge, type 304 stainless steel for longevity and easy cleaning.
  • Includes a marine edge on front and sides to contain splashes and spills.
  • Designed with a skirt assembly, soap dispenser, and paper towel dispenser for a complete, integrated hand washing station.
  • Features a te pid water temperature thermostatic mixing valve for comfortable and safe hand washing.
  • ADA compliant design, suitable for physically challenged individuals.
  • Wall-mounted style saves floor space, ideal for compact commercial kitchens and restrooms.

Overall Dimensions:

13.0"W x 19.56"D x 22.37"H

Product Weight:

64.0 lb

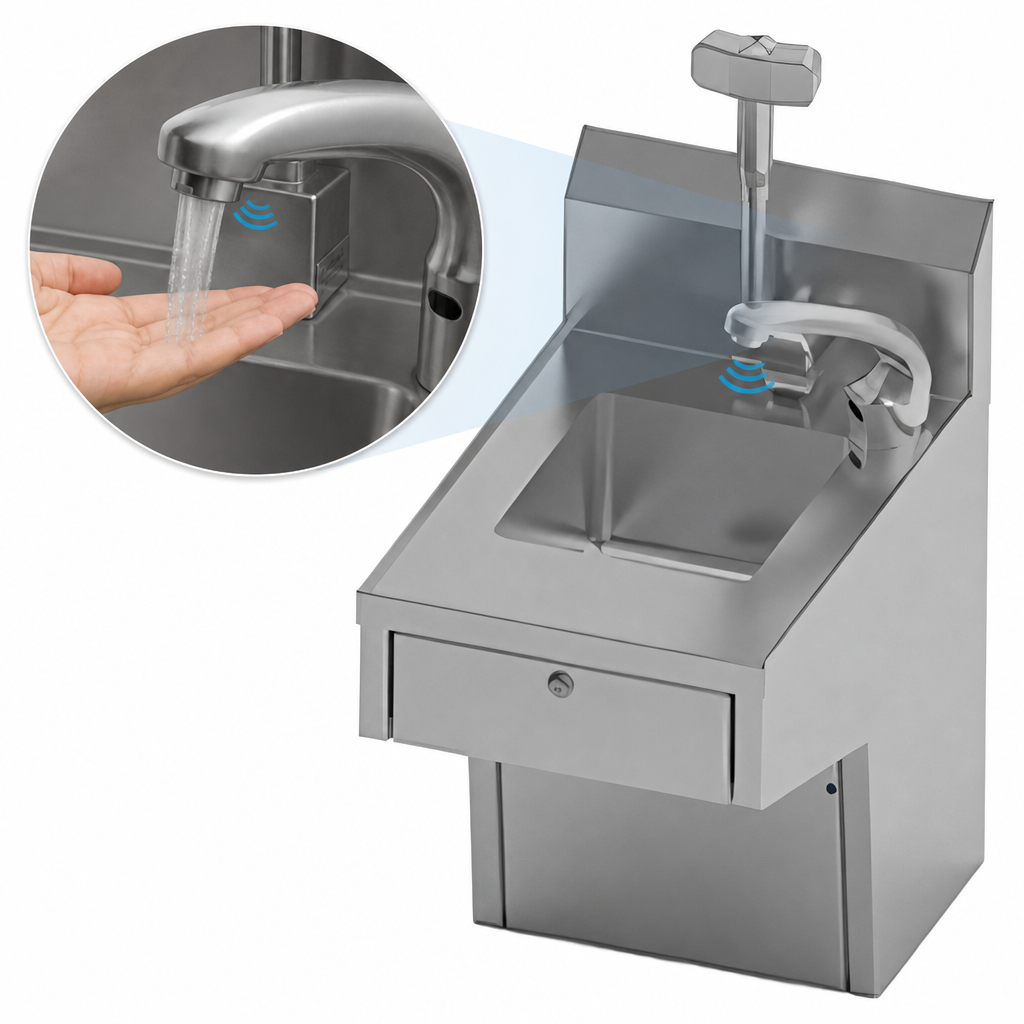

Electronic-Eye Faucet

Splash-mounted electronic-eye hand wash faucet provides touchless operation, reducing cross-contamination. Includes battery backup for reliable performance.

Electronic-Eye Faucet

Thermostatic Mixing Valve

Integrated thermostatic mixing valve ensures tepid water temperature for comfortable and safe hand washing.

High-Quality Stainless Steel Construction

Built with heavy-duty 16 gauge, type 304 stainless steel for excellent durability, corrosion resistance, and ease of sanitation.

Marine Edge Design

Features a marine edge on the front and sides of the sink to effectively contain water splashes and prevent spills onto the floor.

Integrated Dispensers & Skirt

Comes complete with a skirt assembly, soap dispenser, and paper towel dispenser for a comprehensive and organized hand washing station.

Gooseneck Faucet with Wrist Handles

Deck mount gooseneck faucet is equipped with wrist handles and a mixer valve, providing convenient water control.

Chrome-Plated P-Trap & Basket Drain

Includes a chrome-plated P-trap and a basket drain for efficient waste removal and easy maintenance.

ADA Compliant

Designed to meet the requirements for physically challenged individuals, making it suitable for ADA compliance.

Type Hand Sink
Style Wall Mount
Installation Type Wall Mounted
Material 304 Stainless Steel
Interior Finish 304 Stainless Steel
Bowl Width (left-to-right) 8-1/4 Inches
Bowl Depth (front-to-back) 9-1/2 Inches
Bowl Height (rim to drain) 5 Inches
Controls Electronic Eye
Water Connection Required
Water Inlet Size 1/2 Inch NPS
Drain Connection Required
Shipping Width 13 Inches
Shipping Depth 20 Inches
Shipping Height 23 Inches
Shipping Weight 64.0 lb.
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year limited warranty on main products, 90-day limited warranty on accessories.

Documents

PDF Cutsheet PDF Download PDF Assembly instructions PDF Download PDF Instructions PDF Download PDF Care & maintenance PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

No, mounting hardware for the 'z' bracket and skirt is not included with the unit. You will need to provide appropriate mounting hardware for your wall type.
While the main sink assembly typically carries a one-year limited warranty, accessory items such as electronic eye faucets are covered by a limited warranty of 90 days from the date of installation or shipment.
Based on the plumbing rough-in dimensions, the recommended working height for this hand sink is 34 inches from the finished floor to the top of the sink rim.
Yes, the HSAP-10-EYE model includes a skirt assembly as part of the complete unit, along with a soap dispenser and paper towel dispenser.
Yes, this model is specifically designed for 'physically challenged' individuals, which indicates it is built to be compliant with ADA (Americans with Disabilities Act) requirements for accessibility.
