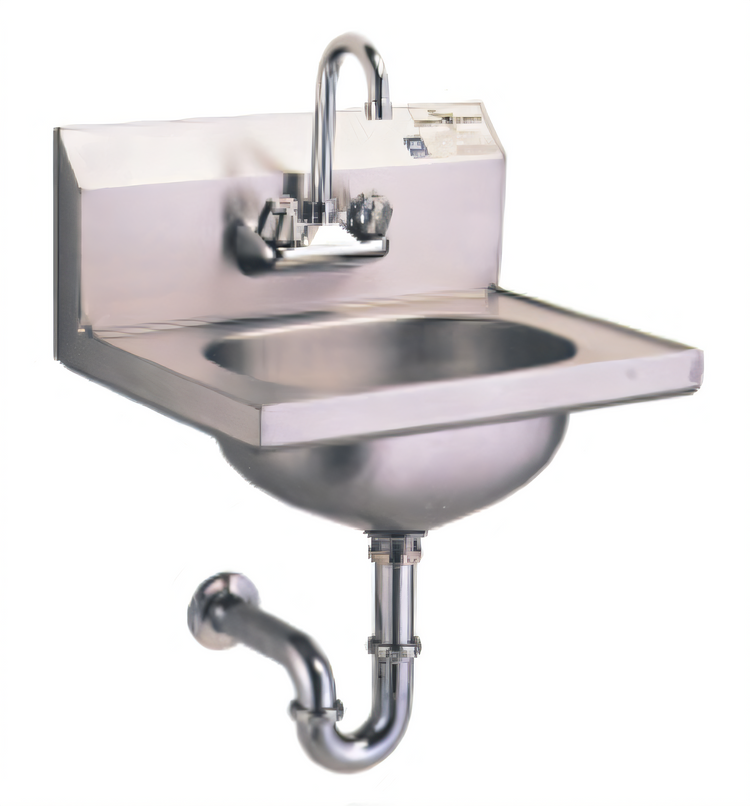

Eagle Group HSA-10-FA-1X Traditional Wall-Mount Hand Sink with Splash-Mount Gooseneck Faucet, P-Trap, Tail Piece and Basket Drain

304 Stainless Steel, Deep-Drawn Seamless Bowl, Wall-Mounted

A compact wall-mount hand sink built from 304 stainless steel and supplied with a splash-mounted gooseneck faucet, p-trap, tail piece, and basket drain for straightforward installation.

  • Heavy-gauge 304 stainless steel all-welded construction for commercial durability.
  • Deep-drawn positive-drain bowl helps ensure complete drainage.
  • Inverted V edge helps reduce spillage around the sink opening.
  • Includes a splash-mounted gooseneck faucet, p-trap, tail piece, and basket drain.
  • Wall-mounted design frees up valuable floor space.
  • NSF listed for foodservice sanitation use.

Overall Dimensions:

18.88"W x 14.75"D x 12.75"H

Product Weight:

14.0 lb

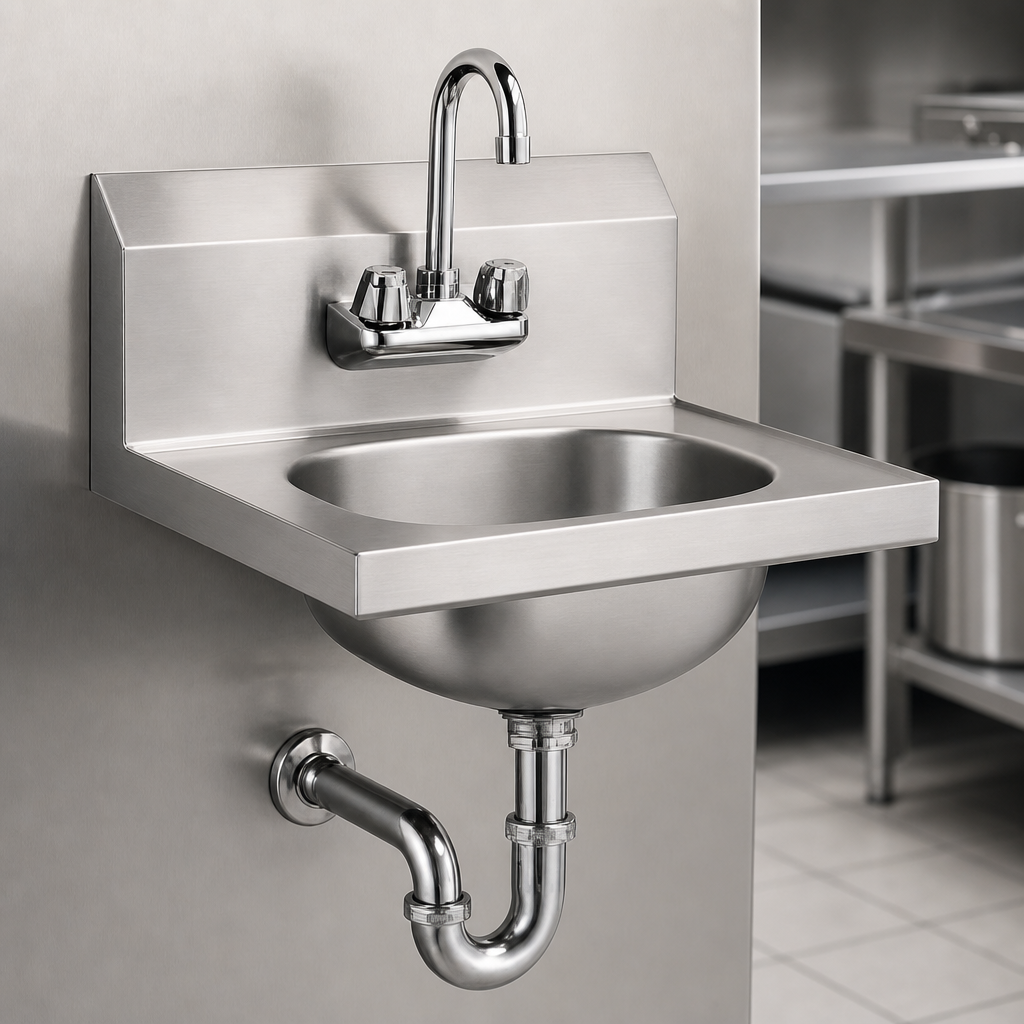

304 Stainless Steel Construction

Heavy-gauge, all-welded build for long service life in demanding kitchen and wash stations.

304 Stainless Steel Construction

Deep-Drawn Positive-Drain Bowl

Seamless bowl design promotes complete drainage and supports sanitary operation.

Inverted V Edge Rim

Helps keep water in the bowl and retards spillage around the sink opening.

Splash-Mounted Gooseneck Faucet

Included faucet provides a ready-to-use handwashing station.

P-Trap and Tail Piece Included

Simplifies plumbing hookup and installation.

Basket Drain Included

Built-in basket drain helps catch debris and maintain flow.

Wall-Mount Design

Mounts to the wall to conserve floor space in tight areas.

Type Hand Sink
Style Traditional
Installation Type Wall Mounted
Material 304 Stainless Steel
Water Inlet Size 1/2 Inch NPS
Drain Connection Size 1-1/2 Inch NPS
Bowl Width 13 1/2 Inches
Bowl Depth 9 3/4 Inches
Bowl Height 6 Inches
Shipping Width 19 Inches
Shipping Depth 15 Inches
Shipping Height 13 Inches
Shipping Weight 14 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year limited warranty from original installation, not to exceed 18 months from shipment.

Frequently Asked Questions

It includes a splash-mounted gooseneck faucet, p-trap, tail piece, and basket drain.
The bowl measures 13 1/2 inches wide by 9 3/4 inches front-to-back by 6 inches deep.
It uses a 1/2 inch NPS water inlet and a 1-1/2 inch NPS drain outlet.
Yes, it is designed for wall mounting.
Yes, the product is NSF listed.
End splashes, a front skirt, a side mount wall bracket, and antimicrobial protection are listed in the documentation.
