SpecAir HESFA96-90 90-Inch Wall Type Short Front Compensating Make-Up Air Exhaust Hood
SpecAir HESFA96-90 90-Inch Wall Type Short Front Compensating Make-Up Air Exhaust Hood
Full-Size, 51" Depth, 3000 CFM Exhaust, 430 Stainless Steel
Engineered for efficient ventilation in commercial kitchens, the SpecAir HESFA96-90 hood provides make-up air through its front discharge design while ensuring a clean and safe cooking environment.
- Durable heavy gauge type 430 stainless steel construction for long-lasting use.
- Front discharge make-up air system operates independently to maintain balanced kitchen air.
- UL classified aluminum grease filters are removable for easy cleaning and maintenance.
- UL vapor-proof incandescent lighting ensures illuminated and safe cooking surfaces.
- Short front fascia design is ideal for installations in commercial kitchens with lower ceilings.
- Continuously liquid-tight welded seams comply with NFPA 96 standards for fire safety.
- Equipped with a full-length grease trough and a removable grease container for effective grease management.
Overall Dimensions:
90.0"W x 51.0"D x 24.0"HProduct Weight:

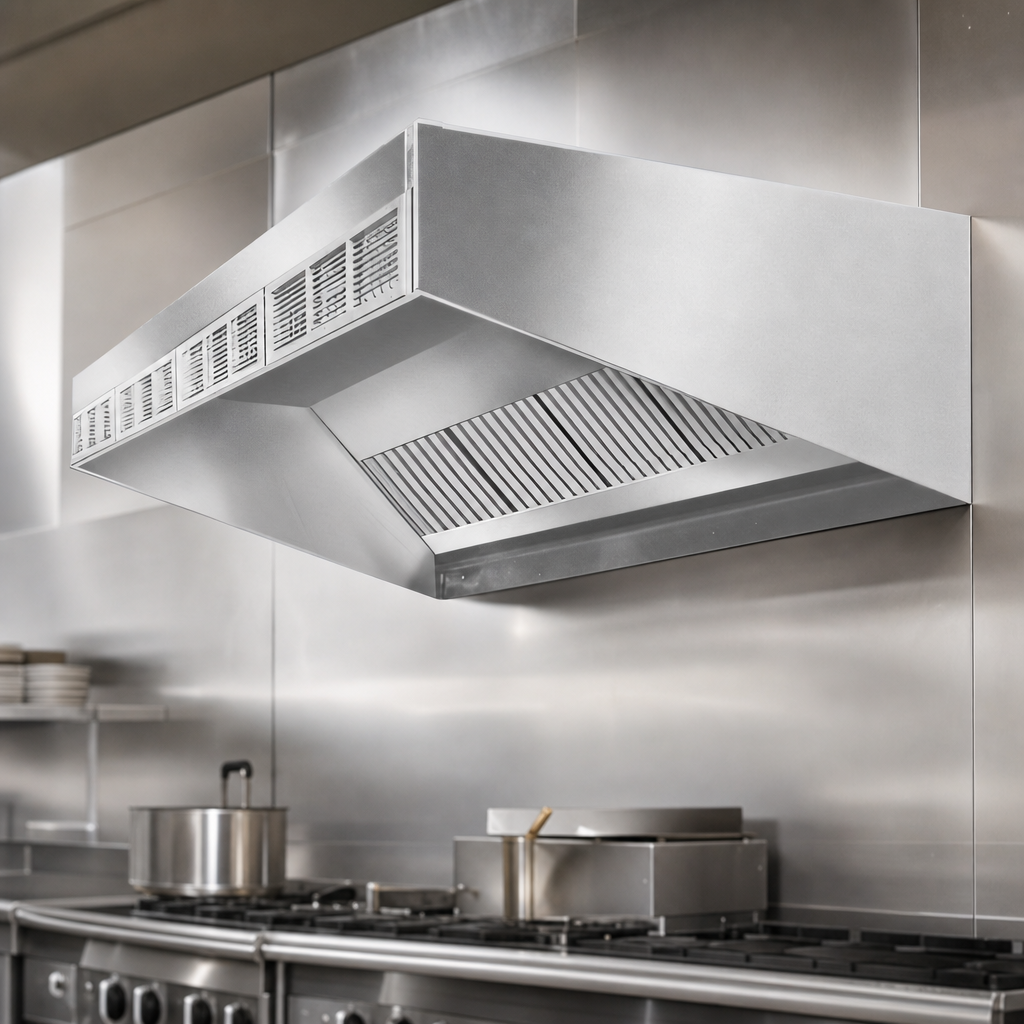

567.0 lbHeavy Gauge Stainless Steel Construction
The hood is constructed from all heavy gauge type 430 stainless steel, ensuring exceptional durability and resistance to corrosion in demanding commercial kitchen environments.

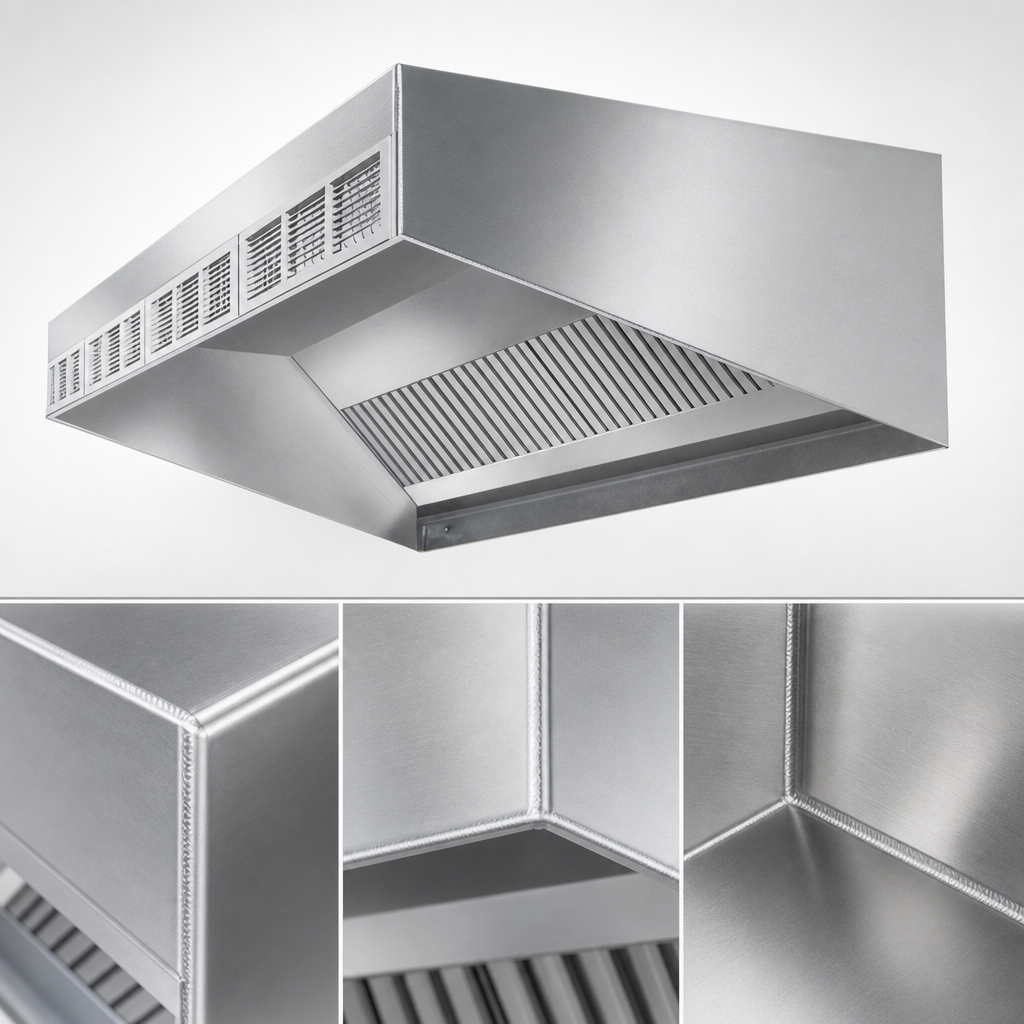

Liquid-Tight Welded Seams
All canopy seams are continuously welded liquid-tight, preventing grease leaks and ensuring the hood meets stringent NFPA 96 standards for fire protection.
Front Discharge Make-Up Air System
This system supplies make-up air directly through the hood at ceiling level, operating independently of other ventilation systems to help maintain proper air balance and comfort in the kitchen.
Removable Aluminum Grease Filters
The hood is furnished with UL classified aluminum filters that are easily removable, simplifying routine cleaning and maintenance procedures.
UL Vapor-Proof Incandescent Lights
Integrated UL-listed vapor-proof incandescent light fixtures provide reliable and effective illumination over the cooking area, enhancing visibility and safety.
Full-Length Grease Trough and Container
A full-length stainless steel grease trough and a removable grease container are included for efficient collection and hassle-free disposal of grease.
3-Inch Rear Air Space
Features a standard 3-inch (76mm) air space at the rear, facilitating proper installation and optimal airflow dynamics.
Front and Rear Mounting Channels
Equipped with sturdy front and rear mounting channels to ensure a secure and straightforward installation on the wall.
Exhaust and Supply Collars Included
Comes pre-furnished with exhaust and supply collars for convenient connection to the building's ductwork system.
Short Front Fascia
The 'short front' HESFA series design is specifically tailored for installations in kitchens where ceiling heights are limited, offering greater flexibility.
Certifications & Compliance
Warranty & Protection
1-year parts and labor limited warranty from the date of original installation (not to exceed 18 months from shipment date).
