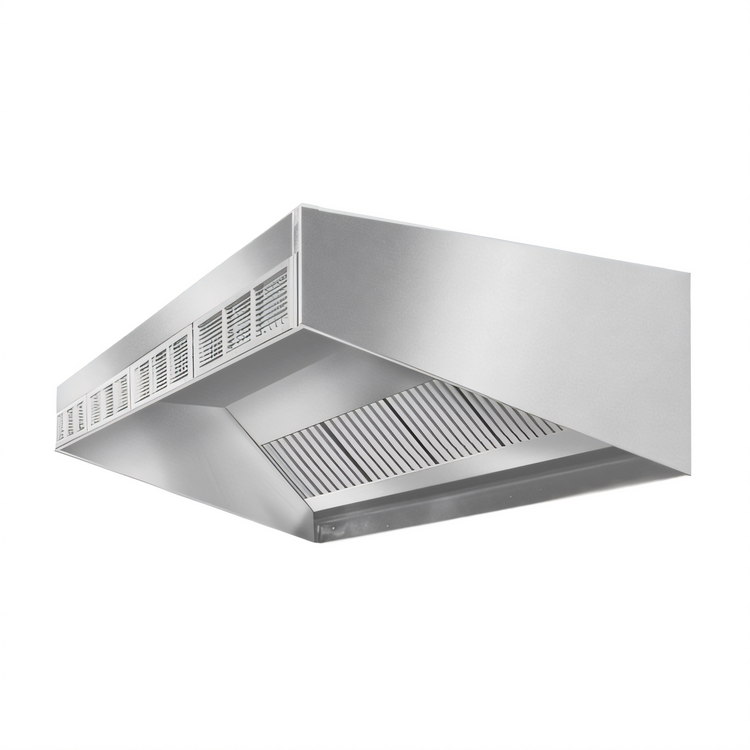

Eagle SpecAir HESFA96-54 Short Front Wall Type Make-Up Air Exhaust Hood, 54 Inch
Eagle SpecAir HESFA96-54 Short Front Wall Type Make-Up Air Exhaust Hood, 54 Inch
54 Inch Width, 51 Inch Depth, 24 Inch Height, Compensating Make-Up Air, Front Discharge

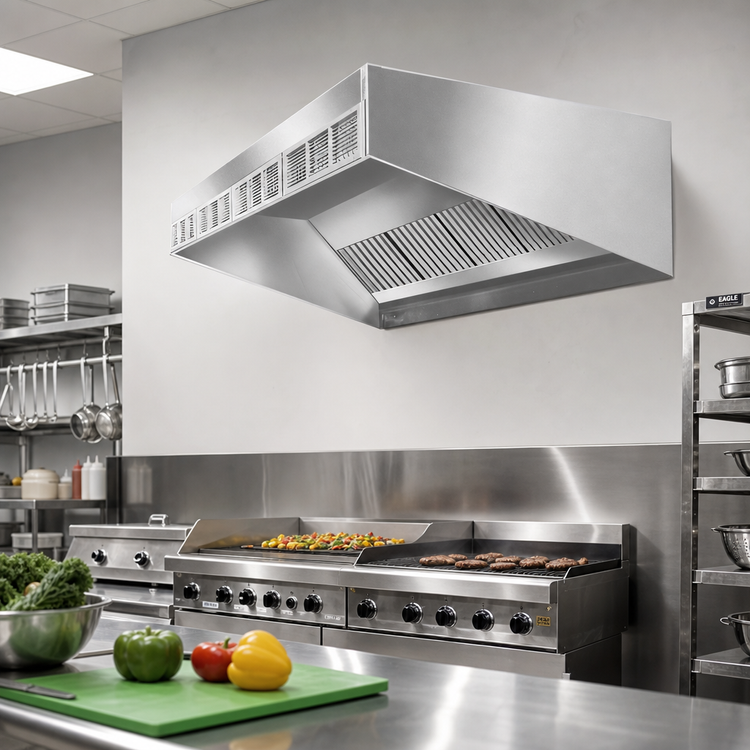

Engineered for optimal kitchen ventilation in commercial settings with lower ceilings, this SpecAir hood provides efficient exhaust and make-up air through its front discharge design.
- Efficiently removes grease-laden vapors and supplies fresh make-up air, independent of other ventilation systems.
- Features a 'short front' design ideal for installations with lower ceiling heights.
- Constructed from heavy gauge Type 430 stainless steel for durability and easy cleaning.
- Includes UL classified aluminum filters and UL vapor-proof incandescent lighting.
- Designed and constructed in compliance with NFPA 96 and NSF standards for safety and sanitation.
- Comes with a full-length grease trough and removable grease container for easy maintenance.
Overall Dimensions:
54.0"W x 51.0"D x 24.0"HProduct Weight:

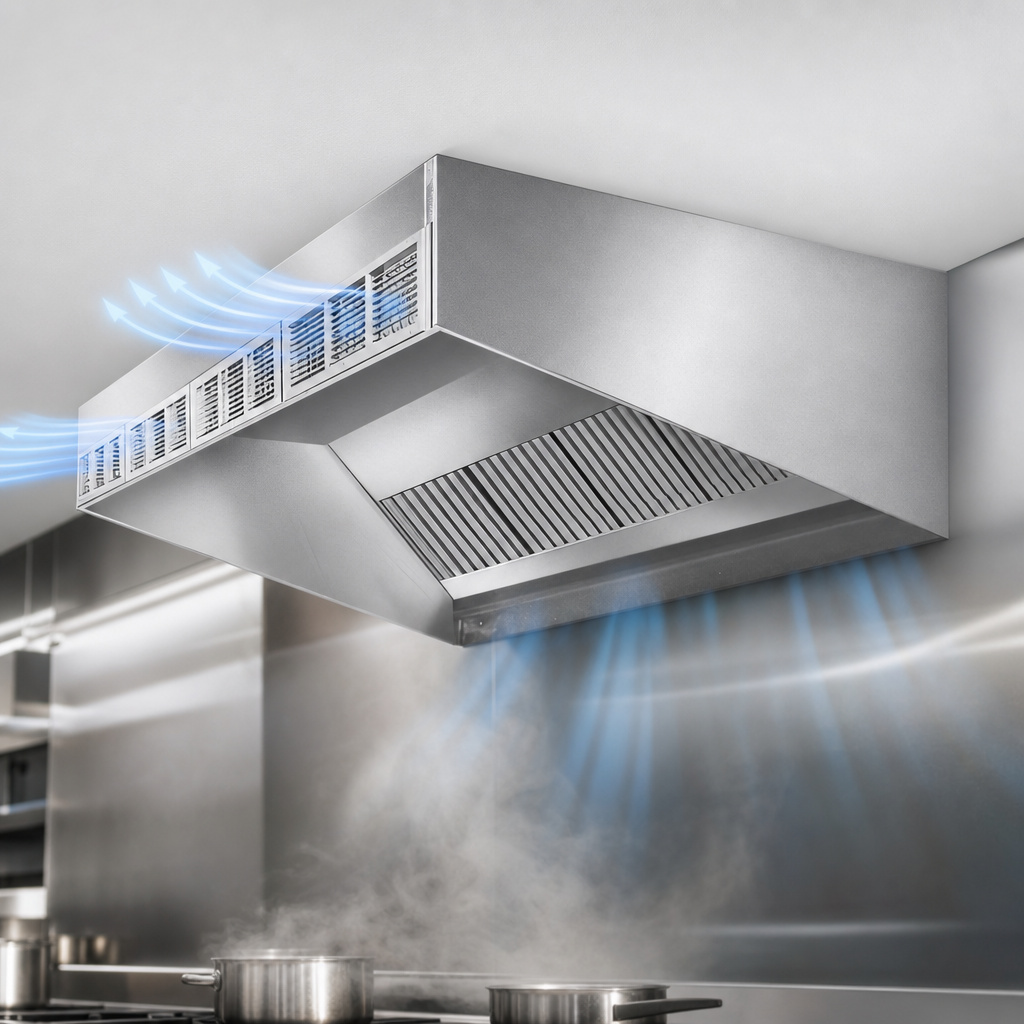

339.0 lbFront Discharge Make-Up Air
Supplies make-up air through the hood itself at ceiling level, eliminating reliance on separate ventilation systems.

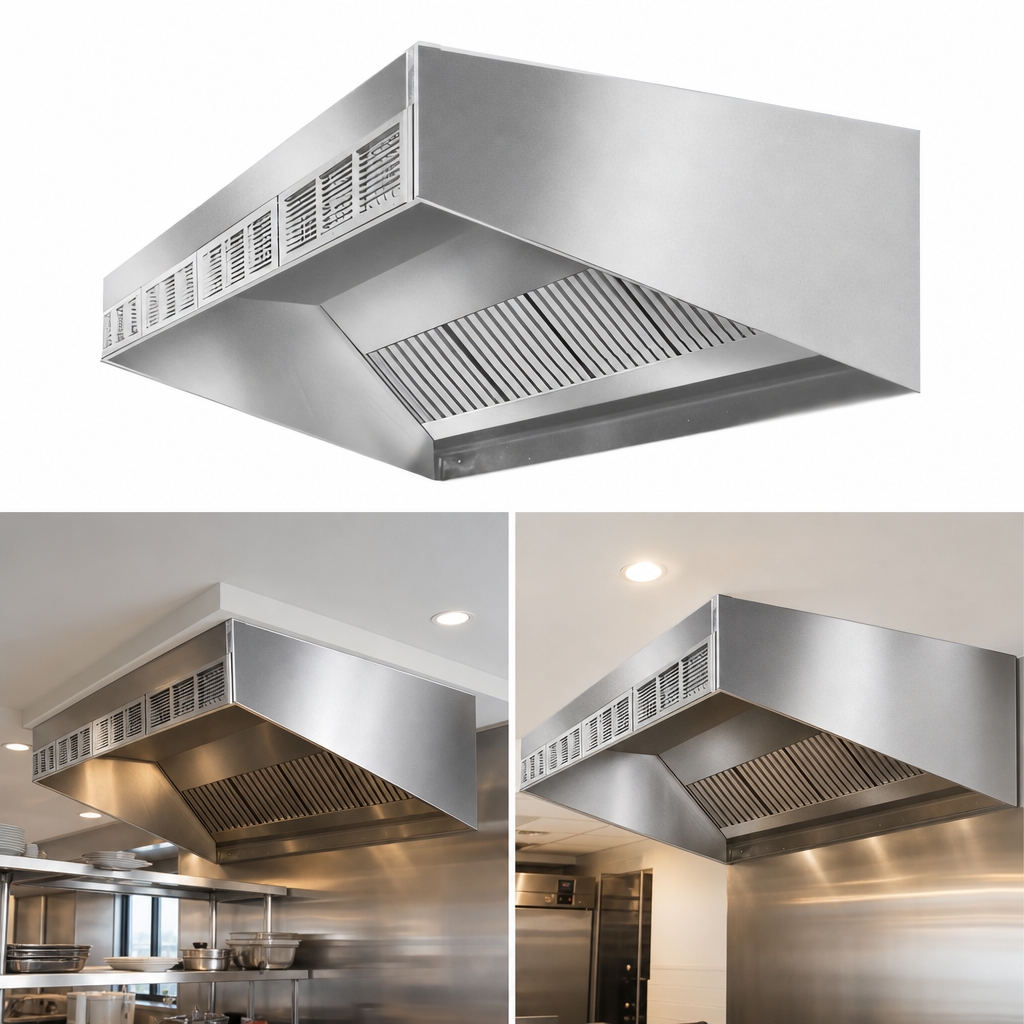

Short Front Design (HESFA Series)
Designed with a short front fascia, making it suitable for installations in spaces with lower ceiling heights.
Heavy Gauge Stainless Steel Construction
All hood surfaces are made from heavy gauge Type 430 stainless steel for strength, corrosion resistance, and longevity.
Liquid-Tight Welded Seams
Canopy seams are continuously welded to be liquid-tight, preventing leaks and ensuring hygienic operation.
UL Classified Aluminum Filters
Equipped with aluminum filters that are UL classified and easily removable for routine cleaning.
UL Vapor-Proof Incandescent Light Fixtures
Features integrated incandescent lighting that is UL-listed and vapor-proof, providing illumination while protected from kitchen elements.
Full-Length Grease Trough
Includes a stainless steel full-length grease trough to collect grease, ensuring a cleaner cooking environment.
Removable Grease Container
Comes with a removable grease container for convenient disposal and cleaning of collected grease.
3 Inch Rear Air Space
Standard 3 inch (76mm) air space at the rear to meet installation requirements.
Exhaust and Supply Collars
Includes collars for both exhaust and supply air connections.
Front and Rear Mounting Channels
Provided with front and rear mounting channels for secure and straightforward installation.
Certifications & Compliance
Warranty & Protection
1-year limited warranty on parts and labor from the date of original installation, not to exceed 18 months from shipment.
