SpecAir HESFA96-138 Wall Type Front Discharge Make-Up Air Exhaust Hood, 138 Inches Wide, Short Front

SKU: HESFA96-138
$15,565.68
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Kitchen Hoods Eagle Group Exhaust Only Hoods Hoods & Ventilation Kitchen Ventilation & Climate Control New Arrivals Restaurant Equipment

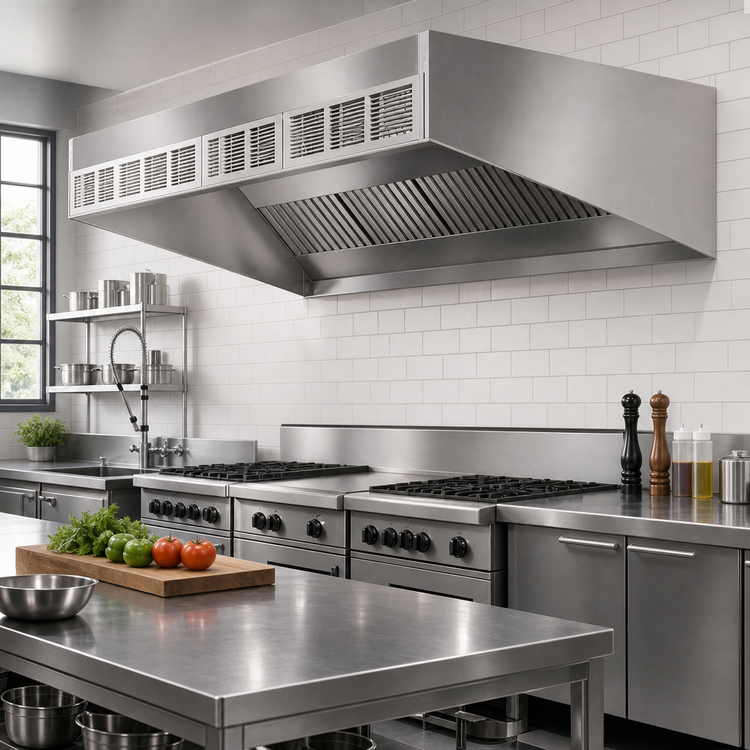

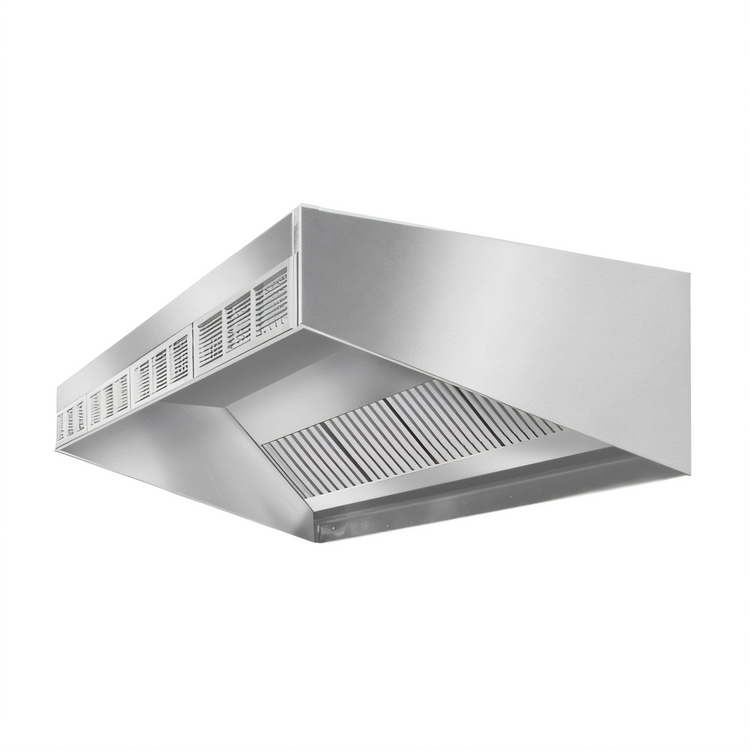

SpecAir HESFA96-138 Wall Type Front Discharge Make-Up Air Exhaust Hood, 138 Inches Wide, Short Front

51 Inches Deep, 24 Inches High, Type 430 Stainless Steel

Designed for commercial cooking applications with low ceilings, this 138-inch wall type exhaust hood efficiently removes smoke and grease while supplying tempered make-up air.

  • Heavy gauge Type 430 stainless steel construction ensures durability and compliance with NFPA 96 standards.
  • Front discharge make-up air system provides fresh air independent of other ventilation, optimizing kitchen environment.
  • Short front fascia is ideal for installations with lower ceiling heights, offering versatile placement options.
  • Equipped with UL classified aluminum filters, a full-length grease trough, and a removable grease container for easy maintenance.
  • Features UL-listed vapor-proof incandescent light fixtures to illuminate the cooking area.
  • Comes with a 3-inch air space at the rear and includes exhaust and supply collars for comprehensive ventilation.

Overall Dimensions:

138.0"W x 51.0"D x 24.0"H

Product Weight:

869.0 lb

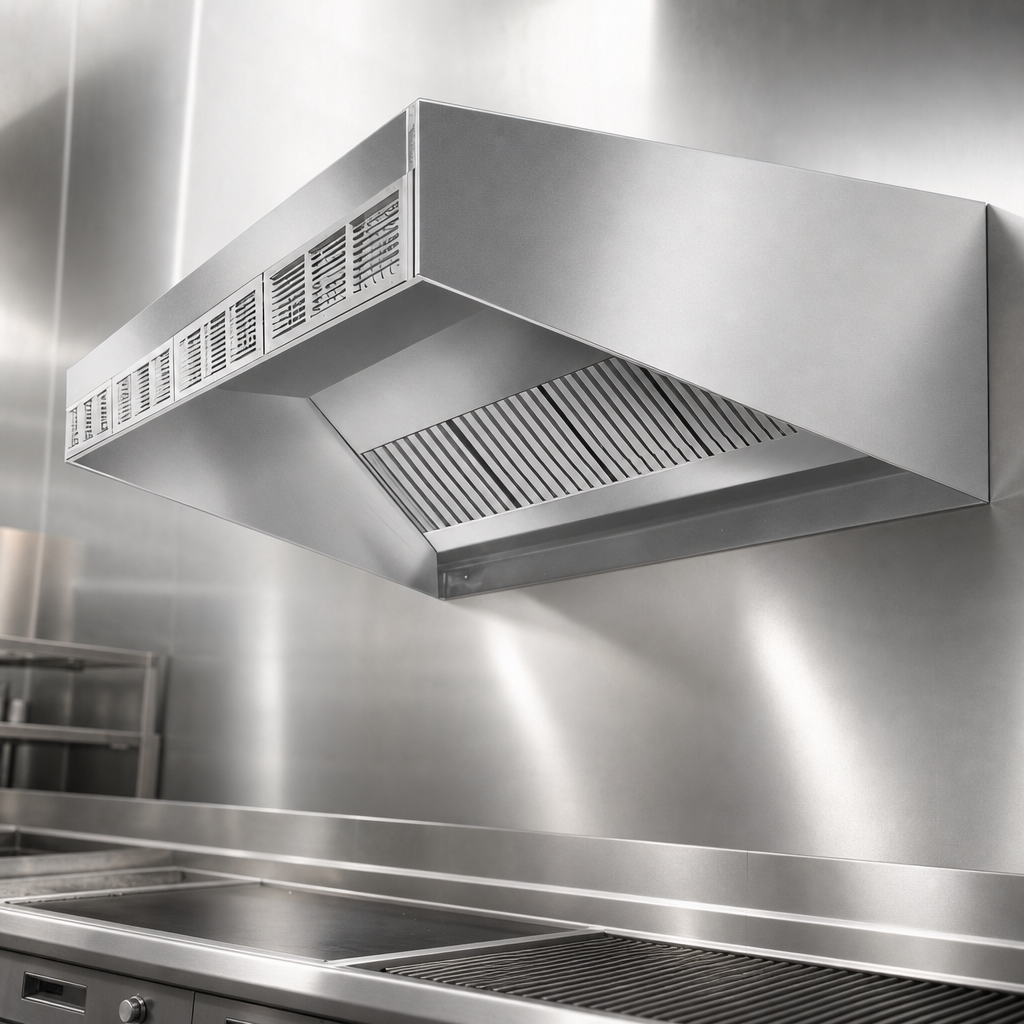

Heavy Gauge Stainless Steel Construction

Built with heavy gauge Type 430 stainless steel hood surfaces for robust durability and corrosion resistance, suitable for demanding commercial kitchens.

Heavy Gauge Stainless Steel Construction

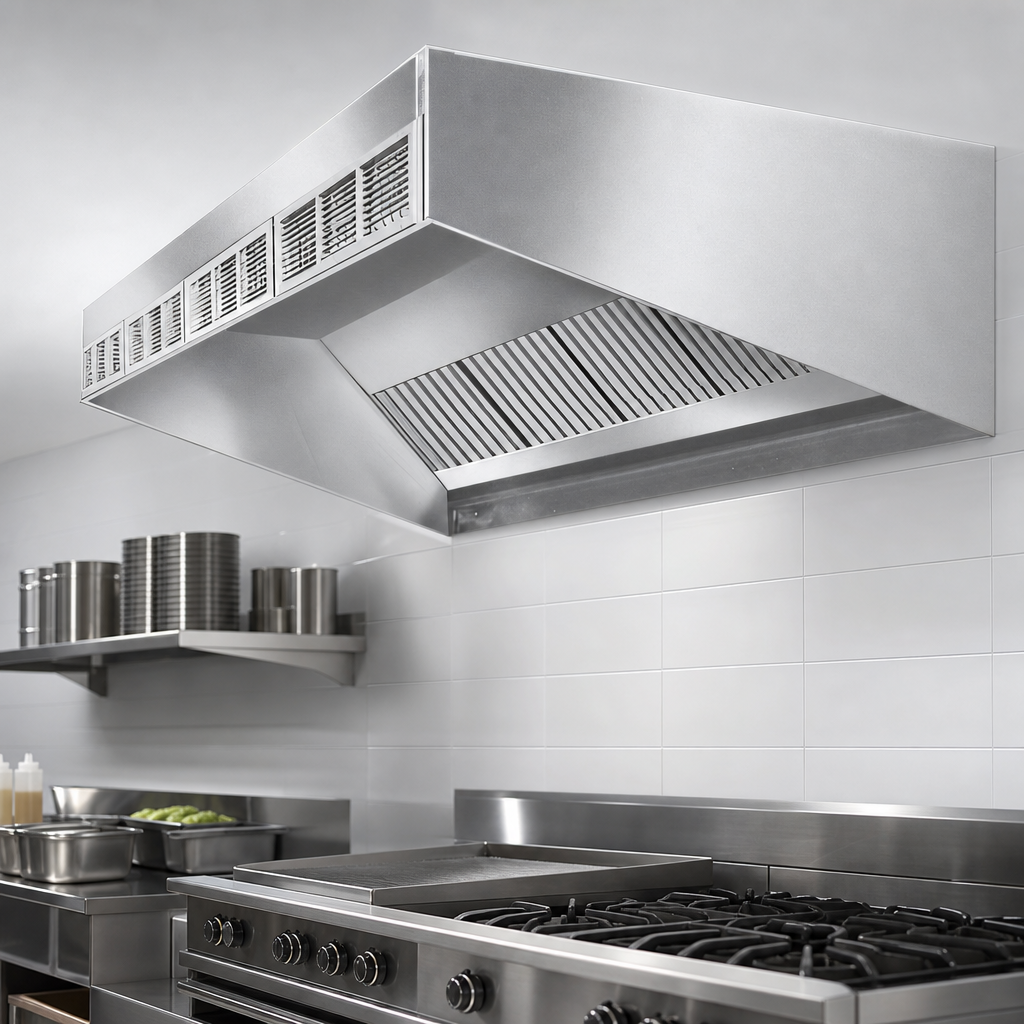

NFPA 96 Compliance

Constructed per NFPA 96 standards with all canopy seams continuously welded liquid-tight, ensuring safety and compliance.

NFPA 96 Compliance

Front Discharge Make-Up Air

Supplies make-up air through the hood at ceiling level, independent of other ventilation systems, maintaining proper air balance and comfort.

Short Front Fascia Design

Part of the HESFA series, featuring a short front fascia designed for use in kitchens with lower ceiling heights.

Effective Grease Management

Includes a full-length stainless steel grease trough and a removable grease container for efficient collection and easy disposal of grease.

UL Classified Aluminum Filters

Furnished with UL classified aluminum filters that are easily removable for cleaning and maintenance.

UL Vapor-Proof Lighting

Equipped with UL-listed vapor-proof incandescent light fixtures to provide bright and safe illumination over the cooking surface.

Rear Air Space

Features a standard 3-inch air space at the rear for optimal installation and airflow.

Integrated Mounting Channels

Comes with front and rear mounting channels for secure and straightforward installation.

Exhaust and Supply Collars

Includes exhaust and supply collars for connecting to ductwork, facilitating complete ventilation system integration.

Type Exhaust Hood
Style Front Discharge Make-Up Air
Installation Type Wall Mounted
Material Type 430 Stainless Steel
Height 24 Inches
Width 138 Inches
Depth 51 Inches
Weight 869 lb.
Exhaust CFM 4600 CFM
Exhaust Collars 2
Exhaust Collar Width 10 Inches
Exhaust Collar Length 18.5 Inches
Supply CFM 3910 CFM
Supply Collars 2
Supply Collar Width 10 Inches
Supply Collar Length 25.5 Inches
Lights 4
Filters 6
Selling Unit Each
Units Per Case 1
Shipping Width 138 Inches
Shipping Depth 51 Inches
Shipping Height 24 Inches
Shipping Weight 869.0 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year parts and labor limited warranty from installation, not to exceed 18 months from shipment.

Documents

PDF Cutsheet PDF Download PDF Spec air® warranty PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

This SpecAir exhaust hood is designed for commercial cooking applications such as restaurants, kitchens, fast food establishments, and delis, especially where low ceilings require a short front fascia.
No, this hood does not include installation supplies and materials, hanging of the ventilator, exhaust and supply fans, curbs, ductwork, transitions, roof/ceiling penetration and sealing, trim, flashing, permits, fire protection system or tests, air balancing, electrical work, or any special requirements from local authorities. These items must be sourced separately.
The front discharge make-up air system supplies tempered make-up air through the hood itself, independently of other ventilation systems in the building, ensuring proper air circulation and comfort in the kitchen.
The hood is constructed from heavy gauge Type 430 stainless steel. It features UL-classified aluminum filters, a full-length grease trough, and a removable grease container, all designed for easy cleaning and maintenance.
The 'short front' design of the HESFA series models is specifically engineered for installations with lower ceiling heights, offering greater flexibility in kitchen layout and ensuring compliance in various architectural settings.
