Eagle Group

SpecAir HESFA96-114 114" Wall Type Front Discharge Make-Up Air Exhaust Hood

SKU: HESFA96-114
$12,782.52
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Kitchen Hoods Eagle Group Exhaust Only Hoods Hoods & Ventilation Kitchen Ventilation & Climate Control New Arrivals Restaurant Equipment

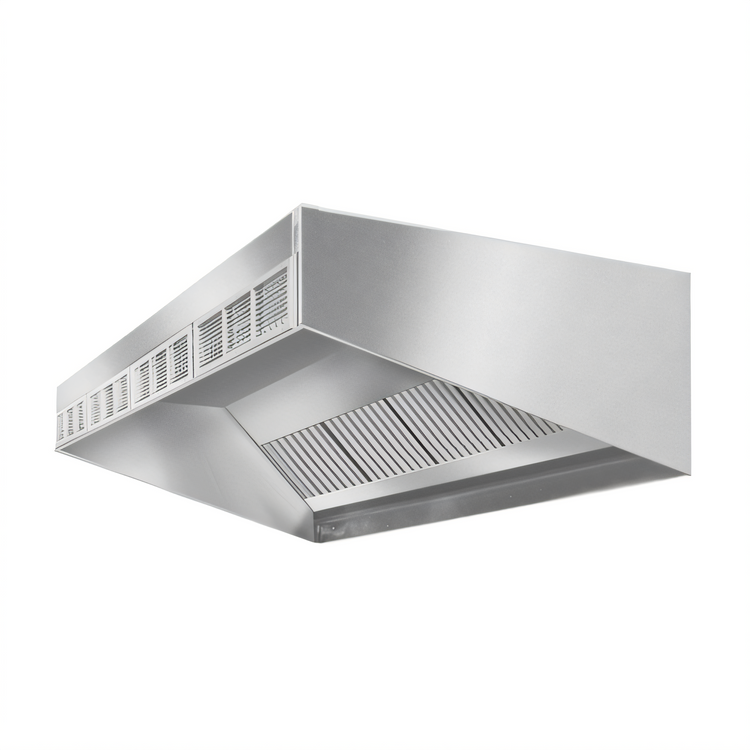

SpecAir HESFA96-114 114" Wall Type Front Discharge Make-Up Air Exhaust Hood

Short Front, 51" Deep, Make-Up Air Compensating

Designed for demanding commercial kitchens, the SpecAir HESFA96-114 provides efficient exhaust and intelligent front discharge make-up air, ideal for environments with low ceilings.

  • Specifically engineered as a short front model for installations with lower ceiling heights.
  • Features a front discharge make-up air system that operates independently of other ventilation systems.
  • Constructed from heavy gauge Type 430 stainless steel with liquid-tight welded seams for exceptional durability.
  • Includes UL classified aluminum filters that are easily removable for cleaning and maintenance.
  • Equipped with UL-listed vapor-proof incandescent light fixtures to illuminate the cooking area.
  • Conforms to NFPA 96 standards and is NSF certified, ensuring safety and sanitation.
  • Designed with a full-length grease trough and a removable grease container for effective grease management.

Overall Dimensions:

114.0"W x 51.0"D x 24.0"H

Product Weight:

718.0 lb

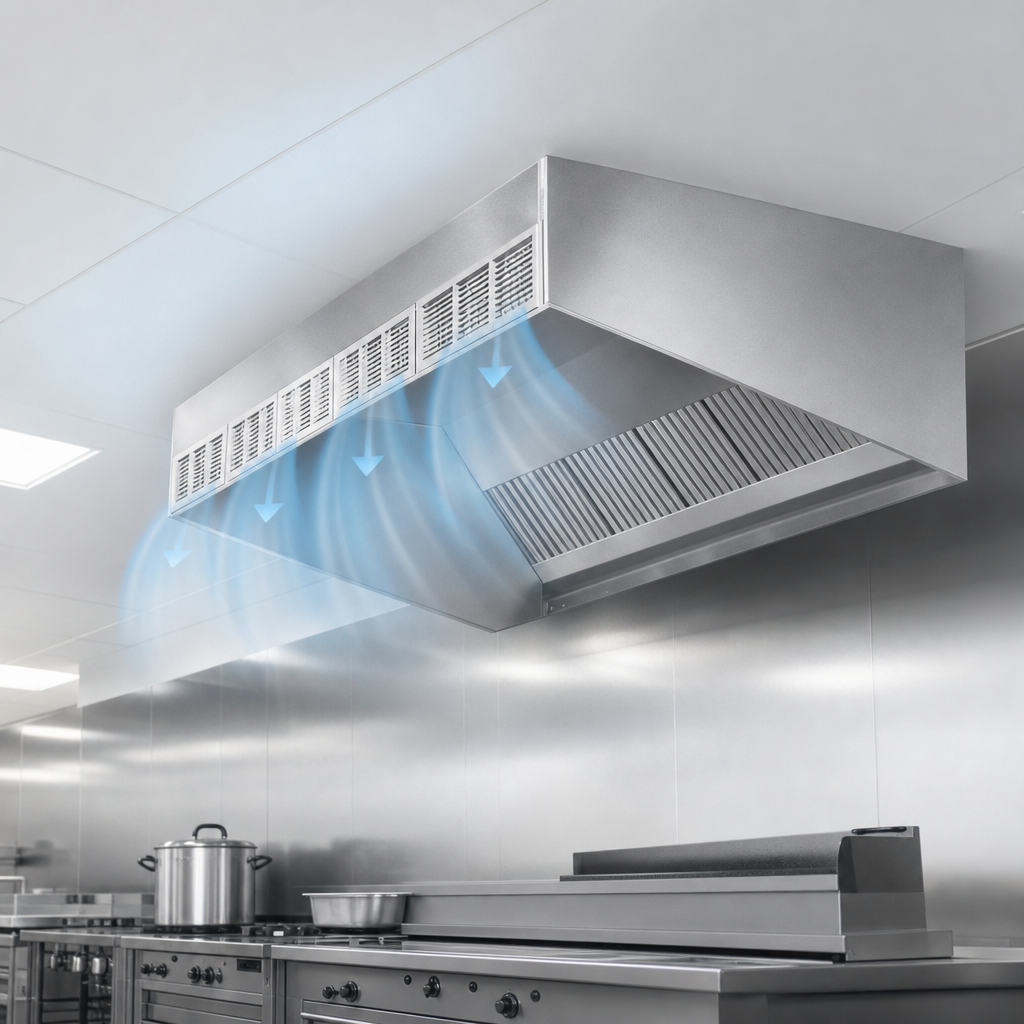

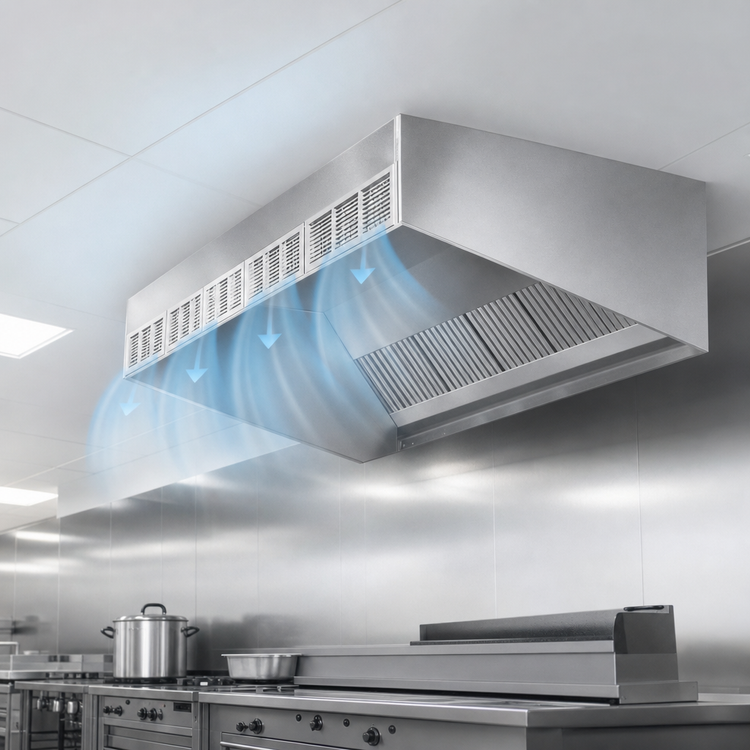

Front Discharge Make-Up Air

Supplies make-up air through the hood at ceiling level, ensuring efficient ventilation performance independent of other building systems.

Front Discharge Make-Up Air

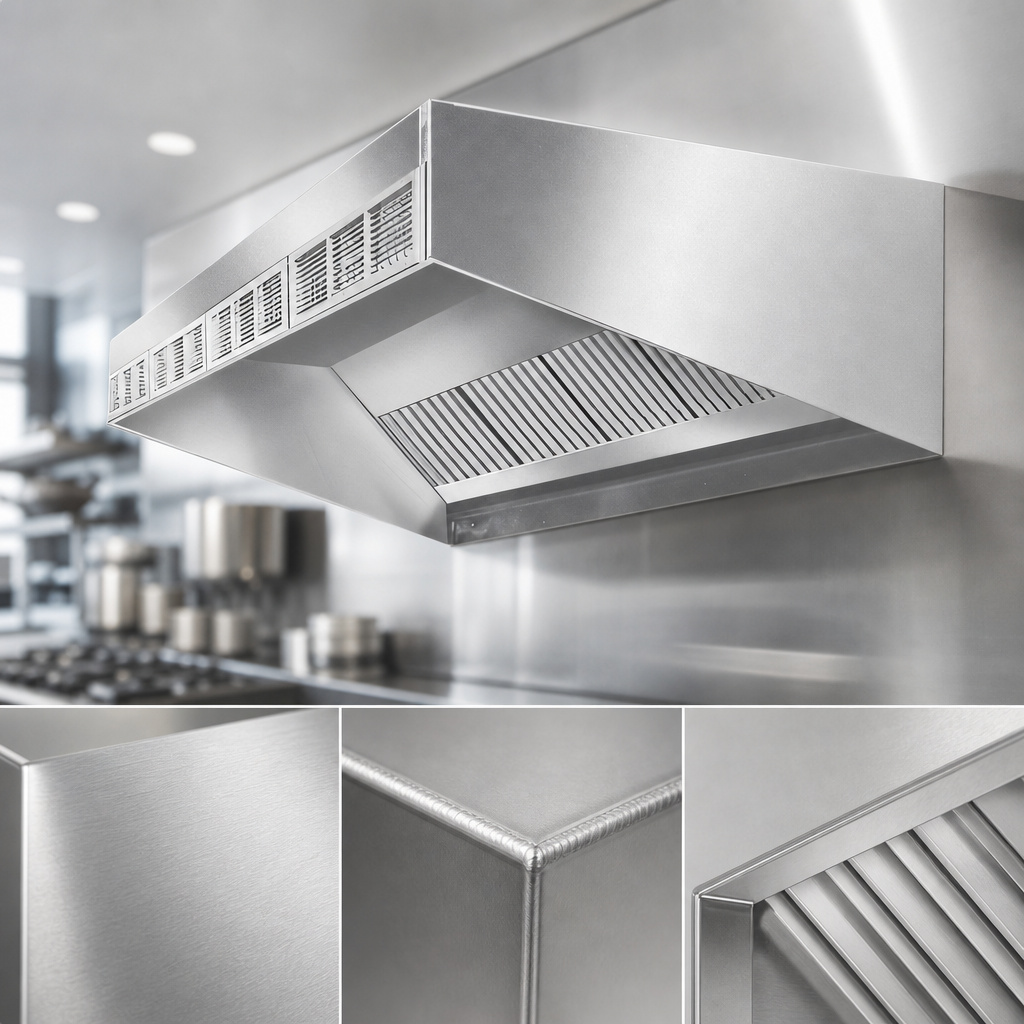

Heavy Gauge Stainless Steel Construction

Built with durable Type 430 stainless steel hood surfaces and canopy seams continuously welded liquid-tight for hygiene and longevity.

Heavy Gauge Stainless Steel Construction

Short Front Design

The HESFA series features a short front fascia, making it suitable for installations in commercial kitchens with low ceilings.

UL Classified Aluminum Filters

Equipped with removable, UL classified aluminum filters designed for easy cleaning and maintenance.

UL Listed Vapor-Proof Lighting

Includes UL-listed vapor-proof incandescent light fixtures that provide clear illumination within the hood area.

Grease Management System

Features a full-length stainless steel grease trough and a removable grease container for convenient collection and disposal of cooking grease.

Integrated Air Space

Standard 3-inch air space at the rear ensures proper installation and airflow.

Exhaust and Supply Collars

Furnished with exhaust and supply collars for straightforward connection to ductwork.

Mounting Channels

Includes front and rear mounting channels for secure and stable wall installation.

NFPA 96 Compliant

Constructed in accordance with NFPA 96 standards for fire protection in commercial cooking operations.

Type Exhaust Hood
Style Wall Type, Short Front
Installation Type Wall Mounted
Material Type 430 Stainless Steel
Width 114 Inches
Depth 51 Inches
Height 24 Inches
Weight 718 lb.
Shipping Width 114 Inches
Shipping Depth 51 Inches
Shipping Height 24 Inches
Shipping Weight 718 lb.
Air Space at Rear 3 Inches
Make-up Air Compensating (Front Discharge)
Exhaust CFM 3800 CFM
Number of Exhaust Collars 1
Exhaust Collar Width 10 Inches
Exhaust Collar Length 30 Inches
Supply CFM 3230 CFM
Number of Supply Collars 2
Supply Collar Width 10 Inches
Supply Collar Length 21 Inches
Number of Lights 3
Number of Filters 5
Selling Unit Each
Units Per Case 1
Country of Origin USA

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year limited warranty on parts and labor from the date of original installation, not to exceed 18 months from the date of shipment.

Documents

PDF Cutsheet PDF Download PDF Spec air® warranty PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The front discharge make-up air system supplies conditioned air through the hood at ceiling level, functioning independently of other ventilation systems, which helps maintain consistent indoor air quality and temperature in the kitchen.
The hood is constructed from heavy gauge Type 430 stainless steel, featuring continuously liquid-tight welded seams for durability and sanitation.
Yes, this hood is specifically designed for use in commercial cooking environments such as restaurants, kitchens, fast food establishments, and delis, adhering to NFPA 96 standards.
The hood is equipped with UL classified aluminum filters that are removable for easy cleaning, and it includes a full-length grease trough with a removable grease container for convenient disposal.
The SpecAir HESFA96-114 is NSF certified and constructed per NFPA 96 standards, ensuring it meets public health, safety, and fire protection requirements.
No, the models do not include installation supplies and materials, hanging of the ventilator, exhaust and supply fans, curbs, ductwork, transitions, roof/ceiling penetration and sealing, trim, flashing, permits, a fire protection system or tests, air balancing, or any electrical work.
