SpecAir HESFA96-102 102 Inch Wall Type Short Front Make-Up Air Commercial Kitchen Exhaust Hood

102 Inches Wide, 51 Inches Deep, Short Front, Front Discharge Make-Up Air

Designed for commercial kitchens, this SpecAir exhaust hood provides efficient ventilation with front discharge make-up air, specifically engineered for low ceiling applications.

  • Ideal for commercial cooking environments such as restaurants, kitchens, and delis.
  • Features a short front fascia (HESFA Series) making it perfect for installations with low ceilings.
  • Supplies make-up air directly through the hood, operating independently of other ventilation systems.
  • Constructed from durable heavy gauge type 430 stainless steel with liquid-tight welded seams.
  • Equipped with UL classified aluminum removable filters and UL vapor-proof incandescent light fixtures.
  • Includes a full-length grease trough and a removable grease container for easy maintenance.
  • Meets NFPA 96 standards for fire protection and is NSF certified for sanitation.

Overall Dimensions:

102.0"W x 51.0"D x 24.0"H

Product Weight:

642.0 lb

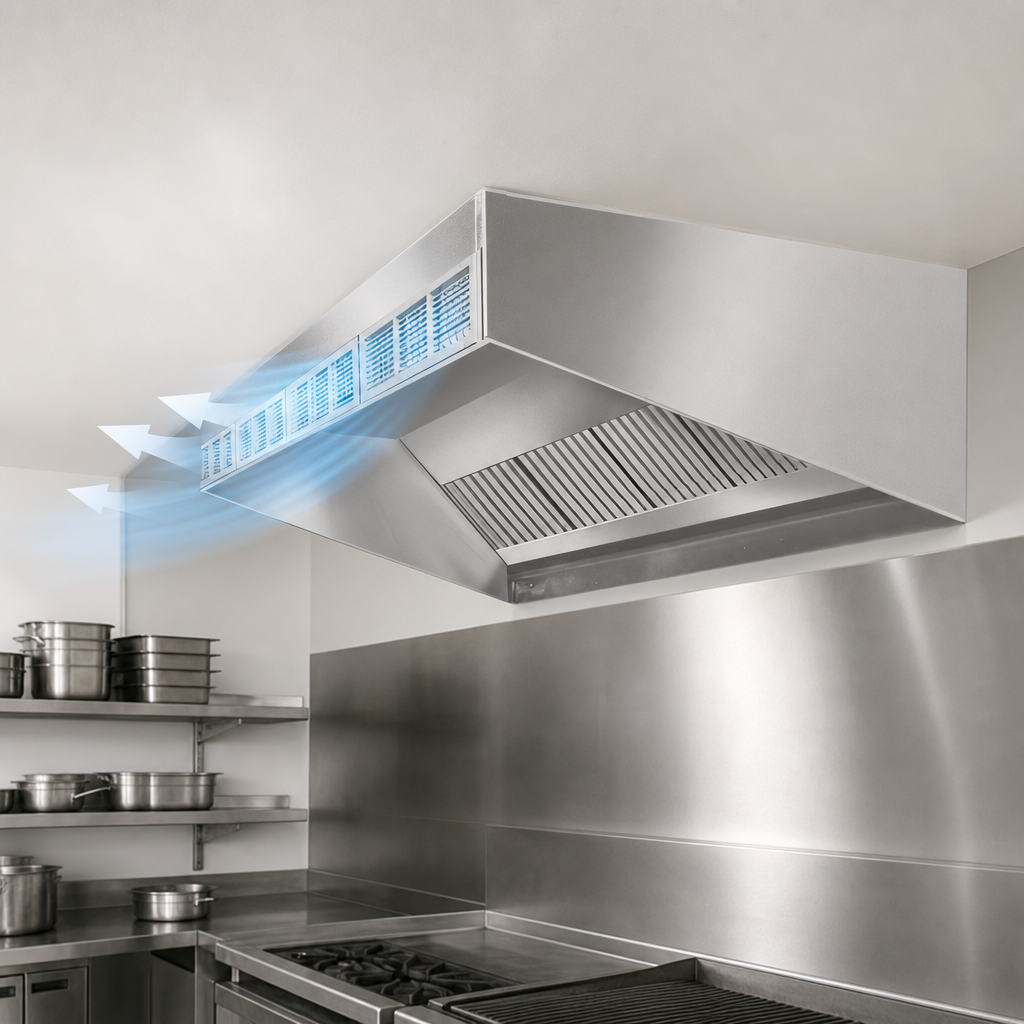

Front Discharge Make-Up Air

Make-up air is supplied through the hood at ceiling level, functioning independently of other ventilation systems, ensuring balanced airflow.

Front Discharge Make-Up Air

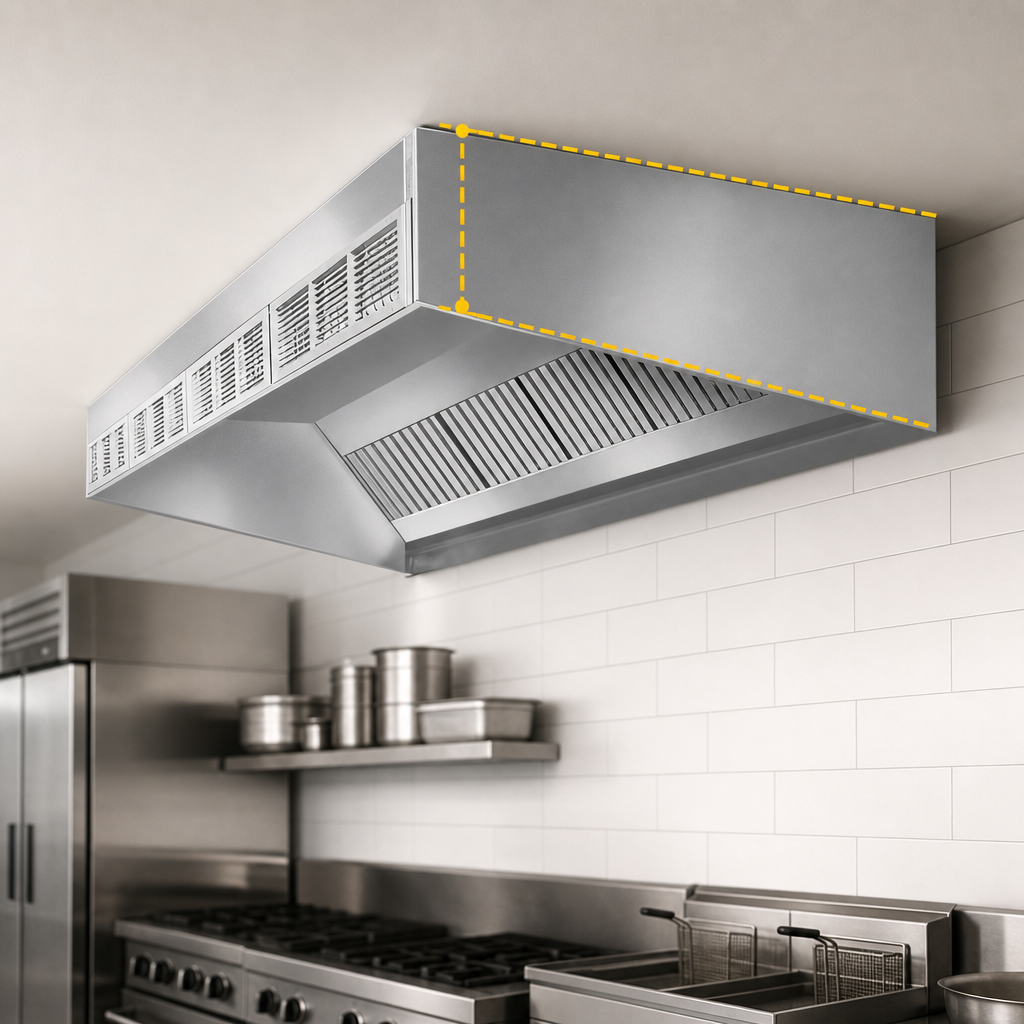

Short Front Fascia

This HESFA Series model is specifically designed with a short front fascia, making it an excellent choice for kitchens with low ceiling heights.

Short Front Fascia

Heavy Gauge Stainless Steel Construction

All hood surfaces are made from heavy gauge type 430 stainless steel, providing exceptional durability and corrosion resistance for commercial use.

Liquid-Tight Welded Seams

The canopy seams are continuously welded liquid-tight, in accordance with NFPA 96 standards, enhancing safety and cleanliness.

UL Classified Aluminum Filters

Furnished with UL classified aluminum filters that are easily removable for convenient cleaning and maintenance.

UL Listed Vapor-Proof Incandescent Lights

Includes vapor-proof incandescent light fixtures that are UL-listed, providing reliable illumination within the hood area.

Full-Length Grease Trough

A full-length stainless steel grease trough is integrated to efficiently collect grease and prevent drips.

Removable Grease Container

Comes with a removable grease container for quick and easy disposal of accumulated grease.

3 Inch Air Space at Rear

Features a standard 3-inch (76mm) air space at the rear for optimal performance and installation.

Exhaust and Supply Collars

Includes exhaust and supply collars for seamless integration with ductwork.

Front and Rear Mounting Channels

Equipped with front and rear mounting channels to facilitate secure and stable installation.

Type Exhaust Hood
Style Wall Type
Installation Type Wall Mounted
Material 430 Stainless Steel
Width 102 Inches
Depth 51 Inches
Height 24 Inches
Weight 642 lb.
Air Space at Rear 3 Inches
Exhaust CFM 3400
Exhaust Collars 1
Exhaust Collar Width 10 Inches
Exhaust Collar Length 27 Inches
Supply CFM 2890
Supply Collars 2
Supply Collar Width 10 Inches
Supply Collar Length 19 Inches
Number of Lights 3
Number of Filters 4
Selling Unit Each
Units Per Case 1
Shipping Width 102 Inches
Shipping Depth 51 Inches
Shipping Height 24 Inches
Shipping Weight 642.0 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year parts and labor limited warranty

Documents

PDF Cutsheet PDF Download PDF Spec air® warranty PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

This SpecAir exhaust hood is suitable for various commercial cooking applications, including restaurants, kitchens, fast food establishments, and delis.
The 'short front fascia' of the HESFA Series is specifically designed to accommodate installations in commercial kitchens that have low ceiling heights, ensuring proper fit and function.
The hood supplies make-up air directly through its design at ceiling level. This system operates independently of any other existing ventilation systems in the building, ensuring balanced and efficient air exchange.
The hood's surfaces are constructed from heavy gauge type 430 stainless steel, providing durability and meeting commercial sanitation standards.
Yes, the hood is equipped with UL classified aluminum filters that are easily removable, simplifying the cleaning and maintenance process.
Yes, this hood is constructed per NFPA 96 standards, which addresses fire protection for commercial cooking operations, and is also NSF certified for sanitation.
