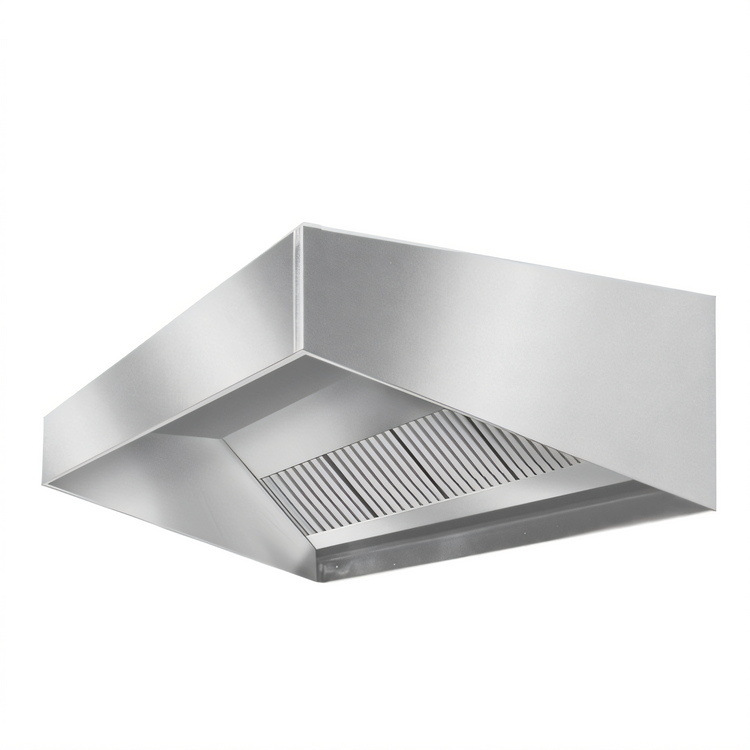

SpecAir HES96-78 78-Inch Short Front Wall Mount Exhaust-Only Hood

Non-Compensating, 430 Stainless Steel, Exhaust-Only

Designed for commercial cooking environments, the SpecAir HES96-78 provides efficient exhaust ventilation with a compact, short-front design ideal for low ceiling applications.

  • Constructed from durable heavy gauge Type 430 stainless steel for long-lasting performance.
  • Features a non-compensating, exhaust-only design, perfect for kitchens with existing make-up air systems.
  • Equipped with UL-classified aluminum filters that are removable for easy cleaning and maintenance.
  • Includes a full-length grease trough and removable grease container to manage cooking byproducts.
  • Short front design (24 inches high at back) is optimized for installations with lower ceiling clearances.
  • UL-listed vapor-proof incandescent light fixtures ensure proper illumination of the cooking surface.

Overall Dimensions:

78.0"W x 51.0"D x 24.0"H

Product Weight:

481.0 lb

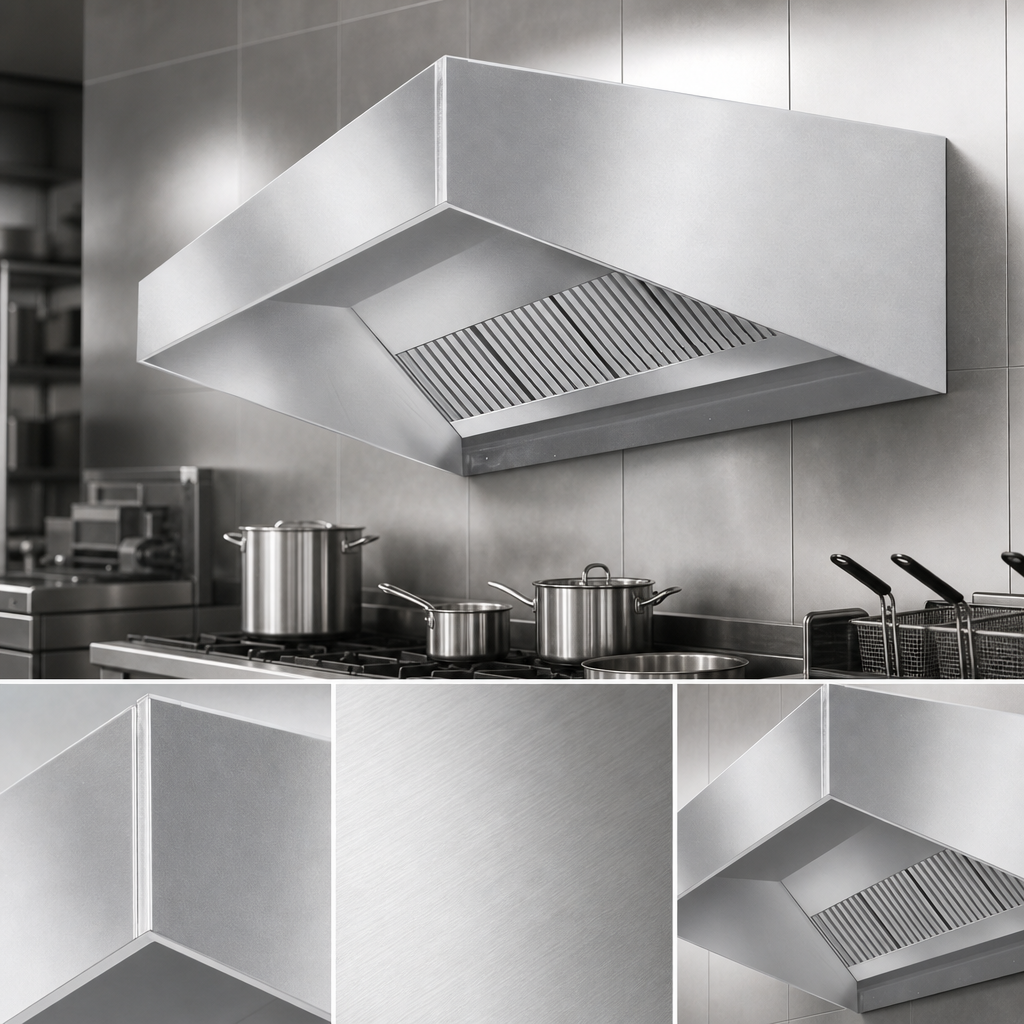

Heavy Gauge 430 Stainless Steel Construction

Exposed surfaces are made from heavy gauge type 430 stainless steel, ensuring durability and corrosion resistance in a demanding commercial kitchen environment.

Heavy Gauge 430 Stainless Steel Construction

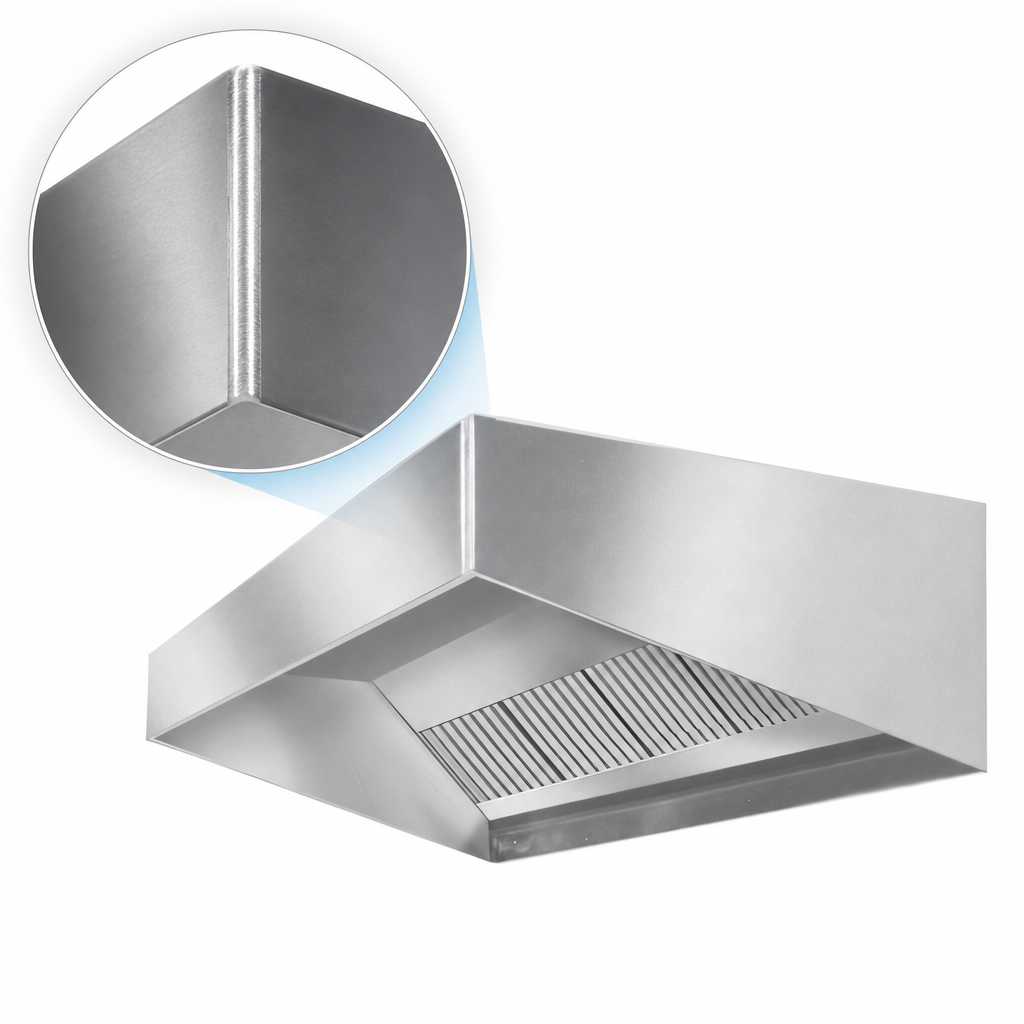

Liquid-Tight Welded Seams

All canopy seams are continuously welded liquid-tight, constructed per NFPA 96 standards, to prevent leaks and ensure structural integrity.

Liquid-Tight Welded Seams

Removable Aluminum Grease Filters

Comes with UL-classified aluminum filters that are easily removable for convenient cleaning and maintenance, ensuring efficient grease capture.

Vapor-Proof Incandescent Lighting

Includes UL-listed vapor-proof incandescent light fixtures to provide safe and effective illumination over the cooking area.

Full-Length Grease Trough & Container

Features a full-length stainless steel grease trough and a removable grease container, simplifying the collection and disposal of cooking grease.

Short Front Design

Part of the HES Series with a short front fascia, specifically designed for applications with low ceiling clearances without compromising ventilation performance.

Integrated Air Space

Built with a standard 3-inch (76mm) air space at the rear for proper air circulation and installation requirements.

Type Exhaust Hood
Style Wall Type
Installation Type Wall Mounted
Hood Style Short Front
Make-up Air Non-Compensating
Width 78 Inches
Depth 51 Inches
Height 24 Inches
Material 430 Stainless Steel
Exhaust CFM 2600 CFM
Exhaust Collar Size 10 Inches x 20.75 Inches
Number of Exhaust Collars 1
Number of Lights 2
Number of Filters 3
Shipping Width 78 Inches
Shipping Depth 51 Inches
Shipping Height 24 Inches
Shipping Weight 481 lb.
Selling Unit Each
Units Per Case 1
Country of Origin USA

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year limited warranty on parts and labor from installation date, not to exceed 18 months from shipment.

Documents

PDF Cutsheet PDF Download PDF Spec air® warranty PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The SpecAir HES96-78 exhaust hood is constructed from heavy gauge type 430 stainless steel on all exposed surfaces for durability and commercial use.
Yes, this is an exhaust-only, non-compensating vent hood, designed for use where make-up air is supplied by other ventilation systems.
The 'short front' design (HES Series) is specifically engineered for low ceiling applications, allowing for installation in spaces where a regular hood might not fit due to height constraints.
Yes, the UL-classified aluminum filters are removable for easy cleaning and maintenance, ensuring the hood operates efficiently.
Yes, the hood comes with two UL-listed vapor-proof incandescent light fixtures to provide adequate illumination over the cooking surface.
The HES96-78 model provides 2600 CFM of exhaust at 1800 FPM with a 0.65 inches S.P.
