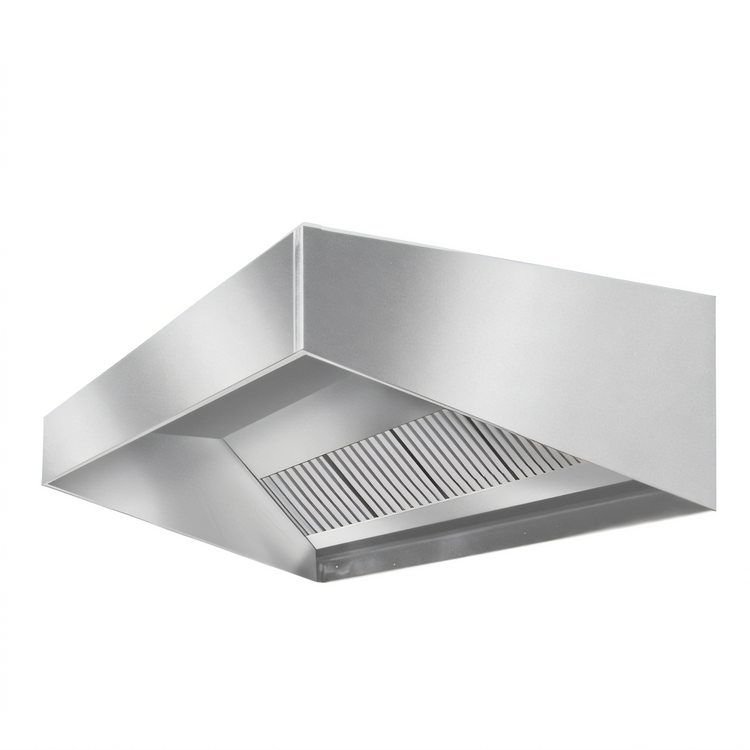

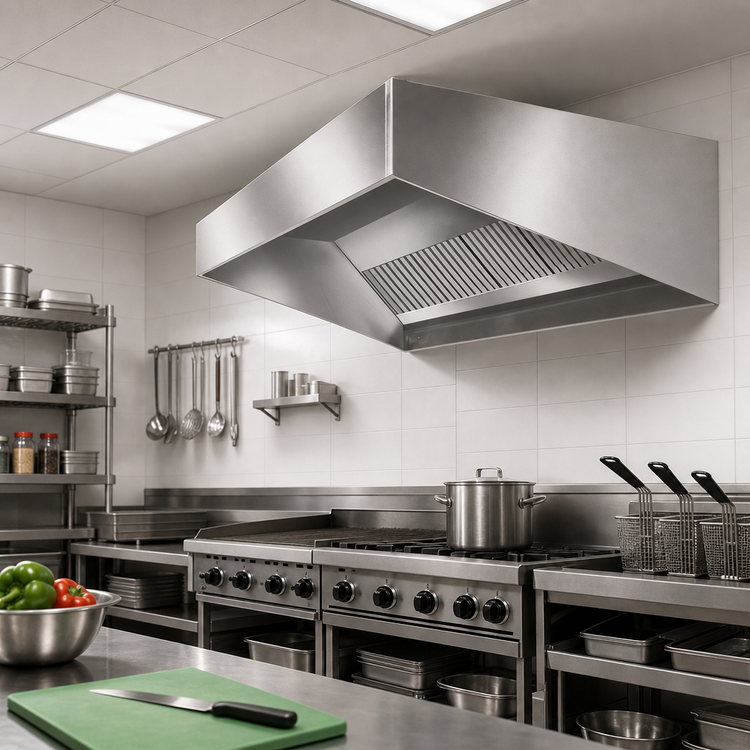

SpecAir HES96-66 Short Front Wall Type Exhaust-Only Ventilation Hood, 66 Inches Wide

Non-Compensating, 51 Inches Deep, Stainless Steel

Designed for efficiency and durability, the SpecAir HES96-66 short front exhaust-only hood provides robust ventilation for commercial kitchens with low ceiling clearance.

  • Specifically engineered with a short front fascia for optimal performance in low ceiling applications.
  • Constructed from heavy gauge Type 430 stainless steel, ensuring durability and ease of cleaning in demanding kitchen environments.
  • Features UL classified aluminum removable filters, a full-length grease trough, and a removable grease container for effective grease management.
  • Equipped with UL listed vapor-proof incandescent lighting to illuminate the cooking surface.
  • Non-compensating design is ideal for kitchens with existing make-up air systems.
  • All seams are continuously welded liquid-tight, complying with NFPA 96 standards for safety and cleanliness.

Overall Dimensions:

66.0"W x 51.0"D x 24.0"H

Product Weight:

378.0 lb

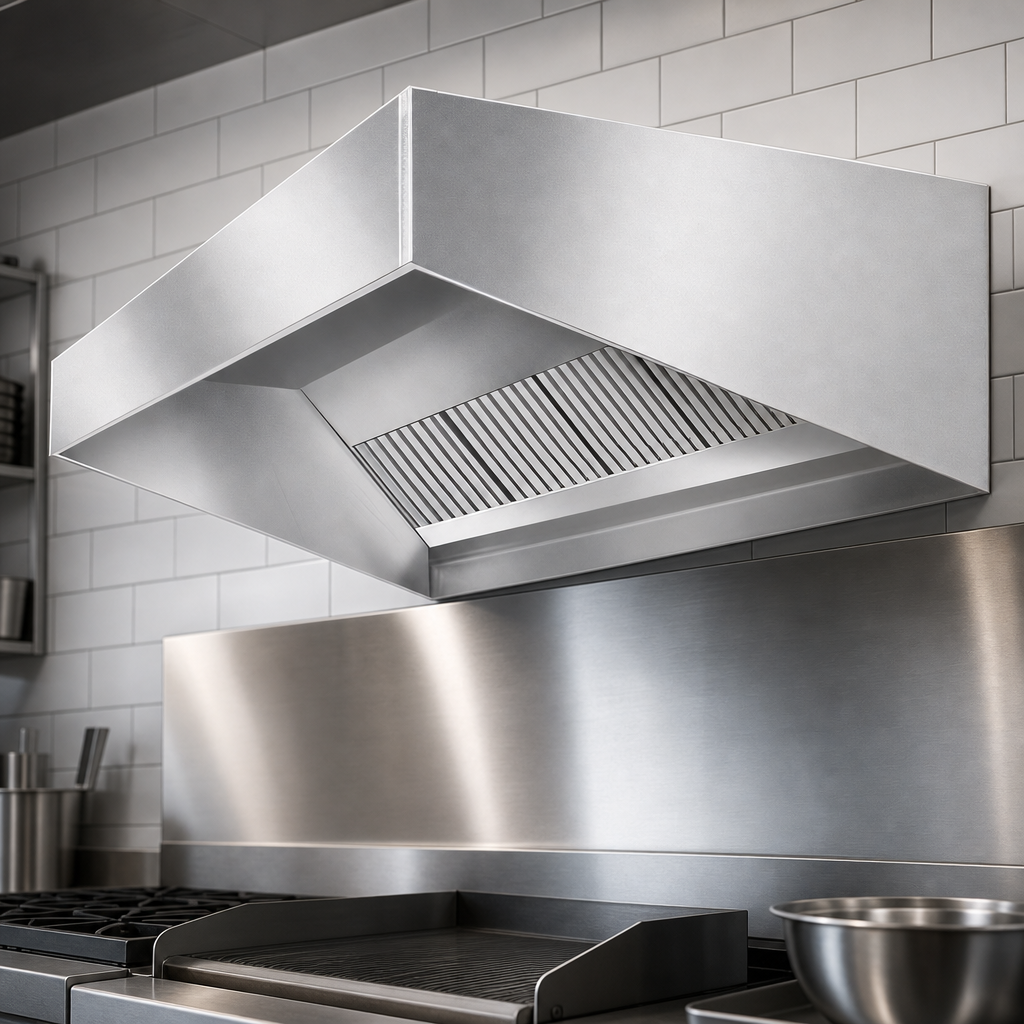

Heavy Gauge Stainless Steel Construction

Exposed surfaces are made from heavy gauge Type 430 stainless steel, offering durability, corrosion resistance, and simplified cleaning for commercial use.

Heavy Gauge Stainless Steel Construction

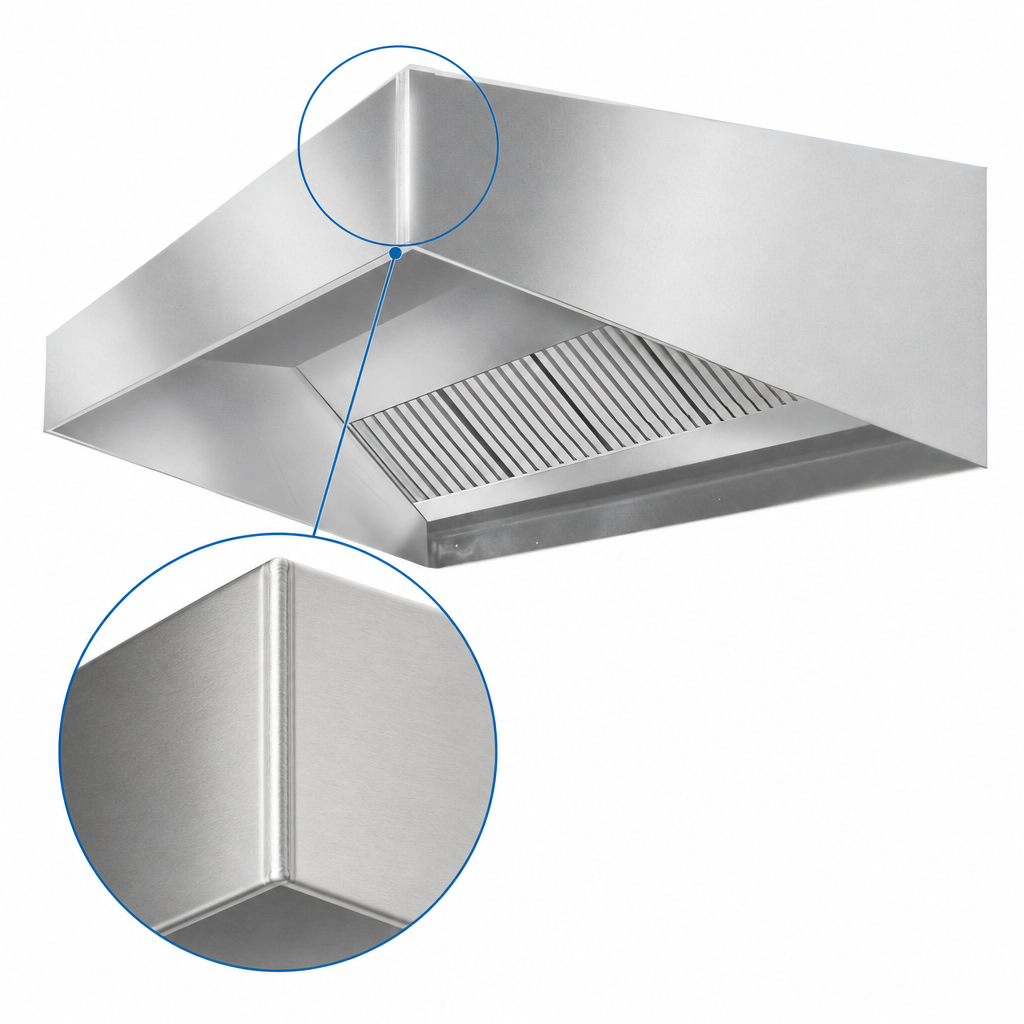

Liquid-Tight Welded Seams

Canopy seams are continuously welded liquid-tight to prevent grease leakage and comply with NFPA 96 safety standards.

Liquid-Tight Welded Seams

Full-Length Grease Trough

A stainless steel grease trough runs the full length of the hood, efficiently collecting grease runoff.

Removable Grease Container

Includes a readily removable grease container for convenient disposal of collected grease.

UL Classified Aluminum Filters

Equipped with UL classified aluminum filters that are removable for easy cleaning and maintenance, effectively capturing airborne grease.

UL Vapor-Proof Incandescent Light

Features UL listed vapor-proof incandescent light fixtures, providing clear illumination of the cooking surface while being protected from moisture and vapors.

3-Inch Rear Air Space

Designed with a 3-inch (76mm) air space at the rear, facilitating proper ventilation and installation clearance.

Front and Rear Hanger Brackets

Includes integrated front and rear hanger brackets for secure and straightforward wall mounting.

Exhaust Collars

Furnished with exhaust collars for connecting to external ductwork, ensuring efficient removal of cooking exhaust.

Short Front Design

Optimized with a short front fascia, making it suitable for installation in commercial kitchens with lower ceiling heights.

Type Exhaust-Only Ventilation Hood
Style Short Front
Installation Type Wall Mounted
Material 430 Stainless Steel
Make-up air Non-Compensating
Exhaust CFM 2200 CFM
Number of Exhaust Collars 1
Exhaust Collar Width 10 Inches
Exhaust Collar Length 17.5 Inches
Number of Lights 2
Number of Filters 3
Shipping Width 66 Inches
Shipping Depth 51 Inches
Shipping Height 24 Inches
Shipping Weight 378 lbs.
Selling Unit Each
Units Per Case 1
Country of Origin USA

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year limited warranty on parts and labor.

Documents

PDF Cutsheet PDF Download PDF Spec air® warranty PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The HES96-66 is an exhaust-only ventilation hood designed specifically for commercial cooking environments, particularly suitable for installations with low ceiling clearances due to its short front design.
The hood's exposed surfaces are constructed from heavy gauge Type 430 stainless steel, ensuring durability, easy cleaning, and resistance to corrosion.
Yes, the HES96-66 comes equipped with two UL listed vapor-proof incandescent light fixtures to provide illumination over the cooking area.
Yes, the hood includes UL classified aluminum filters that are removable, making them easy to clean and maintain.
The HES96-66 measures 66 inches wide, 51 inches deep (front-to-back), and 24 inches high.
This is a non-compensating exhaust-only hood, designed for use where make-up air is supplied by separate ventilation systems.
