Eagle Group

SpecAir HES96-60 Wall-Type Short Front Exhaust-Only Commercial Kitchen Hood, 60 x 51 x 24 Inches

SKU: HES96-60
$4,289.03
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Kitchen Hoods Eagle Group Exhaust Only Hoods Hoods & Ventilation Kitchen Ventilation & Climate Control New Arrivals Restaurant Equipment

SpecAir HES96-60 Wall-Type Short Front Exhaust-Only Commercial Kitchen Hood, 60 x 51 x 24 Inches

Non-Compensating, Stainless Steel, Low-Ceiling Design

Built for low-ceiling commercial kitchens, this 60-inch wall-type short-front exhaust hood delivers durable stainless steel construction and non-compensating exhaust-only performance.

  • 60-inch wall-type exhaust-only hood for commercial kitchen ventilation.
  • Short-front profile is suited for low-ceiling applications.
  • Non-compensating design is intended for use with separate make-up air systems.
  • Heavy-gauge type 430 stainless steel construction with liquid-tight welded seams.
  • Includes grease trough, grease container, removable aluminum filters, vapor-proof light fixture, and exhaust collars.
  • 3-inch rear air space and front/rear hanger brackets support installation.

Overall Dimensions:

60.0"W x 51.0"D x 24.0"H

Product Weight:

344.0 lb

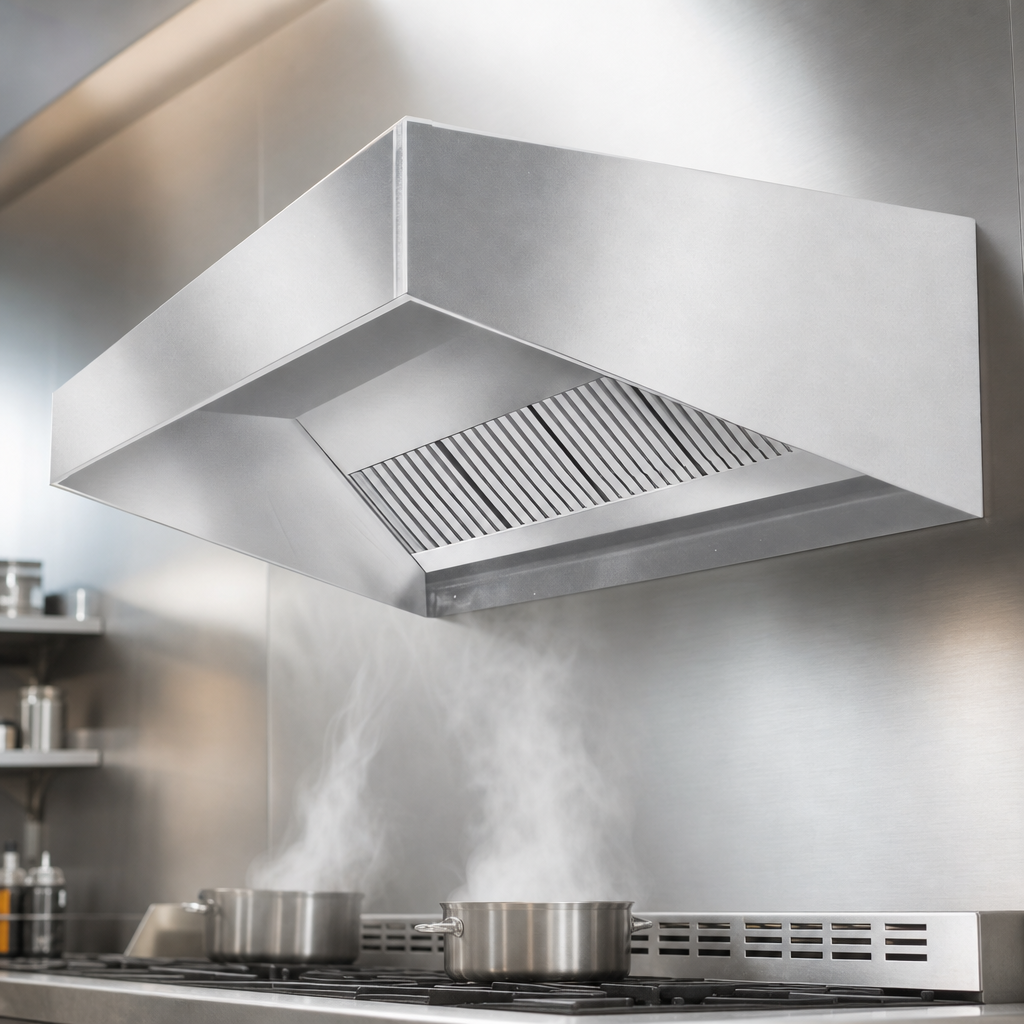

Exhaust-Only, Non-Compensating Design

Designed for kitchens where make-up air is supplied by other ventilation systems.

Exhaust-Only, Non-Compensating Design

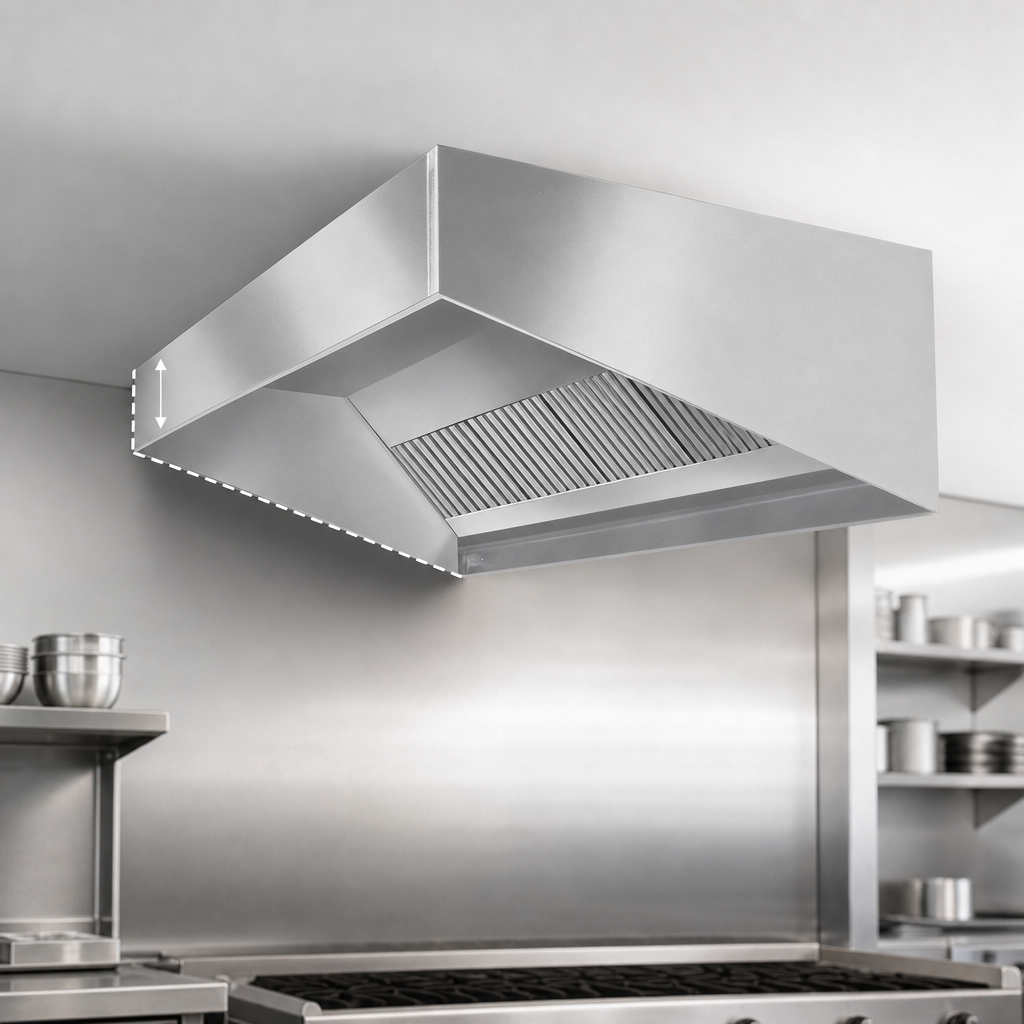

Short Front Profile

The short-front fascia helps the hood fit low-ceiling installations.

Short Front Profile

Stainless Steel Construction

Built with all stainless steel construction and heavy-gauge type 430 stainless steel exposed surfaces.

Liquid-Tight Welded Seams

Continuously welded seams help contain grease and improve durability.

Grease Management System

Includes a full-length stainless steel grease trough and grease container.

Removable Aluminum Filters

UL-classified aluminum filters are removable for easy cleaning.

Vapor-Proof Lighting

Furnished with a UL vapor-proof incandescent light fixture.

Installation Support

Features 3-inch rear air space, front and rear hanger brackets, and exhaust collars.

Code Compliance

Constructed per NFPA 96 and listed NSF.

Type Exhaust-Only Hood
Style Wall Type
Front Style Short Front
Installation Type Wall Mounted
Make-Up Air Non-Compensating
Material Stainless Steel
Finish Type 430 Stainless Steel
Air Space At Rear 3 Inches
Shipping Width 60 Inches
Shipping Depth 51 Inches
Shipping Height 24 Inches
Shipping Weight 344 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year limited warranty from original installation, not to exceed 18 months from shipment.

Documents

PDF Cutsheet PDF Download PDF Spec air® warranty PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

Yes. It is an exhaust-only, non-compensating hood designed for use with make-up air supplied by other systems.
The hood measures 60 inches wide, 51 inches deep, and 24 inches high.
Yes. The HES short-front series is designed for low-ceiling applications.
Standard features include a grease trough, grease container, removable aluminum filters, a vapor-proof incandescent light fixture, 3-inch rear air space, front and rear hanger brackets, and exhaust collars.
It is constructed from stainless steel with heavy-gauge type 430 stainless steel exposed surfaces.
Yes. The hood is constructed per NFPA 96 and is listed NSF.
