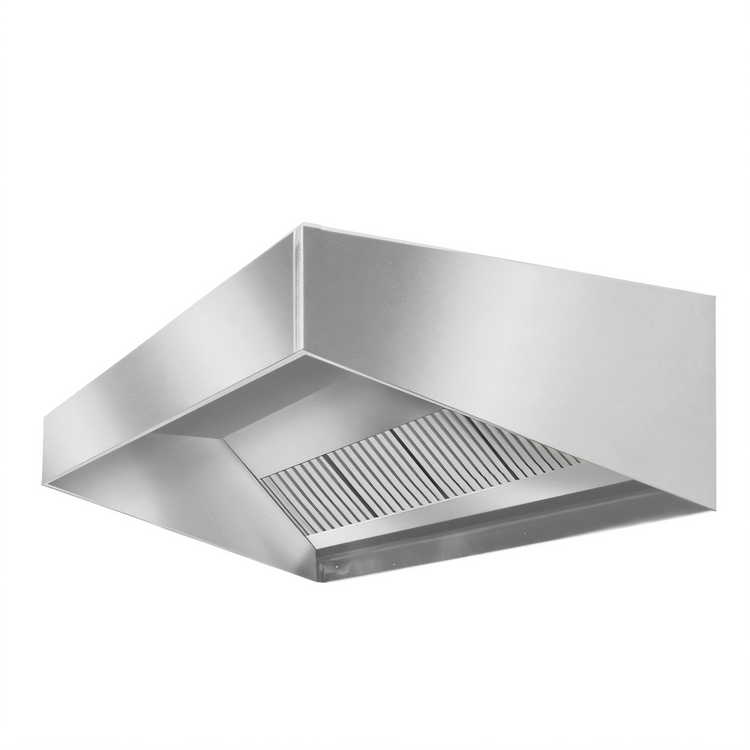

SpecAir HES96-144 144" Wall Type Exhaust-Only Commercial Kitchen Hood

Short Front, Non-Compensating, 51" Deep

Designed for demanding commercial kitchen environments, the SpecAir HES96-144 exhaust hood efficiently removes smoke, grease, and odors, featuring durable stainless steel construction and essential safety components.

  • Heavy gauge type 430 stainless steel construction ensures long-lasting durability in commercial settings.
  • Exhaust-only design for use with separate make-up air systems, preventing negative pressure issues.
  • Short front fascia specifically designed for low ceiling applications, maximizing usable kitchen space.
  • Equipped with UL classified aluminum grease filters and vapor-proof incandescent lights for safety and functionality.
  • Seamless, liquid-tight welded construction meets NFPA 96 standards for fire safety.
  • Includes full-length grease trough and removable grease container for easy cleaning and maintenance.

Overall Dimensions:

144.0"W x 51.0"D x 24.0"H

Product Weight:

825.0 lb

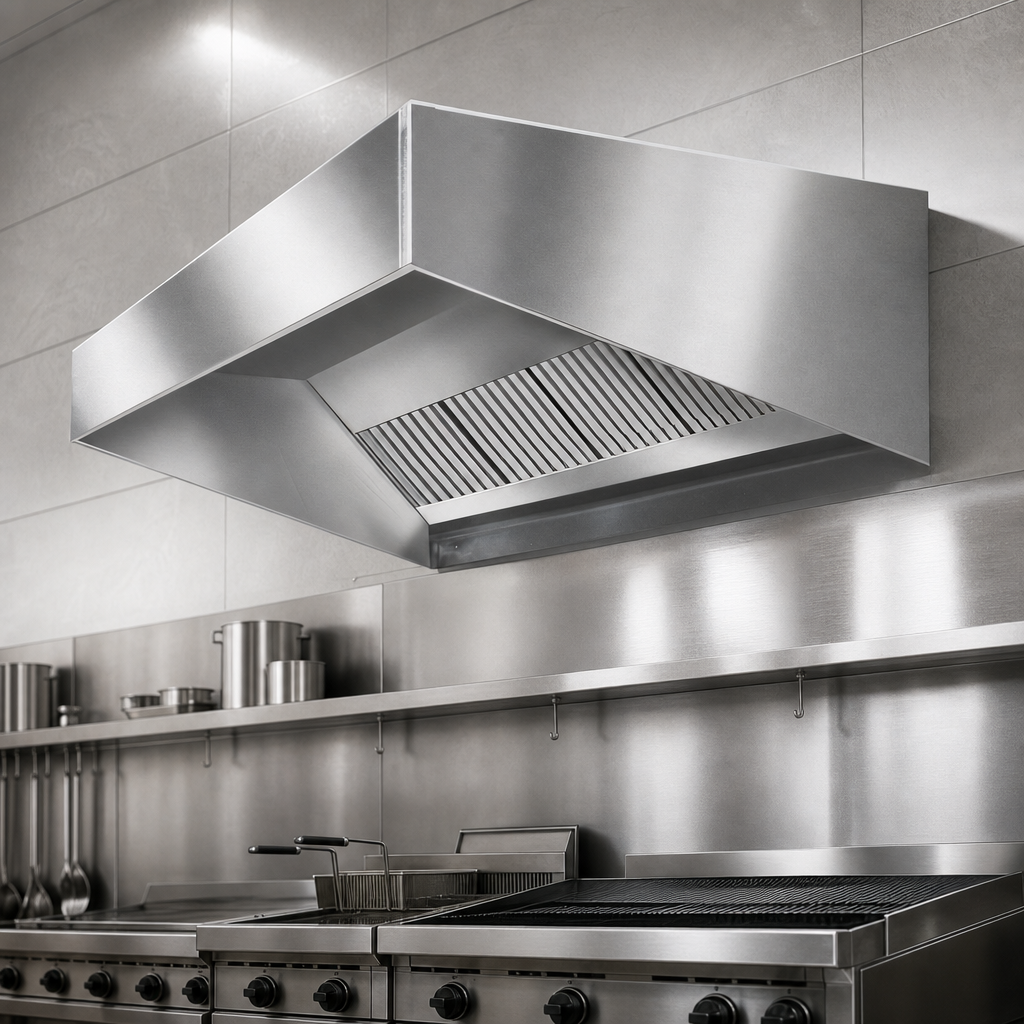

Durable Stainless Steel Construction

Exposed surfaces are made from heavy gauge type 430 stainless steel, providing robust durability and corrosion resistance for commercial use.

Durable Stainless Steel Construction

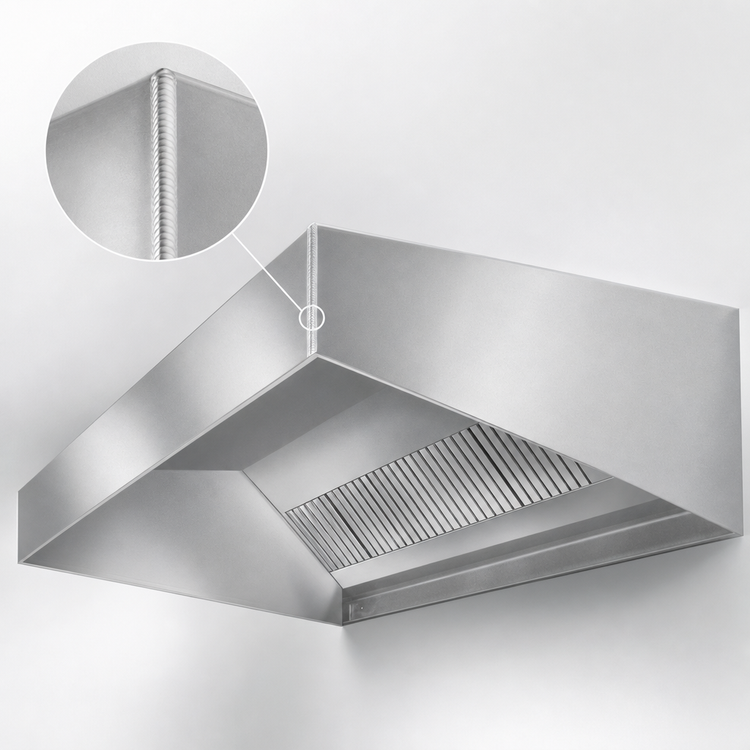

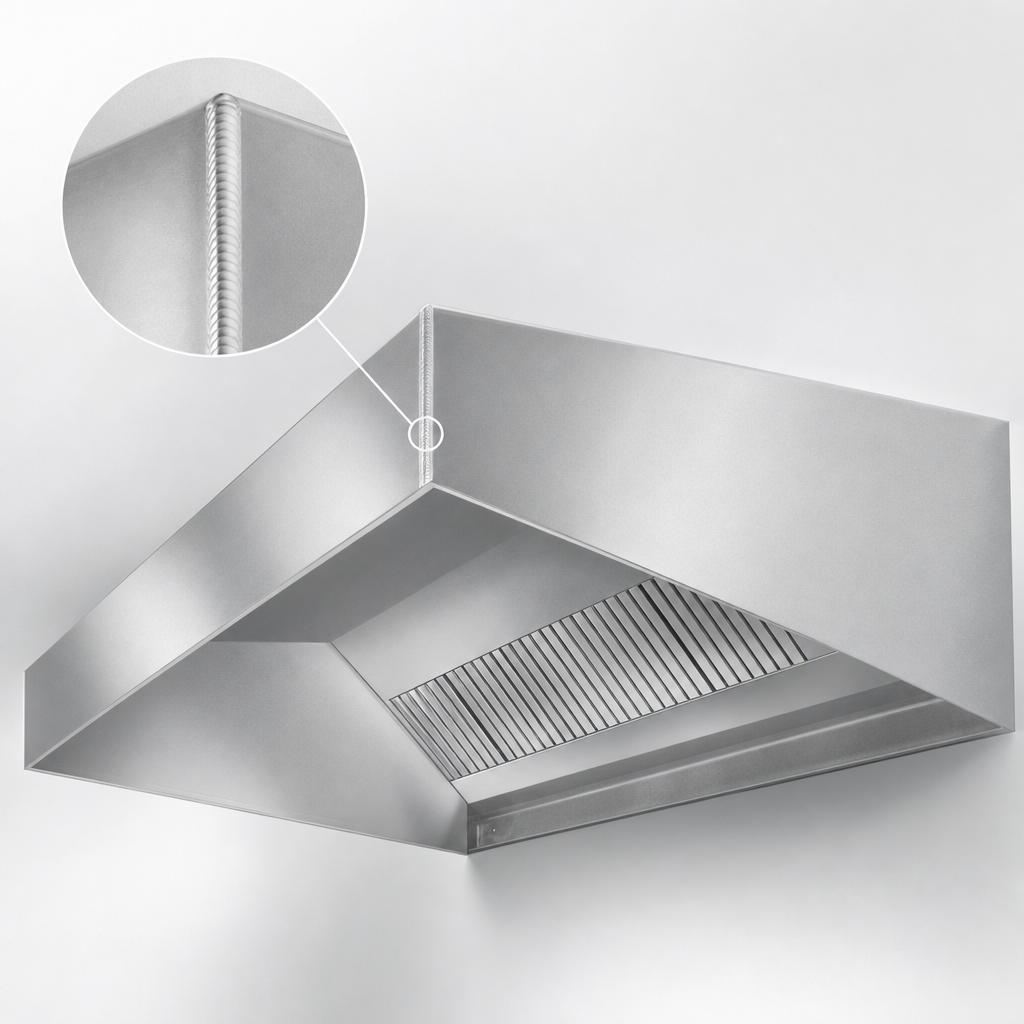

Liquid-Tight Welded Seams

All canopy seams are continuously welded liquid-tight, ensuring compliance with NFPA 96 and preventing grease leakage.

Liquid-Tight Welded Seams

Exhaust-Only Design

This non-compensating hood is designed for applications where make-up air is supplied by separate ventilation systems, preventing interference with the exhaust fan's performance.

Short Front Fascia

Part of the HES Series, this hood features a short front, making it ideal for installation in kitchens with lower ceiling clearances.

UL Classified Aluminum Filters

Comes with easily removable, UL classified aluminum filters designed for efficient grease capture and simple cleaning.

UL Vapor-Proof Incandescent Lighting

Equipped with UL-listed vapor-proof incandescent light fixtures to provide safe and effective illumination over the cooking surface.

Integrated Grease Management

Features a full-length stainless steel grease trough and a removable grease container for effective collection and disposal of cooking byproducts.

Air Space at Rear

Includes a 3 inch (76mm) air space at the rear for proper ventilation and installation requirements.

Hanging Brackets

Furnished with front and rear hanger brackets for secure wall-type installation.

Exhaust Collars

Comes with two 10 inch x 19 inch exhaust collars for connection to the ductwork.

Type Exhaust Hood
Style Wall Type
Installation Type Wall Mounted
Make-up Air Non-Compensating (Exhaust-Only)
Material Type 430 Stainless Steel
Exhaust CFM 4800 CFM
Number of Exhaust Collars 2
Exhaust Collar Size 10 Inches x 19 Inches
Number of Lights Per Hood 4
Number of Filters Per Hood 6
Air Space 3 Inches at Rear
Shipping Width 144 Inches
Shipping Depth 51 Inches
Shipping Height 24 Inches
Shipping Weight 825 lb.
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year limited warranty on parts and workmanship from installation date (up to 18 months from shipment).

Documents

PDF Cutsheet PDF Download PDF Spec air® warranty PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The SpecAir HES96-144 exhaust hood is designed for use in various commercial cooking operations such as restaurants, kitchens, fast food establishments, and delis.
Yes, this is an exhaust-only, non-compensating hood. It is designed for use where make-up air is supplied by other ventilation systems to ensure proper air balance and exhaust performance.
The HES Series, which includes the HES96-144, features a short front fascia, making it suitable for low ceiling applications. The HEB Series consists of regular hoods, without the short front design.
The hood comes equipped with UL-listed vapor-proof incandescent light fixtures to provide illumination over the cooking area while protecting against moisture.
The HES96-144 model features two 10 inch by 19 inch exhaust collars and six UL classified aluminum filters for efficient grease capture.
The hood's exposed surfaces are constructed from heavy gauge type 430 stainless steel, known for its durability and suitability in commercial kitchen settings.
