Eagle Group

SpecAir HES96-132 132-Inch Wall Type Exhaust-Only Commercial Kitchen Hood

SKU: HES96-132
$10,202.04
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Kitchen Hoods Eagle Group Exhaust Only Hoods Hoods & Ventilation Kitchen Ventilation & Climate Control New Arrivals Restaurant Equipment

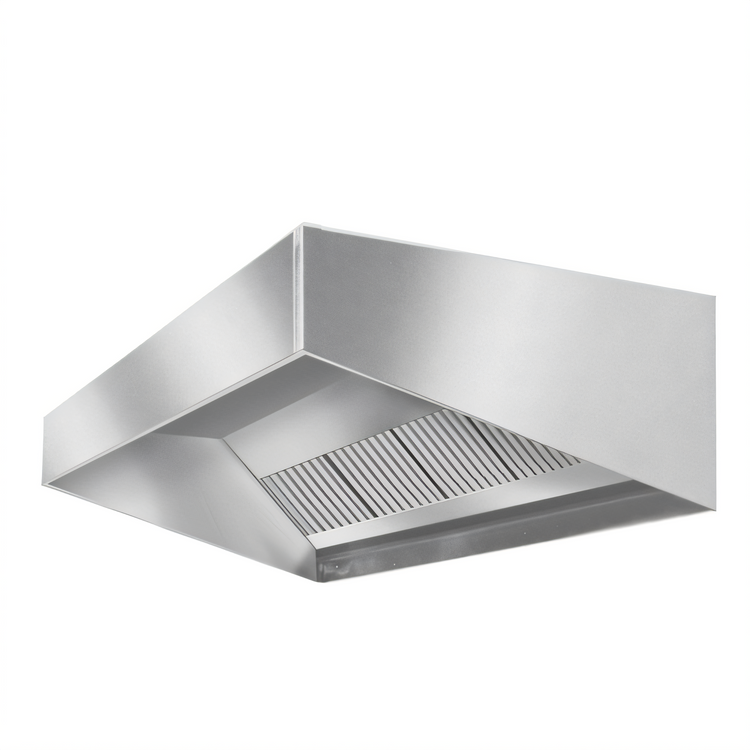

SpecAir HES96-132 132-Inch Wall Type Exhaust-Only Commercial Kitchen Hood

132"W, 51"D, Short Front, Non-Compensating

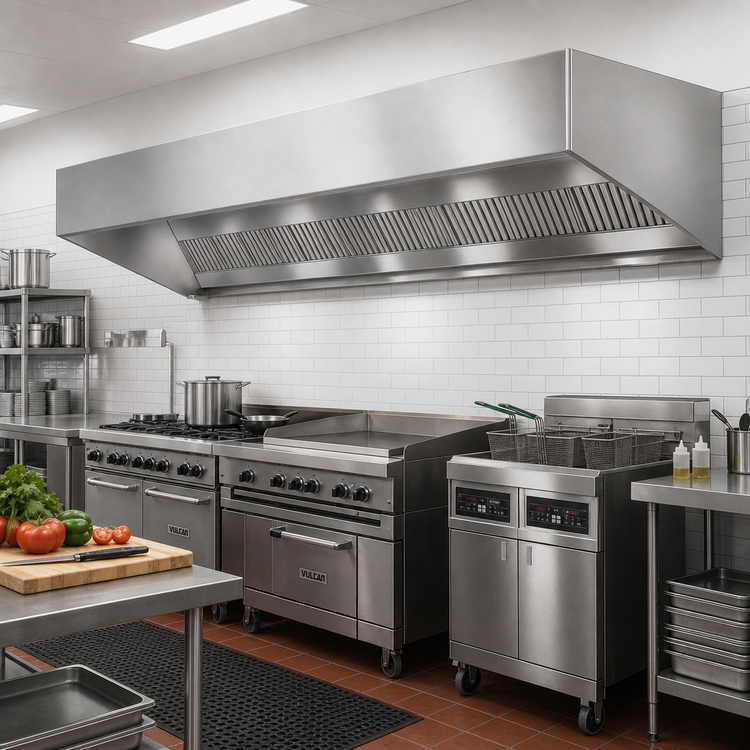

Designed for demanding commercial kitchens, the SpecAir HES96-132 exhaust hood efficiently removes smoke, steam, and odors, ensuring a clean and safe cooking environment.

  • Heavy-gauge type 430 stainless steel construction ensures durability and easy cleaning.
  • Exhaust-only design for environments where make-up air is supplied by separate systems.
  • Features a short front fascia, ideal for installations in kitchens with lower ceiling heights.
  • Continuously liquid-tight welded seams comply with NFPA 96 standards for safety.
  • Equipped with UL classified aluminum removable filters and vapor-proof incandescent lighting.
  • Includes a full-length grease trough and removable grease container for convenient maintenance.

Overall Dimensions:

132.0"W x 51.0"D x 24.0"H

Product Weight:

756.0 lb

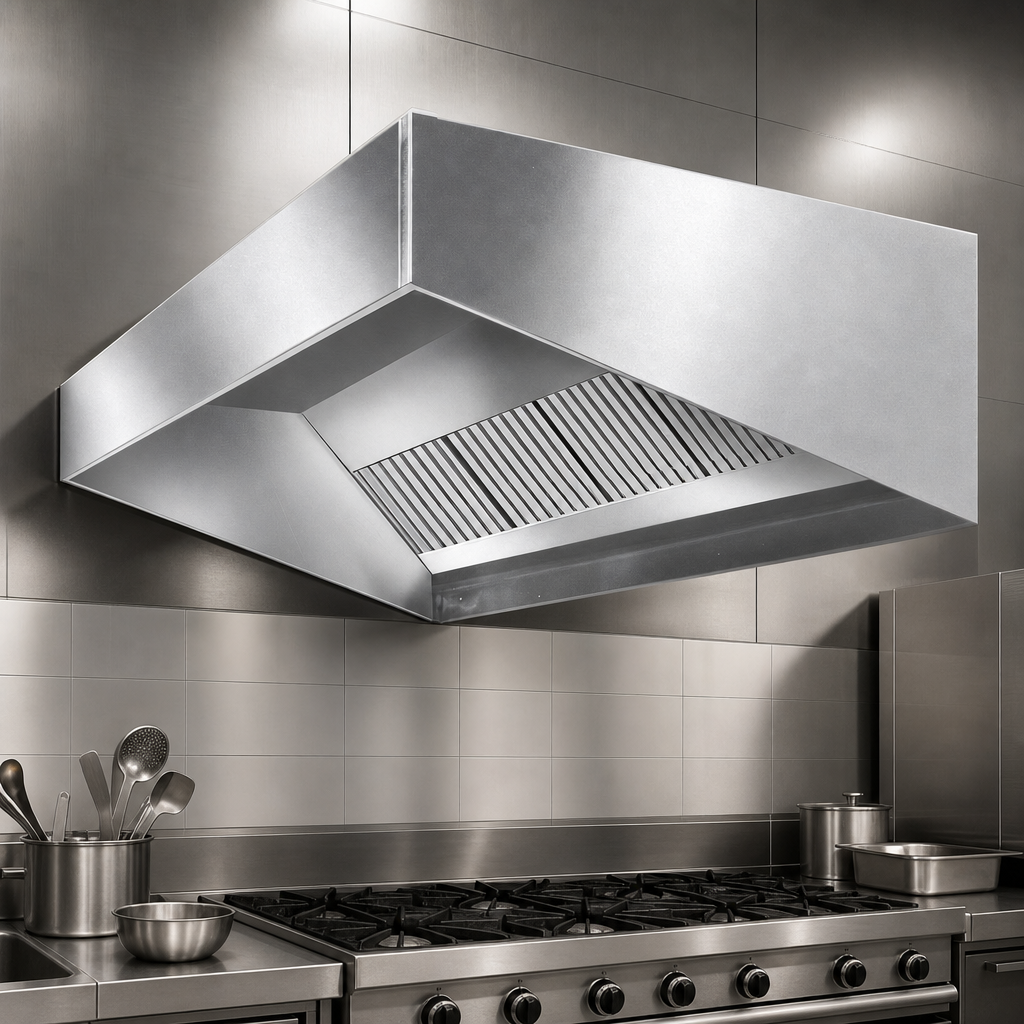

Heavy Gauge Stainless Steel Construction

Exposed surfaces are made of heavy gauge type 430 stainless steel for robustness, corrosion resistance, and easy cleaning.

Heavy Gauge Stainless Steel Construction

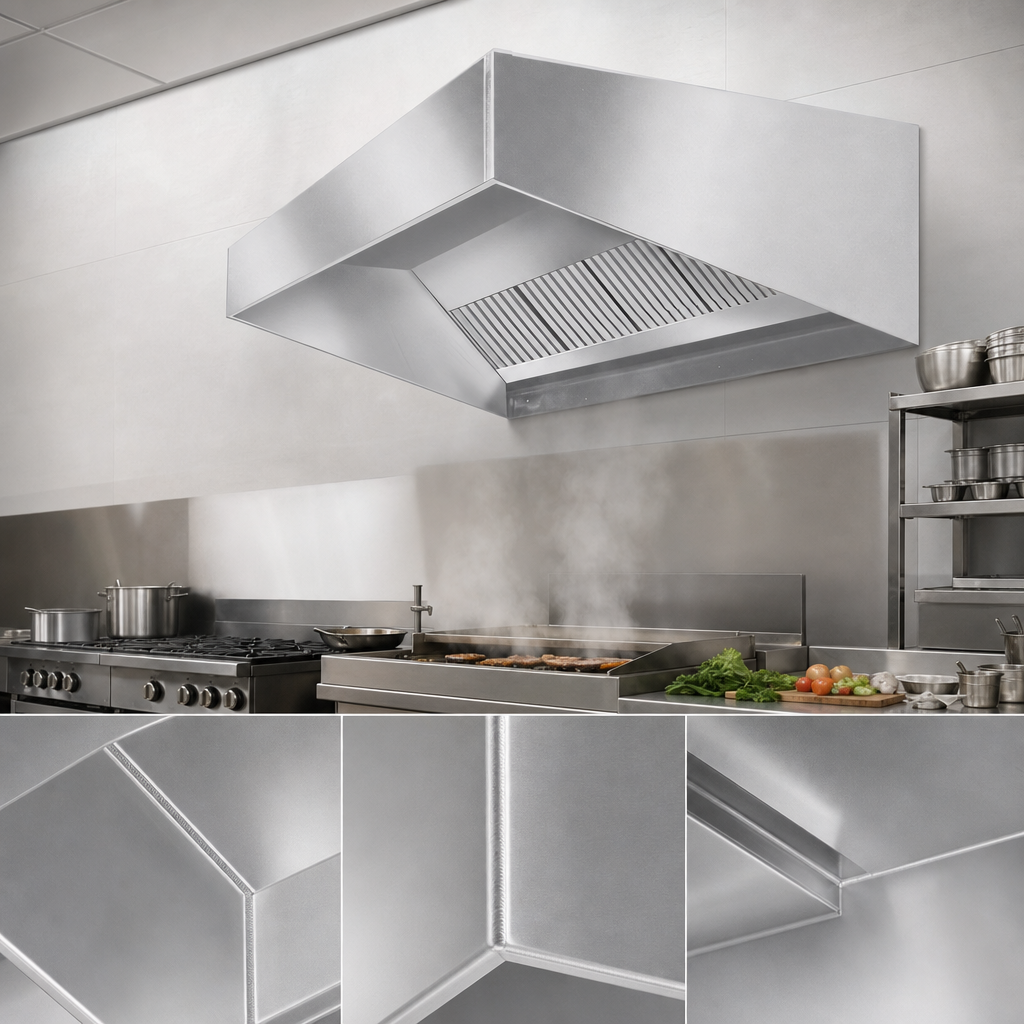

NFPA 96 Compliant

Constructed per NFPA 96 standards with all seams welded liquid tight, ensuring safety and compliance.

NFPA 96 Compliant

Exhaust-Only Design

Specifically designed to remove exhaust air, suitable for installations where make-up air is provided by other ventilation systems (non-compensating).

Short Front Fascia

Part of the HES Series, featuring a short front, which is ideal for applications with low ceiling heights.

Grease Management System

Includes a full-length stainless steel grease trough and a removable grease container for efficient grease collection and easy disposal.

UL Classified Aluminum Filters

Furnished with UL classified aluminum filters that are easily removable for cleaning.

UL Vapor-Proof Lighting

Equipped with UL-listed vapor-proof incandescent light fixtures to illuminate the cooking surface.

Built-in Air Space

Features a standard 3-inch (76mm) air space at the rear for proper air circulation.

Easy Installation

Comes with front and rear hanger brackets for straightforward wall mounting.

Exhaust Collars

Includes two 10-inch x 17.5-inch exhaust collars for connection to ductwork.

Type Commercial Kitchen Hood
Style Wall Type, Short Front
Installation Type Wall Mounted
Make-up Air Non-Compensating (Exhaust-Only)
Material 430 Stainless Steel
Width 132 Inches
Depth 51 Inches
Height 24 Inches
Weight 756 lb.
Shipping Width 132 Inches
Shipping Depth 51 Inches
Shipping Height 24 Inches
Shipping Weight 756 lb.
Exhaust CFM 4400 CFM at 1800 FPM
Number of Exhaust Collars 2
Exhaust Collar Size 10 Inches x 17.5 Inches
Number of Lights 4
Number of Filters 6
Selling Unit Each
Units Per Case 1
Country of Origin USA

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year parts and labor limited warranty from installation, not to exceed 18 months from shipment.

Documents

PDF Cutsheet PDF Download PDF Spec air® warranty PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The HES96-132 exhaust hood is constructed with heavy gauge type 430 stainless steel on all exposed surfaces, ensuring durability and ease of cleaning.
Yes, the HES96-132 is part of the HES Series, which features a 'short front' design specifically intended for low ceiling applications.
No, the HES96-132 is an exhaust-only, non-compensating hood. It is designed for use where make-up air is supplied by separate ventilation systems.
The hood is furnished with UL-listed vapor-proof incandescent light fixtures to illuminate the cooking area.
The HES96-132 model comes with two exhaust collars, each measuring 10 inches by 17.5 inches.
The hood itself includes hanger brackets. However, installation supplies and materials such as hanging of the ventilator, exhaust fans, curbs, ductwork, transitions, roof/ceiling penetration and sealing, electrical work, and fire protection systems are not included and must be sourced separately.
