Eagle Group SpecAir HES96-120 120-Inch Wall Type Exhaust-Only Commercial Kitchen Hood with Short Front

SKU: HES96-120
$8,115.35
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Kitchen Hoods Eagle Group Exhaust Only Hoods Hoods & Ventilation Kitchen Ventilation & Climate Control New Arrivals Restaurant Equipment

Eagle Group SpecAir HES96-120 120-Inch Wall Type Exhaust-Only Commercial Kitchen Hood with Short Front

120" Wide, 51" Deep, Exhaust-Only, Short Front Design

Designed for commercial kitchens with low ceilings, the SpecAir HES96-120 exhaust hood efficiently removes smoke and grease while featuring durable stainless steel construction.

  • Heavy-gauge type 430 stainless steel construction ensures durability and easy cleaning.
  • Exhaust-only design efficiently removes smoke and grease, ideal for kitchens with separate make-up air systems.
  • Short front fascia is perfect for installations in facilities with low ceiling applications.
  • Includes full-length grease trough, removable grease container, and UL classified aluminum filters for easy maintenance.
  • Features UL vapor-proof incandescent light fixtures for bright illumination over cooking surfaces.
  • Built with a 3-inch air space at the rear and continuously liquid-tight welded seams for compliance and performance.

Overall Dimensions:

120.0"W x 51.0"D x 24.0"H

Product Weight:

687.0 lb

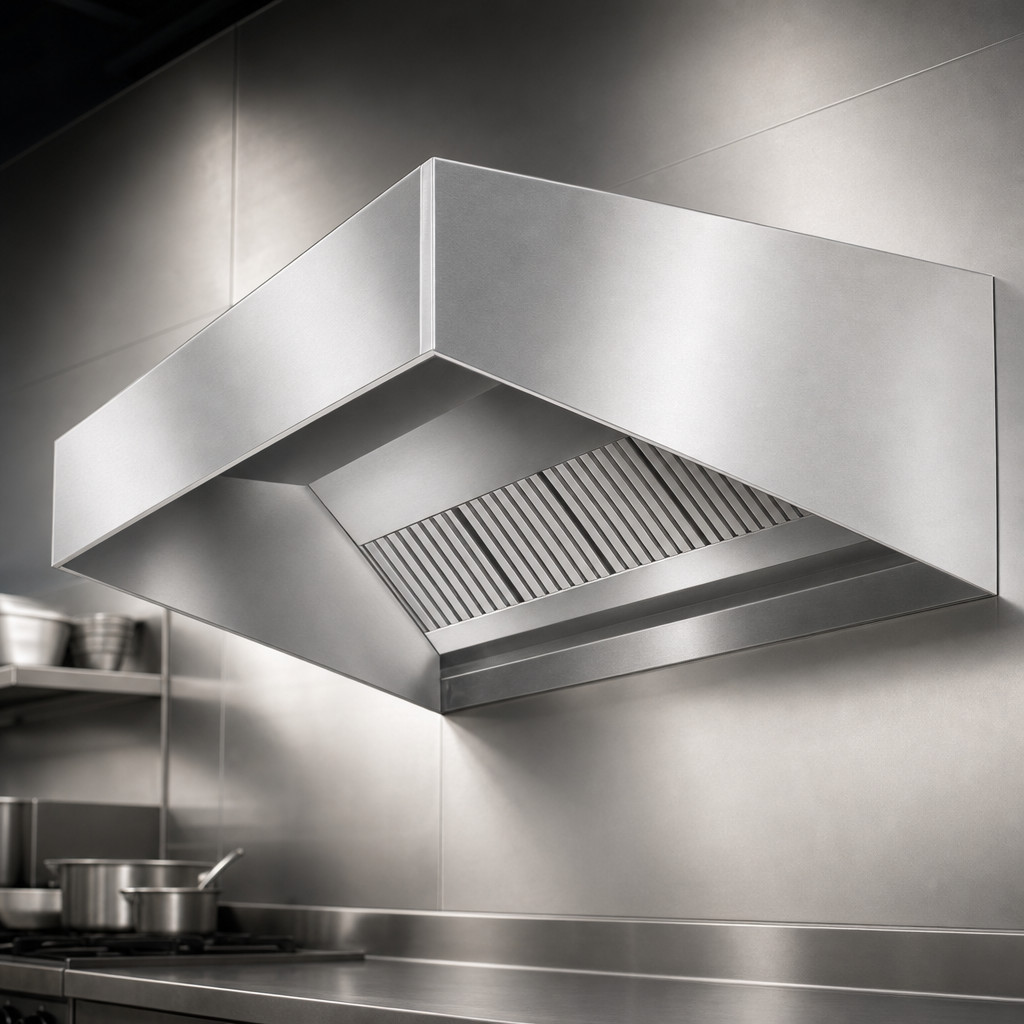

Heavy Gauge 430 Stainless Steel Construction

Exposed surfaces are made from heavy gauge type 430 stainless steel, providing exceptional durability and corrosion resistance suitable for demanding commercial kitchen environments.

Heavy Gauge 430 Stainless Steel Construction

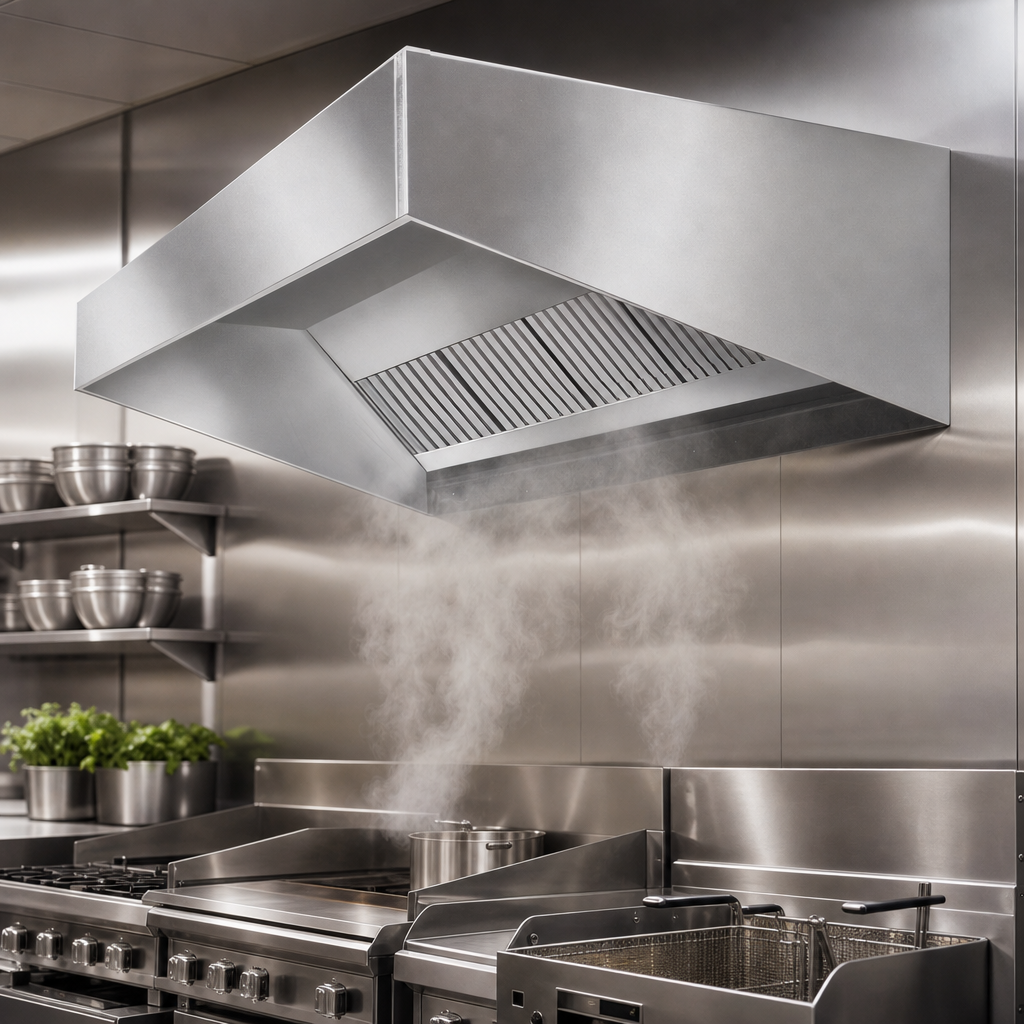

Exhaust-Only Ventilation System

This hood is specifically designed for exhaust-only operations, requiring make-up air to be supplied by other ventilation systems. It effectively removes contaminated air without integrated compensation.

Exhaust-Only Ventilation System

Short Front Design

The HES Series features a short front fascia, making it an ideal solution for installations in kitchens or areas with lower ceiling heights.

Liquid-Tight Welded Seams

All canopy seams are continuously welded liquid-tight, enhancing structural integrity and preventing grease leakage, in compliance with NFPA 96 standards.

Integrated Grease Management System

Equipped with a full-length stainless steel grease trough and a removable grease container to effectively collect grease, simplifying cleaning and maintenance.

UL Classified Aluminum Filters

Comes with removable, UL classified aluminum filters designed for easy cleaning and efficient grease capture.

UL Vapor-Proof Incandescent Lights

Includes UL vapor-proof incandescent light fixtures to provide safe and effective illumination over the cooking area.

3-Inch Rear Air Space

A standard 3-inch air space at the rear of the hood helps with proper airflow and installation.

Hanger Brackets

Furnished with front and rear hanger brackets for secure and straightforward wall mounting.

Type Exhaust Hood
Style Wall Type
Installation Type Wall Mounted
Make-up Air Non-Compensating (Exhaust-Only)
Material 430 Stainless Steel
Width 120 Inches
Depth 51 Inches
Height 24 Inches
Weight 687 lb.
Shipping Width 120 Inches
Shipping Depth 51 Inches
Shipping Height 24 Inches
Shipping Weight 687.0 lb.
CFM 4000 CFM (at 1800 FPM)
Exhaust Collar Quantity 2
Exhaust Collar Width 10 Inches
Exhaust Collar Length 16 Inches
Light Capacity 4 Lights
Filter Capacity 5 Filters
Air Space Rear 3 Inches
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year parts and labor warranty from installation date, not to exceed 18 months from shipment date.

Documents

PDF Cutsheet PDF Download PDF Spec air® warranty PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The short front fascia of the HES96-120 hood is specifically designed for installations in commercial kitchens or areas with low ceiling applications, allowing for optimal ventilation where height is a constraint.
Yes, the HES96-120 is an exhaust-only hood, meaning it is designed for use where make-up air is supplied by other ventilation systems. It does not provide make-up air itself.
The exposed surfaces of the HES96-120 hood are made from heavy gauge type 430 stainless steel, ensuring durability, easy cleaning, and resistance to corrosion in commercial kitchen environments.
Yes, the HES96-120 hood comes furnished with UL classified aluminum removable grease filters, a full-length stainless steel grease trough, a removable grease container, and UL vapor-proof incandescent light fixtures.
The HES96-120 model has a width of 120 inches, a front-to-back depth of 51 inches, and a height of 24 inches at the back.
