Eagle Group SpecAir HES96-108 108" Wall Type Exhaust Hood with Short Front

SKU: HES96-108
$8,345.52
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Kitchen Hoods Eagle Group Exhaust Only Hoods Hoods & Ventilation Kitchen Ventilation & Climate Control New Arrivals Restaurant Equipment

Eagle Group SpecAir HES96-108 108" Wall Type Exhaust Hood with Short Front

108" Wide, 51" Deep, Non-Compensating, Stainless Steel

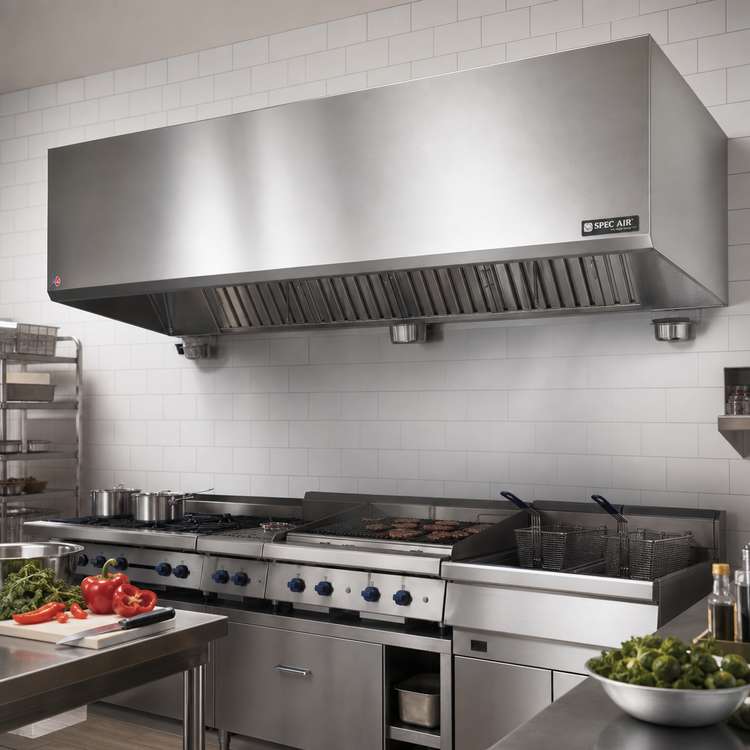

Designed for efficiency and compliance, the Eagle Group SpecAir HES96-108 exhaust hood provides reliable ventilation for commercial kitchens with low ceiling applications.

  • Constructed from heavy gauge Type 430 stainless steel for exceptional durability.
  • Exhaust-only design efficiently removes smoke and grease, requiring external make-up air.
  • Features a short front fascia, making it an ideal solution for low ceiling installations.
  • Equipped with UL classified aluminum grease filters and UL listed vapor-proof incandescent lights.
  • NFPA 96 compliant with liquid-tight welded seams for enhanced safety and hygiene.
  • Includes a full-length grease trough and a removable grease container for easy cleaning and maintenance.

Overall Dimensions:

108.0"W x 51.0"D x 24.0"H

Product Weight:

618.0 lb

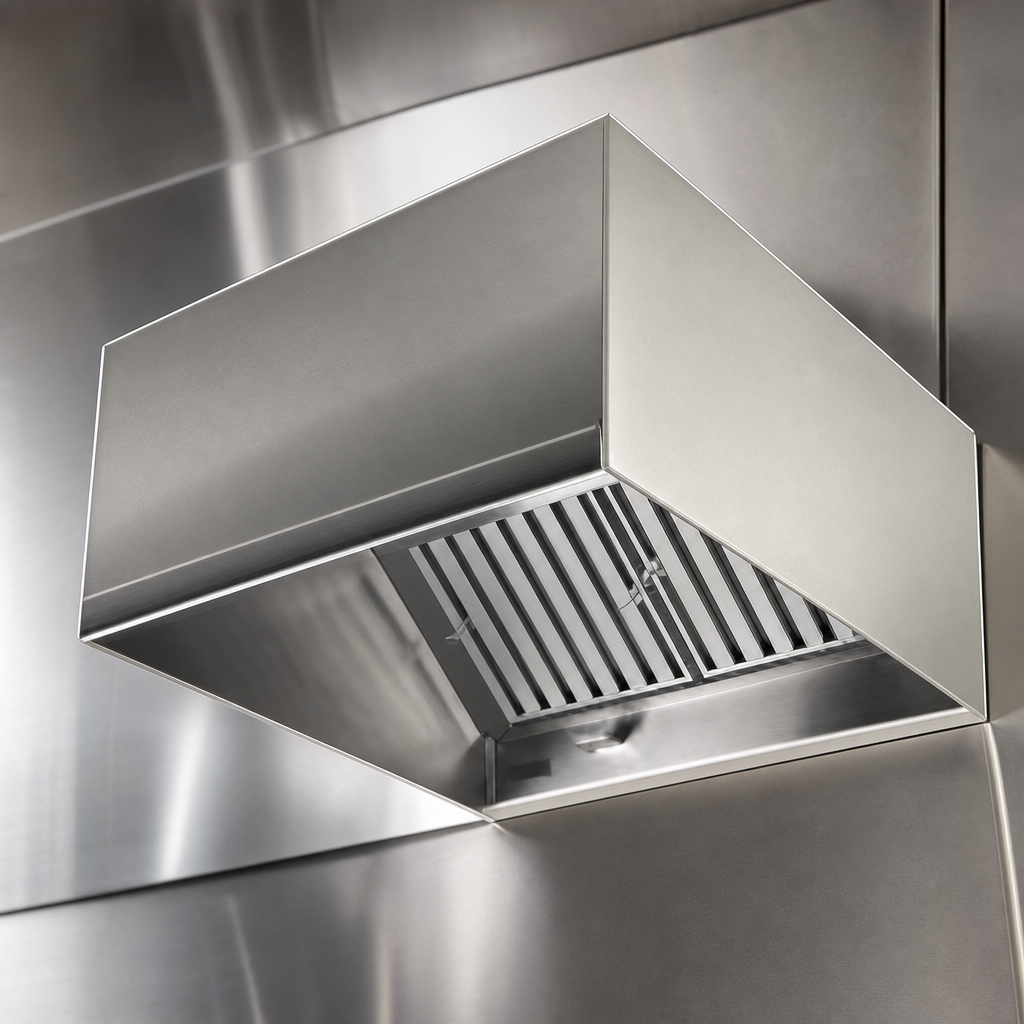

Heavy Gauge Stainless Steel Construction

Manufactured from heavy gauge Type 430 stainless steel, ensuring robust durability and resistance to corrosion in demanding commercial kitchen environments.

Heavy Gauge Stainless Steel Construction

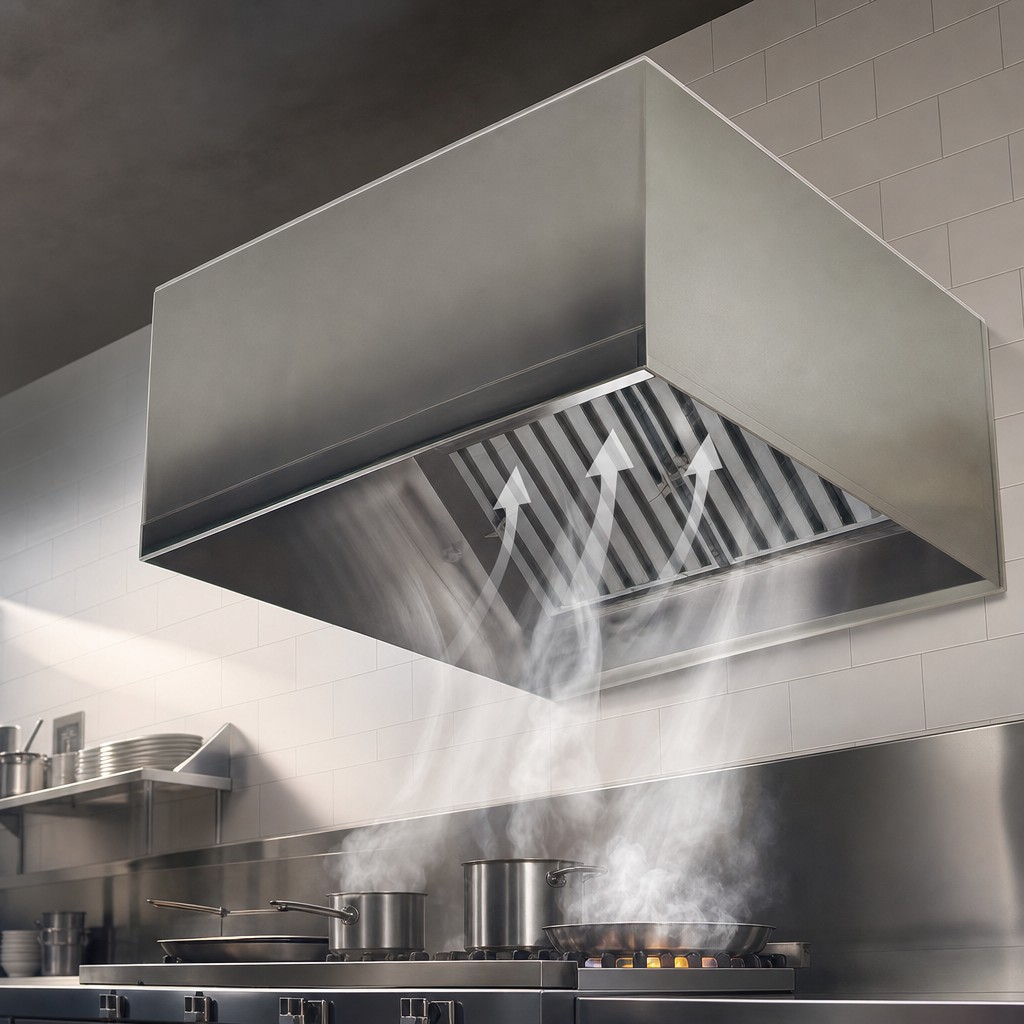

Exhaust-Only Design

Efficiently removes smoke, grease, and cooking odors, specifically designed for kitchens where make-up air is supplied by a separate ventilation system.

Exhaust-Only Design

Short Front Fascia

The short front design of the HES series is ideal for installation in commercial kitchens with lower ceiling clearances, optimizing space without sacrificing performance.

Liquid-Tight Welded Seams

All canopy seams are continuously welded to be liquid-tight, meeting rigorous NFPA 96 standards for fire safety and preventing grease leakage.

UL Classified Aluminum Filters

Comes equipped with UL classified aluminum grease filters that are easily removable for thorough cleaning, ensuring effective grease extraction and maintaining hygiene.

UL Listed Vapor-Proof Lighting

Features UL listed vapor-proof incandescent light fixtures, providing bright and safe illumination over the cooking surface.

Grease Management System

Includes a full-length stainless steel grease trough and a removable grease container for convenient and hygienic collection and disposal of cooking by-products.

3-Inch Rear Air Space

Incorporates a standard 3-inch (76mm) air space at the rear, crucial for proper wall mounting and optimal ventilation airflow.

Front and Rear Hanger Brackets

Furnished with sturdy front and rear hanger brackets to facilitate secure and stable installation to the wall.

Exhaust Collars

Includes one 10" x 29" exhaust collar for direct and efficient connection to the kitchen's ductwork system.

Type Exhaust Hood
Style Wall Type
Installation Type Wall Mounted
Make-up air Non-Compensating
Material 430 Stainless Steel
Finish Stainless Steel
Shipping Width 108 Inches
Shipping Depth 51 Inches
Shipping Height 24 Inches
Shipping Weight 618 lbs.
Exhaust CFM 3600
Exhaust Collar Size 10" x 29"
Number of Exhaust Collars 1
Number of Lights 3
Number of Filters 5
Air Space at Rear 3 Inches
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year limited warranty on parts and labor from the date of original installation, not to exceed 18 months from shipment.

Documents

PDF Cutsheet PDF Download PDF Spec air® warranty PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

This hood is designed for commercial cooking applications such as restaurants, kitchens, fast food, and deli operations, providing efficient ventilation for professional use.
No, the Eagle Group SpecAir HES96-108 is an exhaust-only hood, meaning it is designed for use where make-up air is supplied by a separate ventilation system.
The exposed surfaces of the hood are constructed from heavy gauge Type 430 stainless steel, ensuring durability and ease of cleaning.
Yes, the hood is equipped with UL classified aluminum filters that are removable for easy cleaning, and UL listed vapor-proof incandescent light fixtures for bright, safe illumination.
Yes, the HES series features a short front fascia specifically engineered for use in kitchens with low ceiling clearances, making it an excellent space-saving solution.
The HES96-108 hood measures 108 inches wide, 51 inches deep (front-to-back), and 24 inches high, with an approximate weight of 618 lbs.
