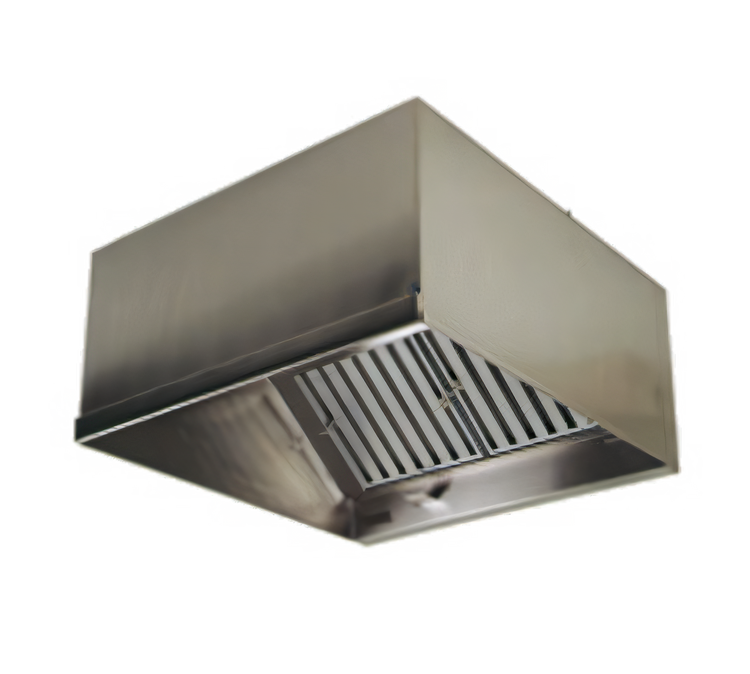

Eagle Group SpecAir HES96-102 102" Wall Type Exhaust-Only Commercial Kitchen Hood with Short Front

102-Inch Width, 51-Inch Depth, 24-Inch Height, Non-Compensating, Short Front

Designed for commercial cooking environments, the Eagle Group SpecAir HES96-102 provides efficient exhaust-only ventilation specifically for low ceiling applications.

  • Specifically designed with a short front fascia, making it ideal for kitchens with low ceiling clearances.
  • Constructed from durable heavy gauge type 430 stainless steel for long-lasting performance and easy cleaning.
  • Features UL classified aluminum grease filters and a full-length grease trough with a removable container for effective grease management.
  • Equipped with UL vapor-proof incandescent light fixtures to brightly illuminate the cooking surface.
  • Non-compensating design is suitable for systems where make-up air is supplied by other ventilation equipment.
  • Built to NFPA 96 standards with continuously liquid-tight welded seams for enhanced safety and compliance.

Overall Dimensions:

102.0"W x 51.0"D x 24.0"H

Product Weight:

601.0 lb

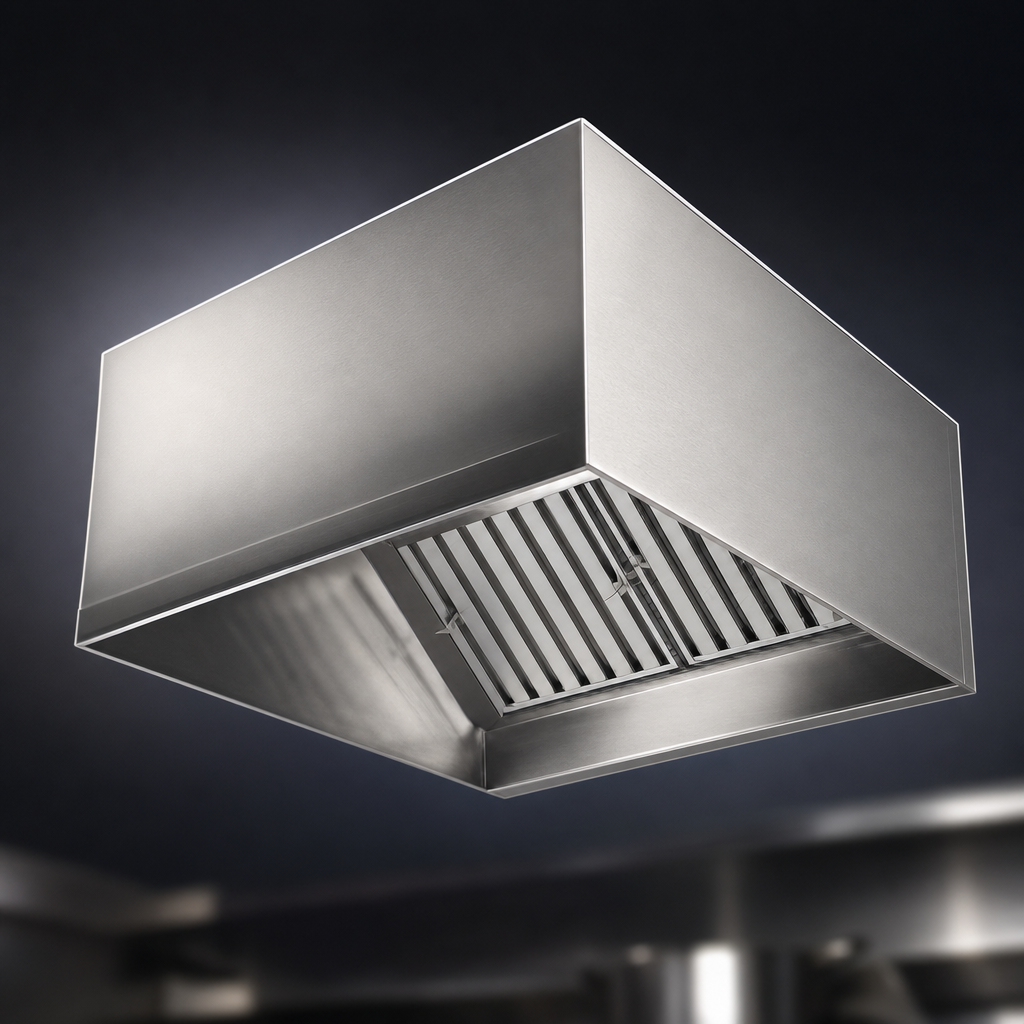

Heavy Gauge Stainless Steel Construction

Exposed surfaces are crafted from heavy gauge type 430 stainless steel, ensuring durability, corrosion resistance, and ease of maintenance.

Heavy Gauge Stainless Steel Construction

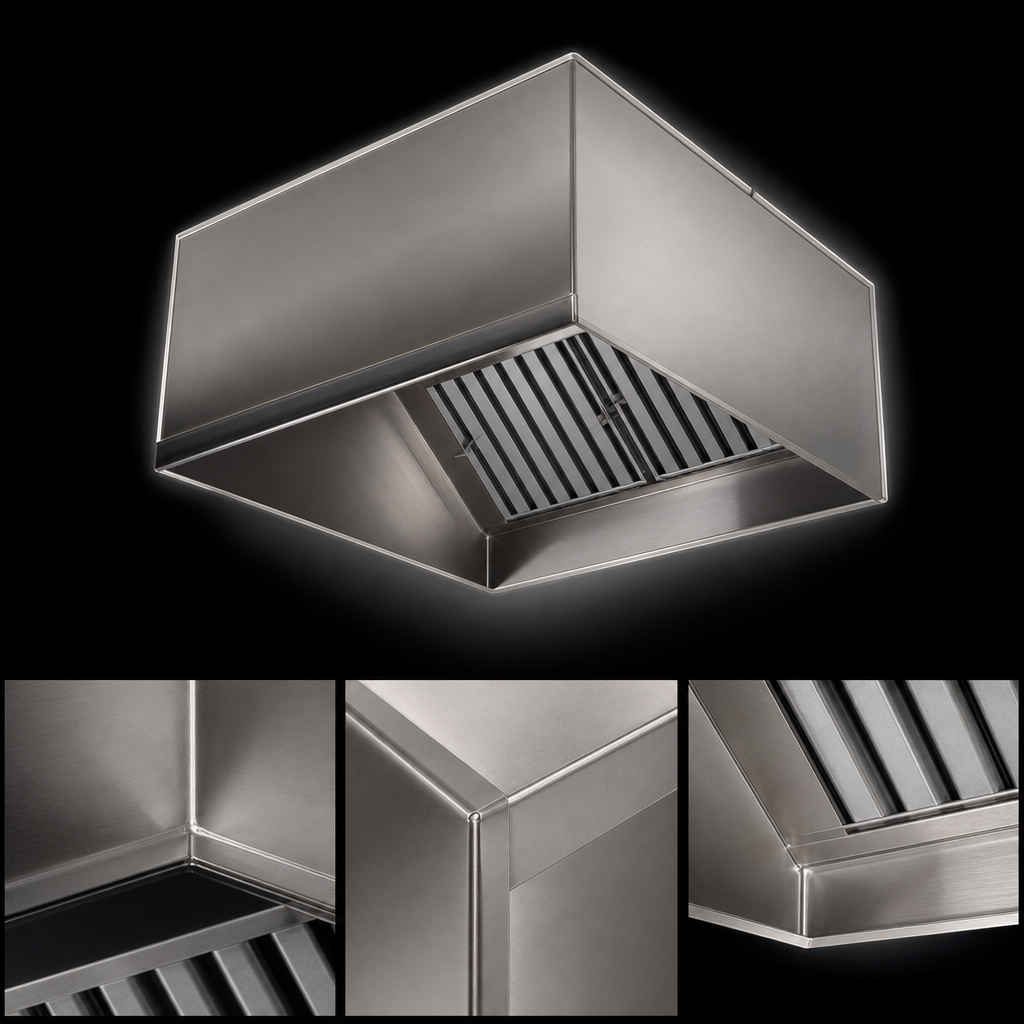

Liquid-Tight Welded Seams

Canopy seams are continuously welded liquid-tight, complying with NFPA 96 standards to prevent grease leakage and ensure safety.

Liquid-Tight Welded Seams

Full-Length Grease Trough

An integrated full-length grease trough efficiently collects cooking byproducts, directing them to a removable container.

Removable Grease Container

Allows for easy and hygienic disposal of collected grease, simplifying maintenance.

UL Classified Aluminum Filters

Removable aluminum grease filters are UL classified, ensuring effective grease extraction and easy cleaning.

UL Vapor-Proof Incandescent Light Fixture

Provides reliable illumination over the cooking area with vapor-proof protection for safety and longevity.

3-Inch Air Space at Rear

Standard 3-inch (76mm) air space at the rear for optimal airflow and proper installation against a wall.

Front and Rear Hanger Brackets

Includes robust brackets for secure and stable wall mounting of the hood.

Exhaust Collars

Provided for efficient connection to the ductwork, ensuring effective removal of exhaust air.

Short Front Design

Optimized with a short front fascia, this hood is specifically designed for installations in low ceiling applications.

Type Exhaust Hood
Style Wall Type
Installation Type Wall Mounted
Material 430 Stainless Steel
Width 102 Inches
Depth 51 Inches
Height 24 Inches
Weight 601 lb.
Shipping Width 102 Inches
Shipping Depth 51 Inches
Shipping Height 24 Inches
Shipping Weight 601 lb.
Make-up Air Non-compensating
Exhaust CFM 3400 (at 1800 FPM)
Exhaust Collar Size 10 Inches x 27 Inches
Number of Exhaust Collars 1
Number of Lights Per Hood 3
Number of Filters Per Hood 4
Air Space at Rear 3 Inches
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year parts and labor limited warranty from the date of original installation, not to exceed 18 months from the date of shipment from Eagle.

Documents

PDF Cutsheet PDF Download PDF Spec air® warranty PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

This exhaust hood is specifically designed for commercial cooking operations in various settings, including restaurants, kitchens, fast food establishments, and delis.
No, the SpecAir HES96-102 is an exhaust-only, non-compensating ventilation hood. It is intended for use in systems where make-up air is supplied by a separate ventilation system.
The hood's exposed surfaces are constructed from heavy gauge type 430 stainless steel, offering durability and a clean aesthetic.
Yes, the hood comes equipped with UL classified aluminum filters that are removable for easy cleaning, along with UL vapor-proof incandescent light fixtures for safe and effective illumination. It also includes a full-length grease trough and a removable grease container for simplified maintenance.
The HES96-102 model has an overall length (width) of 102 inches, a front-to-back depth of 51 inches, and a height of 24 inches.
The 'short front' (HES Series) design is a key feature of this hood, making it particularly suitable for installations in commercial kitchens with low ceiling clearances.
