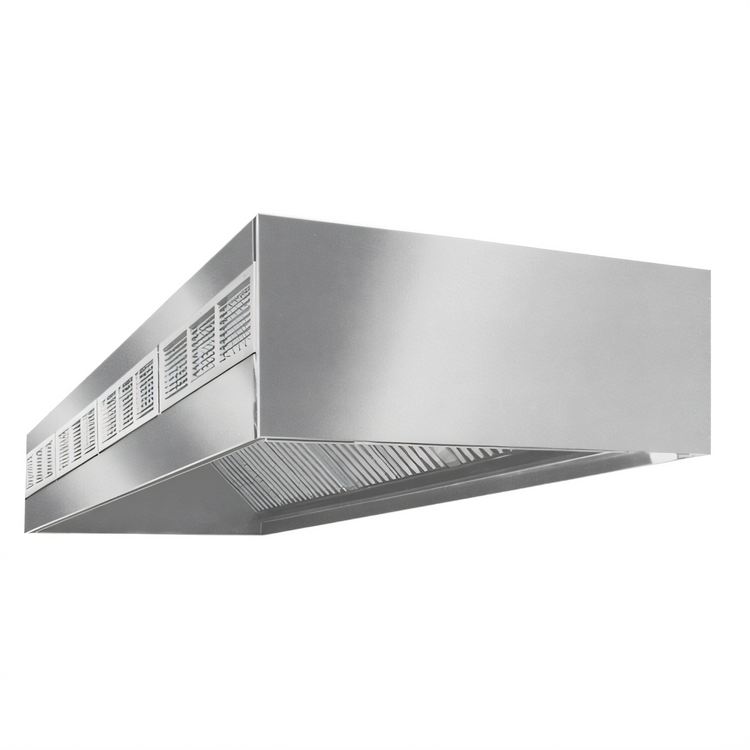

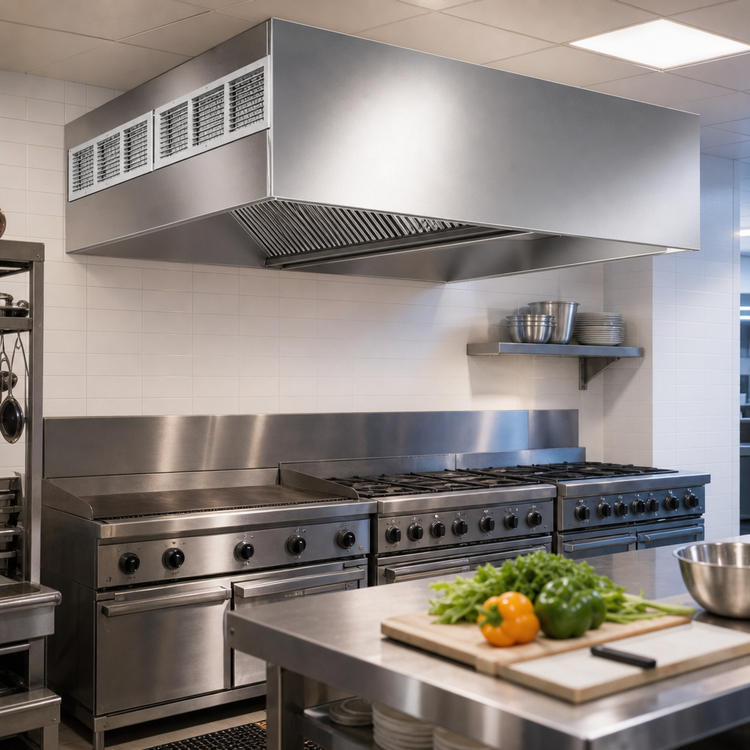

SpecAir HEF96-90 Wall Type Front Discharge Make-Up Air Exhaust Hood, 90"W

90 Inches Width, 51 Inches Depth, Make-Up Air Compensating

Efficiently ventilate your commercial kitchen while simultaneously introducing fresh, conditioned air with the SpecAir HEF96-90 exhaust hood.

  • Designed for commercial cooking environments like restaurants, kitchens, and delis.
  • Front discharge make-up air system supplies fresh air independent of other ventilation.
  • Constructed from heavy gauge Type 430 stainless steel for durability and hygiene.
  • Continuously liquid-tight welded seams per NFPA 96 standards.
  • Features UL-listed vapor-proof incandescent lighting and removable UL-classified aluminum filters.
  • Includes a full-length grease trough and removable grease container for easy maintenance.

Overall Dimensions:

90.0"W x 51.0"D x 24.0"H

Product Weight:

567.0 lb

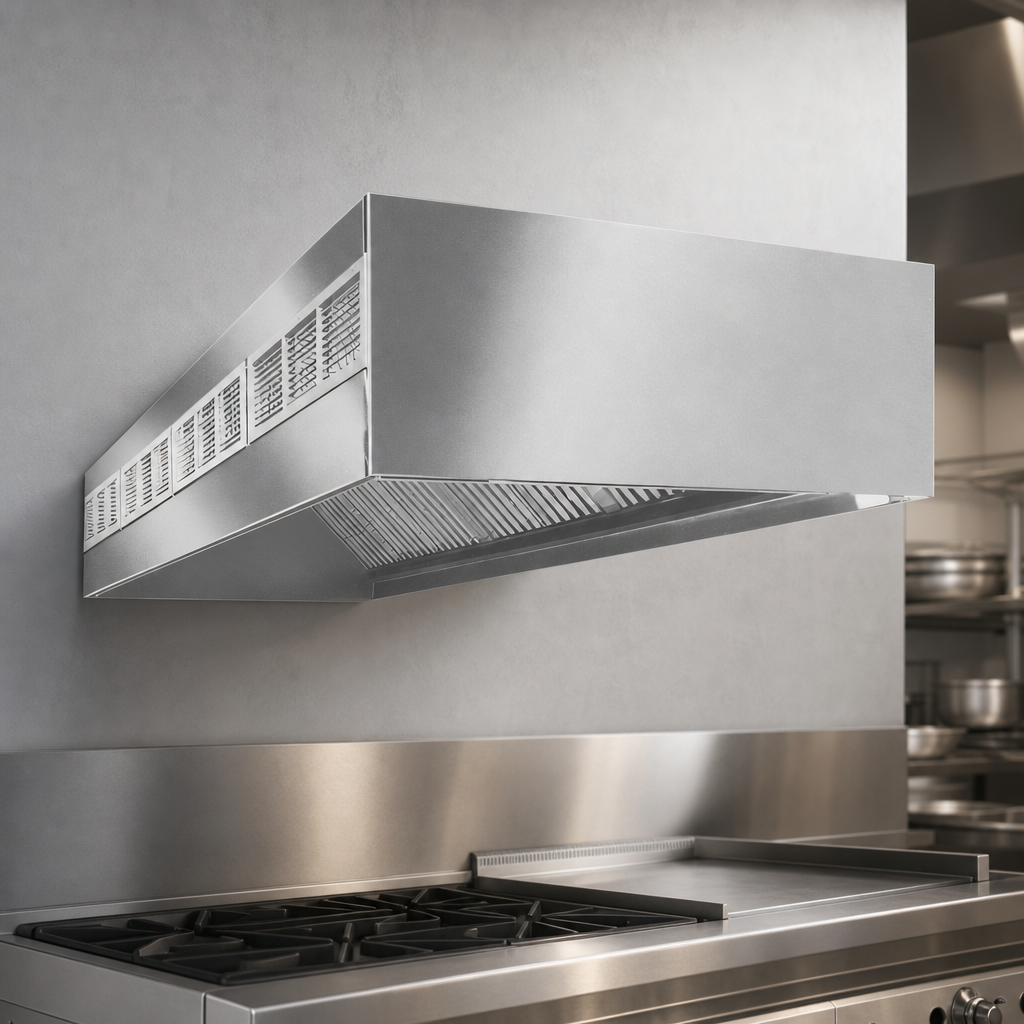

Wall Type Design

Ideal for mounting against a wall, optimizing kitchen space and ventilation efficiency.

Wall Type Design

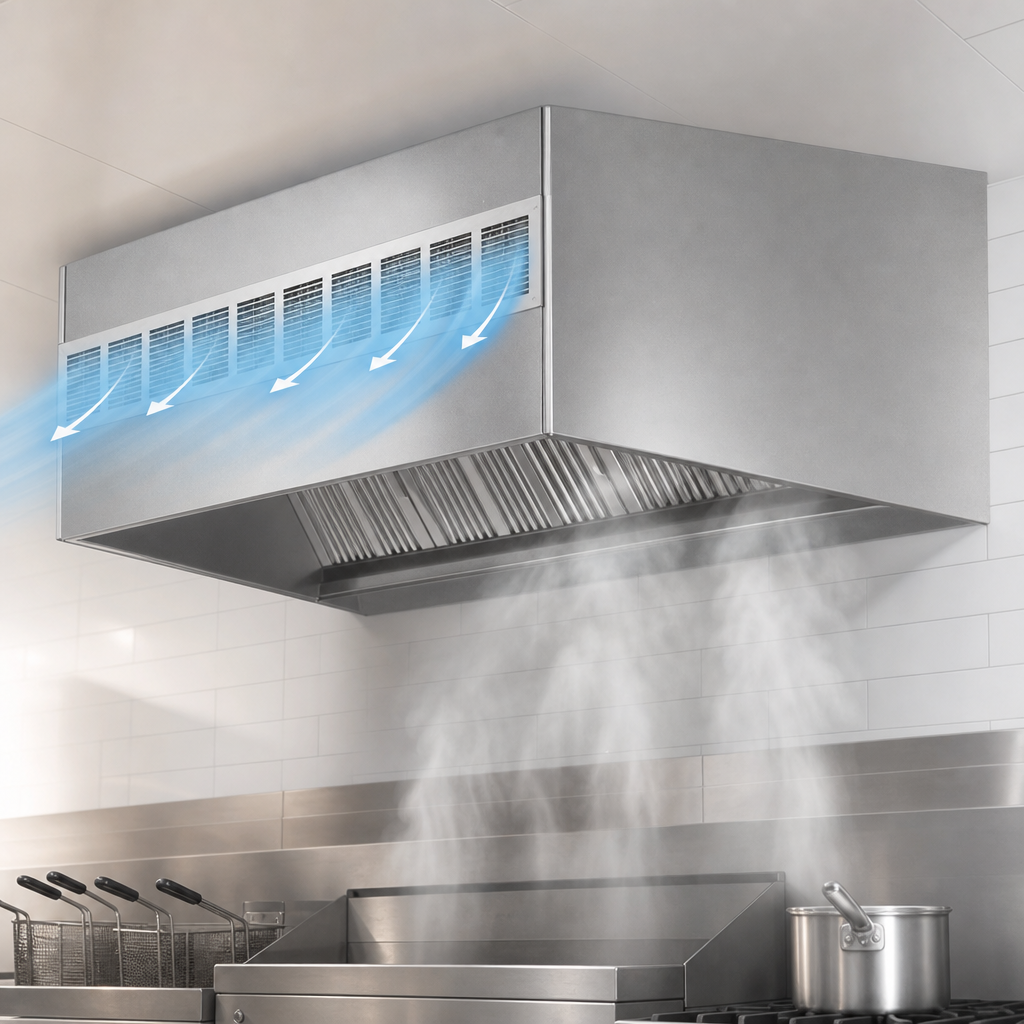

Front Discharge Make-Up Air

Supplies make-up air through the front of the hood at ceiling level, ensuring proper air balance and comfort without relying on other ventilation systems.

Front Discharge Make-Up Air

Heavy Gauge Stainless Steel Construction

Built with durable Type 430 stainless steel surfaces and continuously liquid-tight welded seams for long-lasting commercial use and compliance with NFPA 96.

UL Classified Aluminum Filters

Removable aluminum filters are UL classified for safety and easy cleaning, maintaining efficient grease capture.

Vapor-Proof Incandescent Lights

Equipped with UL-listed vapor-proof incandescent light fixtures to provide safe and effective illumination over the cooking surface.

Grease Management System

Features a full-length stainless steel grease trough and a removable grease container for convenient collection and disposal of cooking grease.

3 Inch Rear Air Space

Standard 3-inch air space at the rear to meet installation requirements and provide proper clearance.

Mounting Channels

Includes front and rear mounting channels for secure and straightforward installation.

Type Exhaust Hood
Style Wall Type
Installation Type Wall Mounted
Material Type 430 Stainless Steel
Make-up Air Compensating, Front Discharge
Exhaust CFM 3000
Number of Exhaust Collars 1
Exhaust Collar Width 10 Inches
Exhaust Collar Length 24 Inches
Supply CFM 2550
Number of Supply Collars 2
Supply Collar Width 10 Inches
Supply Collar Length 16.5 Inches
Number of Lights 3
Number of Filters 4
Air Space at Rear 3 Inches
Shipping Width 90 Inches
Shipping Depth 51 Inches
Shipping Height 24 Inches
Shipping Weight 567 lb.
Selling Unit Each
Units Per Case 1
Country of Origin USA

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year parts and labor limited warranty from installation (not to exceed 18 months from shipment).

Documents

PDF Cutsheet PDF Download PDF Spec air® warranty PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The HEF96-90 is designed for use in commercial cooking applications such as restaurants, kitchens, fast food establishments, and delis.
This hood features a front discharge make-up air system that supplies fresh air through the hood itself at ceiling level, operating independently of other ventilation systems to maintain proper air balance.
The HEF96-90 is constructed from heavy gauge Type 430 stainless steel with continuously liquid-tight welded seams, adhering to NFPA 96 standards for durability and safety.
Yes, the hood is equipped with UL-classified aluminum filters that are removable for easy cleaning and maintenance.
The HEF96-90 measures 90 inches wide, 51 inches deep, and 24 inches high.
Eagle products, including this ventilation hood, are covered by a limited warranty for one year from the date of original installation, not to exceed 18 months from the date of shipment from Eagle. This warranty covers defects in materials and workmanship under normal use.
