Eagle Group

Eagle Group SpecAir HEF96-54 54" Wall Type Front Discharge Make-Up Air Exhaust Hood

SKU: HEF96-54
$6,091.20
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Kitchen Hoods Eagle Group Equipment Exhaust Only Hoods Facility Equipment Hoods & Ventilation Kitchen Ventilation & Climate Control New Arrivals Restaurant Equipment

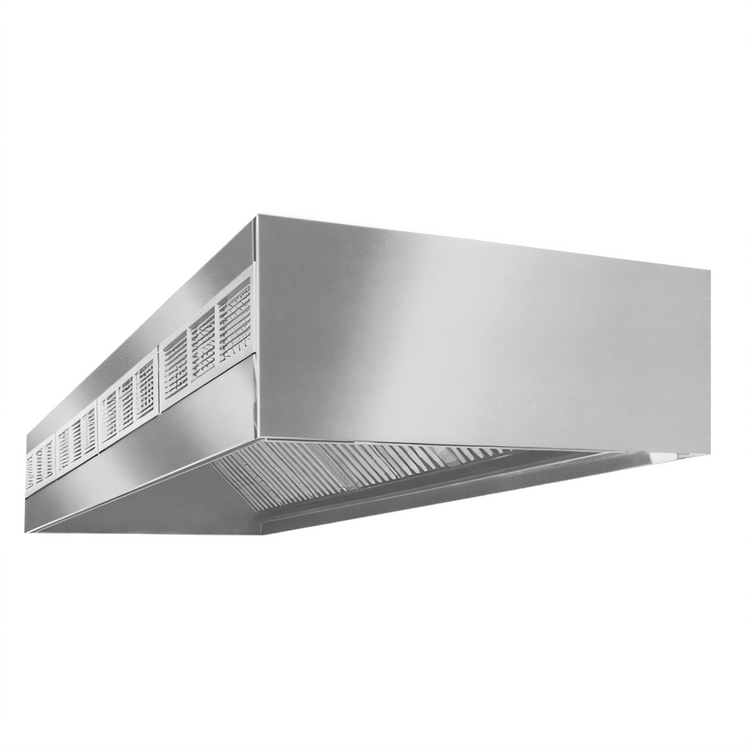

Eagle Group SpecAir HEF96-54 54" Wall Type Front Discharge Make-Up Air Exhaust Hood

54" Wide, 51" Deep, 24" High, 1800 CFM Exhaust, 1530 CFM Make-Up Air

Engineered for optimal kitchen ventilation, the SpecAir HEF96-54 exhaust hood provides efficient make-up air and robust construction for demanding commercial cooking environments.

  • Heavy gauge type 430 stainless steel construction ensures durability and compliance with NFPA 96.
  • Front discharge make-up air compensating system supplies fresh air independent of other ventilation.
  • Includes UL classified aluminum removable filters and a vapor-proof incandescent light fixture.
  • Features a full-length stainless steel grease trough and removable grease container for easy maintenance.
  • Designed with a 3-inch airspace at the rear and mounting channels for secure wall installation.
  • Ideal for commercial cooking operations in restaurants, kitchens, fast food, and delis.

Overall Dimensions:

54.0"W x 51.0"D x 24.0"H

Product Weight:

339.0 lb

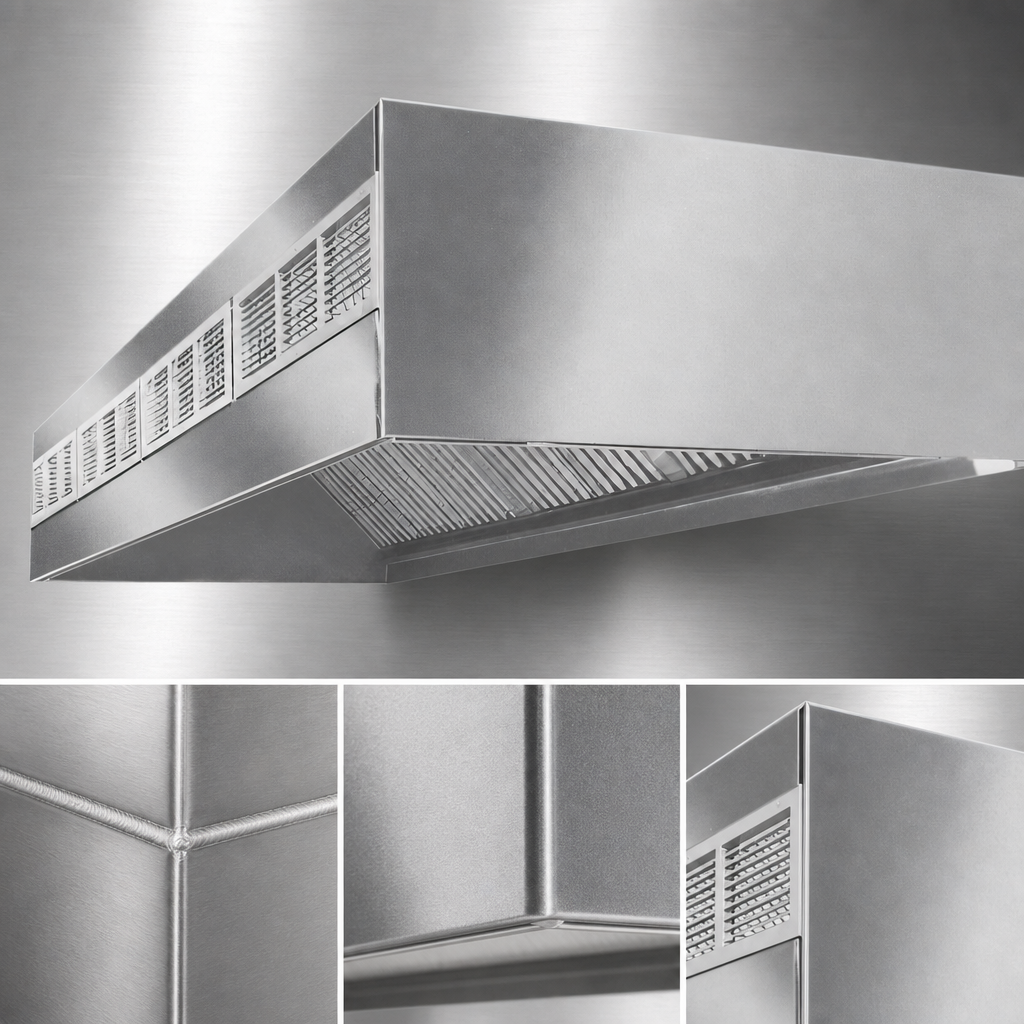

Heavy Gauge Stainless Steel Construction

Built from heavy gauge type 430 stainless steel, ensuring robust durability and compliance with NFPA 96 standards for commercial kitchens. All canopy seams are continuously liquid-tight welded.

Heavy Gauge Stainless Steel Construction

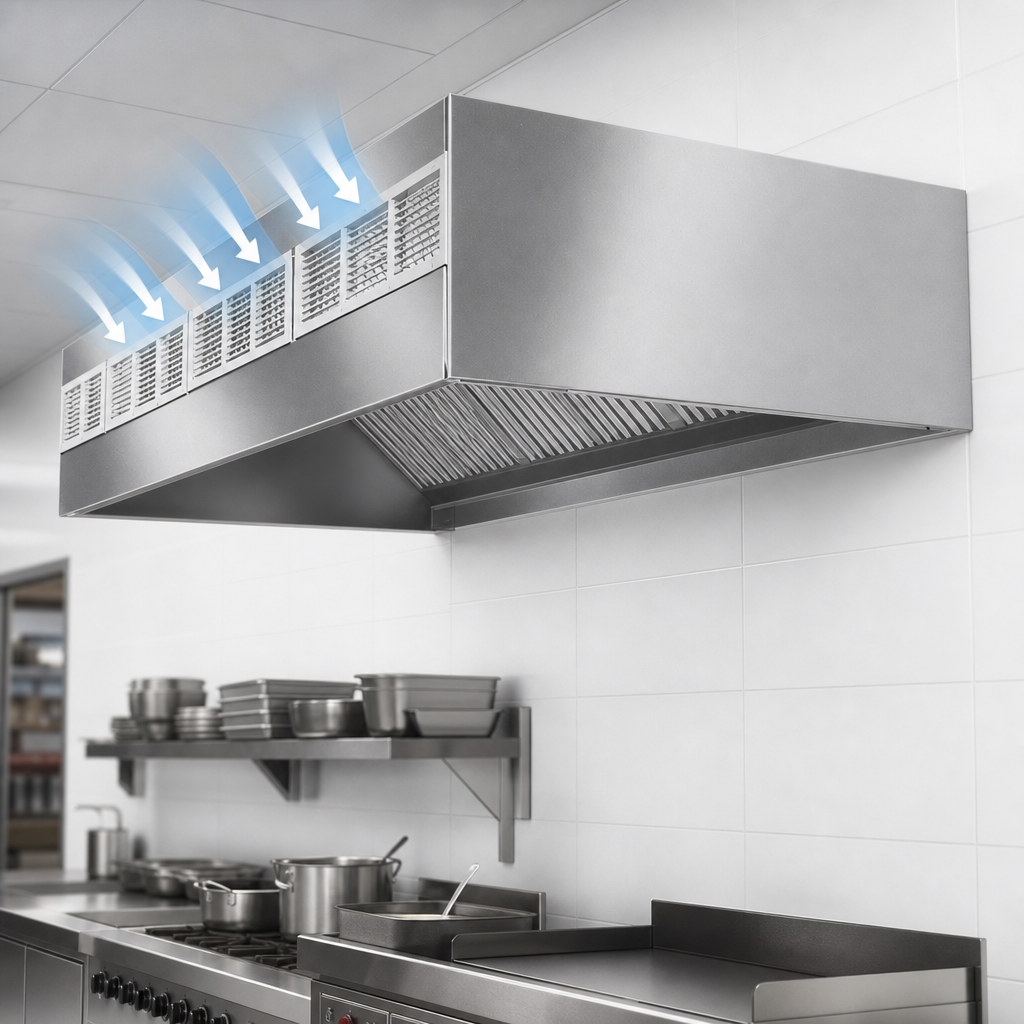

Front Discharge Make-Up Air System

Supplies make-up air through the hood at ceiling level via front grills, functioning independently of other building ventilation systems to maintain proper air balance.

Front Discharge Make-Up Air System

Removable Aluminum Filters

Equipped with UL classified aluminum filters that are easily removable for routine cleaning and maintenance, ensuring efficient grease capture.

Vapor-Proof Incandescent Lighting

Features a UL-listed vapor-proof incandescent light fixture to provide adequate illumination over the cooking surface while resisting moisture and grease.

Integrated Grease Management

Comes with a full-length stainless steel grease trough and a removable grease container for effective collection and disposal of cooking grease.

Wall Mount Design with Airspace

Designed as a wall-type hood with a standard 3-inch (76mm) airspace at the rear for proper installation and airflow, complete with front and rear mounting channels.

Width 54 Inches
Depth 51 Inches
Height 24 Inches
Weight 339 lb.
Shipping Width 54 Inches
Shipping Depth 51 Inches
Shipping Height 24 Inches
Shipping Weight 339 lb.
Type Exhaust Hood
Style Wall Type
Installation Type Wall Mounted
Material 430 Stainless Steel
Make-Up Air Compensating
Exhaust CFM 1800 CFM
Supply CFM 1530 CFM
Exhaust Collars 1
Exhaust Collar Width 10 Inches
Exhaust Collar Length 14.5 Inches
Supply Collars 1
Supply Collar Width 10 Inches
Supply Collar Length 20 Inches
Number of Lights 1
Lights Type Vapor-Proof Incandescent
Number of Filters 2
Filter Material Aluminum
Air Space at Rear 3 Inches
Selling Unit Each
Units Per Case 1
Country of Origin USA

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year parts and labor warranty on defects in materials and workmanship

Documents

PDF Cutsheet PDF Download PDF Spec air® warranty PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The SpecAir HEF96-54 features a front discharge make-up air system that supplies air through the hood at ceiling level, operating independently of other ventilation systems.
This hood is constructed from heavy gauge type 430 stainless steel, with continuously liquid-tight welded seams on the canopy, meeting NFPA 96 standards.
Yes, the hood includes UL classified aluminum filters that are removable for easy cleaning, and a UL-listed vapor-proof incandescent light fixture designed for durability in a kitchen environment.
All SpecAir ventilation hoods, including this model, are 51 inches (1295mm) front-to-back and 24 inches (610mm) high.
The hood comes furnished with a full-length stainless steel grease trough, a removable grease container, UL classified aluminum filters, a UL vapor-proof incandescent light fixture, a 3-inch airspace at the rear, and exhaust and supply collars. Installation materials are not included.
