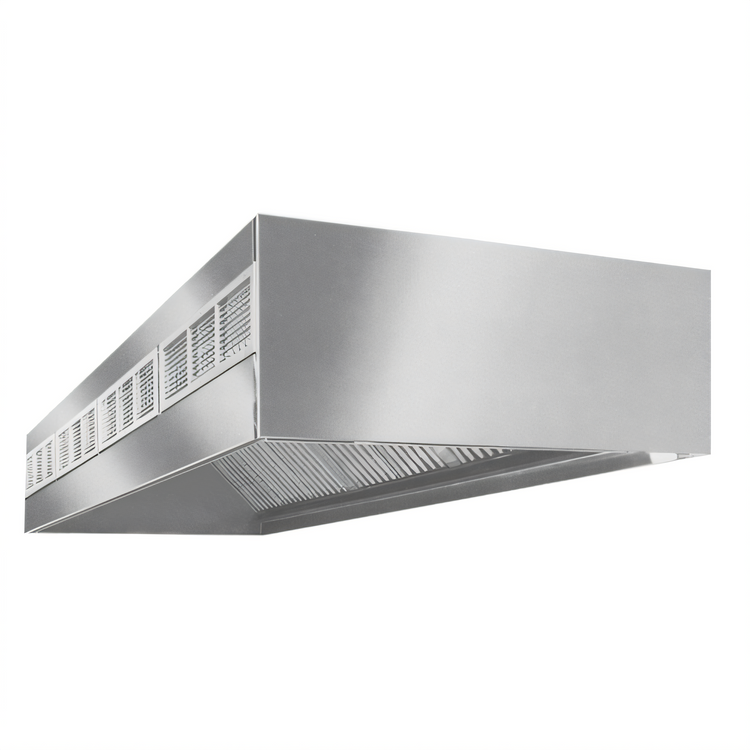

SpecAir HEF96-144 144" Wall Type Front Discharge Make-Up Air Exhaust Hood

Full-Size, Type 430 Stainless Steel, Regular Front

Designed for demanding commercial kitchens, the SpecAir HEF96-144 exhaust hood efficiently removes smoke and grease while supplying essential make-up air.

  • Provides robust ventilation with a front discharge make-up air system.
  • Constructed from heavy gauge type 430 stainless steel for durability and hygiene.
  • Includes UL classified aluminum filters and vapor-proof incandescent lighting for convenience.
  • Features a 3-inch air space at the rear and continuously liquid-tight welded seams.
  • Designed for commercial cooking environments, compliant with NFPA-96 and NSF standards.

Overall Dimensions:

144.0"W x 51.0"D x 24.0"H

Product Weight:

907.0 lb

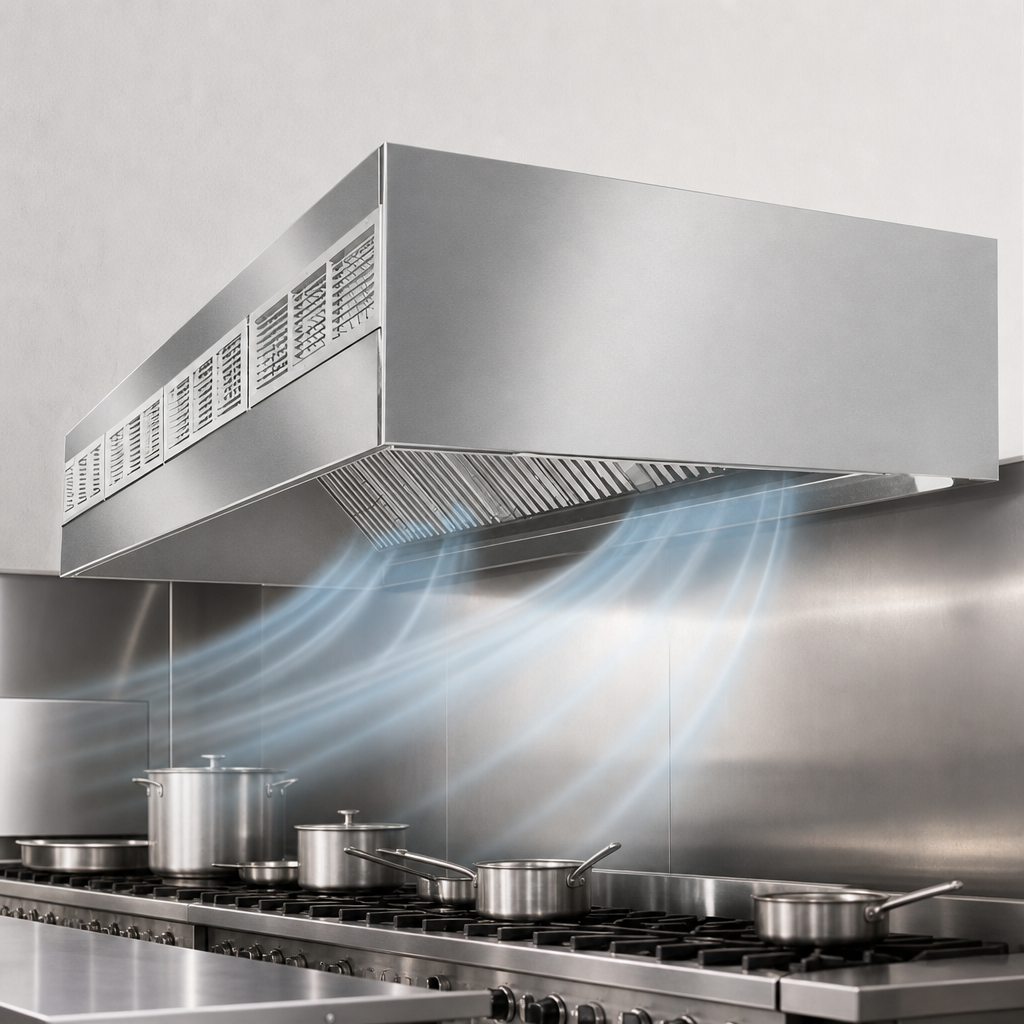

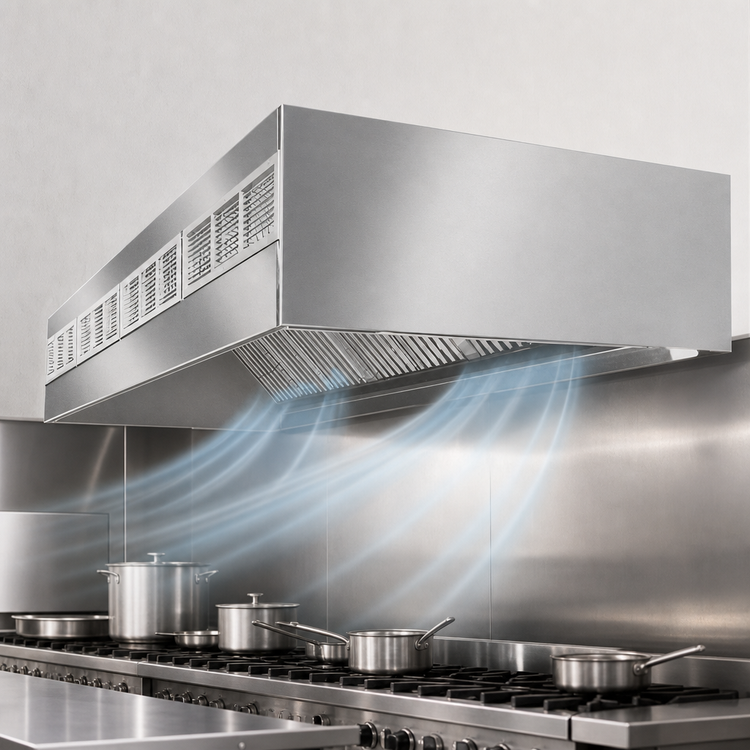

Front Discharge Make-Up Air

Supplies make-up air through the hood at ceiling level, independent of other ventilation systems.

Front Discharge Make-Up Air

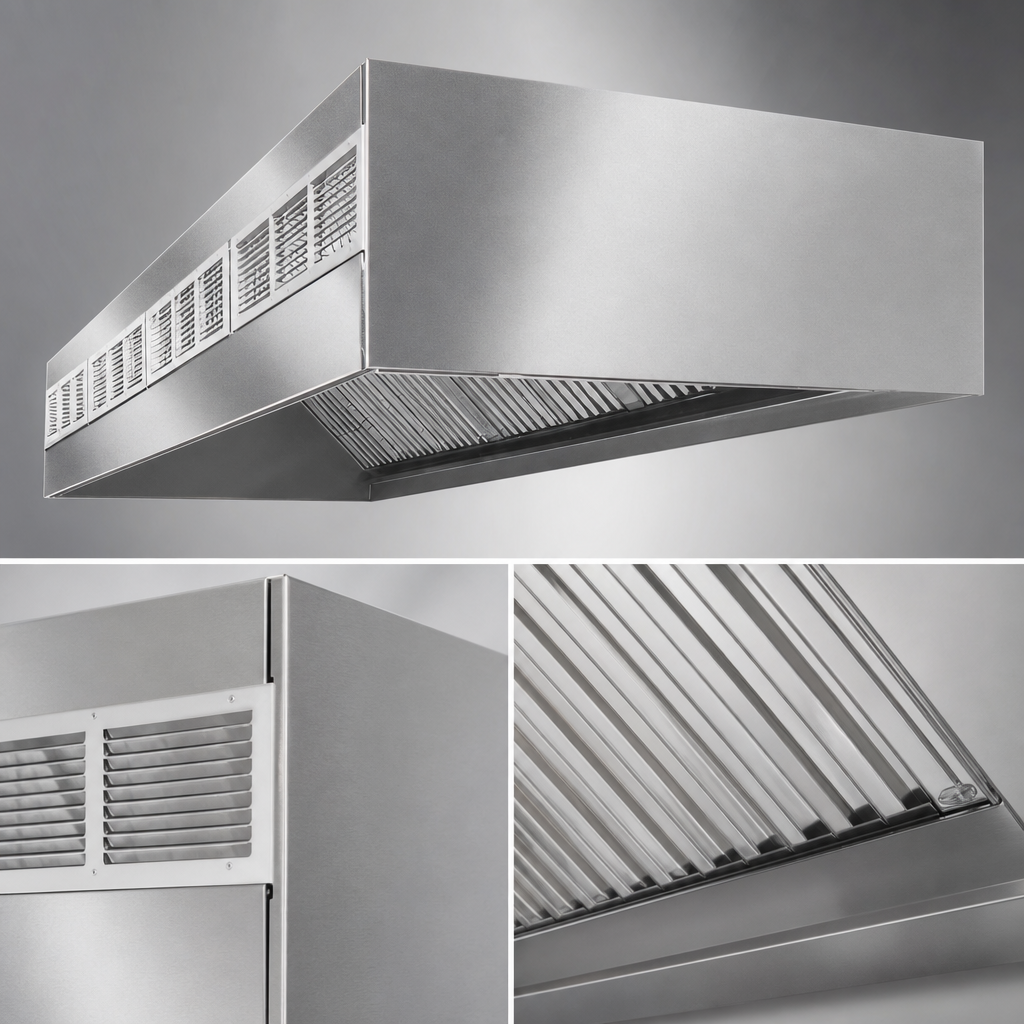

Heavy Gauge Stainless Steel Construction

All surfaces are made from durable type 430 stainless steel.

Heavy Gauge Stainless Steel Construction

Liquid-Tight Welded Seams

Canopy seams are continuously welded liquid-tight for hygiene and safety.

UL Classified Aluminum Filters

Removable for easy cleaning and maintenance.

UL Vapor-Proof Incandescent Light Fixtures

Provides illumination within the hood area.

Full-Length Grease Trough

Collects grease effectively.

Removable Grease Container

Facilitates easy disposal of collected grease.

3" Air Space at Rear

Standard feature for proper installation and airflow.

Mounting Channels

Includes front and rear mounting channels for installation.

Exhaust and Supply Collars

Standard inclusions for connecting ductwork.

Type Exhaust Hood
Style Wall Type
Installation Type Wall Mounted
Material 430 Stainless Steel
Interior Finish Stainless Steel
Width 144 Inches
Depth 51 Inches
Height 24 Inches
Weight 907 lb.
Shipping Width 144 Inches
Shipping Depth 51 Inches
Shipping Height 24 Inches
Shipping Weight 907 lb.
Make-up Air Compensating (Front Discharge)
Air Space 3 Inches (Rear)
Exhaust CFM 4800
Exhaust Collars 2
Exhaust Collar Width 10 Inches
Exhaust Collar Length 19 Inches
Supply CFM 4080
Supply Collars 2
Supply Collar Width 10 Inches
Supply Collar Length 26.5 Inches
Lights 4
Filters 6
Selling Unit Each
Units Per Case 1
Country of Origin USA

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year parts and labor limited warranty

Documents

PDF Cutsheet PDF Download PDF Spec air® warranty PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The hood is constructed from heavy gauge type 430 stainless steel for durability and sanitation, with all seams continuously liquid-tight welded.
The HEF96-144 is a front discharge make-up air compensating exhaust hood, meaning it supplies make-up air through the hood at ceiling level, independent of other ventilation systems.
Yes, the hood includes UL classified aluminum filters that are removable for easy cleaning, along with UL vapor-proof incandescent light fixtures. It also features a full-length grease trough and a removable grease container.
The overall dimensions are 144 inches wide, 51 inches deep, and 24 inches high. It weighs 907 lb.
Eagle Group provides a limited warranty for its products, covering defects in materials and workmanship for one year from the date of original installation, not to exceed 18 months from the date of shipment from Eagle. This warranty is subject to conditions including proper installation, maintenance, and authorized service.
