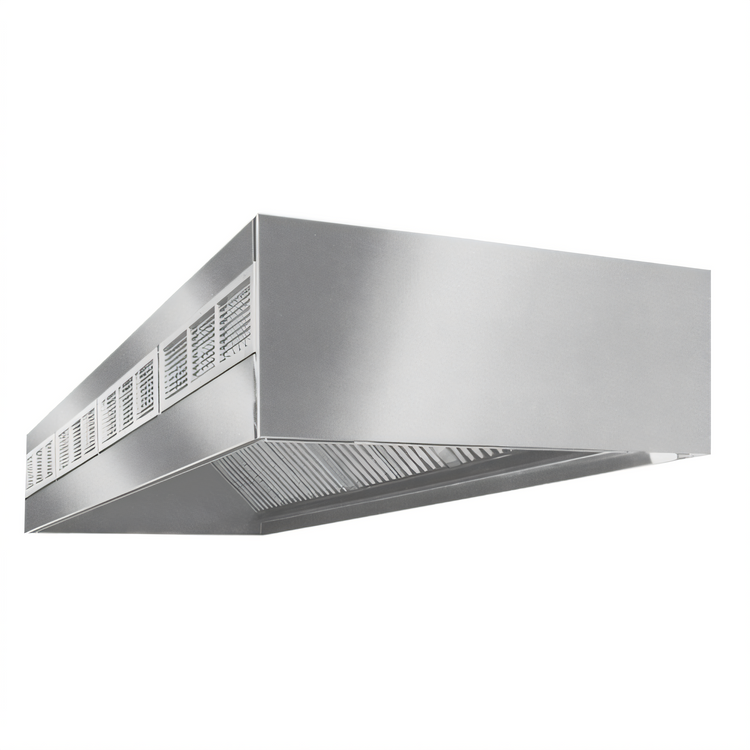

Eagle Group SpecAir HEF96-126 Wall Type Front Discharge Make-Up Air Exhaust Hood, 126" Wide
Eagle Group SpecAir HEF96-126 Wall Type Front Discharge Make-Up Air Exhaust Hood, 126" Wide
Wall Mounted, 126" Wide, 51" Deep, Front Discharge Make-Up Air
Designed for demanding commercial kitchens, this heavy-duty stainless steel exhaust hood provides efficient ventilation with integrated make-up air.
- Durable heavy gauge 430 stainless steel construction for long-lasting performance.
- Front discharge make-up air system operates independently of other ventilation systems.
- Equipped with UL classified removable aluminum filters for easy cleaning and maintenance.
- Features UL-listed vapor-proof incandescent light fixtures for improved visibility.
- Built to NFPA 96 standards, ensuring safety and compliance for commercial cooking applications.
- Includes a full-length grease trough and a removable grease container for effective grease management.
- Standard 3-inch air space at the rear for proper installation and airflow.

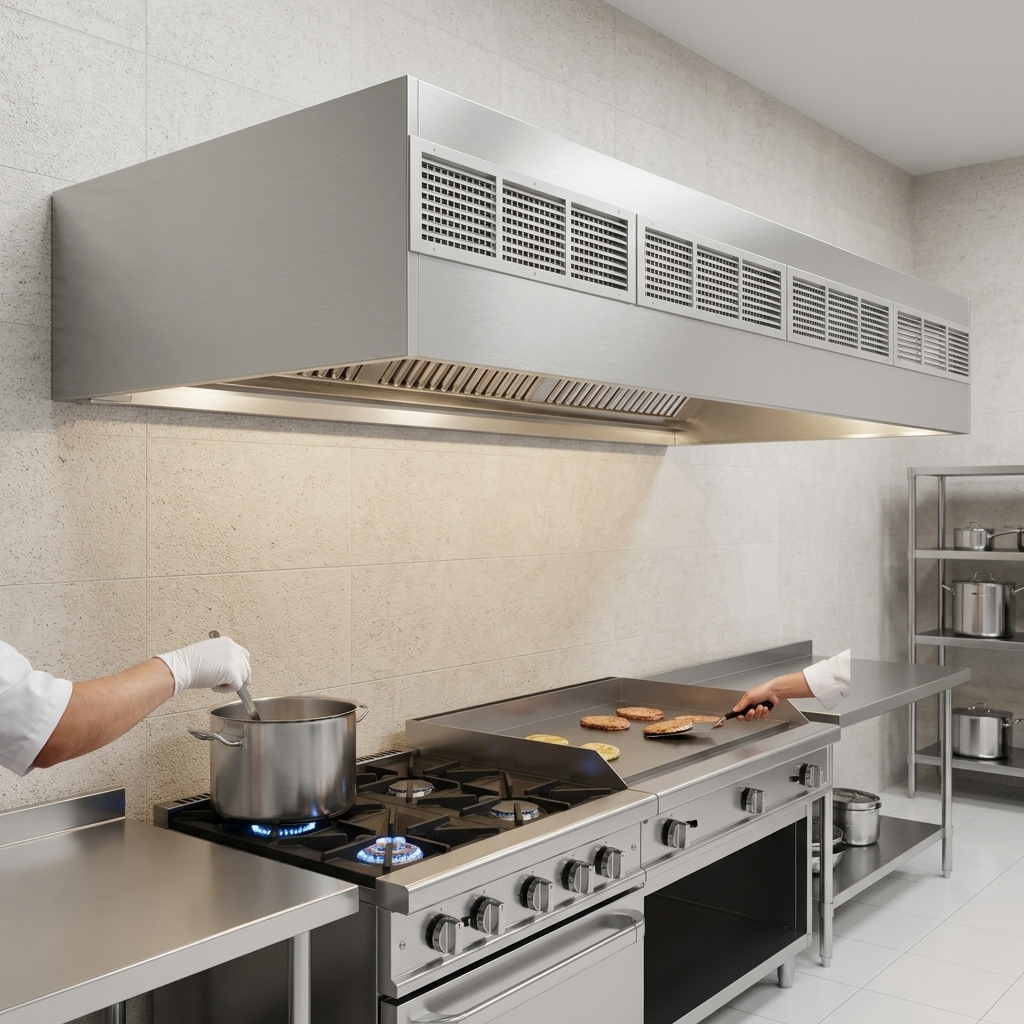

Front Discharge Make-Up Air
Supplies make-up air directly through the hood at ceiling level, ensuring proper kitchen ventilation without relying on external systems.

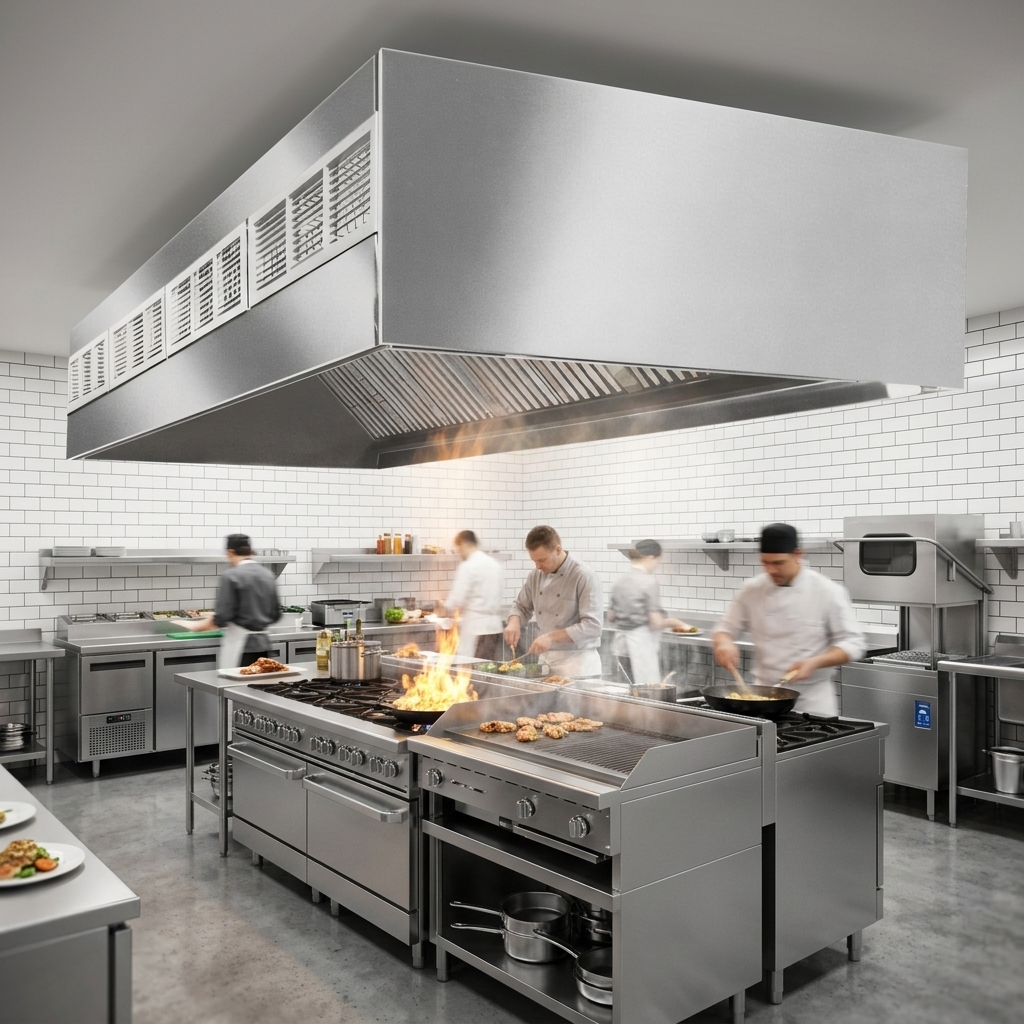

Heavy Gauge Stainless Steel Construction
Constructed from heavy gauge type 430 stainless steel, offering exceptional durability and resistance to corrosion, meeting NFPA 96 requirements.

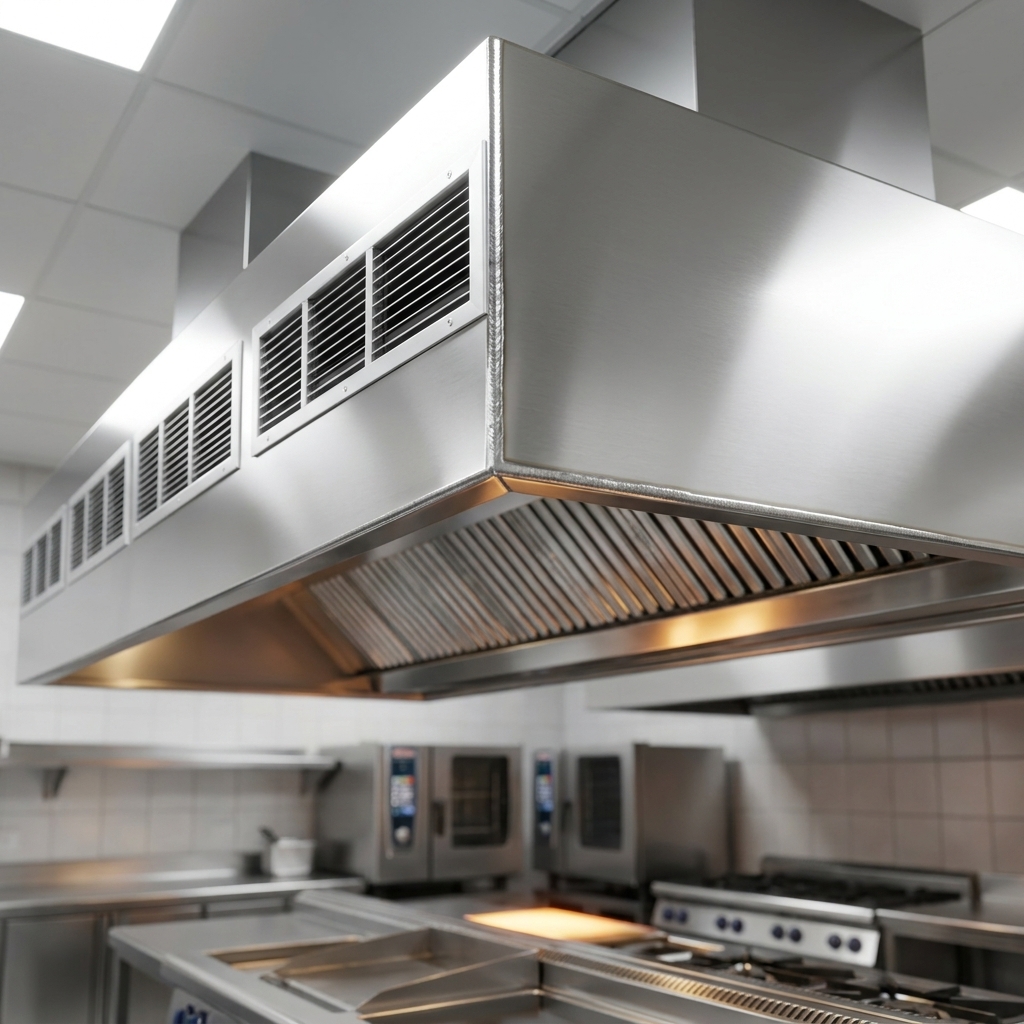

Liquid-Tight Welded Seams
Canopy seams are continuously welded to be liquid-tight, enhancing hygiene and preventing grease leakage.
UL Classified Aluminum Filters
Features easily removable and UL classified aluminum filters, designed for efficient grease capture and simple cleaning.
UL-Listed Vapor-Proof Incandescent Lights
Integrated vapor-proof incandescent light fixtures provide clear and safe illumination within the cooking area.
Full-Length Grease Trough and Container
A full-length grease trough channels grease into a removable container, simplifying disposal and maintaining cleanliness.
3-Inch Rear Air Space
Includes a standard 3-inch (76mm) air space at the rear, crucial for correct installation and airflow dynamics.
Exhaust and Supply Collars
Pre-installed exhaust and supply collars facilitate straightforward connection to ductwork for a complete ventilation system.
Front and Rear Mounting Channels
Equipped with front and rear mounting channels for secure and stable wall installation.
Specifications
| Type | Exhaust Hood |
|---|---|
| Style | Wall Type |
| Installation Type | Wall Mounted |
| Material | 430 Stainless Steel |
| Make-up Air | Compensating |
| Air Space | 3 Inches (Rear) |
| Exhaust CFM | 4200 CFM |
| Number of Exhaust Collars | 2 |
| Exhaust Collar Width | 10 Inches |
| Exhaust Collar Length | 16.5 Inches |
| Supply CFM | 3570 CFM |
| Number of Supply Collars | 2 |
| Supply Collar Width | 10 Inches |
| Supply Collar Length | 23 Inches |
| Number of Lights | 4 |
| Number of Filters | 6 |
| Selling Unit | Each |
| Units Per Case | 1 |
| Shipping Width | 126 Inches |
| Shipping Depth | 51 Inches |
| Shipping Height | 24 Inches |
| Shipping Weight | 793 lb. |
Overall Dimensions:
126.0"W x 51.0"D x 24.0"HProduct Weight:
793.0 lbCertifications & Compliance
Warranty & Protection
1-year limited warranty on parts and workmanship, with specific conditions.
