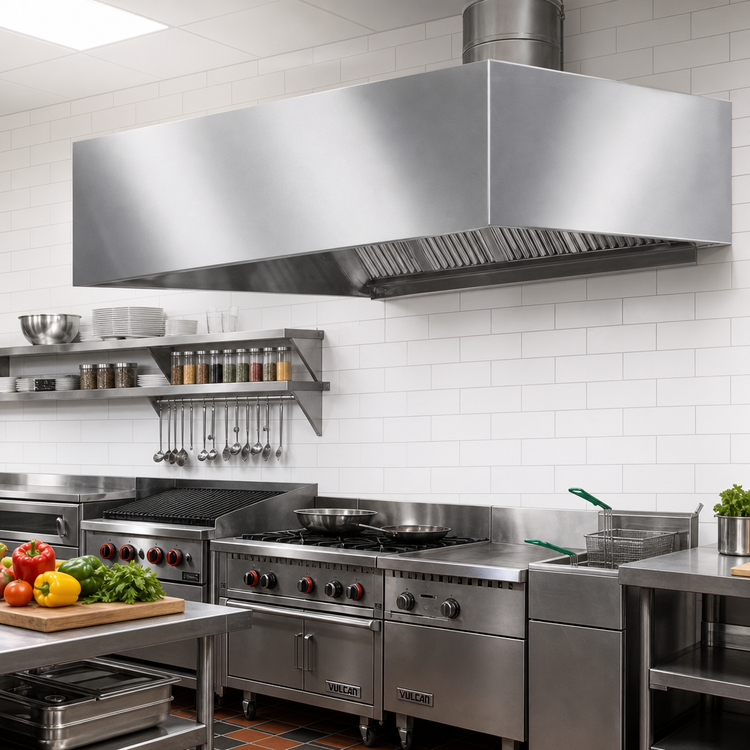

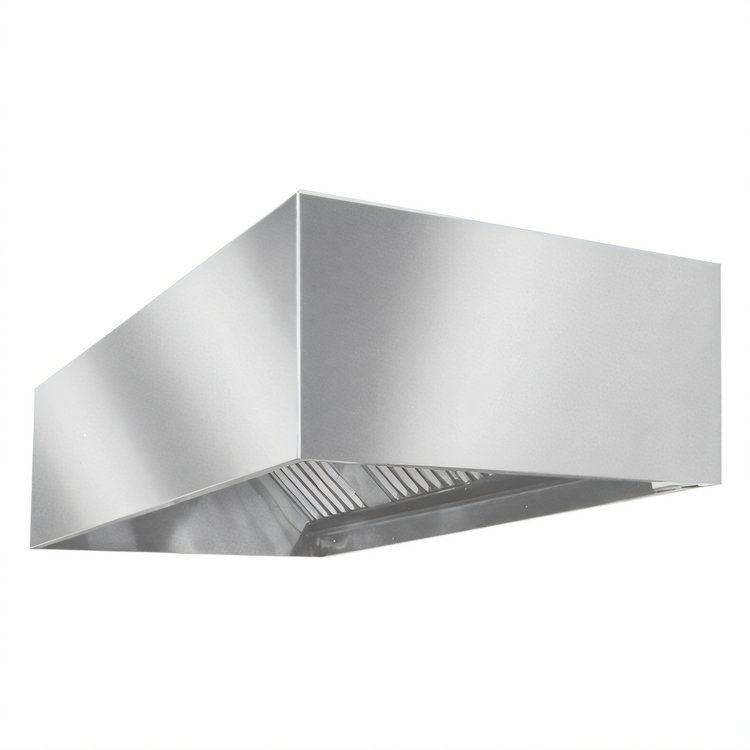

Eagle Group SpecAIR HEB96-90 90" Non-Compensating Wall Type Exhaust Hood

Wall Mounted, Non-Compensating, 51" Standard Depth

Engineered for demanding commercial kitchens, the Eagle Group SpecAIR HEB96-90 exhaust-only hood efficiently removes smoke, grease, and odors.

  • Heavy gauge type 430 stainless steel construction ensures durability and easy cleaning.
  • Designed as an exhaust-only system, perfect for setups where make-up air is supplied by other ventilation.
  • Equipped with UL classified aluminum filters and UL vapor-proof incandescent lighting for safe and effective operation.
  • Features a full-length grease trough and removable grease container for convenient maintenance.
  • Built with a 3-inch air space at the rear and includes front/rear hanger brackets for straightforward wall mounting.
  • Meets NFPA 96 standards and is NSF certified, ensuring compliance and safety.

Overall Dimensions:

90.0"W x 51.0"D x 24.0"H

Product Weight:

567.0 lb

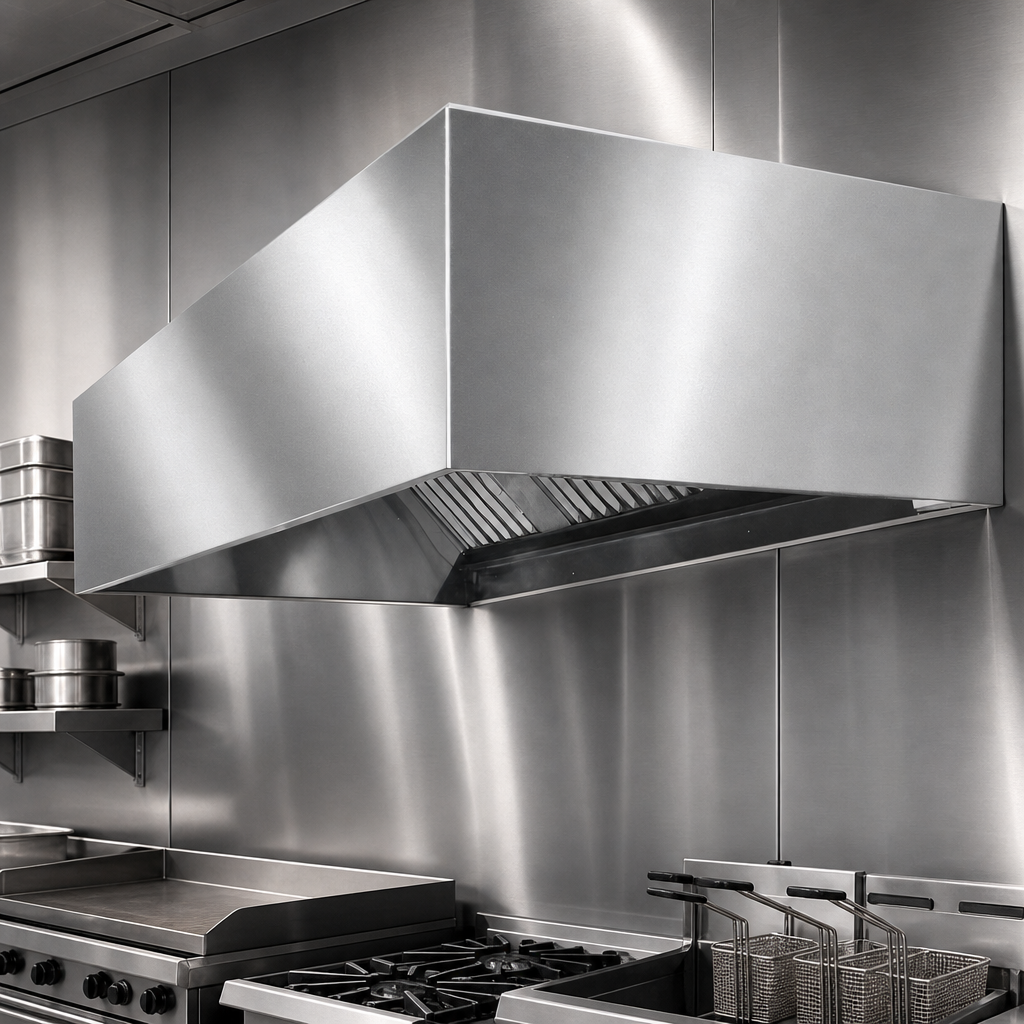

Heavy Gauge Stainless Steel Construction

Exposed surfaces are crafted from heavy gauge type 430 stainless steel, providing exceptional durability and corrosion resistance for commercial kitchen environments.

Heavy Gauge Stainless Steel Construction

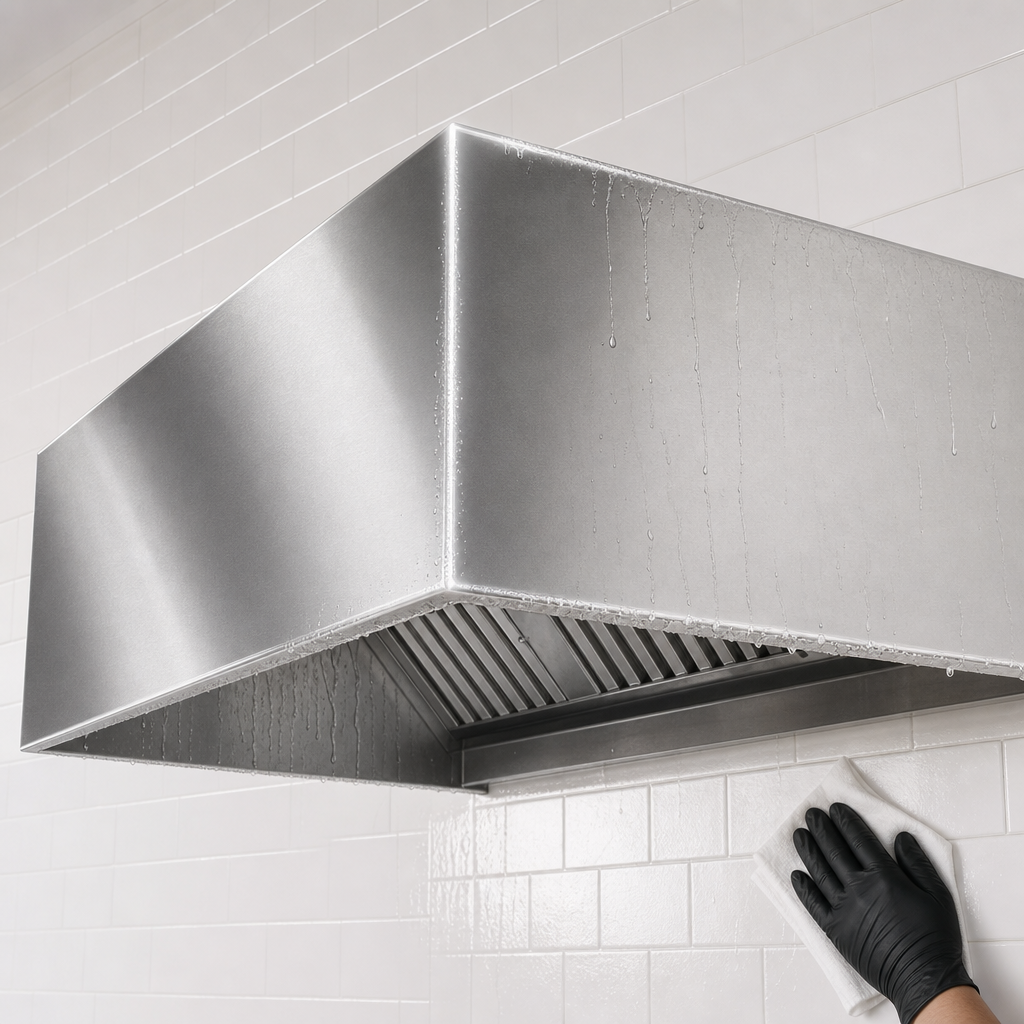

Liquid-Tight Welded Seams

All canopy seams are continuously welded liquid-tight, preventing grease and moisture leaks and simplifying cleaning.

Liquid-Tight Welded Seams

Exhaust-Only Design

Specifically designed for exhaust-only ventilation, intended for use in commercial cooking applications where make-up air is provided by a separate system.

UL Classified Aluminum Filters

Includes UL classified aluminum filters that are easily removable for cleaning, ensuring efficient grease extraction and fire safety.

UL Vapor-Proof Incandescent Lights

Furnished with UL listed vapor-proof incandescent light fixtures, providing clear illumination of the cooking surface while resisting moisture and grease accumulation.

Integrated Grease Management

Features a full-length stainless steel grease trough and a removable grease container, streamlining grease collection and disposal for easier cleaning and maintenance.

3-Inch Rear Air Space

Built with a standard 3-inch (76mm) air space at the rear, aiding in proper ventilation and meeting installation requirements.

Hanging Brackets Included

Comes with front and rear hanger brackets for secure and straightforward wall mounting.

Type Exhaust-Only Hood
Style Non-Compensating
Installation Type Wall Mounted
Material 430 Stainless Steel
Width 90 Inches
Depth 51 Inches
Height 24 Inches
Weight 567 lb.
Air Space 3 Inches at Rear
Exhaust CFM 3000
Exhaust Collar Size 10" x 24"
Number of Exhaust Collars 1
Number of Lights Per Hood 3
Number of Filters Per Hood 4
Shipping Width 90 Inches
Shipping Depth 51 Inches
Shipping Height 24 Inches
Shipping Weight 567 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year parts and labor limited warranty from the date of original installation, not to exceed 18 months from shipment from Eagle.

Documents

PDF Cutsheet PDF Download PDF Spec air® warranty PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The hood is constructed from heavy gauge type 430 stainless steel on all exposed surfaces, ensuring durability and ease of cleaning in commercial kitchen environments.
Yes, the HEB96-90 hood comes equipped with UL classified aluminum removable filters and UL listed vapor-proof incandescent light fixtures, providing both filtration and illumination.
No, this is an exhaust-only ventilation hood. It is designed for use where make-up air is supplied by other separate ventilation systems.
The Eagle Group SpecAIR HEB96-90 exhaust hood is constructed per NFPA 96 standards and is NSF certified, ensuring it meets crucial safety and sanitation requirements for commercial use.
The hood includes front and rear hanger brackets for mounting. However, the manufacturer specifies that installation supplies and materials, such as ductwork, fans, curbs, and electrical components, are not included.
The HEB96-90 model has an exhaust CFM rating of 3000 at 1800 FPM (feet per minute) with 0.65 inches Static Pressure.
