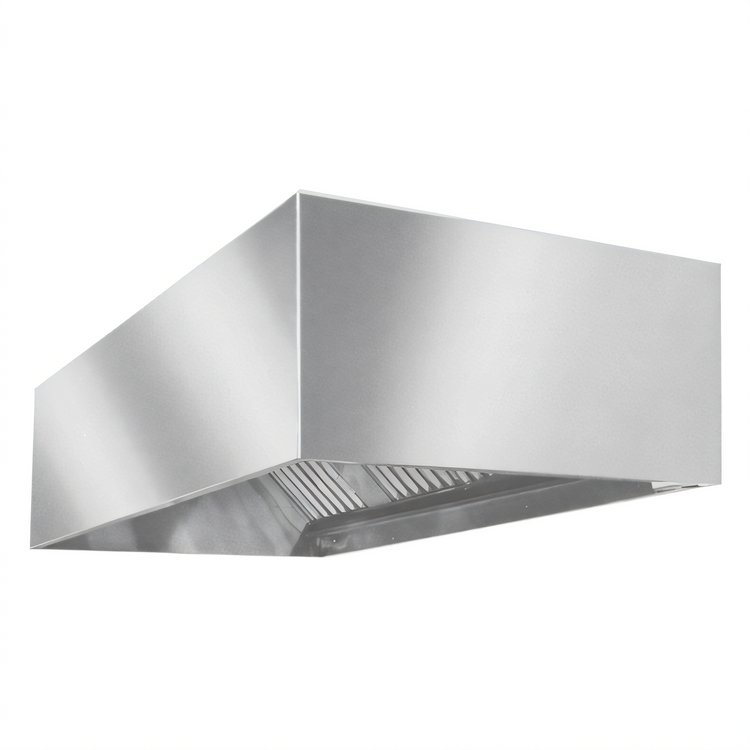

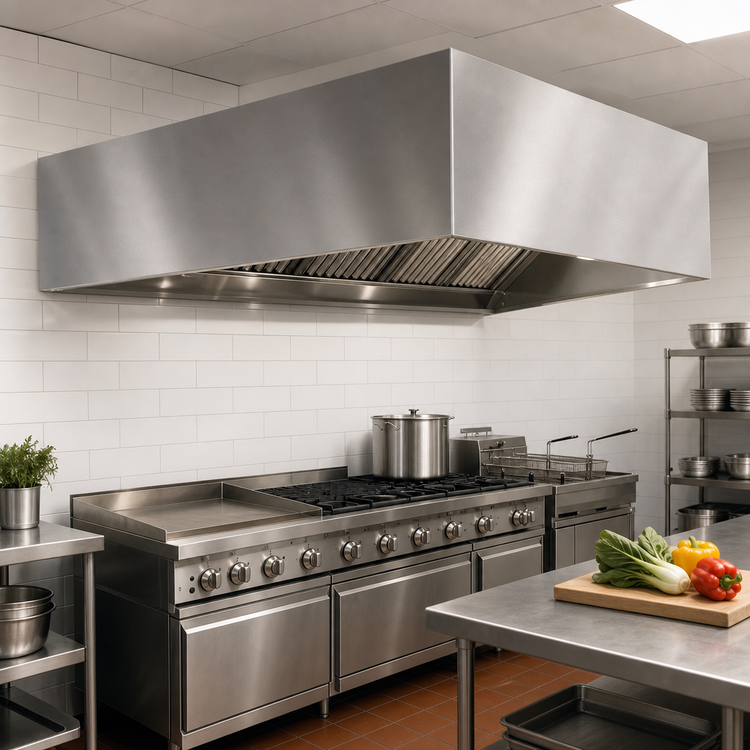

SpecAir HEB96-144 144"W Non-Compensating Wall Type Exhaust Hood
51" Depth, 24" Height, Stainless Steel
Engineered for optimal performance in commercial kitchens, this heavy-duty, exhaust-only ventilation hood ensures efficient removal of grease-laden vapors and heat.
- Constructed from durable heavy gauge type 430 stainless steel with liquid-tight welded seams per NFPA 96.
- Designed as an exhaust-only system for applications where make-up air is supplied independently.
- Includes UL classified removable aluminum filters and UL vapor-proof incandescent lighting for safety and ease of maintenance.
- Features a full-length grease trough and a removable grease container for effective grease management.
- Equipped with two exhaust collars and six filters to handle high-volume ventilation needs.
- Provides a 3-inch air space at the rear, along with front and rear hanging brackets for flexible installation.
Overall Dimensions:
144.0"W x 51.0"D x 24.0"HProduct Weight:

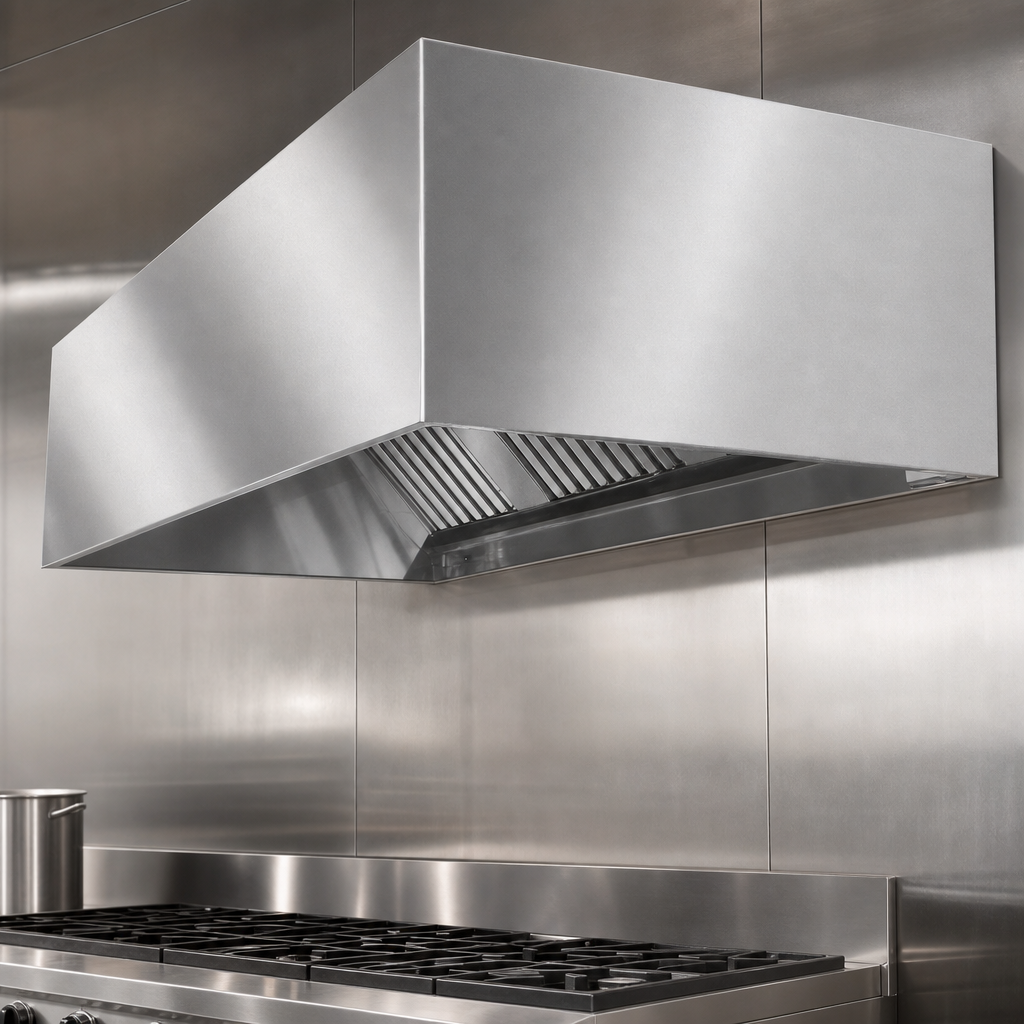

825.0 lbHeavy Gauge Stainless Steel Construction
Exposed surfaces are crafted from robust heavy gauge type 430 stainless steel, ensuring longevity and compliance with hygiene standards in demanding commercial environments.

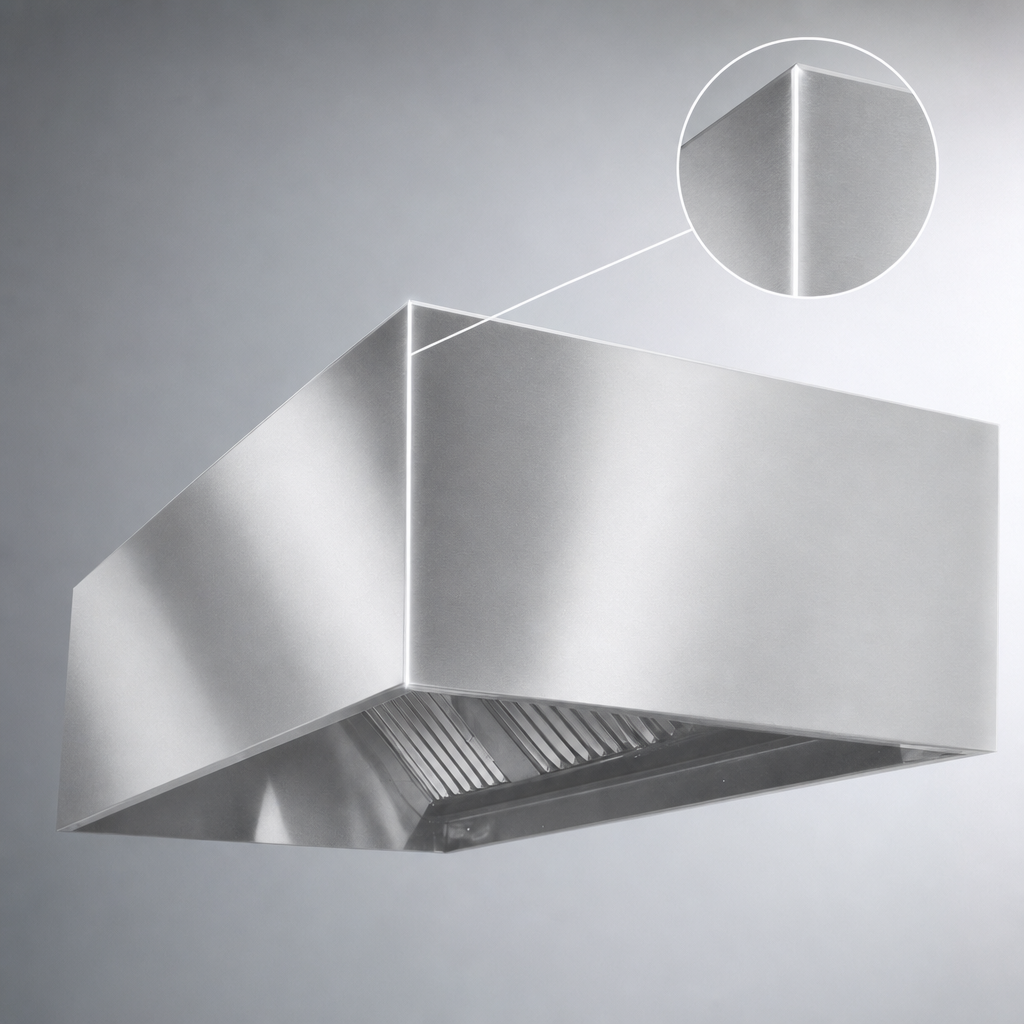

Liquid-Tight Welded Seams
The canopy features continuously welded liquid-tight seams, meeting strict NFPA 96 fire code requirements for commercial cooking ventilation.
UL Classified Aluminum Filters
Equipped with six UL classified removable aluminum filters, designed for efficient capture of grease and easy cleaning to maintain optimal airflow.
UL Vapor-Proof Lighting
Features four UL-listed vapor-proof incandescent light fixtures, providing safe and effective illumination within the hood area.
Full-Length Grease Trough & Container
A full-length stainless steel grease trough and a removable grease container are included to efficiently collect and manage grease runoff.
3-Inch Rear Air Space
Designed with a standard 3-inch (76mm) air space at the rear, facilitating proper installation and adherence to necessary clearances.
Front and Rear Hanger Brackets
Comes with pre-installed front and rear hanging brackets to ensure secure and straightforward wall mounting.
Exhaust Collars
Includes two 10-inch x 19-inch exhaust collars for connection to the ductwork, optimized for 4800 CFM exhaust.
Non-Compensating Design
This exhaust-only hood is specifically designed for environments where make-up air is provided by separate ventilation systems.
Certifications & Compliance
Warranty & Protection
1-year limited warranty on parts and labor from installation, or 18 months from shipment.
