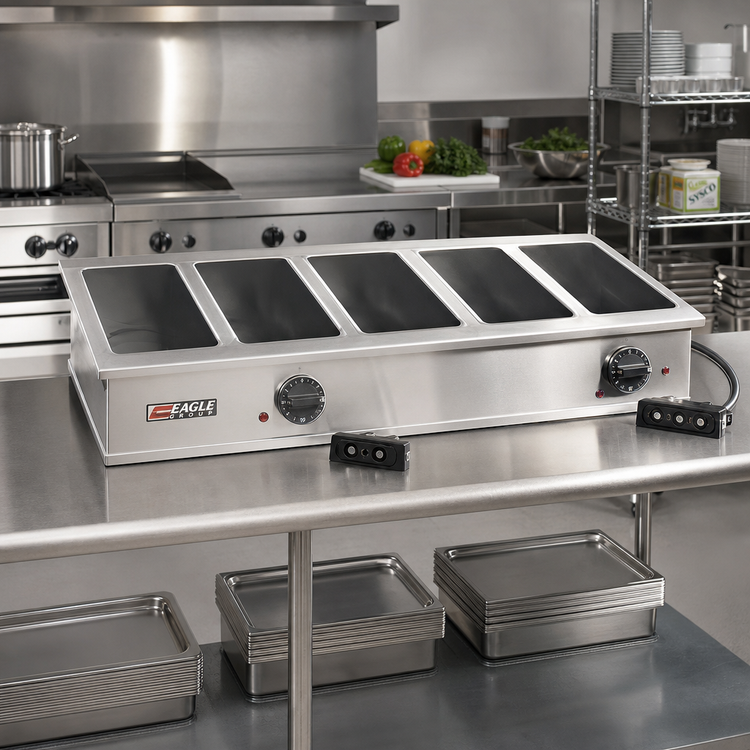

Eagle Group Five-Well Electric Drop-In Hot Food Well Unit, Dry Operation, 240V

Insulated, Individual Pan Wells, Infinite Controls

Keep five full-size pans hot in a rugged, insulated drop-in unit built for buffet lines and serving stations.

  • Holds five 12 Inches x 20 Inches full-size pans in separate heated wells.
  • Dry-operation design with no drain simplifies installation and maintenance.
  • Each well uses a 750-watt exposed heating element for direct, responsive heat.
  • Infinite controls provide high and low selections plus eight additional temperature settings.
  • Fiberglass insulation on all sides and the bottom helps retain heat.
  • 240V, single-phase, field-wired design includes a 20-inch flexible conduit at the control panel.

Overall Dimensions:

79.25"W x 26.06"D x 12.13"H

Product Weight:

135.0 lb

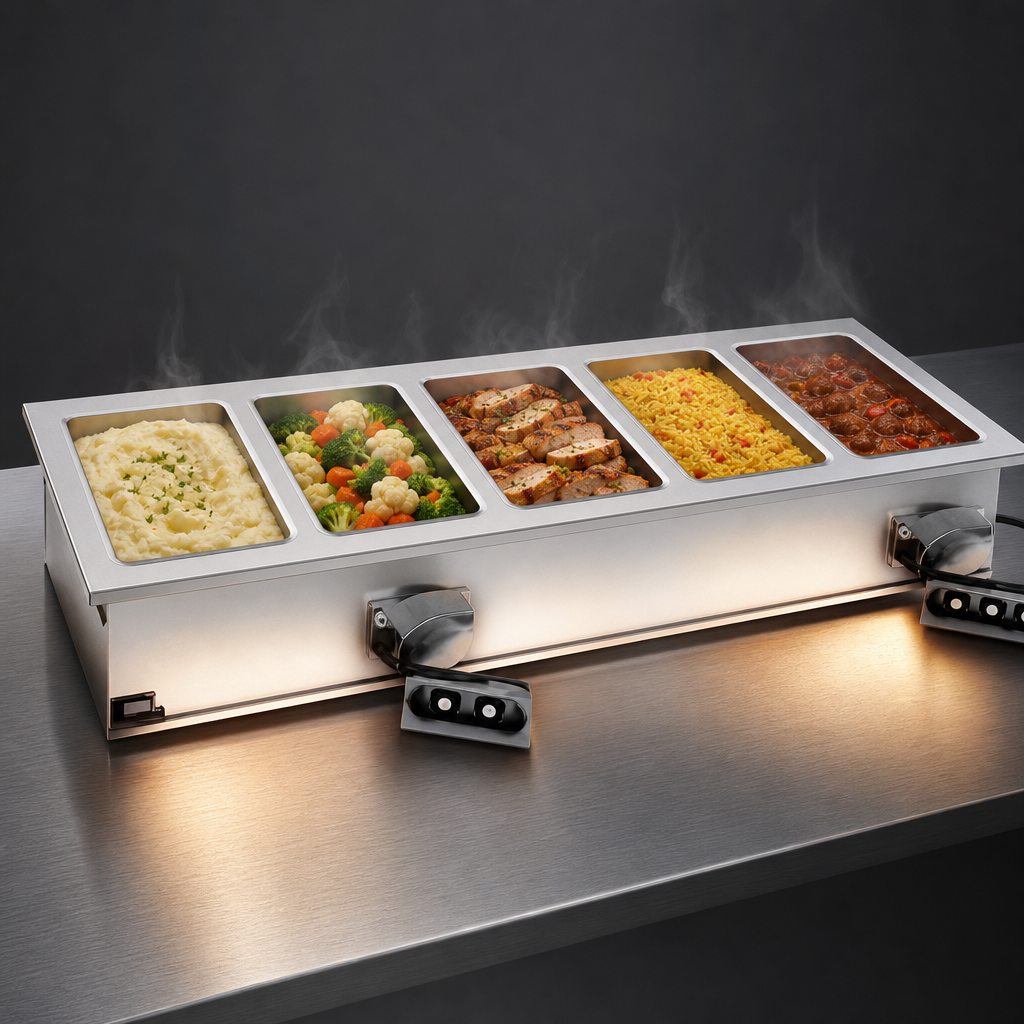

Five Heated Wells

Accommodates five full-size 12 Inches x 20 Inches food pans for high-volume hot holding.

Five Heated Wells

Dry Operation

Designed for dry use and without a drain; spillage pans are required for wet application.

750W Exposed Heating Elements

Each well uses a 750-watt exposed rectangular heating element for direct heat transfer.

Infinite Controls

Front-mounted recessed controls offer high and low selections plus eight additional temperature settings.

Insulated Construction

Fiberglass insulation on all sides and the bottom helps hold temperature and improve heat retention.

Durable Top and Body

Features a 22-gauge type 430 stainless steel top with a 20-gauge galvanized steel wraparound body and overhang on all four sides.

Field-Wired Electrical Connection

All wiring terminates in a junction box, and the control panel includes a 20-inch flexible conduit.

Type Electric Drop-In Hot Food Well
Style Individual Pans
Installation Type Drop-In
Pan Capacity 5 Full-Size Pans (12 Inches x 20 Inches)
Controls Infinite
Material 430 Stainless Steel
Voltage 240 Volts
Amps 15.6 Amps
Watts 3.75 kW
Hertz 60 Hz
Phase 1-Phase
Selling Unit Each
Units Per Case 1
Shipping Width 80 Inches
Shipping Depth 27 Inches
Shipping Height 13 Inches
Shipping Weight 135 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1 year from original installation, not to exceed 18 months from shipment.

Documents

PDF Cutsheet PDF Download PDF Installation operation PDF Download PDF Brochure PDF Download PDF Infinite control replacement PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It accommodates five full-size 12 Inches x 20 Inches food pans.
It is designed for dry operation and does not have a drain. Spillage pans are required for wet application.
This model requires 240 Volts, 60 Hz, 1-Phase power and draws 15.6 Amps at 3.75 kW.
The unit requires a 76-9/16 Inches W x 23-5/16 Inches D cutout. The double control panel requires an 8-3/8 Inches x 2-11/16 Inches cutout, and the triple panel requires an 11-13/16 Inches x 2-11/16 Inches cutout.
It uses infinite controls with high and low selections plus eight additional temperature settings.
The unit features a type 430 stainless steel top, a galvanized steel body, and fiberglass insulation.
