Eagle Group GDI-5-208 5-Well Drop-In Electric Dry Hot Food Well Unit, 208V

Five 12" x 20" Wells, Dry Operation, Infinite Controls

Keep five full-size pans hot and ready with a rugged, insulated drop-in unit built for precise dry holding and easy countertop integration.

  • Holds five 12" x 20" pans in individual heated wells.
  • Dry-operation design with no drain required simplifies installation.
  • 750W exposed heating element per well delivers direct, responsive heat.
  • Infinite controls provide broad temperature selection from the front panel.
  • Stainless steel top, galvanized body, and fiberglass insulation improve durability and heat retention.
  • 208V, 60 Hz, single-phase hardwired unit includes a 20-inch flexible conduit.

Overall Dimensions:

79.25"W x 26.06"D x 12.13"H

Product Weight:

220.0 lb

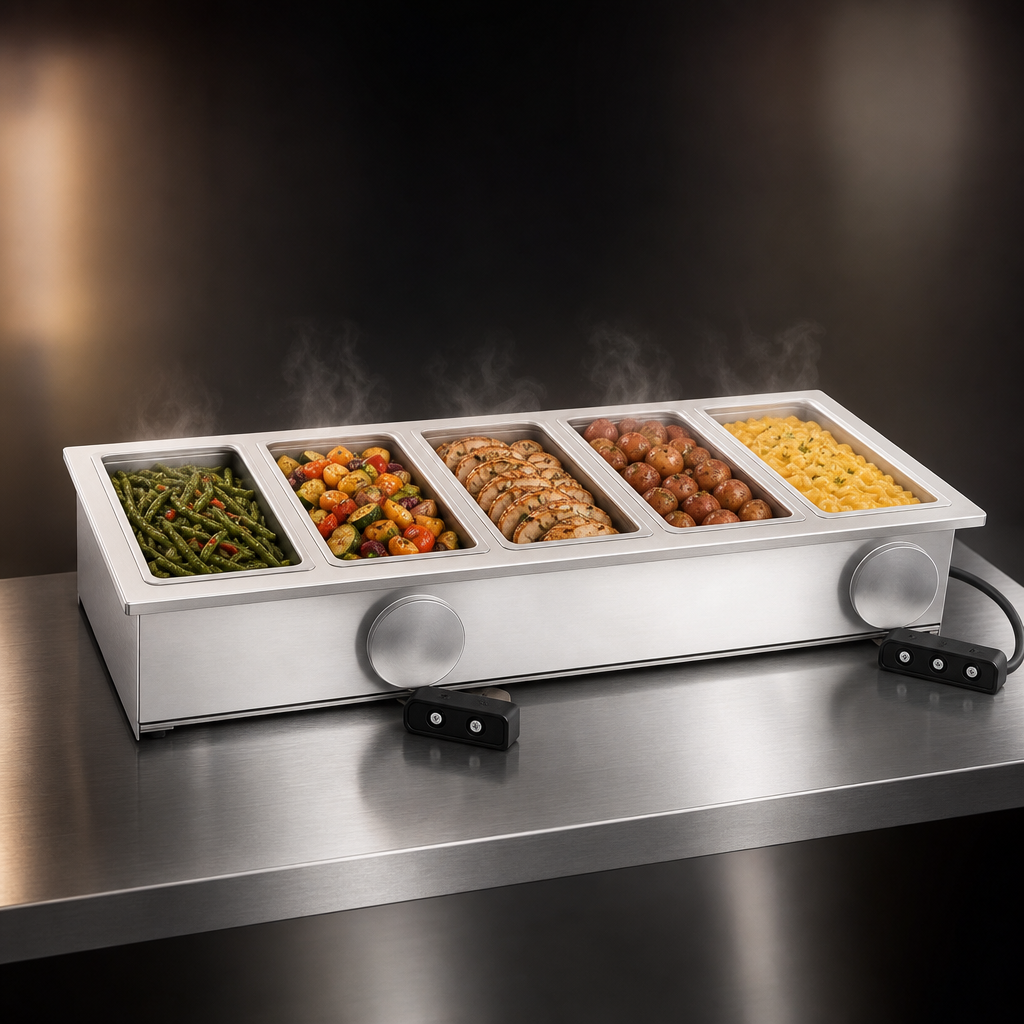

Five Heated Wells

Each heated compartment accommodates one 12" x 20" food pan for a total of five wells.

Five Heated Wells

Dry Operation

Built for dry holding; no drain connection is required for standard operation.

750W Exposed Heating Elements

A 750-watt exposed heating element is provided in each well for direct heat transfer.

Infinite Controls

Recessed controls provide high and low selections plus eight additional temperature settings.

Durable Top And Body Construction

22-gauge type 430 stainless steel top with a 1-inch overhang and 20-gauge galvanized steel wraparound body.

Fiberglass Insulation

Fiberglass insulation on all four sides and the bottom helps retain heat and improve efficiency.

Recessed Front Control Panel

Front-mounted control panel includes a 20-inch flexible conduit and is designed for field wiring.

Type Hot Food Well
Style Individual Pans
Installation Type Drop-In
Controls Infinite
Pan Capacity 5 Full-Size Pans
Pan Size 12 x 20 Inches
Compartments 5
Material Stainless Steel
Water Connection Not Required
Drain Connection Not Required
Voltage 208 Volts
Amps 18.0 Amps
Watts 3.75 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type Hardwired
Shipping Width 80 Inches
Shipping Depth 27 Inches
Shipping Height 13 Inches
Shipping Weight 220 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year limited warranty from original installation, not to exceed 18 months from shipment.

Documents

PDF Cutsheet PDF Download PDF Installation operation PDF Download PDF Brochure PDF Download PDF Infinite control replacement PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It holds five 12" x 20" pans, one in each heated well.
It is designed for dry operation. If used in a wet application, spillage pans are required.
It requires 208V, 60 Hz, single-phase power, draws 18.0 amps, and is rated at 3750W.
The unit requires a 76-9/16"W x 23-5/16"D cutout.
The double control panel cutout is 8-3/8"W x 2-11/16"H, and the triple control panel cutout is 11-13/16"W x 2-11/16"H.
Infinite controls provide high and low selections plus eight additional temperature settings.
