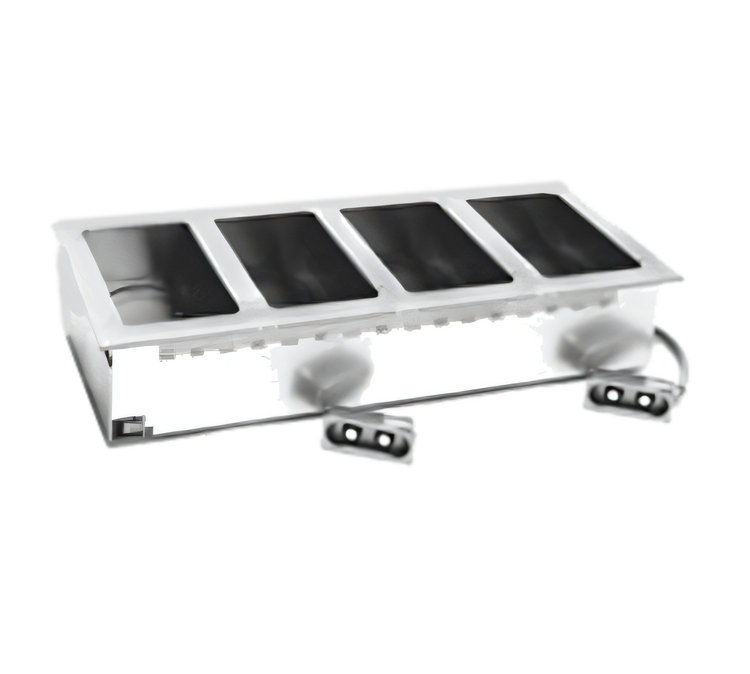

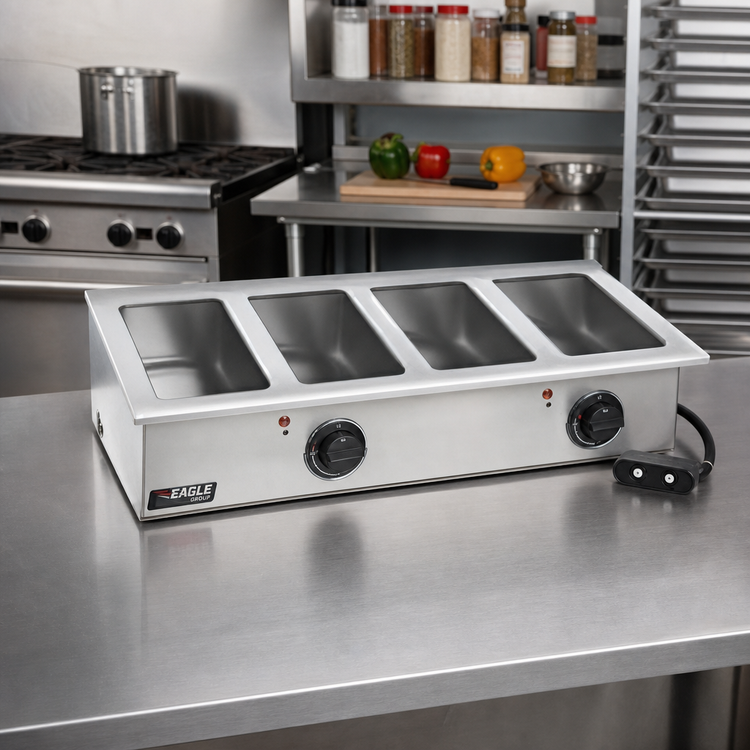

Eagle Group Four-Well Electric Drop-In Hot Food Well Unit, Dry Operation, 240V

For 12" x 20" Pans, Infinite Controls

Keep four full-size pans hot and ready with an insulated dry-operation drop-in well that uses infinite controls for precise temperature holding.

  • Holds four full-size 12" x 20" pans in individual heated wells.
  • Dry-operation design means no drain connection is required.
  • 240V, 60 Hz, 1-phase electric operation with 3000W output.
  • Infinite controls provide high, low, and eight additional temperature settings.
  • Stainless steel top, galvanized steel body, and fiberglass insulation support durability and heat retention.

Overall Dimensions:

64.25"W x 26.06"D x 12.13"H

Product Weight:

129.0 lb

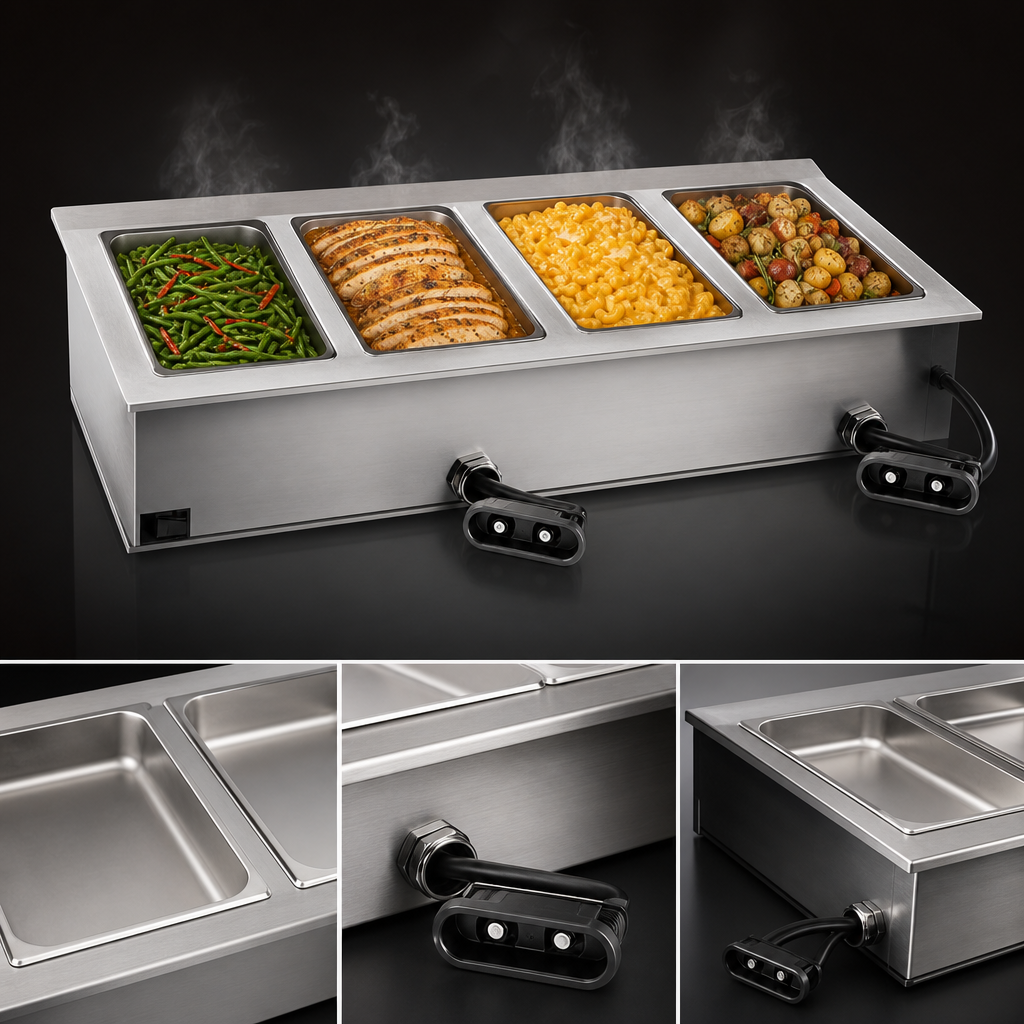

Four Heated Wells

Each well accommodates one 12" x 20" food pan for full-size serving capacity.

Four Heated Wells

Dry-Operation Design

Built for dry use and does not require a drain.

Infinite Controls

High and low selections plus eight additional temperature settings for fine temperature adjustment.

750W Exposed Heating Elements

One exposed heating element per well provides direct, responsive heat.

Fiberglass Insulation

Insulation on all sides and the bottom helps retain heat in the wells.

Stainless Steel Top

22-gauge type 430 stainless steel top with overhang on all four sides.

Galvanized Steel Body

20-gauge wraparound body construction adds durability and corrosion resistance.

Recessed Control Panel

Front-mounted control panel includes a 20-inch flexible conduit connection.

Field-Wired Electrical Design

All wiring terminates in a junction box and the unit is designed for field wiring.

Type Hot Food Well
Style Individual Pans
Installation Type Drop-In
Pan Capacity 4
Pan Size 12 Inches x 20 Inches
Controls Infinite Controls
Material Stainless Steel
Drain Connection Not Required
Voltage 240 Volts
Amps 12.5 Amps
Watts 3 kW
Hertz 60 Hz
Phase 1-Phase
Selling Unit Each
Units Per Case 1
Shipping Width 65 Inches
Shipping Depth 27 Inches
Shipping Height 13 Inches
Shipping Weight 129 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1 year from original installation, not to exceed 18 months from shipment.

Documents

PDF Cutsheet PDF Download PDF Installation operation PDF Download PDF Brochure PDF Download PDF Infinite control replacement PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

Each heated well accommodates one 12" x 20" food pan.
No. It is designed for dry operation and is supplied without a drain.
The unit uses 240V, 60 Hz, single-phase power and is rated at 12.5 amps and 3000W.
The unit requires a 61-1/2"W x 23-5/16"D cutout, and the control panel requires an 8-3/8"W x 2-11/16"H cutout.
No. The sheet notes that 240-volt units will not allow field wiring to 208 volts.
Rolltop cover, food pans/insets, and top adapters are listed as options/accessories.
