Eagle Group 4-Well Drop-In Electric Dry Hot Food Well Unit, 208V

SKU: GDI-4-208
$2,773.34
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Eagle Group Food Bars & Buffets Food Holding & Warming Equipment Food Wells & Serving Lines Hot Well New Arrivals Restaurant Equipment Steam Tables & Food Wells

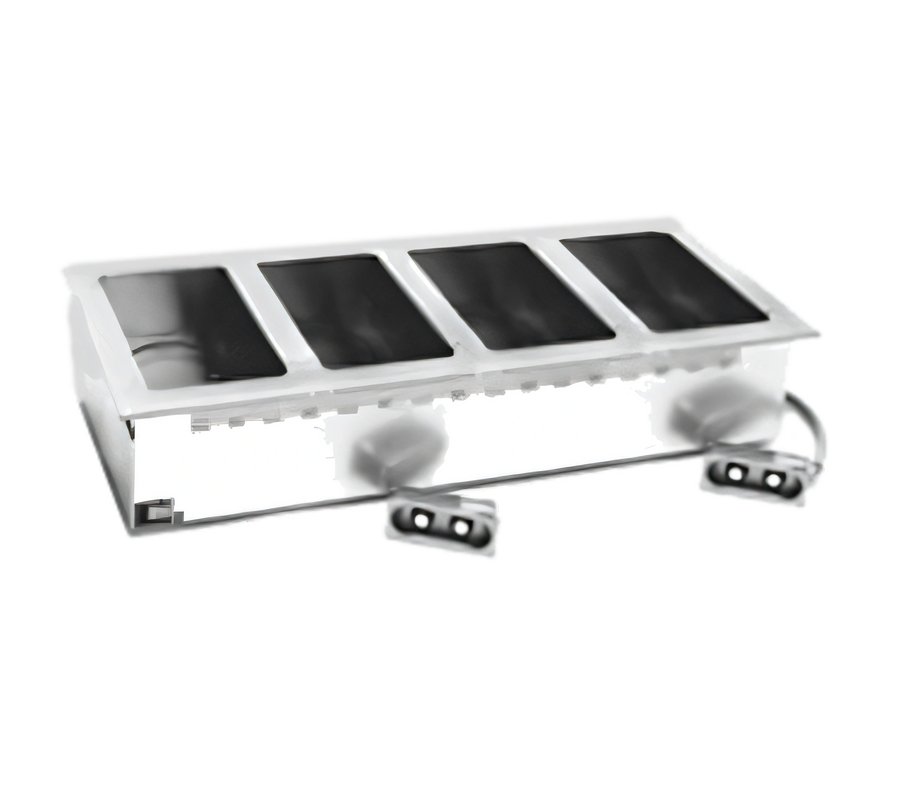

Eagle Group 4-Well Drop-In Electric Dry Hot Food Well Unit, 208V

Individual Pans, Infinite Controls, 3 kW, Single Phase

Keep four full-size pans hot in a compact drop-in unit built for dry operation, precise infinite control, and durable stainless steel construction.

  • Four heated wells each accommodate a full-size 12" x 20" pan.
  • Dry-operation design simplifies setup and does not require a drain.
  • 750W exposed heating element in each well delivers 3 kW total output.
  • Fiberglass insulation on all sides and the bottom helps retain heat.
  • Infinite controls with a recessed front panel provide flexible temperature adjustment.
  • 22-gauge Type 430 stainless steel top and galvanized steel body are built for foodservice use.

Overall Dimensions:

64.25"W x 26.06"D x 12.13"H

Product Weight:

192.0 lb

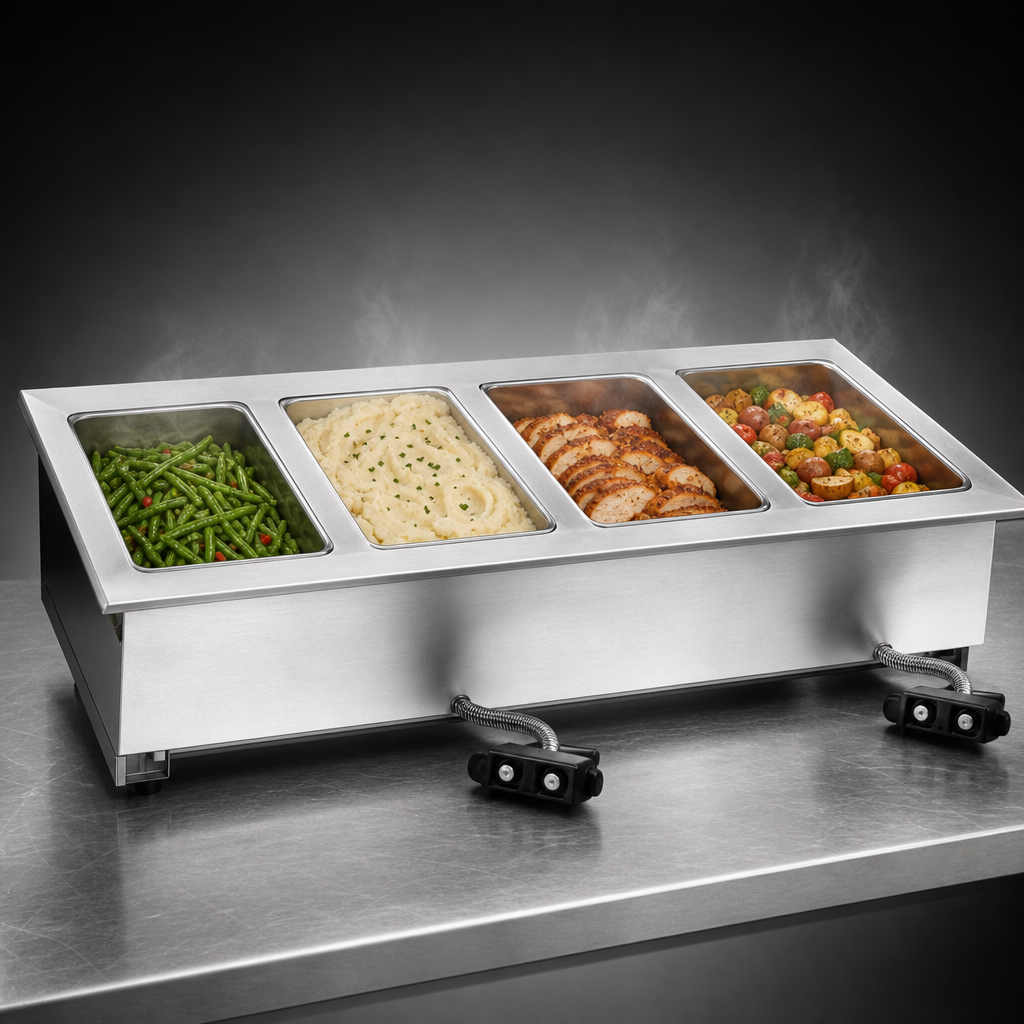

Four Heated Wells

Provides four individual wells, each sized for a standard 12" x 20" food pan.

Four Heated Wells

Dry Operation

Designed for dry use; spillage pans are required if wet application is desired.

Exposed Heating Elements

Each well uses a 750-watt exposed heating element for direct, responsive heat.

Fiberglass Insulation

Insulation on all sides and the bottom helps hold temperature and improve efficiency.

Infinite Temperature Controls

Recessed front-mounted controls offer high/low selection plus additional temperature settings.

Stainless Steel Top

Features a 22-gauge Type 430 stainless steel top with overhang on all four sides.

Galvanized Steel Body

Wraparound galvanized steel body provides durable support for the drop-in assembly.

Flexible Control Conduit

Control panel includes a 20-inch flexible conduit between the body enclosure and control panel.

Type Hot Food Well
Style Individual Pans
Installation Type Drop-In
Controls Infinite
Pan Capacity 4 Full-Size Pans
Pan Size 12 Inches x 20 Inches
Cutout Width 61 1/2 Inches
Cutout Depth 23 5/16 Inches
Control Panel Cutout Width 8 3/8 Inches
Control Panel Cutout Height 2 11/16 Inches
Voltage 208 Volts
Amps 14.4 Amps
Watts 3 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type Field Wired
Water Connection Not Required
Drain Connection Not Required
Shipping Width 65 Inches
Shipping Depth 27 Inches
Shipping Height 13 Inches
Shipping Weight 192 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year limited warranty from original installation, not to exceed 18 months from shipment.

Documents

PDF Cutsheet PDF Download PDF Brochure PDF Download PDF Installation operation PDF Download PDF Infinite control replacement PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

Each well accommodates a standard 12" x 20" food pan.
It is designed for dry operation. Spillage pans are required for wet application.
This unit operates on 208 Volts, 60 Hz, single-phase power and draws 14.4 Amps.
No. It is designed without a drain connection.
The unit requires a 61 1/2" W x 23 5/16" D cutout, and the control panel requires an 8 3/8" W x 2 11/16" H cutout.
