Eagle Group

Eagle Group 3-Well Drop-In Electric Hot Food Well Unit, Dry Operation, 240V

SKU: GDI-3-240
$2,238.16
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Eagle Group Food Bars & Buffets Food Holding & Warming Equipment Food Wells & Serving Lines Hot Well New Arrivals Restaurant Equipment Steam Tables & Food Wells

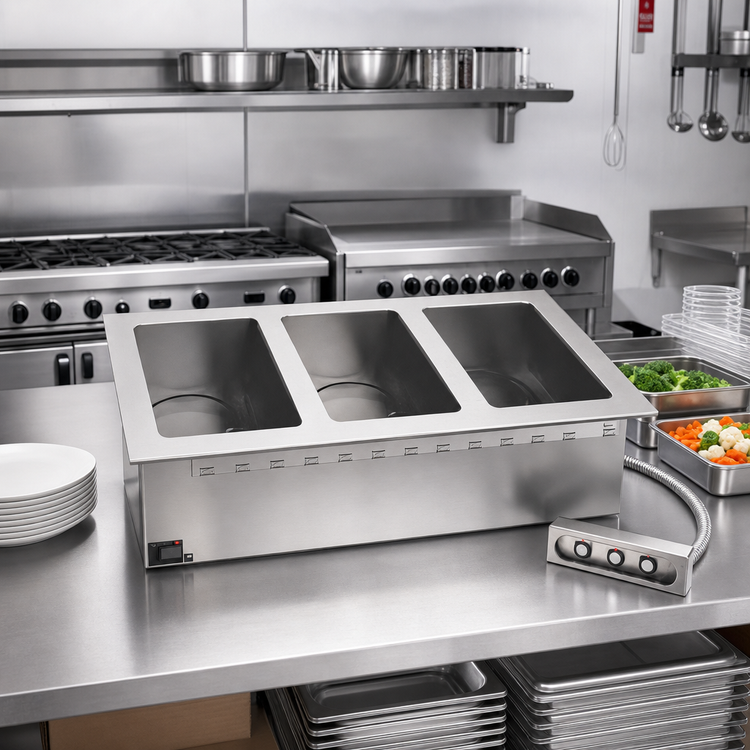

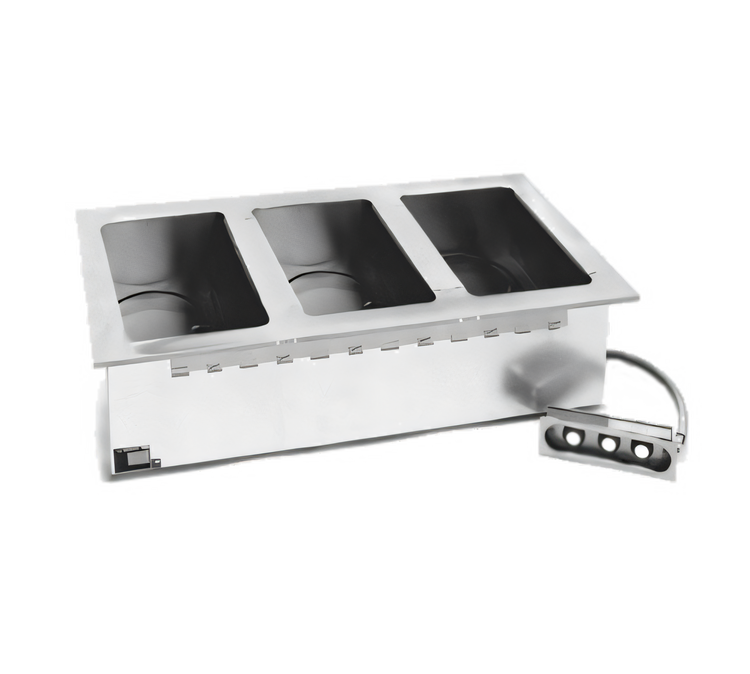

Eagle Group 3-Well Drop-In Electric Hot Food Well Unit, Dry Operation, 240V

Three 12" x 20" Wells, Infinite Controls, Hardwired

Keep three full-size pans hot in an insulated, dry-operation drop-in unit with precise infinite controls.

  • Holds three 12" x 20" full-size food pans, one per heated well.
  • Dry-operation design with no drain connection required.
  • Infinite controls provide high and low selections plus eight additional temperature settings.
  • 750W exposed heating element in each well delivers direct heat to the pans.
  • 22-gauge type 430 stainless steel top and galvanized steel body support daily commercial use.
  • 240V, 60 Hz, single-phase, field-wired electrical connection with 20" flexible conduit.

Overall Dimensions:

48.88"W x 26.06"D x 12.13"H

Product Weight:

125.0 lb

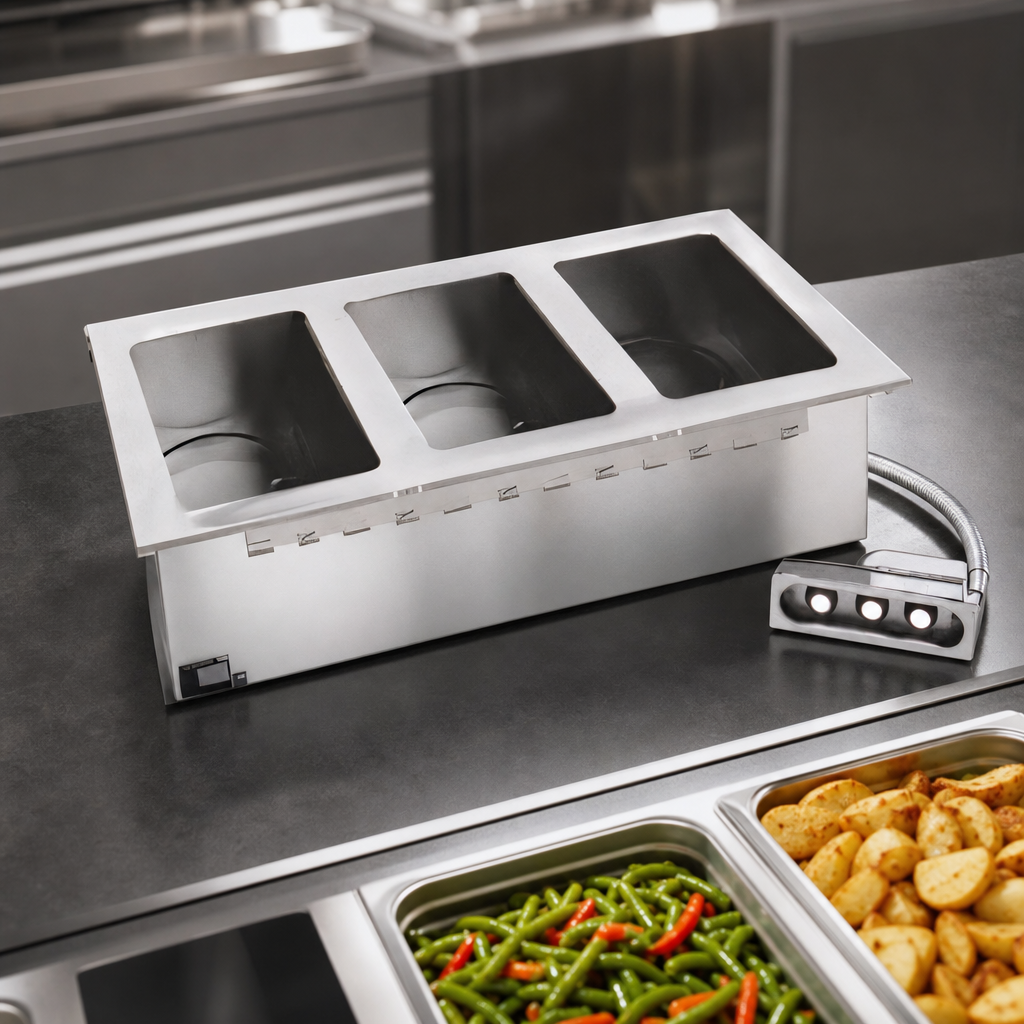

Triple Pan Wells

Three heated wells each accept a 12" x 20" full-size food pan.

Triple Pan Wells

Dry Operation

Designed for dry use; spillage pans are required for wet applications.

Infinite Temperature Controls

Recessed controls provide high and low selections plus eight additional temperature settings.

750W Exposed Heating Elements

Each well uses a 750-watt exposed rectangular heating element.

Fiberglass Insulation

Insulation on all sides and the bottom helps retain heat.

Stainless Steel Top

22-gauge type 430 stainless steel top with overhang on all four sides.

Galvanized Steel Body

20-gauge galvanized steel wraparound body adds durability.

Recessed Control Panel With Flexible Conduit

Front-mounted control panel includes a 20-inch flexible conduit and is designed for field wiring.

Installation Cutouts

Requires a 46-1/8" W x 23-5/16" D unit cutout and an 11-13/16" W x 2-11/16" H control-panel cutout.

Type Hot Food Well
Style Individual Pans
Installation Type Drop-In
Controls Infinite
Drain Connection Not Required
Compartments 3
Pan Capacity 3 Full-Size Pans
Pan Size 12 x 20 Inches
Material 430 Stainless Steel
Voltage 240 Volts
Amps 9.38 Amps
Watts 2.25 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type Hardwired
Selling Unit Each
Units Per Case 1
Shipping Width 49 Inches
Shipping Depth 27 Inches
Shipping Height 13 Inches
Shipping Weight 125 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year limited warranty from original installation, not to exceed 18 months from shipment.

Documents

PDF Cutsheet PDF Download PDF Installation operation PDF Download PDF Infinite control replacement PDF Download PDF Brochure PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It has three heated wells.
Each well accommodates a 12" x 20" food pan.
It is designed for dry operation. Spillage pans are required for wet applications.
The unit is rated at 240V, 60 Hz, single-phase, 9.38 amps, and 2250 watts, and it is designed for field wiring.
The unit requires a 46-1/8" W x 23-5/16" D cutout, and the control panel requires an 11-13/16" W x 2-11/16" H cutout.
No, this model is supplied without a drain.
