Spec-Master FN2880-4-36R-14/3 Four Compartment Stainless Steel Commercial Sink with 36" Right Drainboard

14 Gauge, 20" x 28" x 14" Deep Bowls, 125.5" Overall Width

Engineered for rigorous commercial use, the Eagle Group Spec-Master FN2880-4-36R-14/3 sink provides exceptional durability and functionality for busy kitchens.

  • Heavy-duty 14 gauge 300 series stainless steel construction ensures lasting performance.
  • Four spacious compartments, each measuring 20" x 28" x 14" deep, for efficient multi-tasking.
  • Includes a generous 36" right-hand drainboard for convenient drying and prep space.
  • Features a 9½" high backsplash with tile edge to protect walls from splashes.
  • Adjustable stainless steel legs and crossbracing provide superior stability and support.
  • Seamlessly welded coved corners for easy cleaning and enhanced hygiene.

Overall Dimensions:

125.5"W x 35.0"D x 44.5"H

Product Weight:

562.0 lb

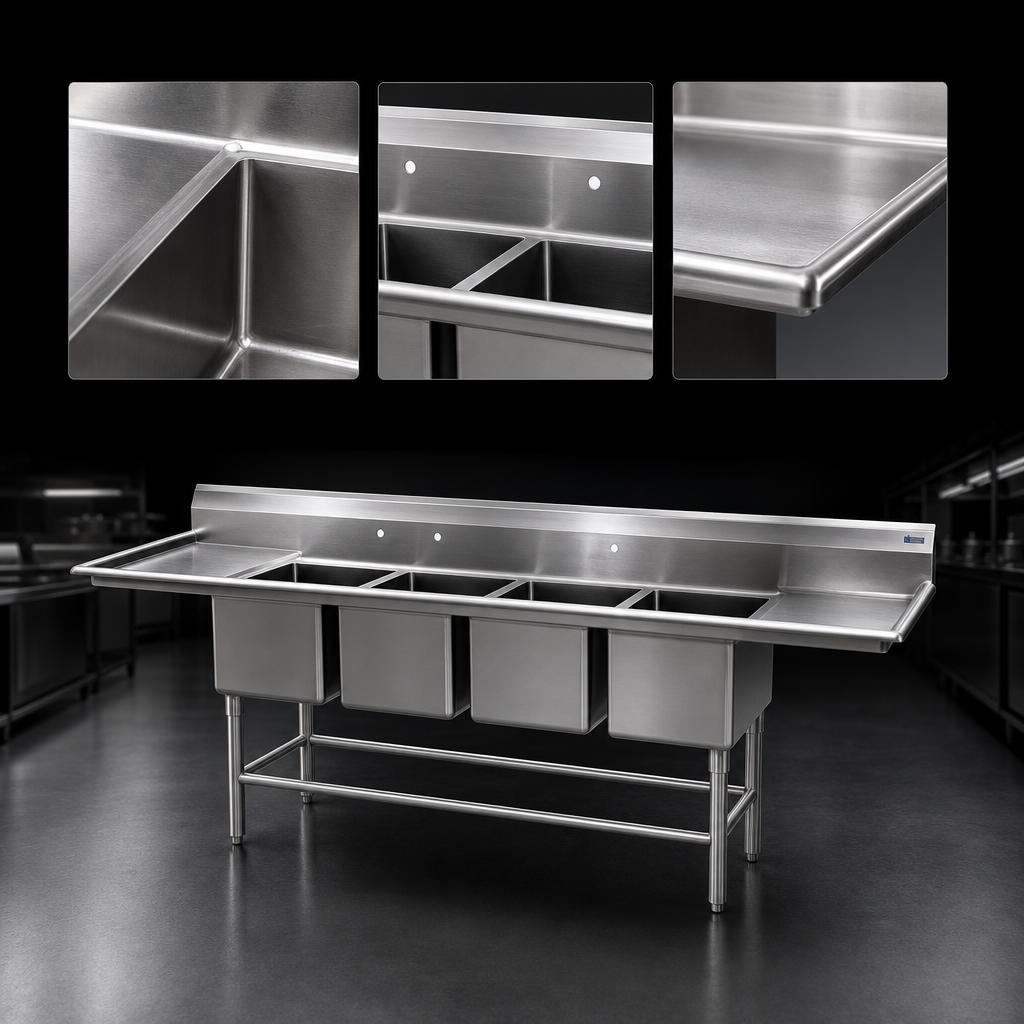

14 Gauge 300 Series Stainless Steel Construction

Ensures exceptional durability, corrosion resistance, and longevity for demanding commercial environments, with sink bowls, drainboards, backsplash, and rolled rims made from heavy-gauge stainless steel.

Four Coved Corner Compartments

Each compartment measures 20" wide x 28" front-to-back x 14" deep (water level), designed with coved corners (3/4" radius) and constructed using state-of-the-art seamless welding techniques for easy cleaning and sanitation.

Integrated 36" Right-Hand Drainboard

Provides ample space for air drying dishes, prep work, or temporary storage. The drainboard is integrally welded to the sink top for a continuous, hygienic surface and V-creased for positive drainage.

9½" High Backsplash with Tile Edge

Protects adjacent walls from water splashes and food debris, featuring a 1" upturn and tile edge for a professional, seamless finish.

Splash Mount Faucet Holes

Equipped with two sets of 1⅛" (29mm) faucet holes punched on 8" (203mm) centers, ready for standard faucet installation.

Heavy-Duty Stainless Steel Base

Features robust 1⅝" (41mm) diameter stainless steel legs with stainless steel gussets, heavy-gauge die-cut stainless steel reinforcing corner plates, and fully adjustable stainless steel bullet feet for maximum stability.

Stainless Steel Crossbracing

Adjustable 1¼" (32mm) diameter stainless steel crossbracing runs left-to-right and front-to-back, located on all sides for increased structural integrity and weight support.

Rolled Edges

All outside corners of the assembly are bullnosed and all rolled edges on the front and sides are highlighted to provide safe, clean edges and an enhanced appearance.

Basket-Type Waste Drains Included

Comes with 3½" (89mm) basket-type waste drains that fit the sink bowls' openings and feature a 1½" (38mm) outlet for efficient waste removal.

Type Commercial Sink
Style Four Compartment Sink
Installation Type Floor Model (With Legs)
Material 300 Series Stainless Steel
Top Gauge 14 Gauge
Compartments 4
Compartment Width 20 Inches
Compartment Depth (Front-to-Back) 28 Inches
Sink Depth (Water Level) 14 Inches
Sink Flood Level 17 Inches
Drainboard Quantity 1
Drainboard Length 36 Inches
Drainboard Side Right
Backsplash Height 9.5 Inches
Faucet Hole Centers 8 Inches
Faucet Hole Diameter 1.125 Inches
Leg Diameter 1.625 Inches
Crossbracing Diameter 1.25 Inches
Drain Opening Size 3.5 Inches
Drain Outlet Size 1.5 Inches
Water Inlet Size 0.5 Inch NPS
Selling Unit Each
Units Per Case 1
Shipping Width 126 Inches
Shipping Depth 35 Inches
Shipping Height 45 Inches
Shipping Weight 562.0 lb.
Country of Origin USA

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year limited warranty on parts and workmanship from installation date (not to exceed 18 months from shipment).

Documents

PDF Cutsheet PDF Download PDF Brochure PDF Download PDF Care & maintenance PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The sink top, drainboards, backsplash, and rolled rims are constructed from heavy-duty 14 gauge 300 series stainless steel. The legs and crossbracing are also made of stainless steel, ensuring exceptional durability.
Each of the four sink compartments measures 20 inches wide, 28 inches front-to-back, and 14 inches deep (water level). They are designed with coved corners for easy cleaning.
Yes, this model features one 36-inch drainboard located on the right side of the sink. It is integrally welded to the sink top and is V-creased for positive drainage.
The sink comes equipped with 3½-inch basket-type waste drains, designed to fit the sink bowls' openings. These drains feature a 1½-inch outlet for efficient waste removal.
The sink requires a ½-inch NPS connection for both hot and cold water lines to accommodate faucet installation.
Eagle Group provides a limited warranty for this sink, covering defects in materials and workmanship for one year from the date of original installation or up to 18 months from the date of shipment from Eagle, whichever comes first. Accessory items like faucets and drains have a 90-day limited warranty.
