Eagle Group Spec-Master FN Series Four-Compartment Sink with Left Drainboard
Eagle Group Spec-Master FN Series Four-Compartment Sink with Left Drainboard
20" x 28" x 14" Compartments, 36" Left Drainboard, 14 Gauge 300 Series Stainless Steel
Designed for heavy-duty commercial use, this Eagle Group Spec-Master sink offers a robust and hygienic solution for dishwashing and food preparation tasks with its durable stainless steel construction and spacious four-compartment design.
- Heavy-duty 14 gauge 300 series stainless steel construction ensures lasting durability.
- Four coved-corner compartments each measuring 20" wide x 28" front-to-back x 14" deep.
- Features a spacious 36" left-hand drainboard for efficient air-drying or staging.
- Equipped with a 9½" high backsplash and tile edge to protect walls from splashes.
- Adjustable stainless steel legs and crossbracing provide superior stability and support.
- Includes two sets of 8" OC splash mount faucet holes for versatile plumbing setup.
- NSF certified for sanitation, meeting strict health and safety standards.
Overall Dimensions:
125.5"W x 35.0"D x 44.5"HProduct Weight:

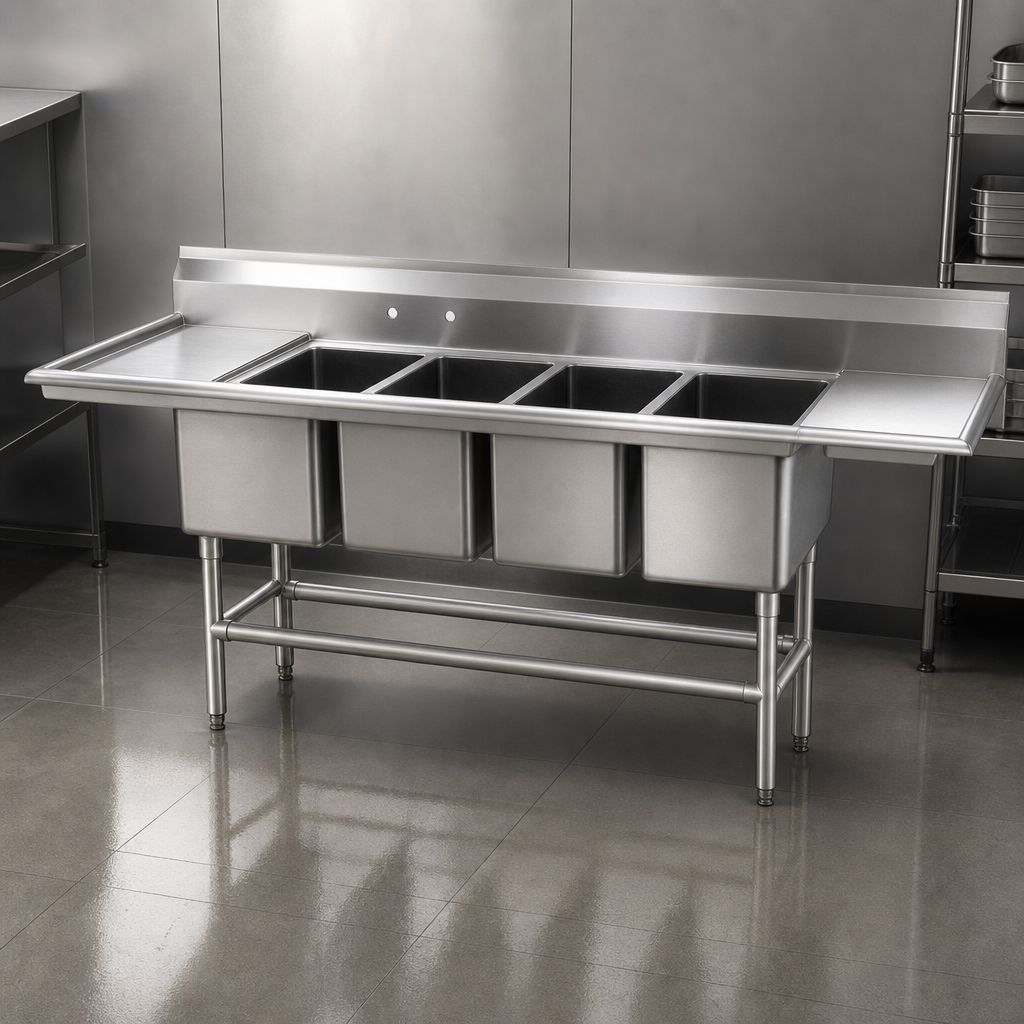

562.0 lbHeavy-Duty Stainless Steel Construction
Entire unit is constructed from 14 gauge 300 series, 18-8 stainless steel, ensuring exceptional strength, corrosion resistance, and longevity in demanding commercial environments.
Coved Corner Sink Bowls
Sink bowls feature a full ¾" radius coved corners and are constructed using state-of-the-art seamless welding techniques, making them easy to clean and maintain hygiene.
Ample Water Levels
Each compartment offers a 14" water level and a 17" flood level, providing sufficient depth for various washing needs.
Integrally Welded Drainboard
The 36" left-hand drainboard is integrally welded to the top and designed with "V" creases for positive drainage, ensuring efficient water runoff.
High Backsplash with Tile Edge
A 9½" high backsplash with a 1" upturn and tile edge protects adjacent walls from water splashes, maintaining a cleaner workspace.
Sturdy Base with Crossbracing
The base features 1⅝" diameter stainless steel legs with stainless steel gussets and adjustable stainless steel bullet feet. Legs are crossbraced on all sides with 1¼" diameter stainless steel tubing for maximum stability and weight support.
Standard Faucet Holes
The backsplash is punched with two sets of 1⅛" (29mm) faucet holes on 8" (203mm) centers, accommodating common splash-mount faucets.
Basket Drains Included
Each sink bowl is fitted with a 3½" (89mm) basket-type waste drain that features a 1½" (38mm) outlet, effectively trapping solids.
Seamless Assembly
The entire assembly is fuse-welded and planished, creating a one-piece seamless unit. Welded areas are high-speed belt blended to match adjacent surfaces, providing a continuous satin finish.
Certifications & Compliance
Warranty & Protection
1-year parts and labor limited warranty from the date of original installation or 18 months from shipment, whichever comes first.
