Eagle Group

Eagle Spec-Master FN2880-4-24L-14/3 Four-Compartment Stainless Steel Sink with 24" Left Drainboard

SKU: FN2880-4-24L-14/3
$5,801.04
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

4-compartment Sinks Best Sellers Commercial Plumbing Supplies Commercial Sinks Compartment Sinks Eagle Group New Arrivals Restaurant Equipment Sinks & Handwashing Stations

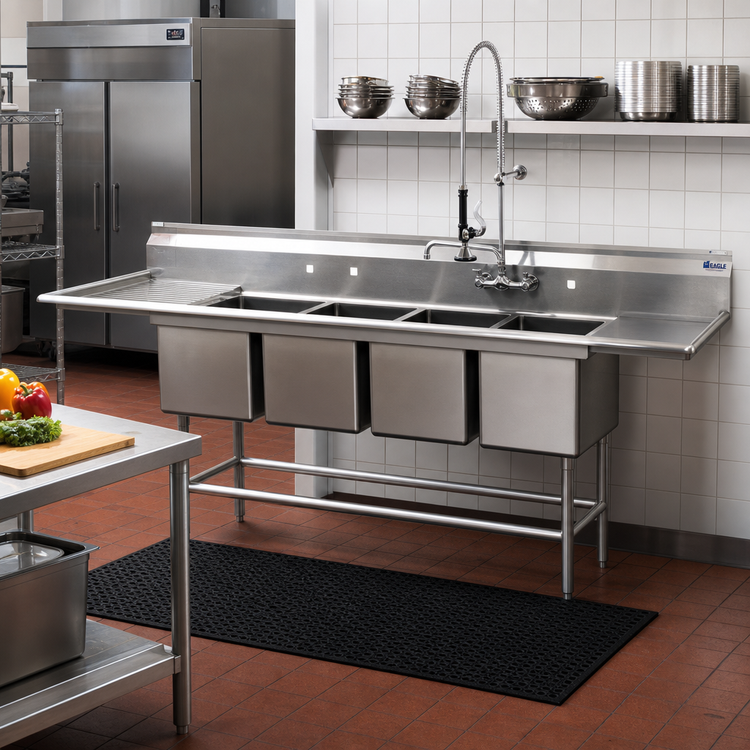

Eagle Spec-Master FN2880-4-24L-14/3 Four-Compartment Stainless Steel Sink with 24" Left Drainboard

Floor Model, 113.5" W x 35" D, 14 Gauge 304 Stainless Steel, 20" x 28" x 14" Compartments

Designed for demanding commercial kitchens, this Eagle Spec-Master sink offers superior durability and efficient multi-tasking with its four spacious compartments and robust stainless steel construction.

  • Equipped with four generously sized compartments for efficient washing, rinsing, and sanitizing.
  • Constructed from heavy-duty 14 gauge 304 stainless steel throughout for exceptional durability and corrosion resistance.
  • Features an integrated 24-inch left-hand drainboard providing ample space for drying dishes or food preparation.
  • Sink bowls feature coved corners and seamless welding for easy cleaning and enhanced hygiene.
  • Supported by robust 1-5/8" O.D. stainless steel legs with adjustable bullet feet and crossbracing on all sides for maximum stability.
  • Includes a 9-1/2" high backsplash with a 1" upturn and tile edge to protect walls from splashes.

Overall Dimensions:

113.5"W x 35.0"D x 44.5"H

Product Weight:

438.0 lb

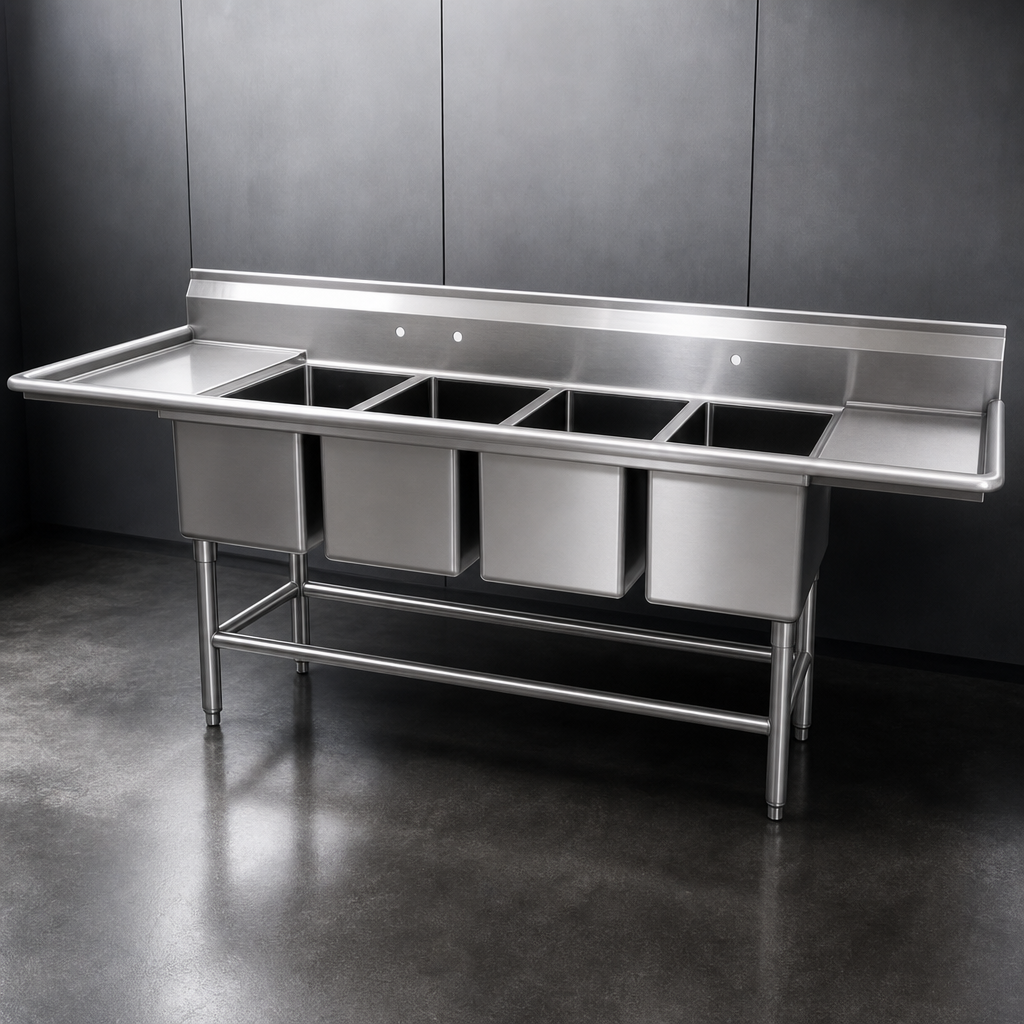

Heavy-Duty Stainless Steel Construction

Entire unit, including top, drainboards, backsplash, rolled rims, and sink bowls, is constructed from 14 gauge 300 series, 18-8 stainless steel for long-lasting commercial use.

Heavy-Duty Stainless Steel Construction

Seamless Coved Sink Bowls

Four sink compartments are coved with a full ¾" radius and constructed using state-of-the-art seamless welding techniques for easy cleaning and improved sanitation, featuring a 14" water level and 17" flood level.

Integrated Left Drainboard

One 24" long drainboard on the left side is integrally welded and 'V' creased for positive drainage, providing a convenient area for drying or staging.

High Backsplash with Tile Edge

A 9-1/2" high backsplash with a 1" upturn and tile edge effectively prevents water splashes from damaging walls and simplifies cleaning.

Pre-punched Faucet Holes

(2) sets of 1-1/8" (29mm) faucet holes punched on 8" (203mm) centers are provided for easy faucet installation (faucets sold separately).

Sturdy Leg and Crossbracing System

The base features 1-5/8" (41mm)-diameter stainless steel legs with stainless steel gussets and fully adjustable stainless steel bullet feet, enhanced by 1-1/4" (32mm)-diameter stainless steel crossbracing on all sides for superior stability and weight support.

Basket Waste Drains Included

Each sink bowl includes a 3-1/2" (89mm) basket-type waste drain that fits the sink bowls' opening, featuring a 1-1/2" (38mm) outlet.

Safe and Clean Edges

All rolled edges on the front and sides are highlighted for enhanced appearance and outside corners are bullnosed to provide safe, clean edges.

Type Four-Compartment Sink
Style Coved Corner
Installation Type Floor Model (With Legs)
Material 304 Stainless Steel
Top Gauge 14 Gauge
Compartments 4
Compartment Width 20 Inches
Compartment Depth 28 Inches
Sink Depth 14 Inches
Drainboard Quantity 1
Drainboard Length 24 Inches
Drainboard Location Left
Backsplash Height 9.5 Inches
Faucet Hole Centers 8 Inches
Drain Connection Size 3.5 Inches
Water Inlet Size 0.5 Inches NPS
Legs 1.625 Inches O.D. Stainless Steel
Crossbracing 1.25 Inches O.D. Stainless Steel
Shipping Width 114 Inches
Shipping Depth 35 Inches
Shipping Height 45 Inches
Shipping Weight 438.0 lb.
Selling Unit Each
Units Per Case 1
Country of Origin USA

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year parts and labor limited warranty on product defects.

Documents

PDF Cutsheet PDF Download PDF Brochure PDF Download PDF Care & maintenance PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

Each of the four sink compartments measures 20 inches wide, 28 inches front-to-back, and 14 inches deep, with a water level of 14 inches and a flood level of 17 inches.
The entire sink unit, including the top, drainboards, backsplash, and sink bowls, is constructed from durable 14 gauge 300 series, 18-8 stainless steel.
Yes, this model features one 24-inch long drainboard located on the left side of the sink, designed with 'V' creasing for positive drainage.
Yes, the sink includes 3-1/2 inch basket-type waste drains for each compartment, designed to fit the sink bowls' openings and featuring a 1-1/2 inch outlet.
The sink is equipped with a 9-1/2 inch high backsplash that includes a 1 inch upturn and a tile edge for wall protection and easy cleaning.
The sink top is pre-punched with two sets of 1-1/8 inch faucet holes on 8-inch centers, suitable for most splash-mount commercial faucets with 8-inch centers (faucets sold separately).
