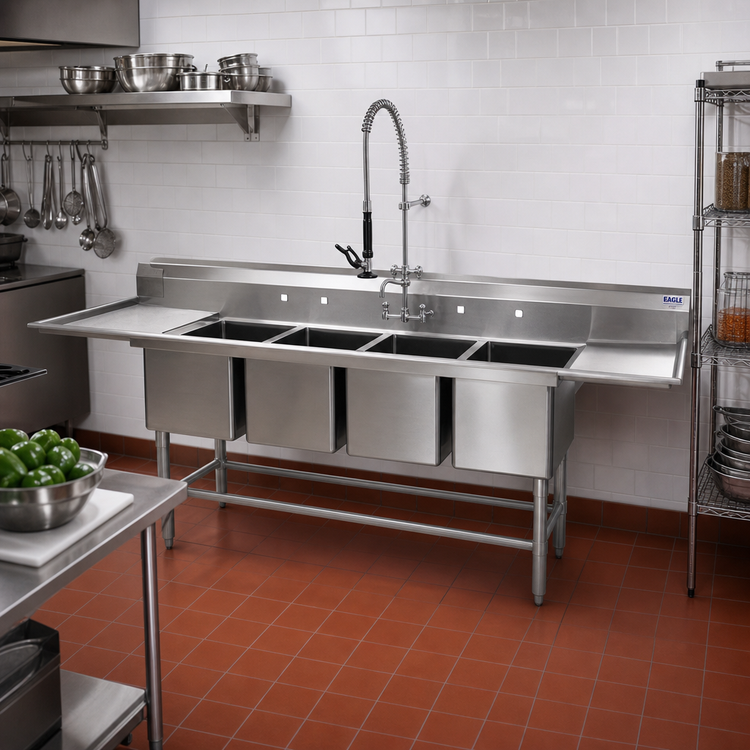

Eagle Spec-Master FN Series 91" Four-Compartment Stainless Steel Commercial Sink
Eagle Spec-Master FN Series 91" Four-Compartment Stainless Steel Commercial Sink
20" x 28" x 14" Bowls, 14 Gauge, Without Drainboards
Designed for heavy-duty commercial use, this Spec-Master four-compartment sink offers durability and efficient operation for busy kitchens.
- Constructed entirely from robust 14 gauge 300 series stainless steel for superior longevity.
- Features four spacious 20" x 28" x 14" coved corner compartments for optimal sanitation.
- Equipped with a 9-1/2" high backsplash with a 1" upturn and tile edge to protect walls.
- Supported by 1-5/8" O.D. stainless steel legs with adjustable bullet feet and crossbracing on all sides for maximum stability.
- Includes 3-1/2" basket drains for efficient waste removal.
- NSF certified, ensuring compliance with public health standards.
Overall Dimensions:
91.0"W x 35.0"D x 44.5"HProduct Weight:

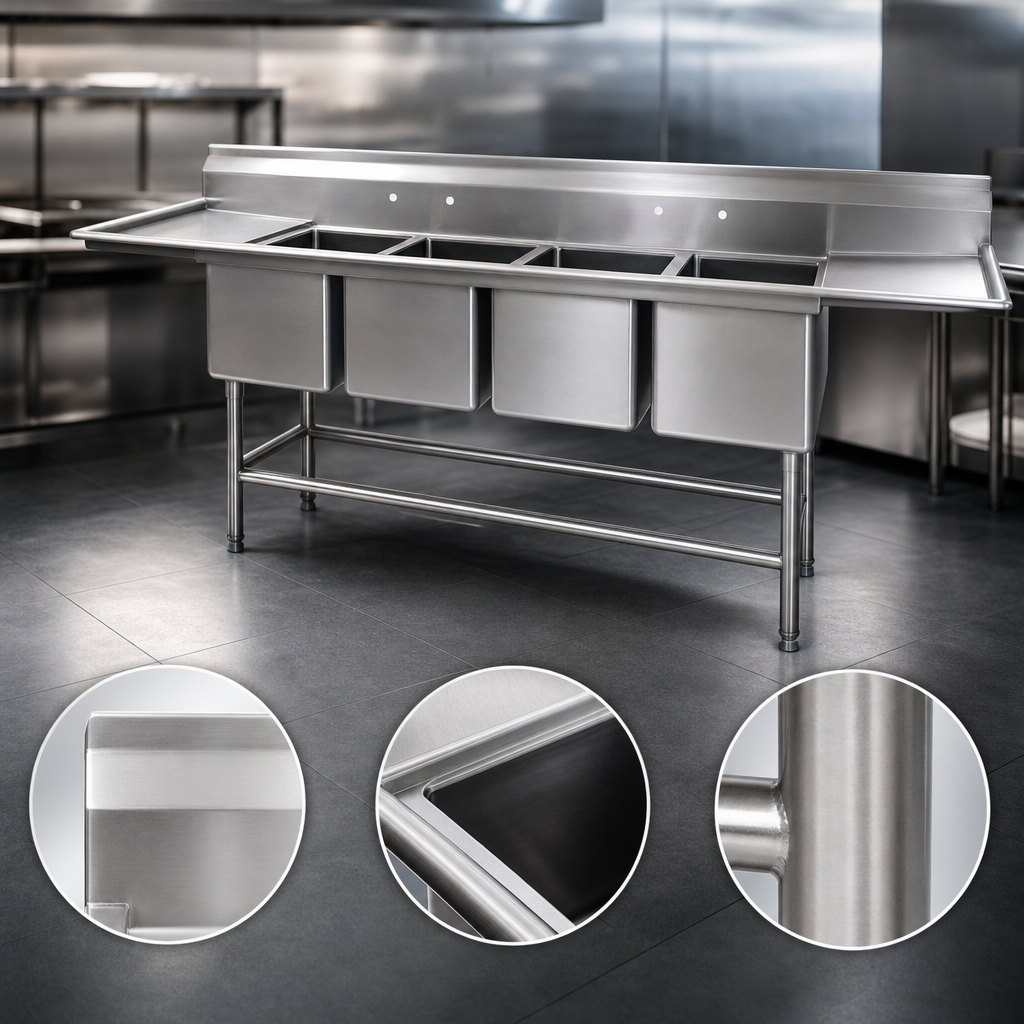

404.0 lbHeavy-Duty Stainless Steel Construction
Entire unit, including the top and sink bowls, is constructed from durable 14 gauge 300 series, 18-8 stainless steel for long-lasting performance in demanding commercial environments.
Four Spacious Coved Corner Compartments
Each of the four sink compartments measures 20" wide x 28" front-to-back x 14" deep (water level), featuring coved corners with a full ¾" radius for easy cleaning and enhanced hygiene.
High Backsplash with Tile Edge
A 9-1/2" high backsplash with a 1" upturn and tile edge effectively protects adjacent walls from splashes and spills, maintaining a cleaner work area.
Sturdy Stainless Steel Base
The base features 1-5/8" (41mm) O.D. stainless steel legs with stainless steel gussets and fully adjustable stainless steel bullet feet. Adjustable 1-1/4" (32mm) diameter stainless steel crossbracing on all sides provides superior stability and support.
Integrated Faucet Holes
Equipped with two sets of 1-1/8" (29mm) faucet holes punched on 8" (203mm) centers on the backsplash, ready for faucet installation.
Efficient Drainage System
Each sink bowl includes a 3-1/2" (89mm) opening with a basket-type waste drain, featuring a 1-1/2" (38mm) outlet for effective waste removal.
Seamless Welded Assembly
The entire assembly is fuse-welded and planished, providing a one-piece seamless sink unit. Welded areas are high-speed belt blended to match adjacent surfaces, and all outside corners are bullnosed for safety.
Certifications & Compliance
Warranty & Protection
1-year limited warranty on parts and labor, not to exceed 18 months from shipment date.
