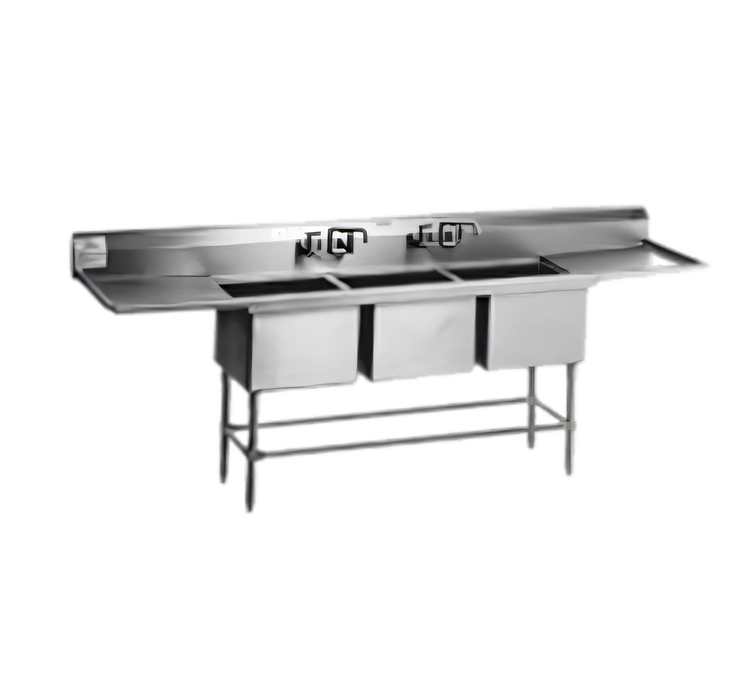

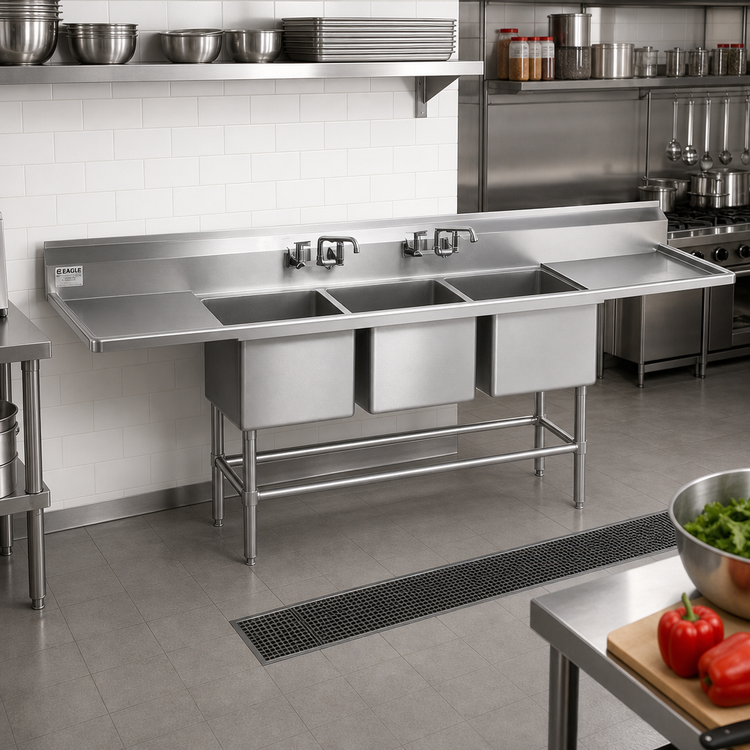

Eagle Group Spec-Master FN Series 138" Three Compartment Stainless Steel Sink with Left & Right 36" Drainboards
Eagle Group Spec-Master FN Series 138" Three Compartment Stainless Steel Sink with Left & Right 36" Drainboards
Floor Model, 20" x 28" x 14" Compartments, 14 Gauge 300 Series Stainless Steel
Designed for demanding commercial kitchens, this Spec-Master FN Series three-compartment sink offers exceptional durability and efficient dishwashing capabilities with its robust stainless steel construction and dual drainboards.
- Heavy-duty 14 gauge 300 series stainless steel construction ensures long-lasting performance.
- Features three generously sized 20" wide x 28" front-to-back x 14" deep coved compartments for versatile use.
- Equipped with two 36-inch drainboards, one on each side, for ample drying and prep space.
- Integral 9-1/2" high backsplash with 1" upturn and tile edge protects walls from splashes.
- Robust 1-5/8" diameter stainless steel legs with adjustable bullet feet and crossbracing provide superior stability.
- Seamless unit construction with fuse-welded and blended surfaces for easy cleaning and a professional finish.
Overall Dimensions:
138.0"W x 35.0"D x 44.5"HProduct Weight:

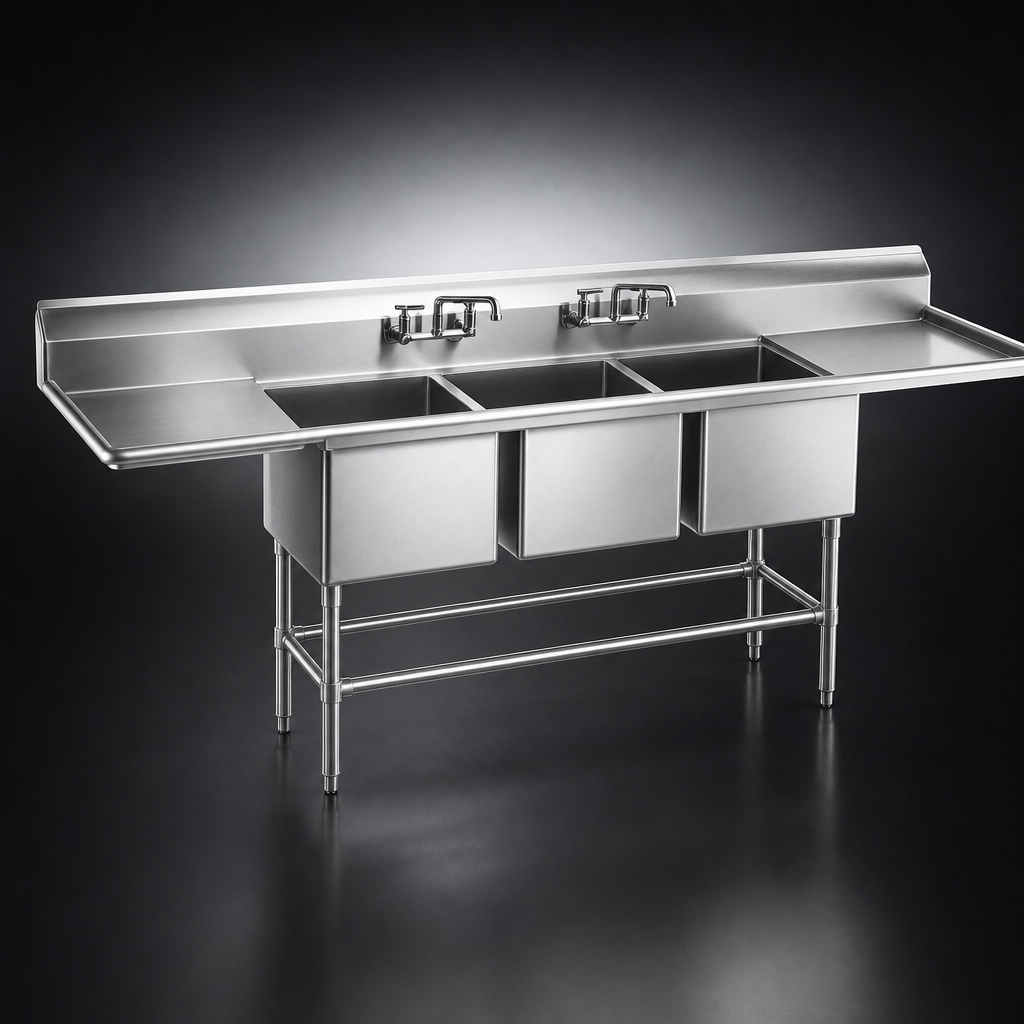

200.0 lbHeavy-Duty Construction
Entire unit, including top, drainboards, backsplash, rolled rims, and sink bowls, is constructed from durable 14 gauge 300 series, 18-8 stainless steel.
Coved Sink Bowls
Three sink compartments are coved with a full 5/8" radius and constructed using state-of-the-art seamless welding techniques for improved hygiene and cleaning.
Dual Drainboards
Features two integrally welded 36-inch drainboards, one on the left and one on the right, which are 'V' creased for positive drainage, providing ample space for drying or food preparation.
High Backsplash
A 9-1/2" high backsplash with a 1" upturn and tile edge protects adjacent walls from water damage and food splatter.
Robust Base Assembly
Equipped with 1-5/8" diameter stainless steel legs, stainless steel gussets, and fully adjustable stainless steel bullet feet. Adjustable 1-1/4" diameter stainless steel crossbracing runs left-to-right and front-to-back for increased stability.
Optimal Leg Placement
Legs are strategically located underneath the outer end of the drainboards for maximum weight support and stability.
Standard Faucet Holes
Pre-punched with two sets of 1-1/8" faucet holes on 8" centers, ready for your choice of splash mount faucets (faucets not included).
Basket Drains Included
Includes basket-type waste drains that fit the 3-1/2" sink bowl opening and feature a 1-1/2" outlet.
Seamless Finish
The entire assembly is fuse-welded and planished, providing a one-piece seamless sink unit. Welded areas are high-speed belt blended to match adjacent surfaces, and all outside corners are bullnosed for safe, clean edges.
Certifications & Compliance
Warranty & Protection
1-year limited warranty on parts and workmanship, 90 days for accessory items.
