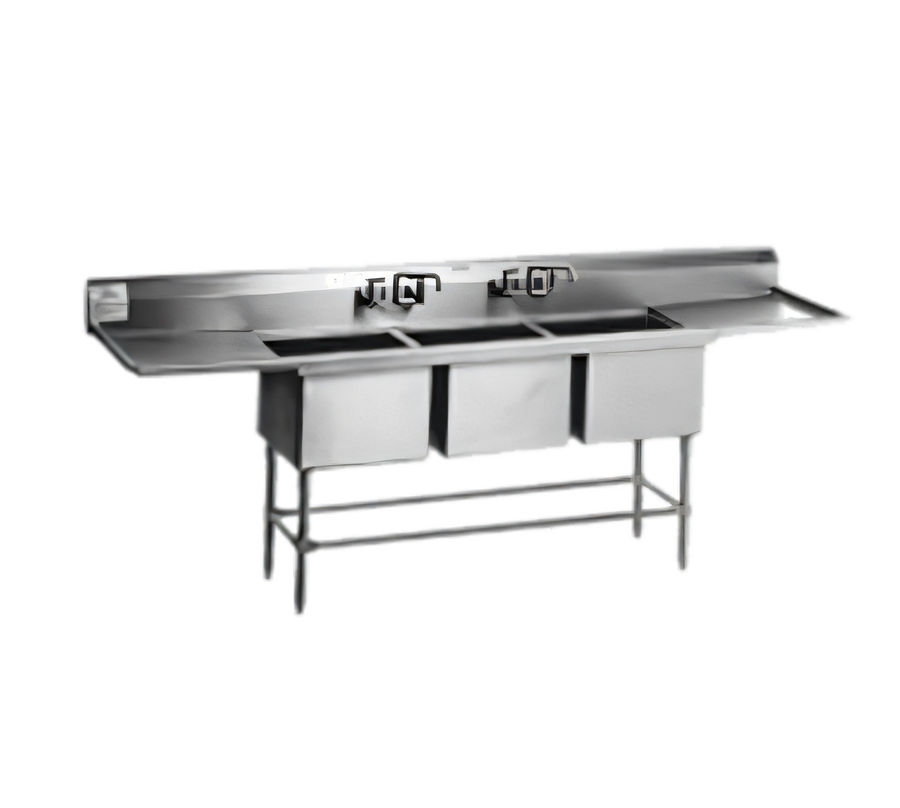

Spec-Master FN2860-3-30R-14/3 3-Compartment Stainless Steel Sink with 30 Inch Right Drainboard
Spec-Master FN2860-3-30R-14/3 3-Compartment Stainless Steel Sink with 30 Inch Right Drainboard
Three Compartments, 14 Gauge Stainless Steel, 30 Inch Right Drainboard
Designed for heavy-duty commercial use, this Spec-Master FN Series sink combines robust 14-gauge stainless steel construction with a practical 3-compartment layout and right-hand drainboard for superior durability and workflow efficiency.
- Constructed from durable 14 gauge 300 series stainless steel throughout for exceptional longevity.
- Features three coved 20" wide x 28" front-to-back x 14" deep sink compartments.
- Equipped with a 30" right-hand drainboard, integrally welded and 'V' creased for positive drainage.
- Includes a 9½" high backsplash with a 1" upturn and tile edge to protect walls from splashes.
- Supported by sturdy 1⅝" O.D. stainless steel legs with crossbracing on all sides and adjustable bullet feet.
- Comes with two sets of 8" on-center splash mount faucet holes, allowing for dual faucet installation (faucets sold separately).
- Utilizes state-of-the-art seamless welding techniques for a smooth, easy-to-clean finish and ⅝" coved corners.
Overall Dimensions:
97.5"W x 35.0"D x 44.5"HProduct Weight:

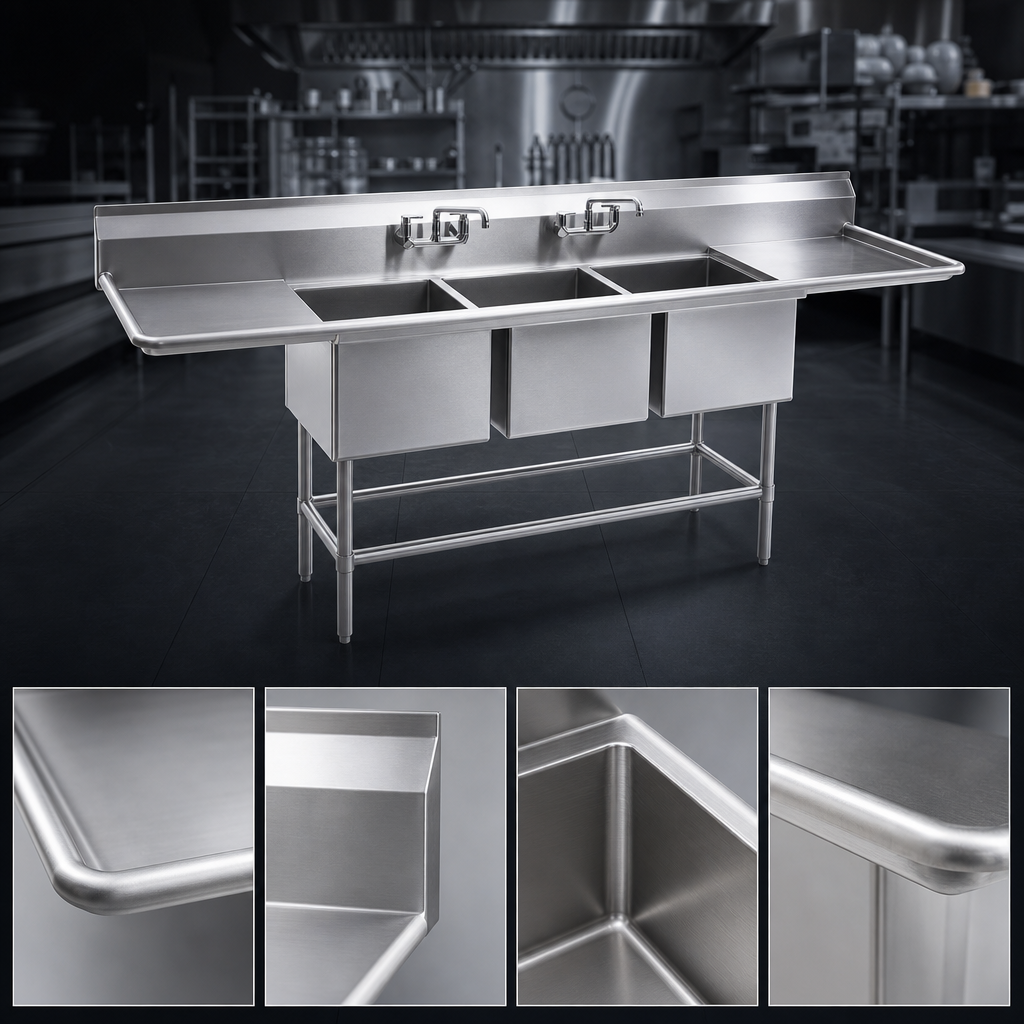

160.0 lbHeavy-Duty Stainless Steel Construction
The sink top, drainboards, backsplash, and rolled rims are all constructed from resilient 14 gauge 300 series 18-8 stainless steel, ensuring exceptional durability and resistance to corrosion in demanding commercial environments.
Three Coved Sink Compartments
Features three spacious 20" wide x 28" front-to-back x 14" deep sink bowls. The bowls are coved with a full ⅝" radius and constructed using state-of-the-art seamless welding techniques for easy cleaning and hygiene, with a 14" water level and 17" flood level.
Integrated Right-Hand Drainboard
A 30" right-hand drainboard is integrally welded to the sink unit and designed with 'V' creasing to ensure positive drainage and efficient drying of dishes and utensils.
High Backsplash with Tile Edge
A 9½" high backsplash with a 1" upturn and tile edge effectively protects adjacent walls from water splashes and spills, maintaining cleanliness in the work area.
Dual Faucet Hole Configuration
Pre-punched with two sets of 1⅛" (29mm) faucet holes on 8" (203mm) centers, providing flexibility for installing hot and cold water faucets (faucets are not included).
Robust Leg and Base Assembly
The base features 1⅝" (41mm) diameter stainless steel legs with stainless steel gussets and fully adjustable stainless steel bullet feet. Adjustable 1¼" (32mm) diameter stainless steel crossbracing runs left-to-right and front-to-back, with legs located under the outer end of the 30" drainboard for maximum stability and support.
Seamless and Safe Design
The entire assembly is fuse-welded and planished, creating a one-piece seamless sink unit. Welded areas are high-speed belt blended to match adjacent surfaces, and all outside corners are bullnosed for safe, clean edges.
Included Basket Drains
Each sink bowl is equipped with a basket-type waste drain designed to fit the 3½" (89mm) opening and features a 1½" (38mm) outlet for efficient wastewater disposal.
Certifications & Compliance
Warranty & Protection
1-year parts and labor limited warranty for product defects.
