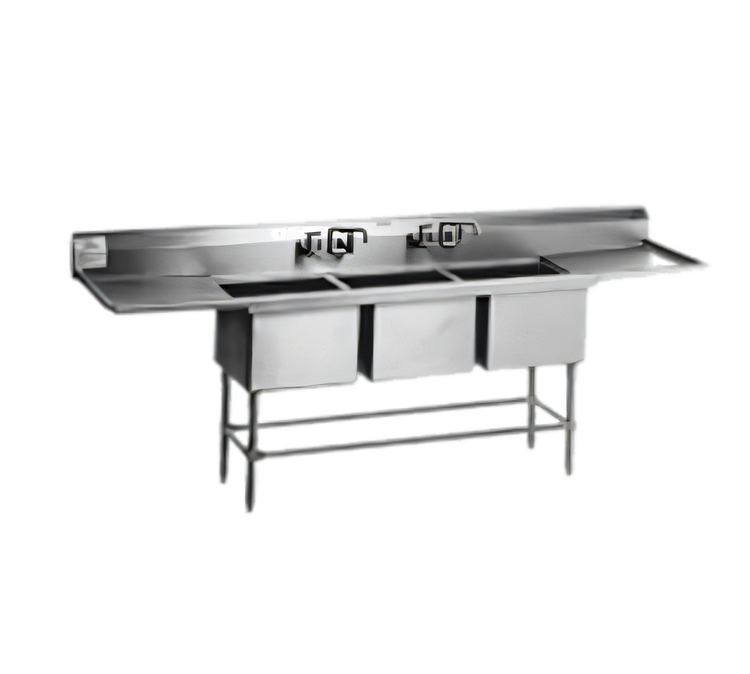

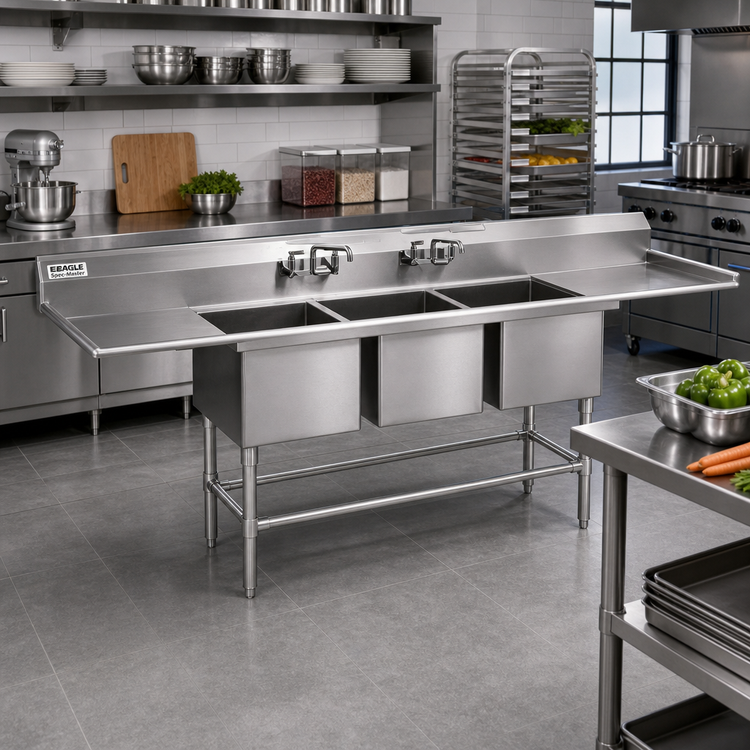

Eagle Group Spec-Master FN Series 3-Compartment Stainless Steel Sink with 30" Left Drainboard
Eagle Group Spec-Master FN Series 3-Compartment Stainless Steel Sink with 30" Left Drainboard
97.5" Wide, 20" x 28" x 14" Deep Compartments, 14-Gauge 300 Series Stainless Steel
This Spec-Master® FN Series sink offers robust, seamless stainless steel construction and a practical left-hand drainboard for efficient commercial dishwashing operations.
- Durable 14-gauge, 300 series stainless steel construction for long-lasting use.
- Three spacious compartments (20"W x 28"F-B x 14"D) with coved corners for easy cleaning.
- Integrated 30" left-hand drainboard provides ample space for drying or prepping.
- 9½" high backsplash with 1" upturn and tile edge protects walls from splashes.
- Heavy-duty stainless steel legs with crossbracing and adjustable bullet feet ensure stability.
- NSF certified, meeting rigorous public health and safety standards.
Overall Dimensions:
97.5"W x 35.0"D x 44.5"HProduct Weight:

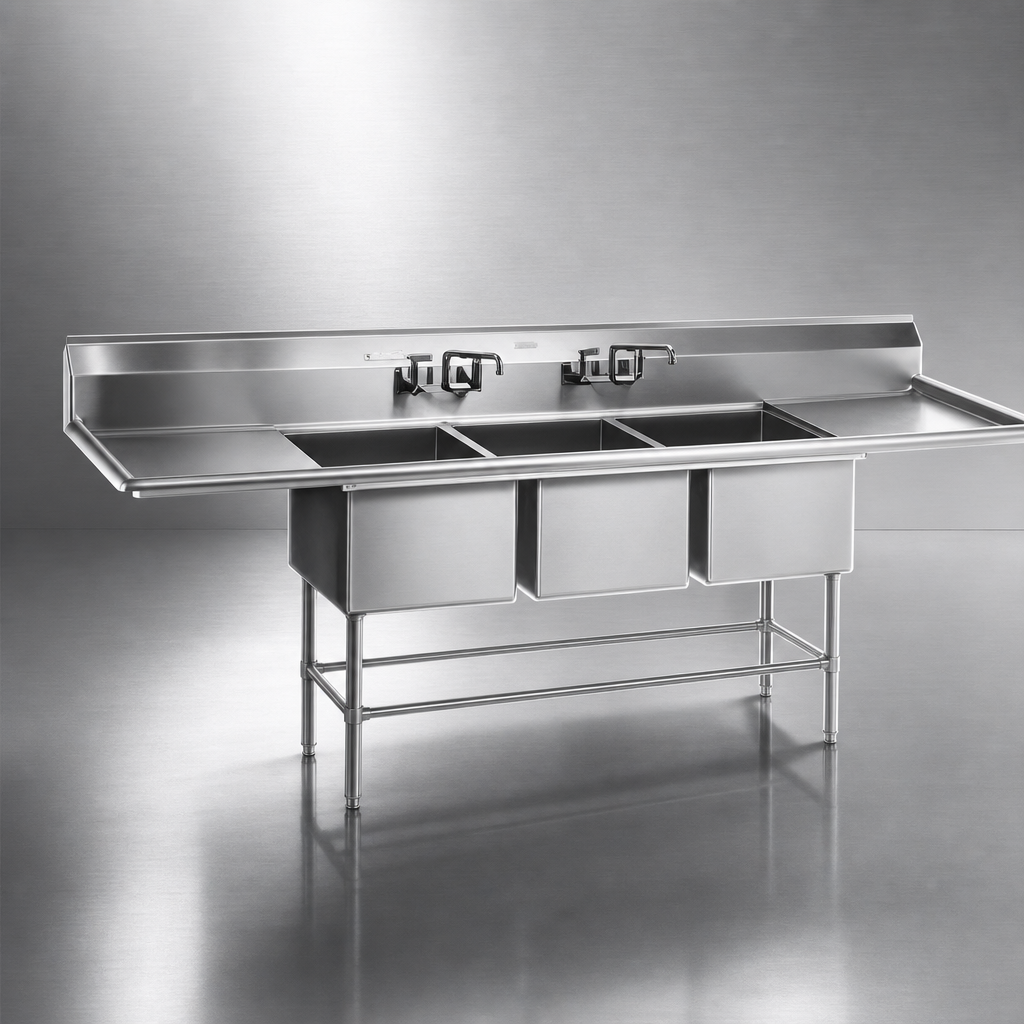

160.0 lb14-Gauge 300 Series Stainless Steel Construction
Entire unit, including drainboards, backsplash, and rolled rims, is constructed from durable 14-gauge, 300 series, 18-8 stainless steel for exceptional corrosion resistance and longevity.
Coved Corner Sink Bowls
Three sink bowls feature a full ⅝" radius coving and are constructed using state-of-the-art seamless welding techniques for superior hygiene and effortless cleaning. Each bowl has a 14" water level and 17" flood level.
Integrated Left Drainboard
Includes a 30" wide left-hand drainboard that is integrally welded and "V" creased for efficient, positive drainage.
High Backsplash with Tile Edge
A 9½" high backsplash with a 1" upturn and tile edge effectively contains splashes and protects surrounding walls and surfaces.
Rolled and Bullnosed Edges
All rolled edges on the front and sides are highlighted for enhanced appearance and are bullnosed to provide safe, clean edges.
Heavy-Duty Stainless Steel Base
Features 1⅝" diameter stainless steel tubing legs with stainless steel gussets, fully adjustable stainless steel bullet feet, and 1¼" diameter stainless steel crossbracing on all sides for superior stability and maximum weight support. Legs are strategically located under the outer end of the drainboard.
Basket-Type Waste Drains Included
Each sink bowl is equipped with a basket-type waste drain designed to fit the 3½" opening, featuring a 1½" outlet for efficient waste removal.
Pre-Punched Faucet Holes
Comes with two sets of 1⅛" diameter faucet holes punched on 8" centers, ready for splash mount faucets (faucets not included).
Seamless Unit Assembly
The entire assembly is fuse-welded and planished, providing a one-piece seamless sink unit. Welded areas are high-speed belt blended to match adjacent surfaces with continuity of satin finish.
Certifications & Compliance
Warranty & Protection
1-year limited warranty on parts and labor from the date of original installation or 18 months from shipment from Eagle.
