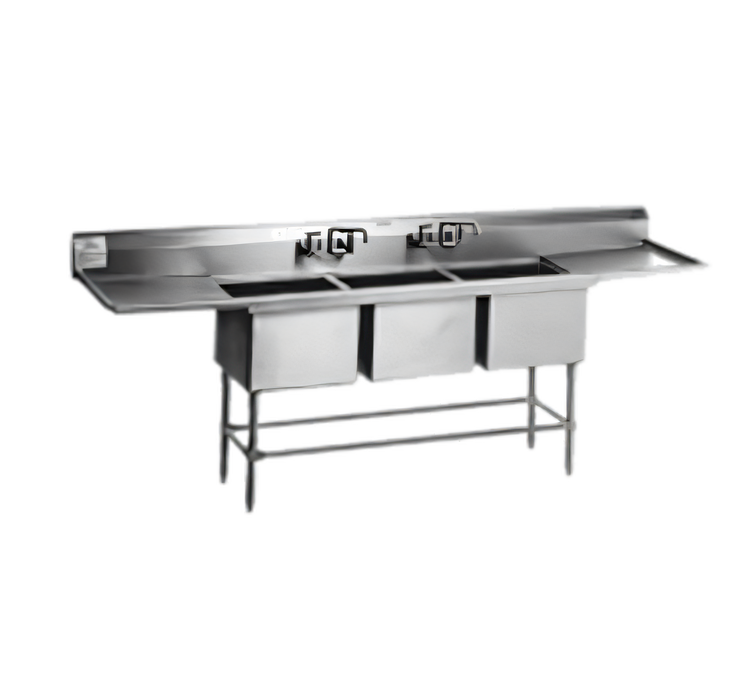

Spec-Master FN Series 114"W Three-Compartment Stainless Steel Sink with Dual 24" Drainboards
Spec-Master FN Series 114"W Three-Compartment Stainless Steel Sink with Dual 24" Drainboards
Floor Model, 14 Gauge, 20" x 28" x 14" Compartments
This durable Spec-Master FN Series three-compartment sink provides ample space for busy commercial kitchens, featuring heavy-duty stainless steel construction and dual drainboards for efficient washing and drying.
- Constructed from robust 14 gauge, 300 series stainless steel for superior durability in commercial environments.
- Features three generously sized compartments, each measuring 20"W x 28" front-to-back x 14"D, with coved corners for easy cleaning.
- Equipped with 24-inch drainboards on both the left and right sides, providing extensive space for dish drying and preparation.
- Includes a 9½" high backsplash with a 1" upturn and tile edge to protect walls from splashes and spills.
- Designed with two sets of 1-1/8" faucet holes on 8" centers, ready for splash mount faucet installation (faucets sold separately).
- Supported by sturdy 1-5/8" O.D. stainless steel legs with adjustable bullet feet and crossbracing on all sides for enhanced stability.
- NSF certified, ensuring compliance with public health and safety standards for food equipment.
Overall Dimensions:
114.0"W x 35.0"D x 44.5"HProduct Weight:

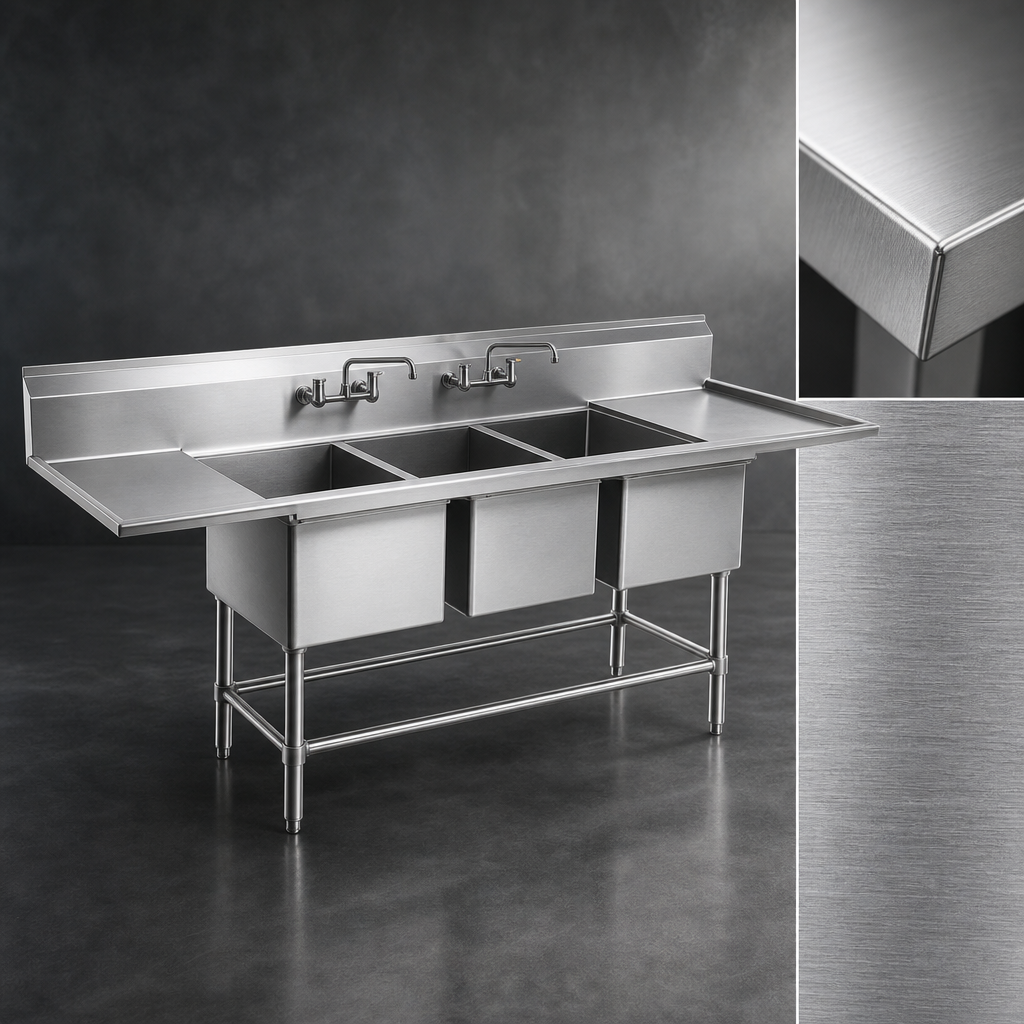

356.0 lbHeavy-Duty Stainless Steel Construction
Entire unit is constructed of 14 gauge 300 series, 18-8 stainless steel throughout, ensuring exceptional durability and resistance to corrosion for commercial use.
Coved Corner Sink Bowls
Three sink bowls are coved with a full 5/8" radius and constructed using state-of-the-art seamless welding techniques, featuring a 14" water level and 17" flood level for efficient washing.
Integrally Welded Drainboards
Two 24-inch drainboards are integrally welded to the sink top and are "V" creased to ensure positive drainage and ample space for drying or preparation.
High Backsplash with Tile Edge
A 9-1/2" high backsplash with a 1" upturn and tile edge helps protect adjacent walls from splashes and simplifies cleaning.
Rolled Edges and Bullnosed Corners
All rolled edges are highlighted for enhanced appearance, and outside corners are bullnosed to provide safe, clean edges.
Dual Faucet Hole Sets
Features two sets of 1-1/8" faucet holes punched on 8" centers, accommodating splash mount faucets for hot and cold water supply (faucets not included).
Robust Leg and Crossbracing System
Supported by 1-5/8" O.D. stainless steel legs with stainless steel gussets and fully adjustable stainless steel bullet feet. Adjustable 1-1/4" O.D. stainless steel crossbracing runs left-to-right and front-to-back on all sides, providing increased stability and maximum weight support.
Basket Waste Drains Included
Each sink bowl includes a basket-type waste drain that fits the 3-1/2" opening and features a 1-1/2" outlet, facilitating waste disposal.
Seamless Unit Assembly
The entire assembly is fuse-welded and planished, providing a one-piece seamless sink unit with welded areas high-speed belt blended to match the satin finish.
Certifications & Compliance
Warranty & Protection
1-year limited warranty on parts and labor for defects under normal use, not to exceed 18 months from shipment date.
