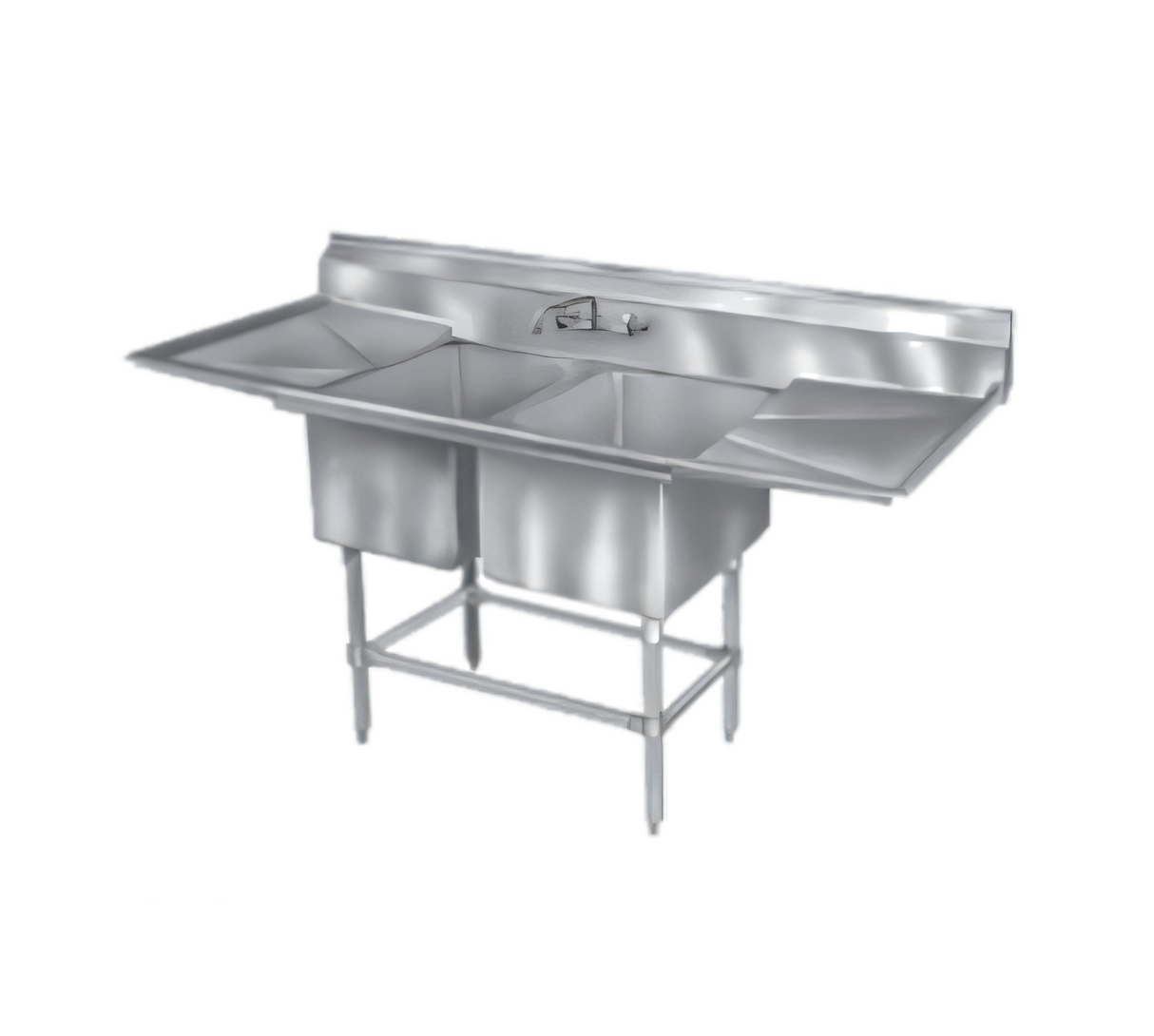

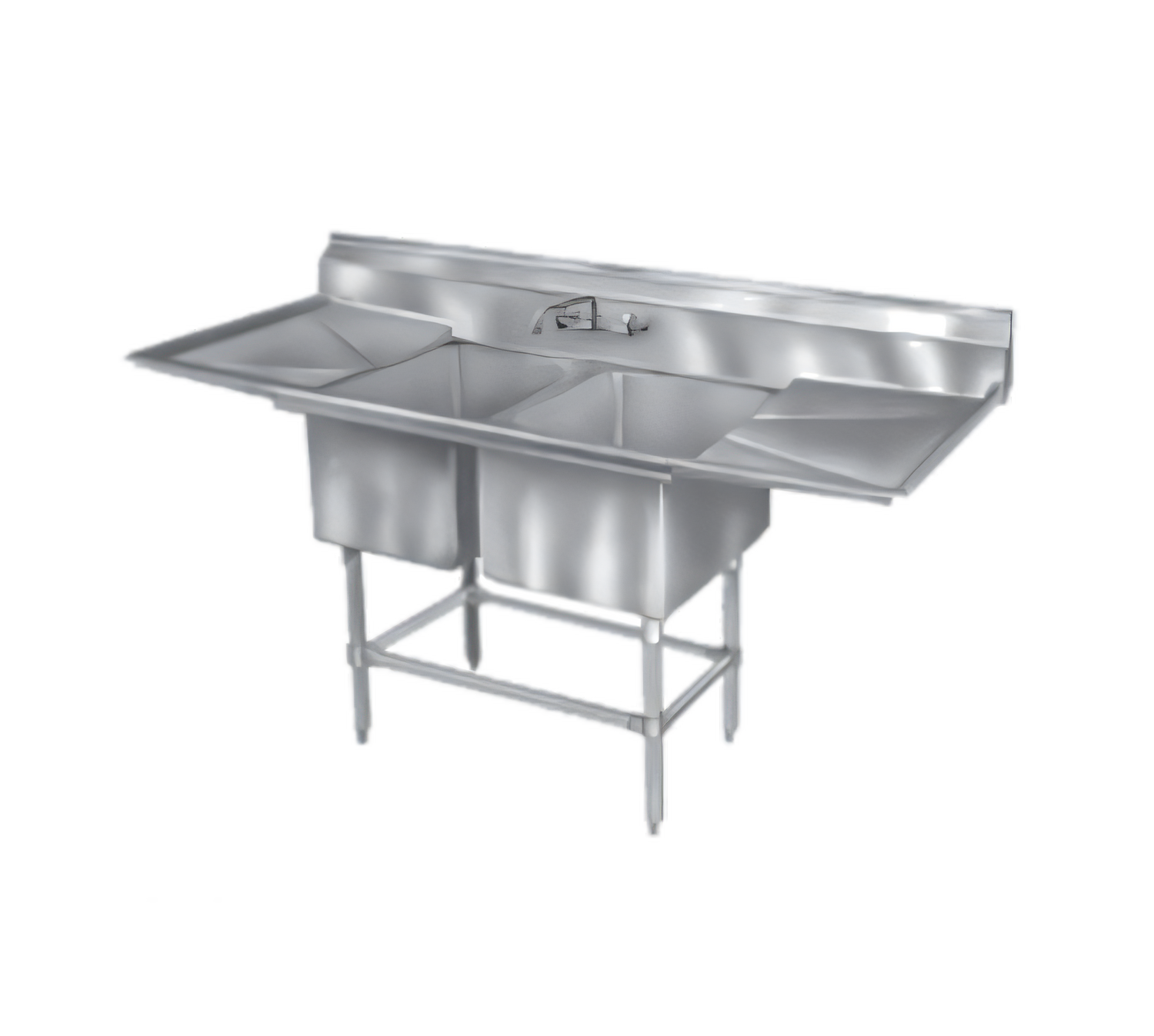

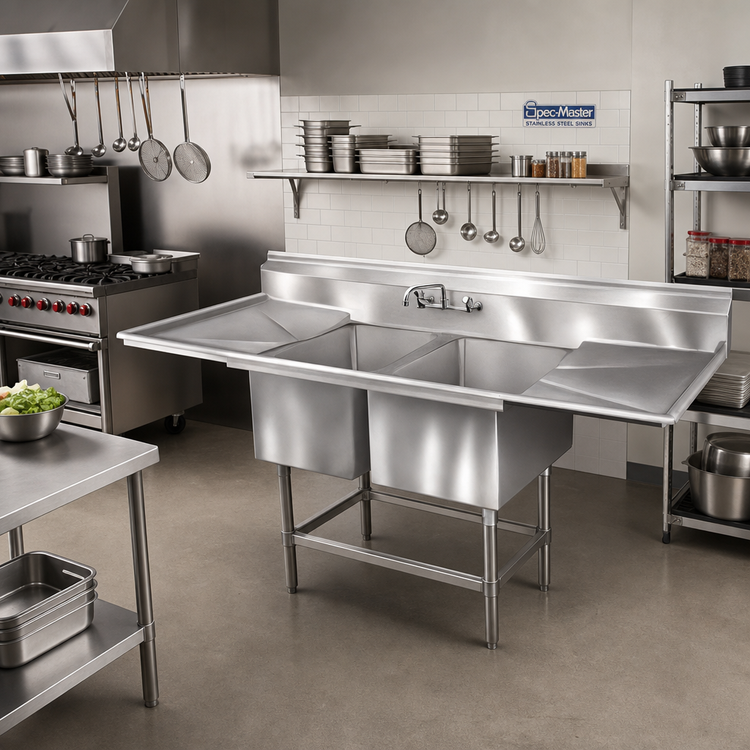

Spec-Master FN2840-2-30-14/3 Two-Compartment 104" W x 35" D Stainless Steel Sink with Dual 30" Drainboards

14 Gauge 300-Series Stainless Steel Top • Two 20" x 28" x 14" Coved Bowls • 9.5" Backsplash

Heavy-duty 300-series stainless steel commercial sink with two coved 20" x 28" x 14" bowls and dual 30" drainboards for efficient wash and prep in busy kitchens.

  • Two coved compartments (20" W x 28" front-to-back x 14" deep) with 3/8" radius corners for easy cleaning and durability.
  • 14-gauge 300-series stainless steel top and 18-8 stainless steel construction for corrosion resistance and long life.
  • Dual 30" drainboards (left and right), integrally welded and V-creased for positive drainage.
  • 9.5" high backsplash with 1" upturn and tile edge; faucet holes punched 1-1/8" diameter on 8" centers for splash-mount faucets.
  • Stainless steel tubular legs with full crossbracing and adjustable stainless steel bullet feet for stability; NSF certified.
  • Includes 3-1/2" basket-type drains (3.5" opening, 1.5" outlet).

Overall Dimensions:

104.0"W x 35.0"D x 44.5"H

Product Weight:

156.0 lb

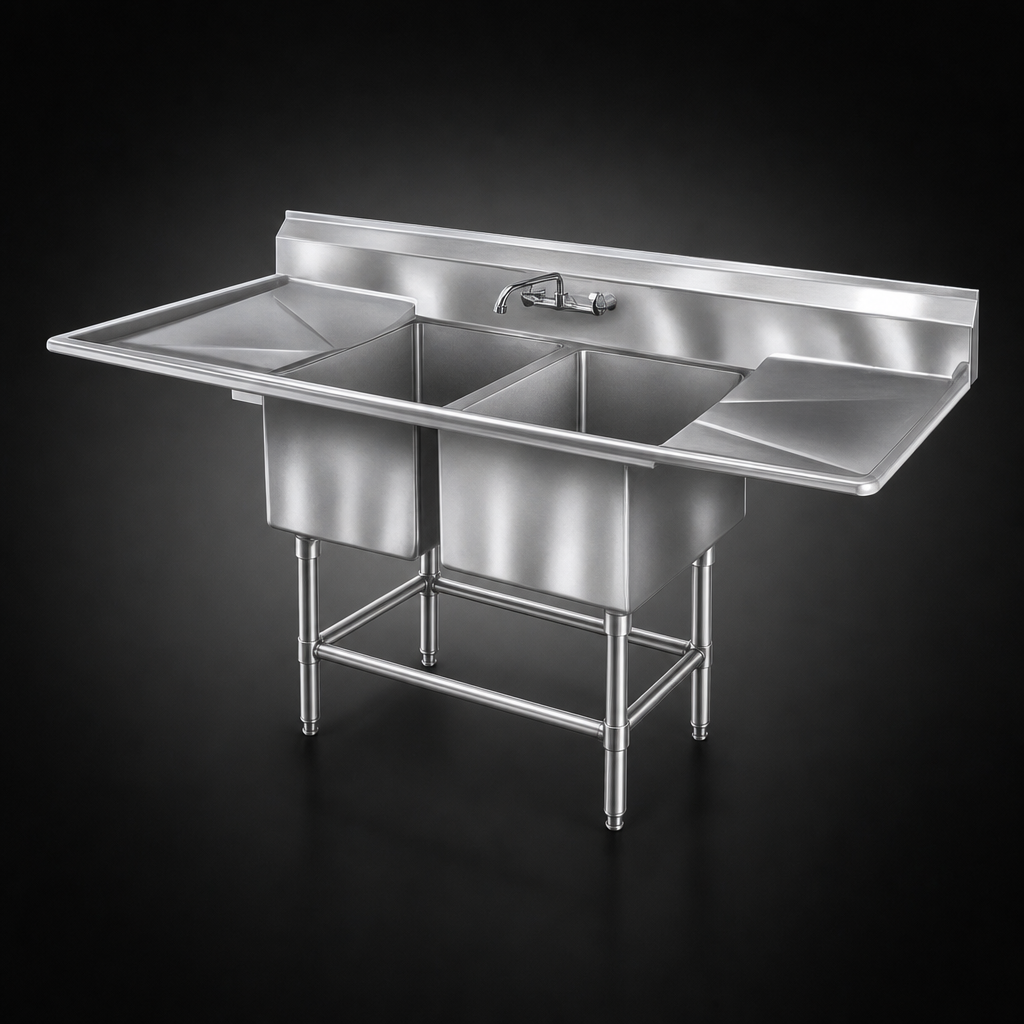

Construction

Fabricated of 14-gauge 300-series (18-8) stainless steel throughout with fuse-welded, planished seams for a one-piece seamless assembly.

Sink Bowls

Two bowls each 20" wide x 28" front-to-back x 14" deep with full 3/8" coved radius; 14" normal water level and 17" flood level.

Drainboards

Dual 30" drainboards, integrally welded to the top and V-creased for positive drainage.

Backsplash

9.5" high backsplash with 1" upturn and tile edge to reduce splash and allow easy wall transition.

Faucet Provisions

Faucet holes punched 1-1/8" (29 mm) on 8" (203 mm) centers for splash-mount faucets.

Drains

Includes 3-1/2" (89 mm) basket-type waste drains with 1-1/2" (38 mm) outlet.

Base & Support

1-5/8" O.D. stainless steel legs with stainless steel gussets, adjustable bullet feet and 1-1/4" stainless steel crossbracing left-to-right and front-to-back.

Finish & Safety

Welded areas belt blended to match adjacent surfaces with a satin finish; outside corners bullnosed for safe, clean edges.

Type Two-Compartment Sink
Installation Type Floor Model (With Stand)
Material Stainless Steel
Interior Finish 304 Stainless Steel
Finish Satin
Top Gauge 14 Gauge
Compartments 2
Compartment Width 20 Inches
Compartment Front-To-Back 28 Inches
Sink Depth 14 Inches
Drainboards Left & Right (30 Inches Each)
Faucet Hole Centers 8 Inches On Center
Faucet Hole Diameter 1.125 Inches (1-1/8 Inches)
Drain Connection Size 1.5 Inches
Drain Opening Size 3.5 Inches
Water Inlet Size 1/2 Inches (NPS)
Water Connection Required
Drain Connection Required
Base Construction Stainless Steel
Crossbracing Stainless Steel (Front-to-Back and Left-to-Right)
Shipping Width 104 Inches
Shipping Depth 35 Inches
Shipping Height 45 Inches
Shipping Weight 156 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year limited warranty on materials and workmanship (coverage applies from date of original installation, not to exceed 18 months from shipment).

Documents

PDF Cutsheet PDF Download PDF Brochure PDF Download PDF Care & maintenance PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

Each bowl is 20" wide x 28" front-to-back x 14" deep with a full 3/8" coved radius. Normal water level is 14" and flood level is 17".
The unit includes 3-1/2" basket-type drains (3.5" opening with 1.5" outlet). Faucet holes are punched 1-1/8" diameter on 8" centers for splash-mount faucets.
Legs are 1-5/8" O.D. stainless steel tubing with stainless steel gussets, adjustable bullet feet and stainless steel crossbracing on all sides for increased stability and support.
Entire assembly is fuse-welded and planished to provide a one-piece seamless sink unit; welded areas are belt blended to match adjacent surfaces.
Eagle provides a limited warranty covering defects in materials and workmanship for one year from the date of original installation (not to exceed 18 months from date of shipment); accessory items may have shorter warranty periods (e.g., 90 days).
