Eagle Group

Eagle Group Spec-Master FN Series Two-Compartment Coved Corner Sink with Dual 18-Inch Drainboards, 80"W x 35"D

SKU: FN2840-2-18-14/3
$3,957.99
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Plumbing Supplies Commercial Sinks Compartment Sinks Eagle Group New Arrivals Restaurant Equipment Sinks & Handwashing Stations

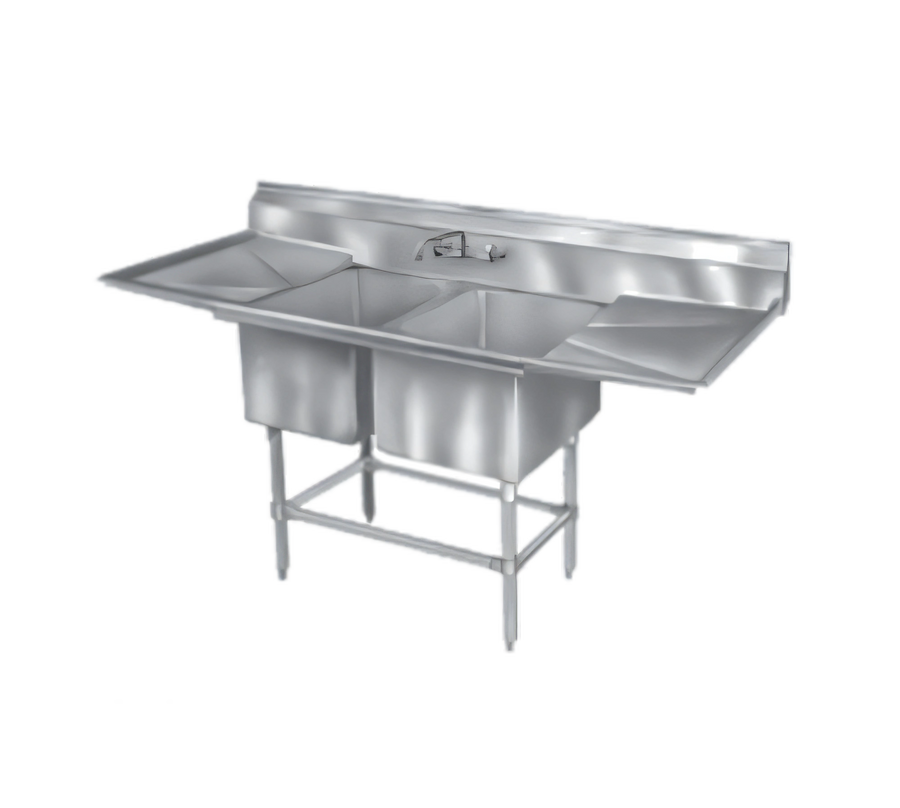

Eagle Group Spec-Master FN Series Two-Compartment Coved Corner Sink with Dual 18-Inch Drainboards, 80"W x 35"D

14-gauge 300-series stainless steel with 20" x 28" x 14" compartments and a 9-1/2" backsplash

A rugged, all-stainless sink station with dual drainboards, deep coved bowls, and a fully welded base built for busy prep areas.

  • Two 20"W x 28" front-to-back x 14" deep compartments with coved corners for easier cleaning.
  • 18" drainboards on both the left and right side add valuable landing and drying space.
  • Built from 14-gauge, 300-series stainless steel for commercial durability.
  • 9-1/2" backsplash with 1" upturn and tile edge helps protect walls from splashes.
  • Includes 3-1/2" basket drains plus 8" on-center splash-mount faucet holes.
  • Stainless steel legs, gussets, crossbracing, and adjustable bullet feet provide stability.

Overall Dimensions:

80.0"W x 35.0"D x 44.5"H

Product Weight:

134.0 lb

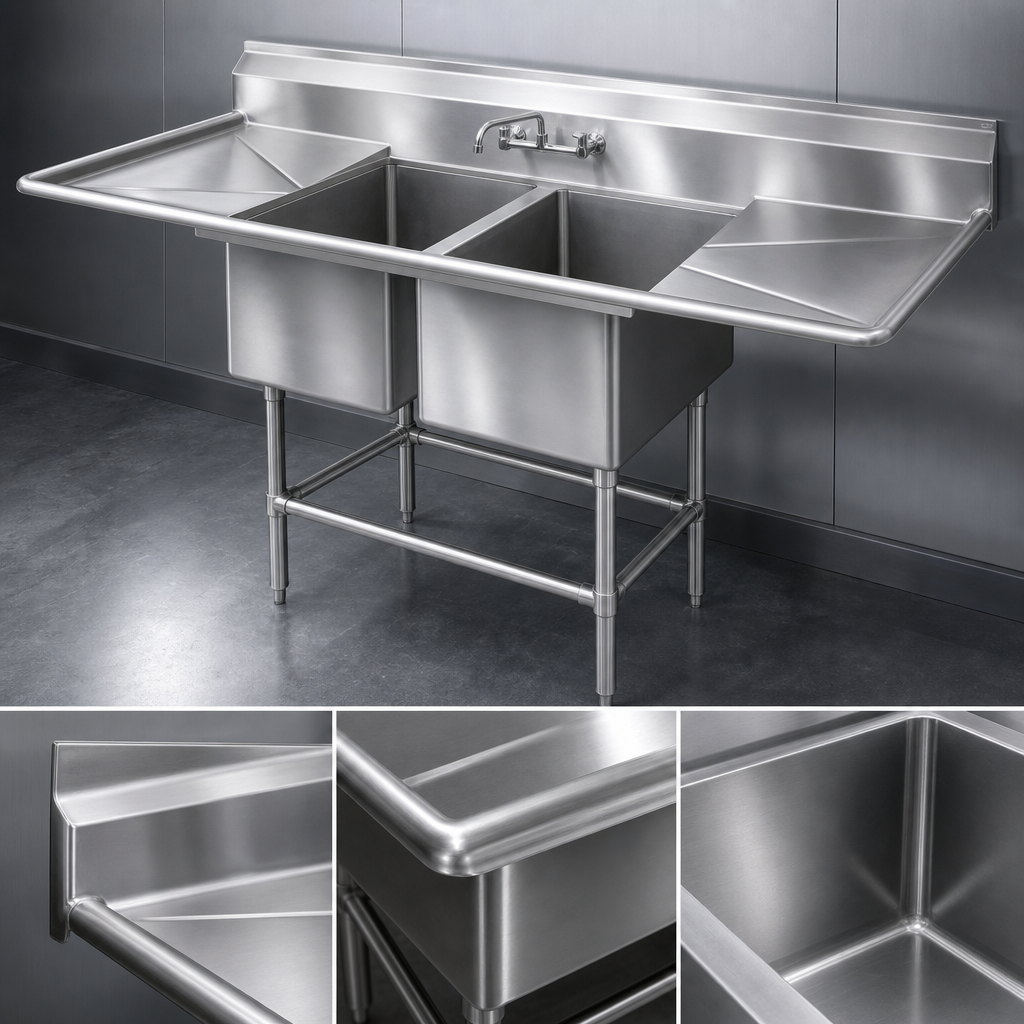

14-Gauge Stainless Steel Construction

Constructed throughout of 14 gauge, 300 series 18-8 stainless steel for strength and corrosion resistance.

14-Gauge Stainless Steel Construction

Two Coved Corner Compartments

Dual bowls measure 20" wide x 28" front-to-back x 14" deep and use a full 3/8" radius coved corner design.

Dual Drainboards

18" drainboards on both sides provide extra workspace and positive drainage.

Tall Backsplash

A 9-1/2" backsplash with 1" upturn and tile edge helps keep the wall area cleaner.

Faucet Hole Layout

1-1/8" faucet holes are punched on 8" centers for splash-mount faucet installation.

Heavy-Duty Base

Stainless steel legs with gussets, all-side crossbracing, and adjustable bullet feet improve stability.

Included Basket Drains

Supplied with 3-1/2" basket-type waste drains with 1-1/2" outlets.

Seamless Welded Assembly

Fuse-welded and planished construction creates a one-piece sink unit with rolled front and side edges.

Type 2-Compartment Sink
Style Coved Corner
Installation Type Freestanding
Compartments 2
Material 304 Stainless Steel
Finish Satin
Top Gauge 14 Gauge
Top Stainless Series 300 Series
Water Inlet Size 1/2 Inch NPS
Drain Connection Size 1-1/2 Inches
Selling Unit Each
Units Per Case 1
Shipping Width 80 Inches
Shipping Depth 35 Inches
Shipping Height 45 Inches
Shipping Weight 134 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year limited warranty from original installation, not to exceed 18 months from shipment.

Documents

PDF Cutsheet PDF Download PDF Care & maintenance PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

Each compartment measures 20" wide x 28" front-to-back x 14" deep.
Yes, it includes 18" drainboards on both the left and right sides.
It includes 3-1/2" basket-type waste drains, stainless steel legs, crossbracing, and adjustable bullet feet.
The sink has a 9-1/2" backsplash with a 1" upturn and tile edge.
It uses 1-1/8" faucet holes punched on 8" centers.
