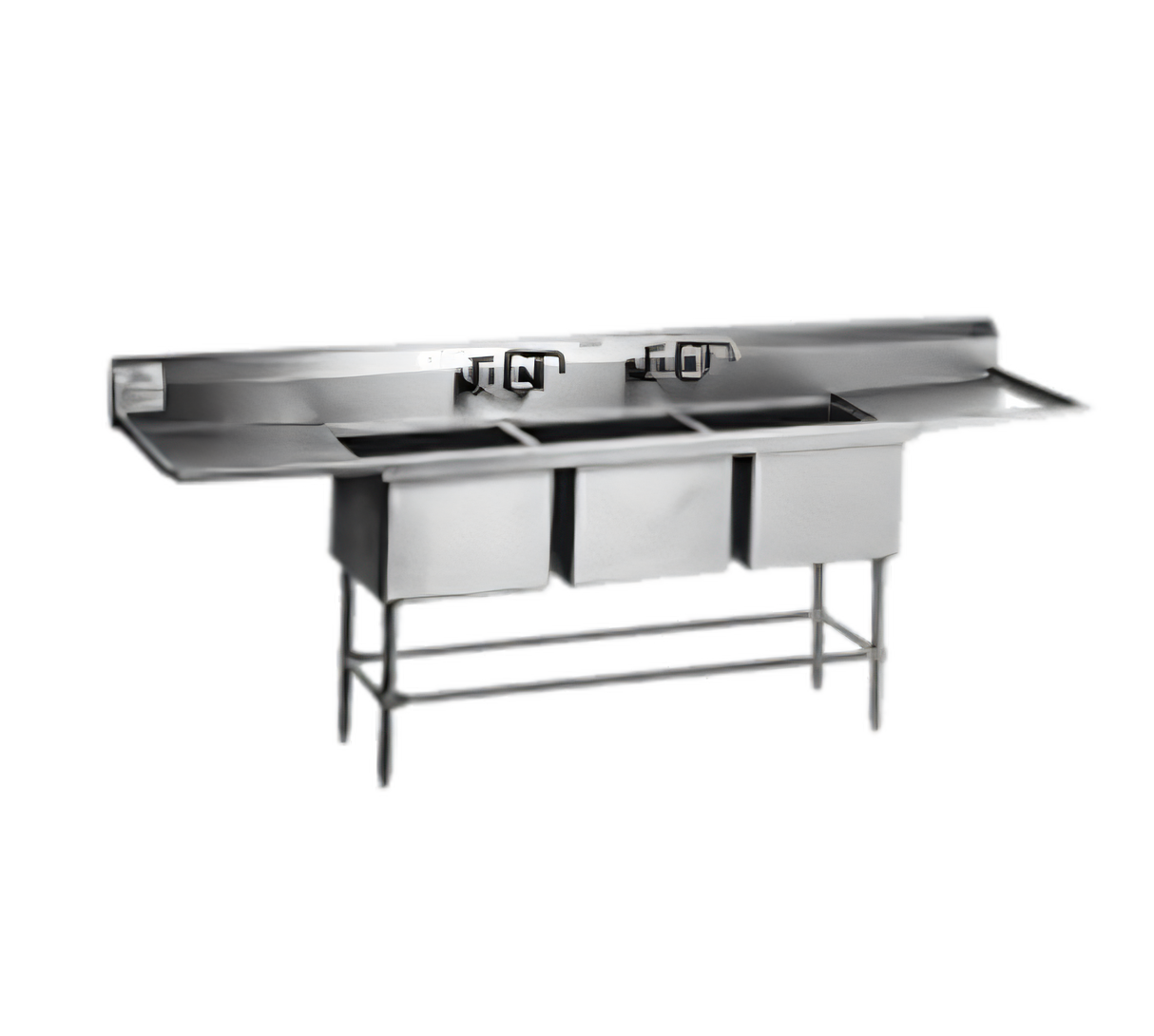

Eagle Spec-Master FN Series 3-Compartment Stainless Steel Sink with 30 Inch Right Drainboard and 24x24x14 Inch Bowls
Eagle Spec-Master FN Series 3-Compartment Stainless Steel Sink with 30 Inch Right Drainboard and 24x24x14 Inch Bowls
Three-Compartment, 24x24x14 Inch Bowls, 30 Inch Right Drainboard, 14 Gauge Stainless Steel
Designed for demanding commercial kitchens, this Eagle Spec-Master FN Series three-compartment sink provides robust cleaning capabilities and lasting durability with its heavy-duty 14-gauge stainless steel construction.
- Constructed from durable 14 gauge 300 series stainless steel for exceptional longevity.
- Features three spacious 24" x 24" x 14" deep coved-corner sink bowls.
- Includes a 30" right-hand drainboard with V-creases for efficient drying and water drainage.
- Equipped with a 9½" high backsplash, 1" upturn, and tile edge to protect walls from splashes.
- Comes with two sets of 8" on-center splash mount faucet holes (faucets sold separately).
- Supported by sturdy 1⅝" O.D. stainless steel legs with adjustable bullet feet and all-around crossbracing.
- NSF certified, ensuring compliance with strict public health and safety standards for commercial foodservice environments.
Overall Dimensions:
109.5"W x 31.0"D x 44.5"HProduct Weight:

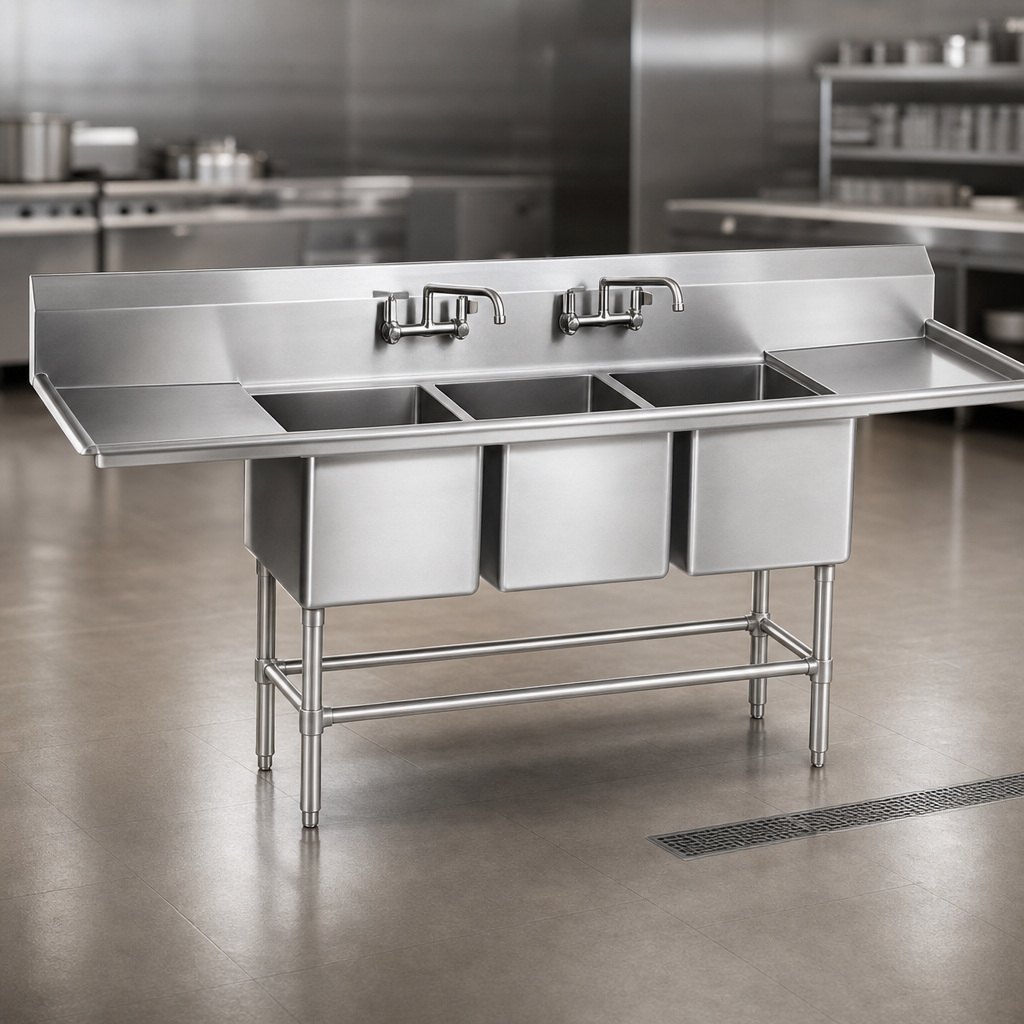

157.0 lbHeavy-Duty Stainless Steel Construction
Entire unit, including the top, drainboards, backsplash, and rolled rims, is constructed from 14 gauge 300 series, 18-8 stainless steel for maximum durability and corrosion resistance in commercial settings.
Three Coved-Corner Sink Bowls
Features three generously sized sink compartments, each measuring 24 inches wide by 24 inches long by 14 inches deep (water level). The coved corners with a full ⅝" radius and seamless welding techniques ensure easy cleaning and superior sanitation.
Integrated Right-Hand Drainboard
A 30-inch long drainboard is integrally welded on the right side of the sink, designed with 'V' creasing for positive drainage, providing ample space for drying dishes or preparing ingredients.
High Backsplash with Tile Edge
A 9½" high backsplash with a 1" upturn and tile edge effectively protects adjacent walls from water splashes and spills, maintaining a cleaner and safer work area.
Pre-Punched Faucet Holes
The sink is pre-punched with two sets of 1⅛" (29mm) faucet holes on 8" (203mm) centers, ready for splash mount faucets (faucets not included).
Robust Leg and Bracing System
Supported by 1⅝" (41mm) O.D. stainless steel tubing legs with stainless steel gussets and fully adjustable stainless steel bullet feet. Adjustable 1¼″ (32mm) O.D. stainless steel crossbracing on all sides enhances stability and weight support. Legs are strategically located under sink bowls or outer ends of longer drainboards.
Basket Waste Drains Included
Each sink bowl is equipped with a basket-type waste drain that fits the 3½" (89mm) opening and features a 1½" (38mm) outlet for efficient water and waste removal.
Seamless Unit Assembly
The entire assembly is fuse-welded and planished, creating a one-piece, seamless sink unit. Welded areas are high-speed belt blended to match adjacent surfaces for a continuous satin finish and bullnosed outside corners for safety.
Standard Water Supply Connections
Features ½" (13mm) NPS connections for hot and cold water lines.
Certifications & Compliance
Warranty & Protection
One-year parts and labor limited warranty from the date of original installation, not to exceed 18 months from the date of shipment from Eagle.
