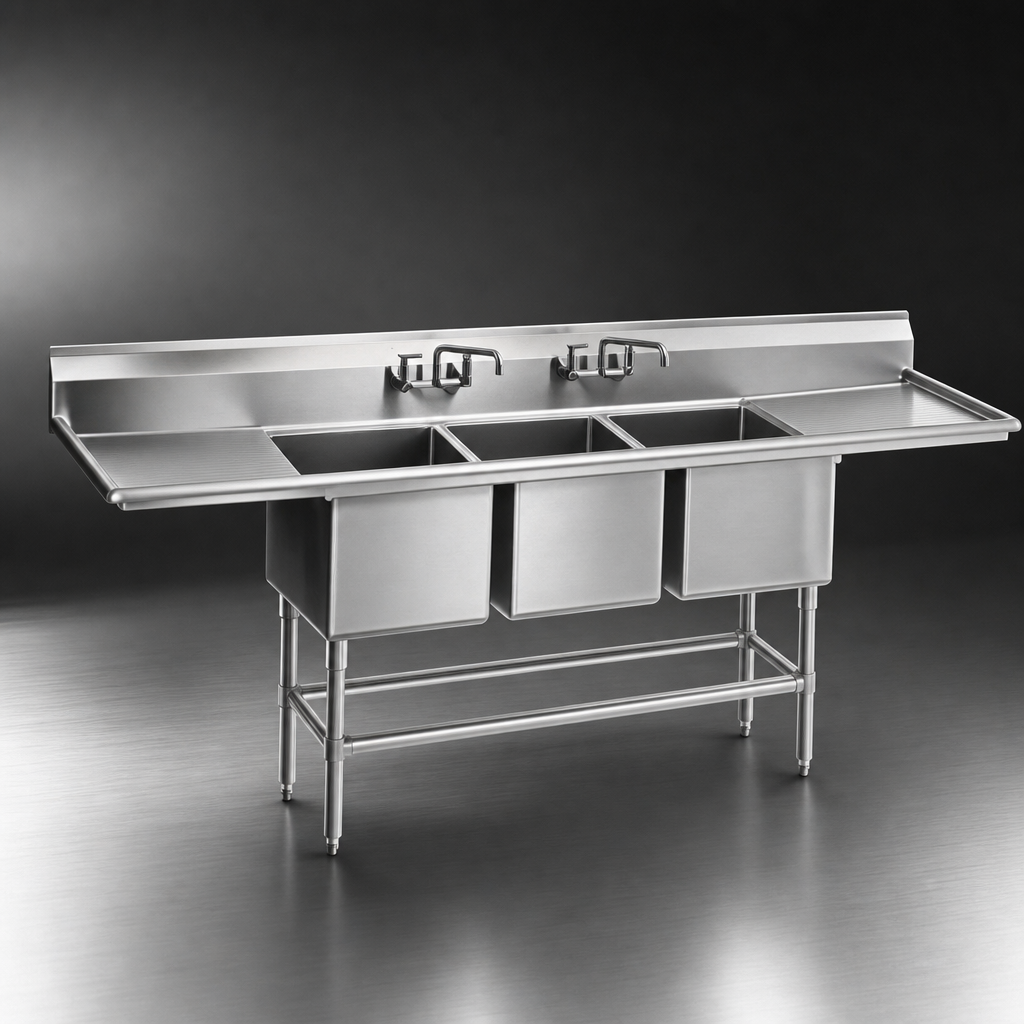

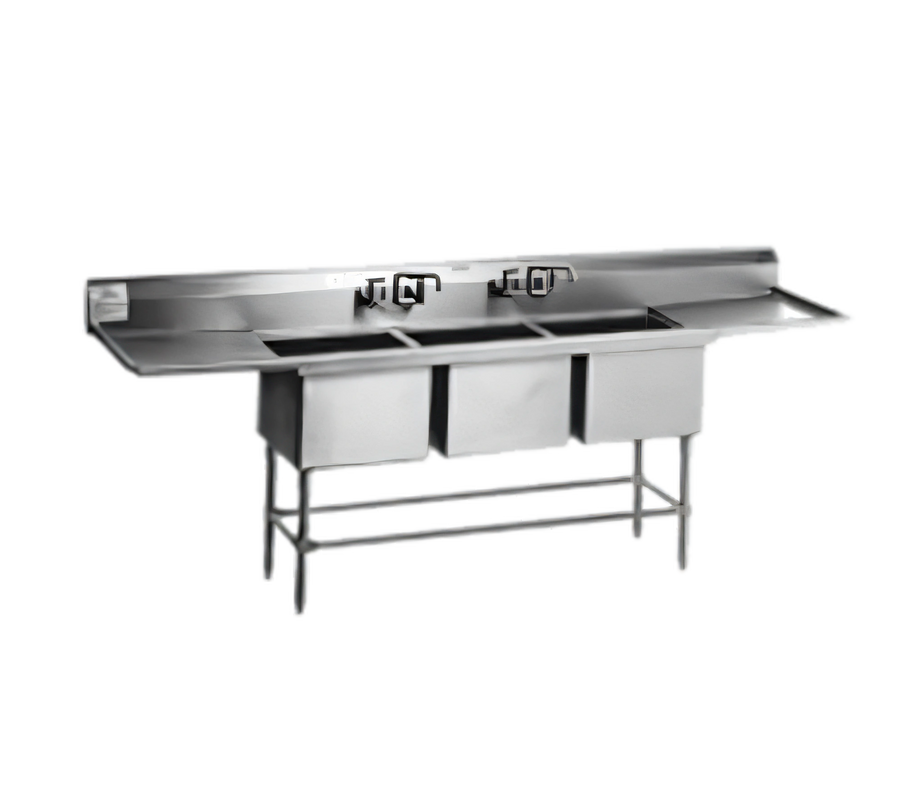

Eagle Group Spec-Master FN Series 3-Compartment Stainless Steel Sink with Left Drainboard
Eagle Group Spec-Master FN Series 3-Compartment Stainless Steel Sink with Left Drainboard
109-1/2"W x 31"D, 14 Gauge 304 Stainless Steel, 24" x 24" x 14" Bowls, 30" Left Drainboard
Designed for heavy-duty commercial use, this Eagle Group Spec-Master 3-compartment sink provides superior durability and efficient dishwashing capabilities for any busy kitchen.
- Constructed entirely from heavy-duty 14 gauge 300 series stainless steel for maximum strength and longevity.
- Features three spacious 24" x 24" x 14" deep coved corner sink compartments for optimal washing, rinsing, and sanitizing.
- Includes a 30-inch left-hand drainboard with 'V' creases for positive drainage, improving workflow and hygiene.
- Equipped with a 9-1/2" high backsplash featuring a 1" upturn and tile edge to protect walls from splashes.
- Supported by robust 1-5/8" O.D. stainless steel legs with crossbracing and adjustable bullet feet for stability on uneven floors.
- Seamless unit construction with fuse-welded and blended areas ensures easy cleaning and a professional appearance.
Overall Dimensions:
109.5"W x 31.0"D x 44.5"HProduct Weight:
157.0 lbHeavy-Duty Stainless Steel Construction
Entire unit, including top, drainboards, backsplash, and rolled rims, is constructed from durable 14 gauge 300 series, 18-8 stainless steel. Sink bowls are also 14 gauge 300 series stainless steel.
Three Large Coved Corner Compartments
Features three 24" x 24" x 14" deep sink bowls with coved corners (full 5/8" radius) and state-of-the-art seamless welding techniques for easy cleaning and preventing grime buildup.
Integrated Left Drainboard
A 30" wide drainboard is integrally welded on the left side, featuring 'V' creases for positive drainage and efficient drying.
High Backsplash with Tile Edge
A 9-1/2" high backsplash with a 1" upturn and tile edge protects adjacent walls from water splashes, maintaining cleanliness and hygiene.
Sturdy Stainless Steel Base
Supported by 1-5/8" (41mm) diameter stainless steel legs with stainless steel gussets, adjustable stainless steel bullet feet, and 1-1/4" (32mm) diameter stainless steel crossbracing on all sides for superior stability and weight support.
Pre-punched Faucet Holes
Equipped with two sets of 1-1/8" (29mm) faucet holes punched on 8" (203mm) centers, ready for faucet installation (faucets not included).
Basket Waste Drains Included
Each sink bowl includes a basket-type waste drain designed to fit the 3-1/2" (89mm) sink bowl opening and features a 1-1/2" (38mm) outlet.
Seamless Finish
The entire assembly is fuse-welded and planished, providing a one-piece seamless sink unit. Welded areas are high-speed belt blended to match adjacent surfaces with continuity of satin finish, and all outside corners are bullnosed for safety.
Certifications & Compliance
Warranty & Protection
1-year parts and labor warranty on products manufactured by Eagle Group from the date of original installation, not to exceed 18 months from the date of shipment.
