Spec-Master FN Series Three-Compartment Commercial Sink with Right Drainboard
Spec-Master FN Series Three-Compartment Commercial Sink with Right Drainboard
97.5" x 31" x 44.5", 14 Gauge 304 Stainless Steel, 24" x 24" x 14" Deep Bowls, 18" Right Drainboard
This heavy-duty Spec-Master three-compartment sink offers exceptional durability and efficiency for demanding commercial kitchens, featuring robust 14-gauge stainless steel construction and a convenient right-hand drainboard.
- Constructed from durable 14 gauge, 300 series stainless steel throughout for long-lasting performance.
- Features three generously sized 24" x 24" x 14" deep coved corner sink compartments.
- Includes an integrally welded 18-inch right-hand drainboard for efficient dishwashing workflow.
- Equipped with a 9½" high backsplash with 1" upturn and tile edge to protect walls.
- Sturdy 1 5/8" O.D. stainless steel legs with crossbracing and adjustable bullet feet ensure stability.
- Designed with two sets of 8" OC splash mount faucet holes, ready for your choice of faucets (sold separately).
- Comes complete with 3 1/2" basket-type waste drains for easy plumbing setup.
Overall Dimensions:
97.5"W x 31.0"D x 44.5"HProduct Weight:

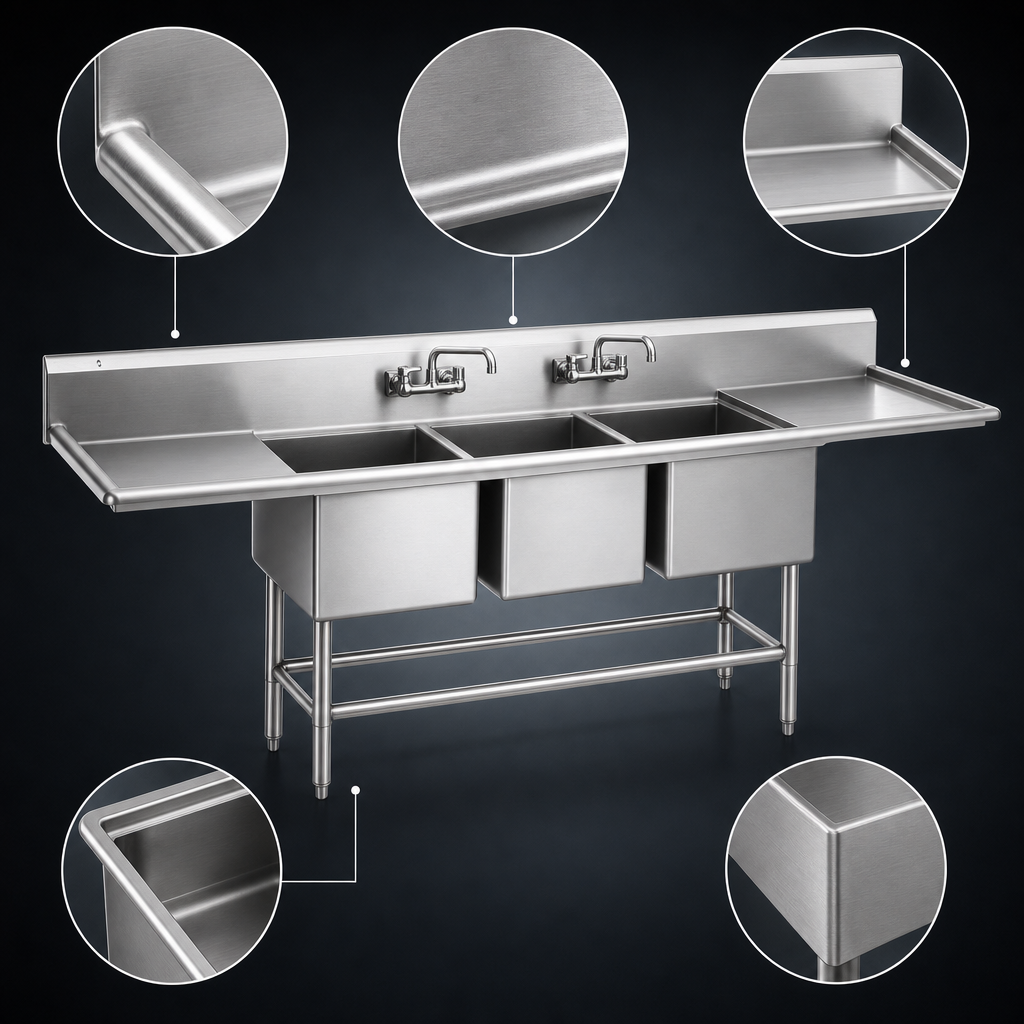

146.0 lbHeavy-Duty 14 Gauge Stainless Steel Construction
The entire unit, including the top, sink bowls, drainboard, backsplash, and rolled rims, is constructed from durable 14 gauge, 300 series, 18-8 stainless steel for maximum strength and corrosion resistance in a commercial environment.
Three Coved Corner Sink Compartments
Features three spacious 24" x 24" x 14" deep sink bowls. The compartments are coved on a full ⅝" radius and built using state-of-the-art seamless welding techniques, ensuring hygiene and ease of cleaning. The water level is 14" and the flood level is 17".
Integrated Right-Hand Drainboard
An 18" wide drainboard is integrally welded on the right side of the sink, designed with 'V' creasing for positive drainage, facilitating efficient drying and organization of dishes.
High Backsplash with Tile Edge
A 9½" high backsplash, complete with a 1" upturn and tile edge, is integrated into the design to protect adjacent walls from splashes and spills, maintaining a cleaner work area.
Dual Sets of Faucet Holes
Equipped with two sets of 1⅛" (29mm) diameter faucet holes, punched on 8″ (203mm) centers, offering flexibility for faucet installation (faucets not included).
Robust Stainless Steel Base with Crossbracing
The sink stands on 1⅝" (41mm) diameter stainless steel tube legs, reinforced with stainless steel gussets and fully adjustable stainless steel bullet feet. Adjustable 1¼″ (32mm) diameter stainless steel crossbracing runs on all sides, providing exceptional stability and maximum weight support with leg locations directly under sink bowls.
Basket-Type Waste Drains Included
Each sink bowl is fitted with a 3½″ (89mm) basket-type waste drain, featuring a 1½" (38mm) outlet, simplifying waste disposal and connection to plumbing.
Seamless and Sanitary Assembly
The entire unit is fuse-welded and planished to create a one-piece seamless sink, with all outside corners bullnosed for safety and a clean appearance, preventing dirt accumulation.
Certifications & Compliance
Warranty & Protection
1-year limited warranty on parts and labor for defects in materials and workmanship.
