Eagle Group

Spec-Master FN Series Two-Compartment Floor Sink — 55 Inches W x 31 Inches D, 14-Gauge 300-Series Stainless Steel Top, Two 24 Inches x 24 Inches x 14 Inches Bowls, NSF

SKU: FN2448-2-14/3
$3,478.46
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Plumbing Supplies Commercial Sinks Compartment Sinks Eagle Group Equipment New Arrivals Restaurant Equipment Sinks & Handwashing Stations

Spec-Master FN Series Two-Compartment Floor Sink — 55 Inches W x 31 Inches D, 14-Gauge 300-Series Stainless Steel Top, Two 24 Inches x 24 Inches x 14 Inches Bowls, NSF

Coved 3/8 Inch radius corners, 9-1/2 Inch backsplash with 1 Inch upturn & tile edge; includes 3-1/2 Inch basket drains

Heavy-duty 14-gauge 300-series stainless steel construction with two 24 Inches x 24 Inches x 14 Inches coved bowls, adjustable legs and crossbracing — NSF-listed for commercial kitchens.

  • 14-gauge 300-series (18-8) stainless steel top and bowls with seamless, fuse-welded construction for long-lasting performance.
  • Two large 24 Inches x 24 Inches x 14 Inches coved compartments (3/8 Inch radius) for easy cleaning and high capacity.
  • 9-1/2 Inches high backsplash with 1 Inch upturn and tile edge; faucet holes punched 1-1/8 Inch on 8 Inches centers for splash-mount faucets.
  • Includes 3-1/2 Inch basket-type drains (one per compartment) with 1-1/2 Inch outlet; rolled edges on front and sides for safety and appearance.
  • Stainless steel legs (1-5/8 Inch O.D.) with gussets, adjustable bullet feet and stainless crossbracing on all sides for stability.
  • NSF listed; optional accessories include lever drains, overflow, faucets, sink covers and skirted front panel.

Overall Dimensions:

55.0"W x 31.0"D x 44.5"H

Product Weight:

157.0 lb

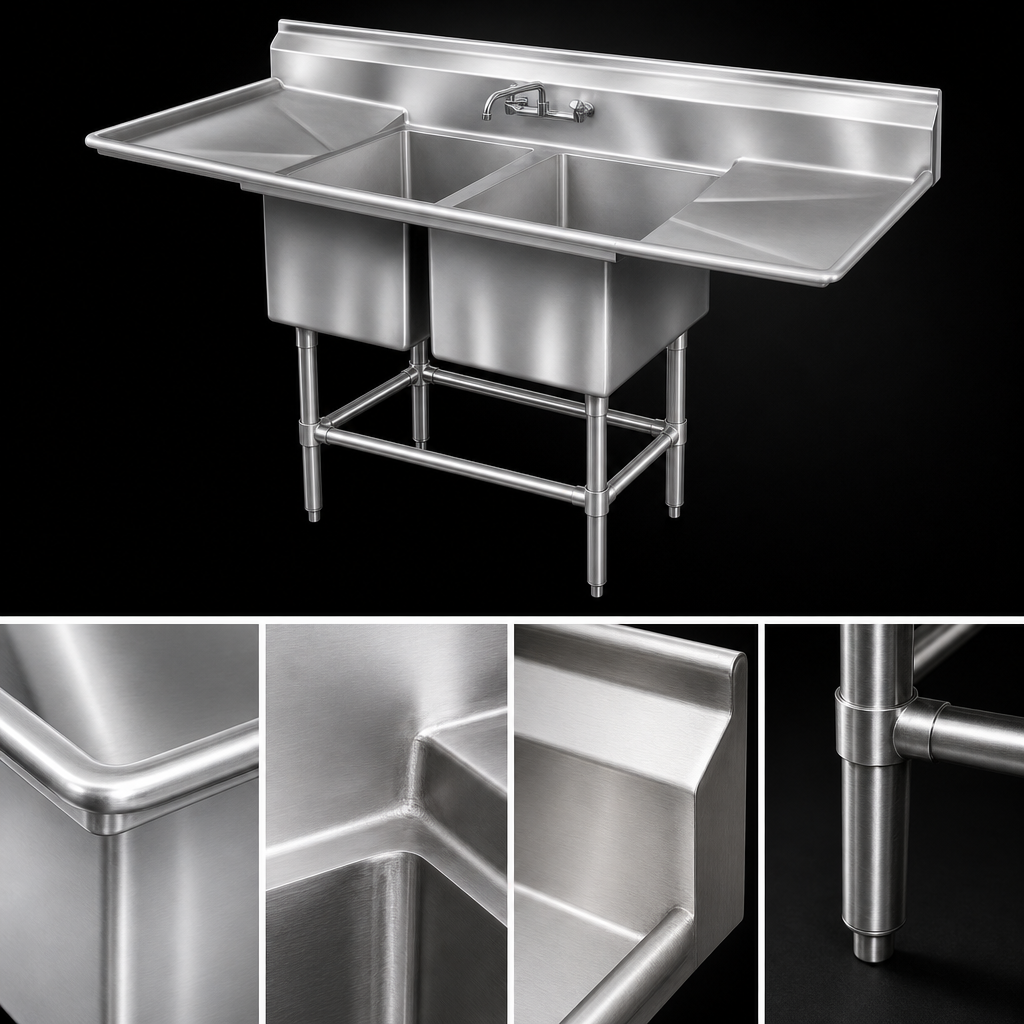

Construction

14-gauge 300-series (18-8) stainless steel throughout; rolled rims and edges; satin blended finish on welds; fuse-welded, one-piece assembly.

Construction

Sink Bowls

Two coved compartments with full 3/8 Inch radius, each 24 Inches x 24 Inches with 14 Inches water depth (14 Inch water level, 17 Inch flood level).

Backsplash

9-1/2 Inches high backsplash with 1 Inch upturn and tile edge to protect walls and allow tile installation.

Drains

Basket-type waste drains for 3-1/2 Inch openings (included); drains feature 1-1/2 Inch outlet.

Base & Support

1-5/8 Inch O.D. stainless steel legs with stainless gussets, fully adjustable stainless bullet feet and 1-1/4 Inch diameter adjustable stainless crossbracing left-to-right and front-to-back.

Faucet Provision

1-1/8 Inch faucet holes punched on 8 Inches centers (splash-mount pattern).

Assembly & Safety

All outside corners are bullnosed for safe, clean edges; welded areas planished and belt blended to match finish.

Options

Available accessories include lever drains (with or without overflow), twist-handle drains, overflow hole, sink kits, faucets, polyboard or stainless sink covers and skirted front panels.

Type Two-Compartment Sink
Installation Type Floor Model (With Legs)
Material 300 Series Stainless Steel
Interior Finish 300 Series Stainless Steel
Finish Satin
Top Gauge 14 Gauge
Compartments 2
Compartment Width 24 Inches
Compartment Depth 24 Inches
Bowl Depth 14 Inches
Drain Opening Diameter 3-1/2 Inches
Drain Connection Size 1-1/2 Inches
Water Inlet Size 1/2 Inches
Water Connection Required
Drain Connection Required
Faucet Hole Diameter 1-1/8 Inches
Faucet Hole Center Spacing 8 Inches On Center
Leg Diameter 1-5/8 Inches
Crossbracing 1-1/4 Inches Diameter Stainless Steel (Adjustable)
Shipping Width 55 Inches
Shipping Depth 31 Inches
Shipping Height 45 Inches
Shipping Weight 157 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Limited 1-year warranty from date of original installation (not to exceed 18 months from shipment); accessory items covered 90 days.

Documents

PDF Cutsheet PDF Download PDF Brochure PDF Download PDF Care & maintenance PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

Each compartment measures 24 Inches wide x 24 Inches front-to-back with a 14 Inches depth (rim to drain). Bowls are coved with a 3/8 Inch radius; water level is 14 Inches (17 Inch flood level).
The sink includes 3-1/2 Inch basket-type drains (one per bowl) with a 1-1/2 Inch outlet. Faucets are sold separately; the top has 1-1/8 Inch faucet holes punched on 8 Inches centers for 8 Inch O.C. splash-mount faucets.
Water supply connections are 1/2 Inch NPS for hot and cold; drain outlet is 1-1/2 Inches. Final plumbing/trap installation must follow local code and is not included.
This model is NSF listed. Eagle provides a limited one-year warranty against defects in materials and workmanship (accessories may have a 90-day warranty). Warranty terms and coverage details are available from the manufacturer.
Available accessories include lever drains (with or without overflow), twist-handle drains, overflow holes, sink kits, faucets, polyboard or stainless steel sink covers, and skirted front panels. Contact the manufacturer or dealer for ordering and custom options.
