Eagle Group Spec-Master FN Series 160" Four-Compartment Stainless Steel Commercial Sink with Dual 36" Drainboards
Eagle Group Spec-Master FN Series 160" Four-Compartment Stainless Steel Commercial Sink with Dual 36" Drainboards
20" x 20" x 14" Deep Bowls, 14 Gauge 300 Series Stainless Steel Top, Floor Model
Designed for demanding commercial kitchens, this heavy-duty four-compartment sink provides exceptional durability and functionality for all your dishwashing and prep needs.
- Constructed from robust 14 gauge, 300 series stainless steel for superior strength and longevity.
- Features four spacious 20" x 20" x 14" deep coved corner sink bowls to handle high-volume tasks.
- Includes two large 36" drainboards for ample drying and prep space, promoting efficiency.
- Equipped with a tall 9½" backsplash with a 1" upturn and tile edge to protect walls from splashes.
- Supported by sturdy 1⅝" O.D. stainless steel legs with full crossbracing and adjustable bullet feet for stability.
- Seamless unit construction with high-speed belt blended welded areas for a smooth, easy-to-clean finish.
- NSF certified for health and safety in commercial food service environments.
Overall Dimensions:
160.0"W x 27.0"D x 44.5"HProduct Weight:

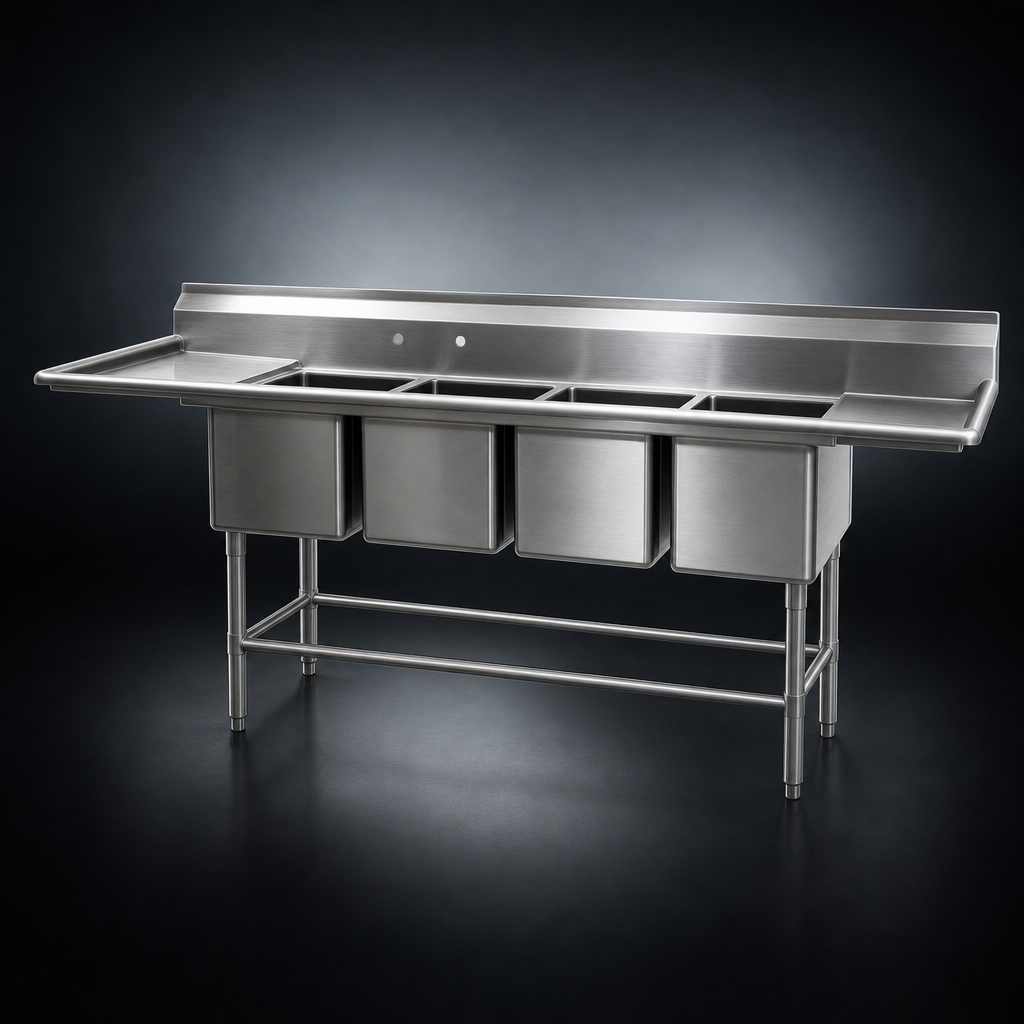

490.0 lbHeavy-Duty Stainless Steel Construction
Entire unit, including drainboards, backsplash, rolled rims, and sink bowls, is constructed from 14 gauge 300 series, 18-8 stainless steel, ensuring exceptional durability and resistance to corrosion for commercial use.
Four Spacious Coved Corner Bowls
Four 20" wide x 20" long x 14" deep sink bowls feature coved corners with a full ¾" radius and are constructed using state-of-the-art seamless welding techniques, making them easy to clean and highly sanitary.
Dual 36" Integrally Welded Drainboards
Two 36" long drainboards, one on each side, are integrally welded to the sink top and feature 'V' creasing for positive drainage, providing generous space for drying dishes or food preparation.
High Backsplash with Tile Edge
A 9½" high backsplash with a 1" upturn and tile edge effectively protects walls from splashes and facilitates a clean, sanitary work area.
Sturdy Stainless Steel Base
The base features 1⅝" (41mm) diameter stainless steel legs with stainless steel gussets and fully adjustable stainless steel bullet feet. Legs are crossbraced on all sides with 1¼" (32mm) diameter stainless steel tubing for maximum stability and weight support.
Standard Faucet Holes
Equipped with two sets of 1⅛" (29mm) faucet holes punched on 8" (203mm) centers, ready for standard splash mount faucets (faucets sold separately).
Basket Waste Drains Included
Each sink bowl includes a 3½" (89mm) basket-type waste drain that fits the bowl's opening and features a 1½" (38mm) outlet for efficient wastewater removal.
Seamless Unit Assembly
The entire assembly is fuse-welded and planished, providing a one-piece seamless sink unit. Welded areas are high-speed belt blended to match adjacent surfaces, ensuring a continuous satin finish and safe, bullnosed outside corners.
Certifications & Compliance
Warranty & Protection
1-year parts and labor warranty from original installation, not to exceed 18 months from shipment.
