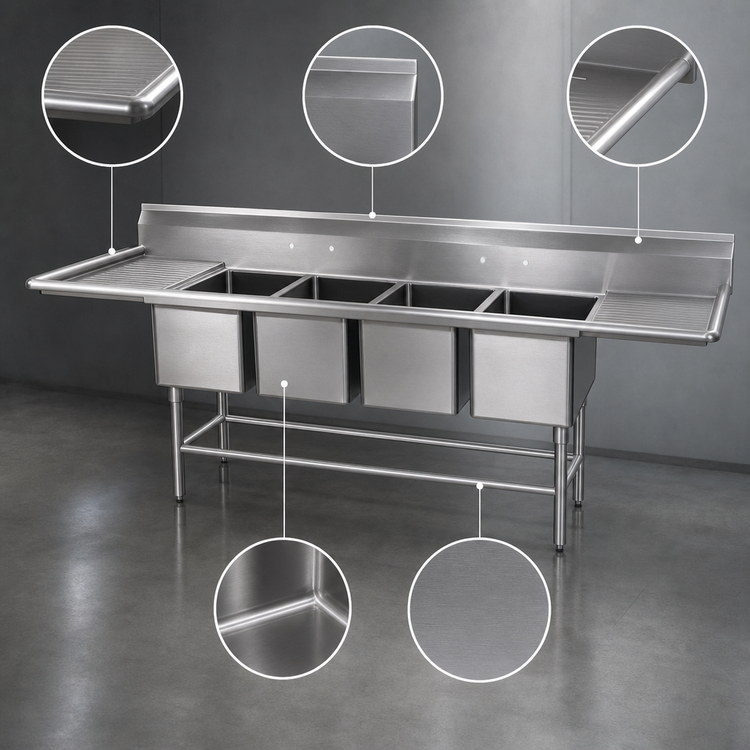

Eagle Group Spec-Master FN Series Four-Compartment Stainless Steel Commercial Sink with Left & Right 30-inch Drainboards
Eagle Group Spec-Master FN Series Four-Compartment Stainless Steel Commercial Sink with Left & Right 30-inch Drainboards
148"W x 27"D, 20" x 20" x 14" Deep Bowls
Built for demanding commercial kitchens, this durable four-compartment stainless steel sink offers ample space and efficient workflow with integrated dual drainboards.
- Constructed from heavy-duty 14 gauge 300 series stainless steel for superior durability.
- Features four spacious 20"W x 20"L x 14"D coved corner sink compartments.
- Equipped with 30-inch drainboards on both the left and right sides for convenient drying and prep.
- Includes a 9½" high backsplash with a 1" upturn and tile edge to protect walls.
- Supported by robust 1⅝" diameter stainless steel legs with adjustable bullet feet and crossbracing for maximum stability.
- Comes with 3½" basket drains for efficient waste removal.
Overall Dimensions:
148.0"W x 27.0"D x 44.5"HProduct Weight:

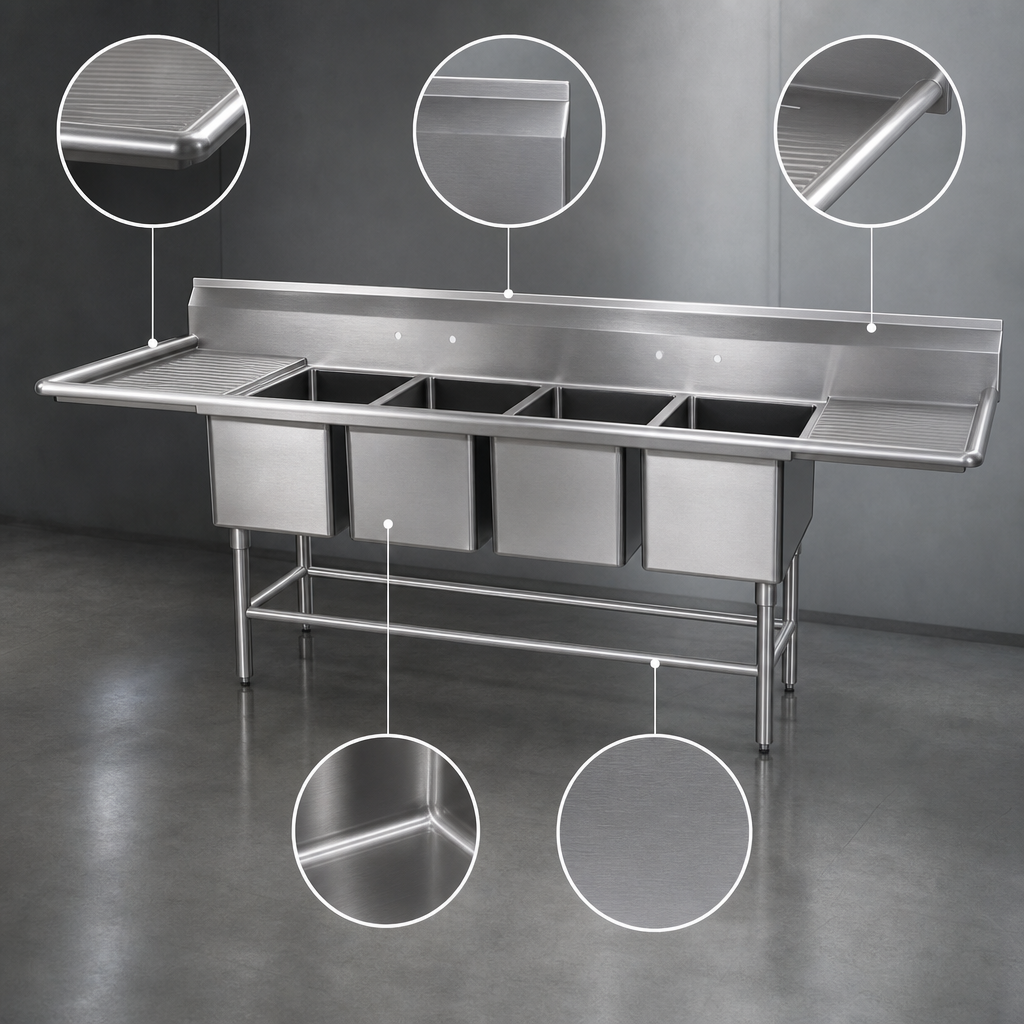

452.0 lbHeavy-Duty Construction
Entire unit, including drainboards, backsplash, and rolled rims, is constructed of 14 gauge 300 series stainless steel for exceptional strength and corrosion resistance. Sink bowls are also 14 gauge 300 series stainless steel.
Coved Corner Sink Bowls
Four sink compartments feature coved corners with a full ¾" radius for easy cleaning and hygiene, constructed using state-of-the-art seamless welding techniques.
Integrated Drainboards
Two 30-inch drainboards, one on the left and one on the right, are integrally welded to the top and feature 'V' creasing for positive drainage.
High Backsplash
A 9½" high backsplash with a 1" upturn and tile edge helps protect walls from splashes and spills, maintaining a cleaner work environment.
Sturdy Base
The base features 1⅝" (41mm)-diameter stainless steel legs with stainless steel gussets and fully adjustable stainless steel bullet feet. Adjustable 1¼" (32mm)-diameter stainless steel crossbracing runs left-to-right and front-to-back on all sides for increased stability.
Optimized Leg Placement
Leg locations fall directly under sink bowls, providing increased stability and maximum weight support. On sinks with drainboards 30" or longer, legs are additionally located underneath the outer end of drainboards for enhanced support.
Pre-Punched Faucet Holes
Equipped with two sets of 1⅛" (29mm) faucet holes punched on 8" (203mm) centers, ready for faucet installation (faucets sold separately).
Seamless Finish
The entire assembly is fuse-welded and planished, providing a one-piece seamless sink unit. Welded areas are high-speed belt blended to match adjacent surfaces with continuity of satin finish, and all outside corners are bullnosed for safe, clean edges.
Certifications & Compliance
Warranty & Protection
1-year limited warranty on parts and labor from the date of original installation, not to exceed 18 months from the date of shipment.
