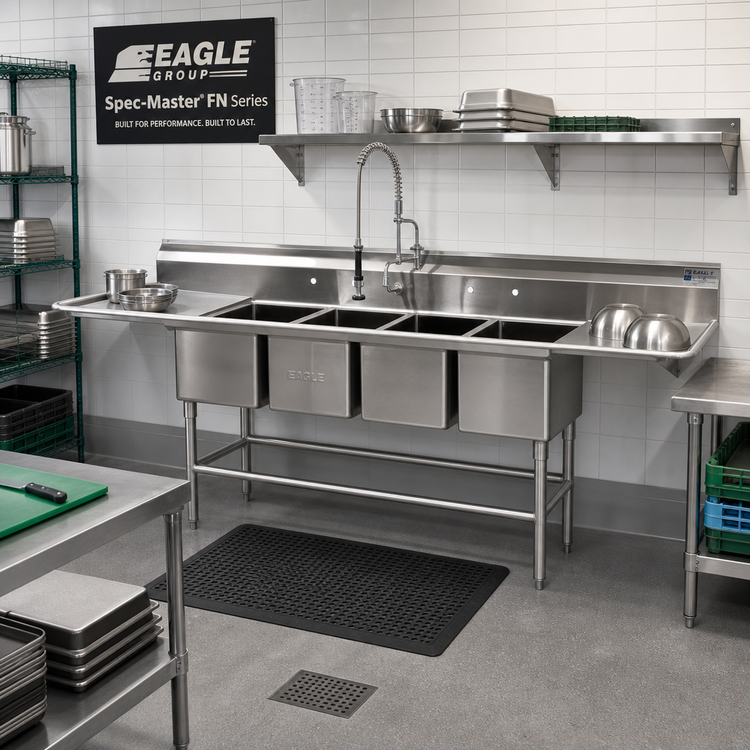

Eagle Group Spec-Master FN Series 4-Compartment Stainless Steel Sink with Dual 36-Inch Drainboards
Eagle Group Spec-Master FN Series 4-Compartment Stainless Steel Sink with Dual 36-Inch Drainboards
Floor Model, 152"W x 27"D, 14 Gauge 304 Stainless Steel
Designed for demanding commercial kitchens, this Eagle Group Spec-Master sink offers superior durability, ample washing capacity, and convenient integrated drainboards.
- Constructed from heavy-duty 14 gauge 300 series stainless steel for lasting performance.
- Features four spacious 18"W x 20"F-B x 14"D coved corner compartments for efficient dishwashing.
- Includes two large 36-inch drainboards (left and right) with "V" creasing for positive drainage.
- Equipped with a 9½" high backsplash and rolled edges to prevent splashes and spills.
- Supported by robust 1⅝" O.D. stainless steel legs with adjustable bullet feet and crossbracing for stability.
- NSF certified, ensuring sanitation and safety standards for commercial use.
Overall Dimensions:
152.0"W x 27.0"D x 44.5"HProduct Weight:

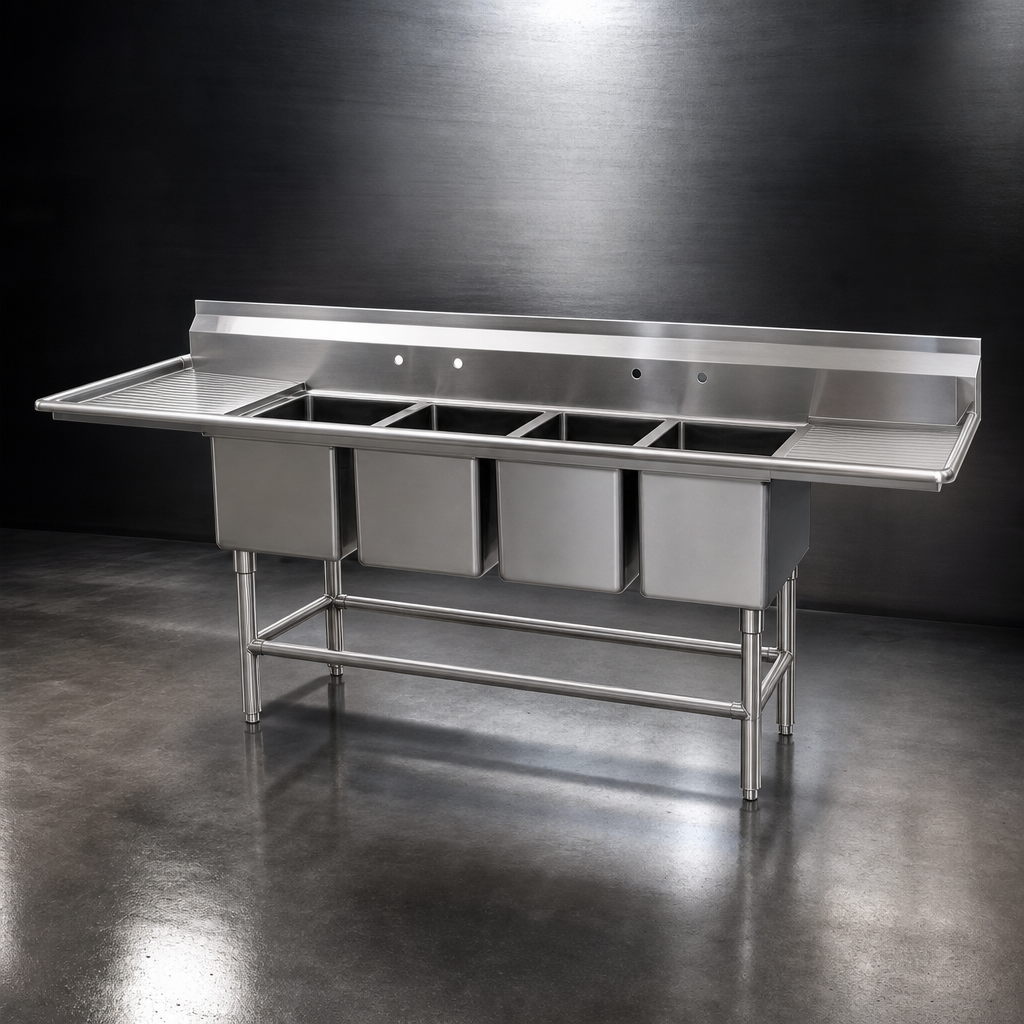

441.0 lbHeavy-Duty Stainless Steel Construction
Entire unit, including sink bowls, drainboards, and backsplash, is constructed of durable 14 gauge 300 series, 18-8 stainless steel, ensuring longevity and resistance to corrosion in demanding commercial environments.
Four Coved Corner Sink Compartments
Features four 18" wide x 20" front-to-back x 14" deep sink bowls with coved ¾" radius corners for easy cleaning and maintenance. Constructed with state-of-the-art seamless welding techniques.
Integrated Dual 36-Inch Drainboards
Provides generous work surface with 36-inch drainboards on both the left and right sides, integrally welded and "V" creased to ensure efficient and positive drainage.
High Backsplash with Tile Edge
A 9½" high backsplash with a 1" upturn and tile edge protects walls from splashes and facilitates a clean, sanitary work area.
Sturdy Stainless Steel Base
The base features 1⅝" (41mm) O.D. stainless steel tubing legs with stainless steel gussets and fully adjustable stainless steel bullet feet. Legs are crossbraced on all sides with 1¼" (32mm) diameter stainless steel for increased stability and maximum weight support.
Pre-Punched Faucet Holes
Equipped with two sets of 1⅛" (29mm) faucet holes punched on 8" (203mm) centers on the backsplash, ready for faucet installation (faucets sold separately).
Basket Waste Drains Included
Each sink bowl includes a 3½" (89mm) basket-type waste drain with a 1½" (38mm) outlet for efficient water disposal.
Seamless Finish
The entire assembly is fuse-welded and planished, providing a one-piece seamless sink unit. Welded areas are high-speed belt blended to match adjacent surfaces with continuity of satin finish, and all outside corners are bullnosed for safety.
Certifications & Compliance
Warranty & Protection
1-year parts and labor limited warranty from installation, not to exceed 18 months from shipment.
