Eagle Group

Spec-Master FN2072-4-18R-14/3 Four-Compartment Stainless Steel Sink with 18" Right Drainboard

SKU: FN2072-4-18R-14/3
$4,741.70
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

4-compartment Sinks Best Sellers Commercial Plumbing Supplies Commercial Sinks Compartment Sinks Eagle Group New Arrivals Restaurant Equipment Sinks & Handwashing Stations

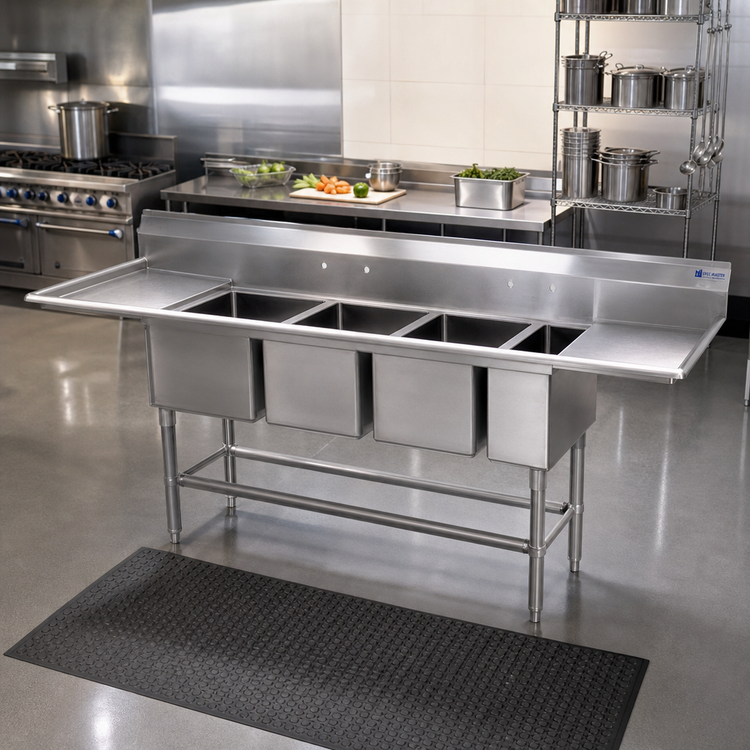

Spec-Master FN2072-4-18R-14/3 Four-Compartment Stainless Steel Sink with 18" Right Drainboard

14 Gauge 300 Series Stainless Steel, 18"W x 20"FB x 14"D Compartments

Built for heavy-duty commercial use, the Spec-Master FN2072-4-18R-14/3 sink provides ample multi-compartment washing capacity and a convenient right-hand drainboard in a robust stainless steel construction.

  • Durable 14 gauge 300 series stainless steel construction for long-lasting performance.
  • Four spacious 18"W x 20"FB x 14"D coved corner compartments for efficient washing.
  • Integrated 18-inch right-hand drainboard offers convenient drying and preparation space.
  • High 9-1/2" backsplash with a 1" upturn and tile edge protects walls from splashes.
  • Sturdy 1-5/8" diameter stainless steel legs with full crossbracing and adjustable bullet feet ensure stability.
  • NSF certified, ensuring it meets public health and safety standards for commercial food service applications.

Overall Dimensions:

99.5"W x 27.0"D x 44.5"H

Product Weight:

289.0 lb

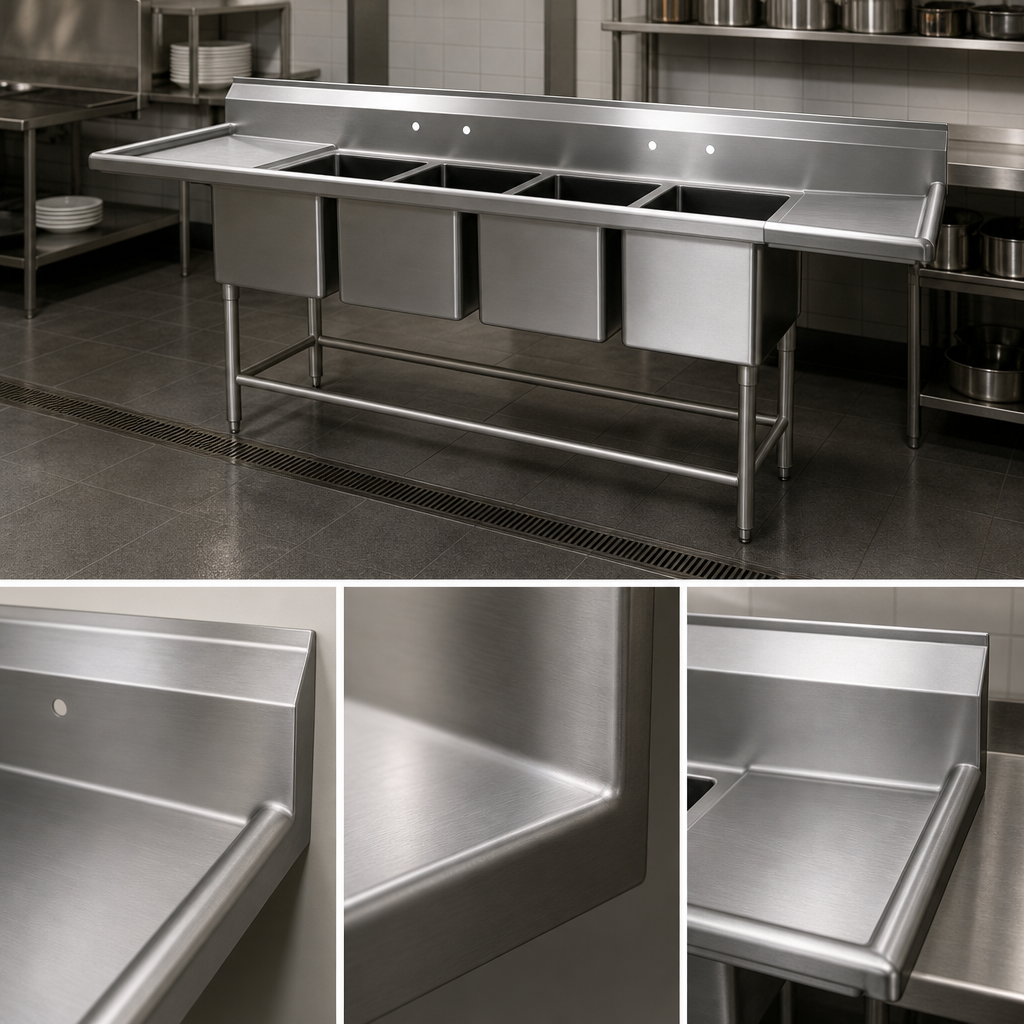

Heavy-Duty Stainless Steel Construction

The sink top, drainboard, and backsplash are constructed from durable 14 gauge 300 series stainless steel, ensuring exceptional strength and corrosion resistance for commercial environments.

Heavy-Duty Stainless Steel Construction

Coved Corner Sink Bowls

Four sink compartments feature coved corners with a full ¾" radius, constructed using state-of-the-art seamless welding techniques for easier cleaning and improved sanitation.

Integrated Right-Hand Drainboard

An 18-inch right-hand drainboard is integrally welded to the sink top, featuring 'V' creasing for positive drainage, providing convenient space for drying dishes or food preparation.

High Backsplash with Tile Edge

A 9½" high backsplash with a 1" upturn and tile edge effectively protects adjacent walls from splashes and spills, maintaining a cleaner work area.

Robust Stainless Steel Base

The base features 1⅝" (41mm) diameter stainless steel legs with stainless steel gussets, fully adjustable stainless steel bullet feet, and 1¼" diameter adjustable stainless steel crossbracing on all sides for superior stability and weight support.

Standard Faucet Holes

Equipped with two sets of 1⅛" (29mm) faucet holes punched on 8" (203mm) centers, accommodating standard splash mount faucets (faucets sold separately).

Efficient Drainage System

Sink bowls include 3½" (89mm) basket-type waste drains with a 1½" (38mm) outlet, designed for effective water evacuation.

Seamless Finish

The entire assembly is fuse-welded and planished, with welded areas high-speed belt blended to match adjacent surfaces, providing a seamless, satin finish and bullnosed outside corners for safety.

Type Four-Compartment Sink
Style Commercial Sink
Installation Type Floor Model (With Legs)
Compartments 4
Material 300 Series Stainless Steel
Top Gauge 14 Gauge
Compartment Width 18 Inches
Compartment Depth 20 Inches
Sink Depth (rim - drain) 14 Inches
Water Level 14 Inches
Flood Level 17 Inches
Drainboard Quantity 1
Drainboard Length 18 Inches
Drainboard Side Right
Backsplash Height 9-1/2 Inches
Faucet Holes 8 Inches OC
Drain Connection Size 1-1/2 Inches (Outlet)
Water Connection Size 1/2 Inch NPS
Base Type Legs with Boxed Crossrails
Leg Diameter 1-5/8 Inches
Crossbracing Diameter 1-1/4 Inches
Selling Unit Each
Units Per Case 1
Country of Origin USA
Shipping Width 100 Inches
Shipping Depth 27 Inches
Shipping Height 45 Inches
Shipping Weight 289.0 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year limited warranty on parts and labor for the sink, 90-day limited warranty for accessory items like drains.

Documents

PDF Cutsheet PDF Download PDF Brochure PDF Download PDF Care & maintenance PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The sink top, drainboard, and backsplash are made from heavy-duty 14 gauge 300 series stainless steel, and the legs and crossbracing are also stainless steel for durability.
Each of the four sink compartments measures 18 inches wide, 20 inches front-to-back, and 14 inches deep. They also have a 14-inch water level and a 17-inch flood level.
Yes, this model includes one 18-inch right-hand drainboard that is integrally welded to the sink top and designed for positive drainage.
The sink is equipped with two sets of 1⅛" diameter faucet holes punched on 8" centers, but faucets themselves are not included and must be purchased separately.
Eagle Group provides a limited warranty of one year from the date of original installation (not to exceed 18 months from the date of shipment) covering defects in materials and workmanship under normal use. Accessory items like drains have a 90-day limited warranty.
Yes, this sink model is NSF certified, indicating it meets rigorous public health and safety standards for commercial foodservice equipment.
