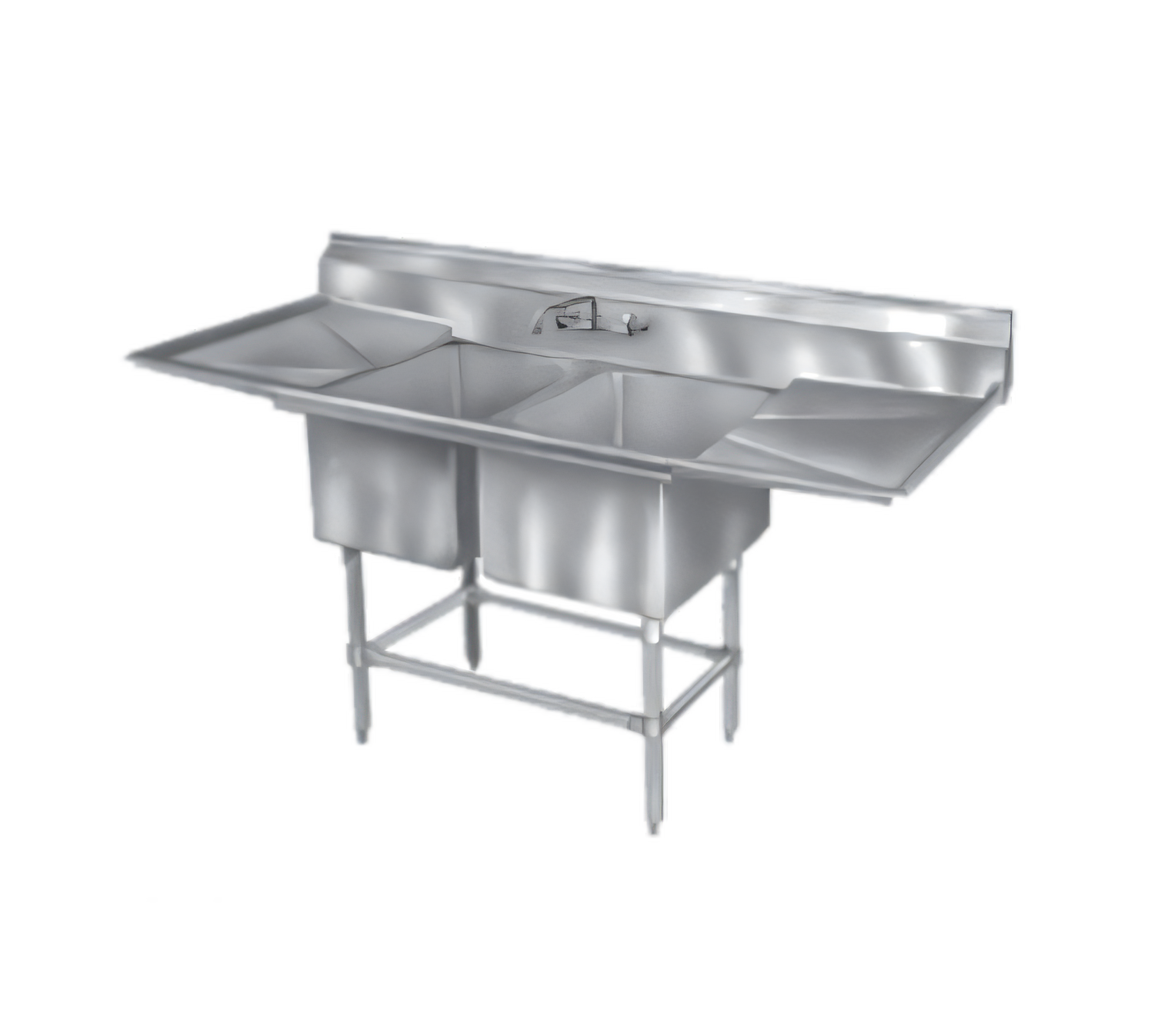

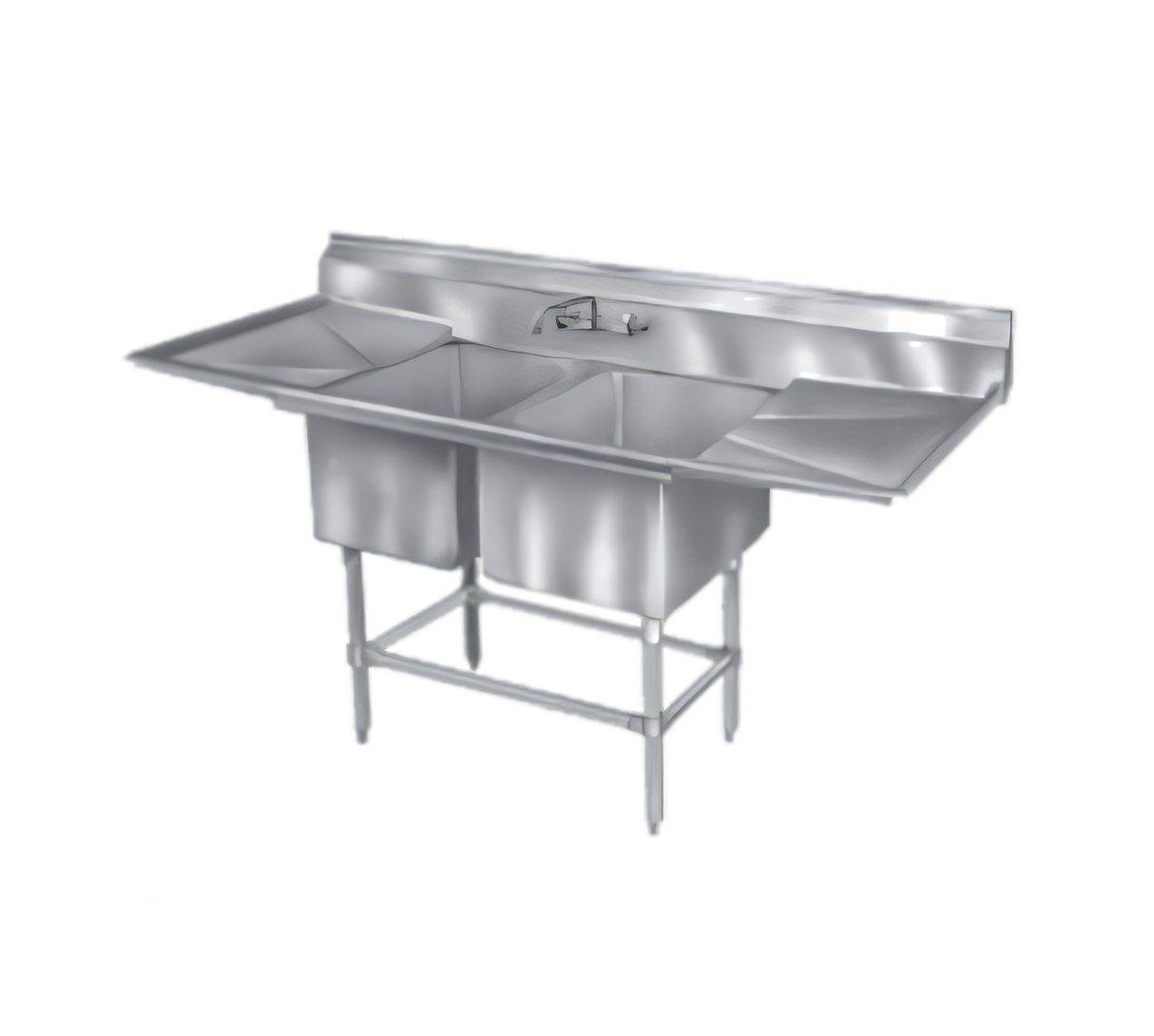

Eagle Group Spec-Master FN Series Coved Corner Two-Compartment Sink with Left and Right 18-Inch Drainboards, 80 Inch W x 27 Inch D

14-Gauge 300 Series Stainless Steel, 20 x 20 x 14 Inch Bowls, 9-1/2 Inch Backsplash

A rugged freestanding sink built for busy commercial kitchens, with dual drainboards, sanitary coved corners, and heavy-duty stainless steel construction.

  • Two 20" x 20" x 14" deep compartments help separate washing and prep tasks.
  • Left and right 18" drainboards provide extra landing and drying space.
  • 14-gauge stainless steel top and stainless steel base are built for demanding daily use.
  • 9-1/2" backsplash with a 1" upturn and tile edge helps protect walls and simplify installation.
  • Includes 3-1/2" basket drains and 8" O.C. faucet holes for easier setup.
  • Stainless steel legs, all-side crossbracing, and adjustable bullet feet add stability.

Overall Dimensions:

80.0"W x 27.0"D x 44.5"H

Product Weight:

124.0 lb

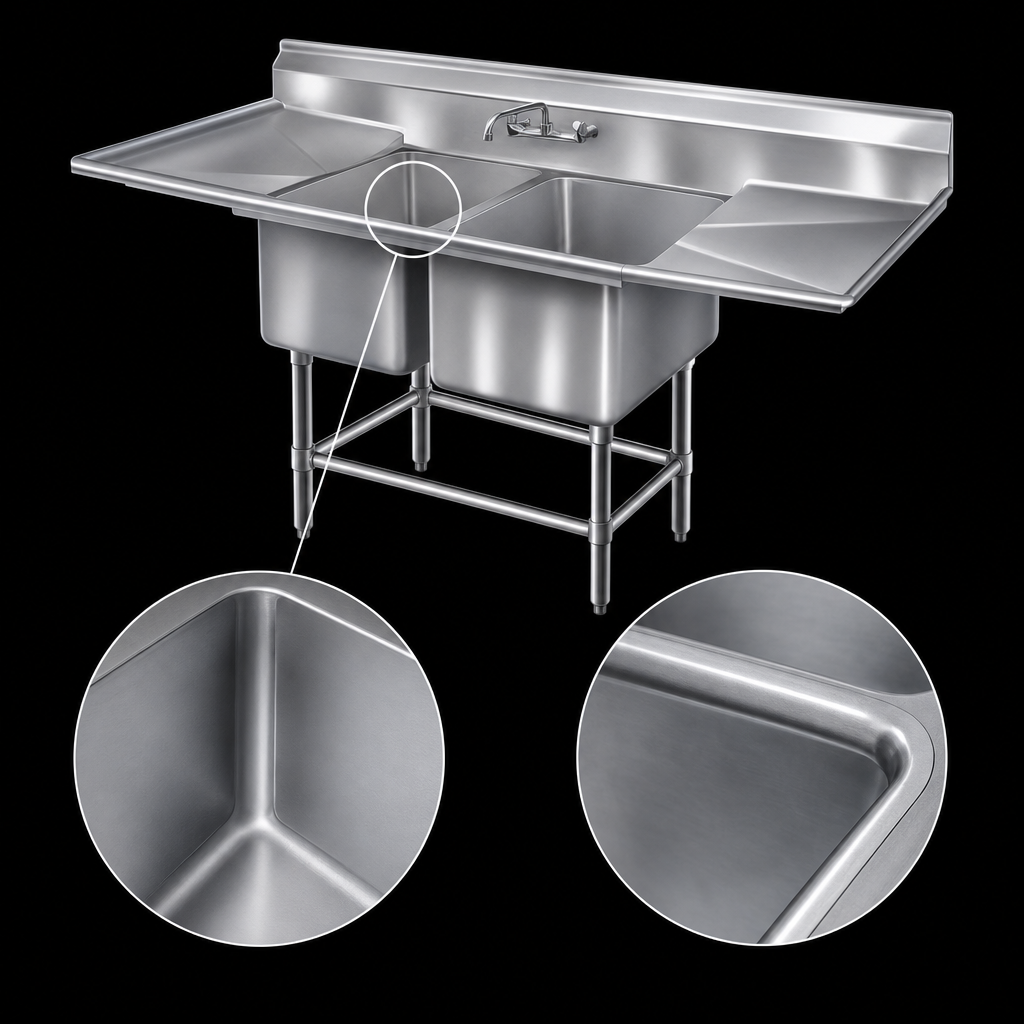

Coved Corner Compartments

Two 20" x 20" x 14" deep sink bowls with a full 3/8" radius help make cleaning easier and support sanitary wash areas.

Dual Drainboards

18" drainboards on the left and right provide convenient space for staging dishes, drain racks, or prep items.

Heavy-Duty Stainless Steel Construction

Built with 14-gauge 300 series stainless steel top material and stainless steel throughout for strength and corrosion resistance.

Sanitary Backsplash

A 9-1/2" high backsplash with a 1" upturn and tile edge helps contain splashes and fit against tiled walls.

Prepunched Faucet Holes

1-1/8" faucet holes on 8" centers simplify faucet mounting and installation.

Reinforced Base

Stainless steel legs with gussets, crossbracing on all sides, and adjustable bullet feet improve stability on uneven floors.

Included Basket Drains

Basket-type waste drains fit the 3-1/2" openings and feature 1-1/2" outlets.

Seamless Welded Assembly

The sink is fuse-welded, planished, and belt-blended for a one-piece appearance and easier cleaning.

Type 2-Compartment Sink
Style Coved Corner
Installation Type Freestanding
Compartments 2
Compartment Size 20 x 20 x 14 Inches
Drainboards Left and Right
Material Stainless Steel
Top Gauge 14 Gauge
Top Stainless Series 300 Series
Backsplash Height 9-1/2 Inches
Faucet Hole Spacing 8 Inches O.C.
Water Inlet Size 1/2 Inch NPS
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year limited warranty from original installation, not to exceed 18 months from shipment.

Documents

PDF Cutsheet PDF Download PDF Care & maintenance PDF Download PDF Brochure PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The sink has two compartments, each measuring 20" x 20" x 14" deep.
Yes. It includes 18" drainboards on both the left and right sides.
It is constructed with a 14-gauge 300 series stainless steel top and stainless steel components throughout.
Yes. The sink includes 3-1/2" basket-type waste drains.
The backsplash is punched with 1-1/8" faucet holes on 8" centers.
Eagle Group’s limited warranty covers defects in materials and workmanship for 1 year from original installation, not to exceed 18 months from shipment.
