Eagle Group

Eagle Spec-Master FN Series Coved Corner Two-Compartment Sink with 36-Inch Left Drainboard, 14-Gauge 300 Series Stainless Steel

SKU: FN2032-2-36L-14/3
$3,173.95
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Plumbing Supplies Commercial Sinks Compartment Sinks Eagle Group New Arrivals Restaurant Equipment Sinks & Handwashing Stations

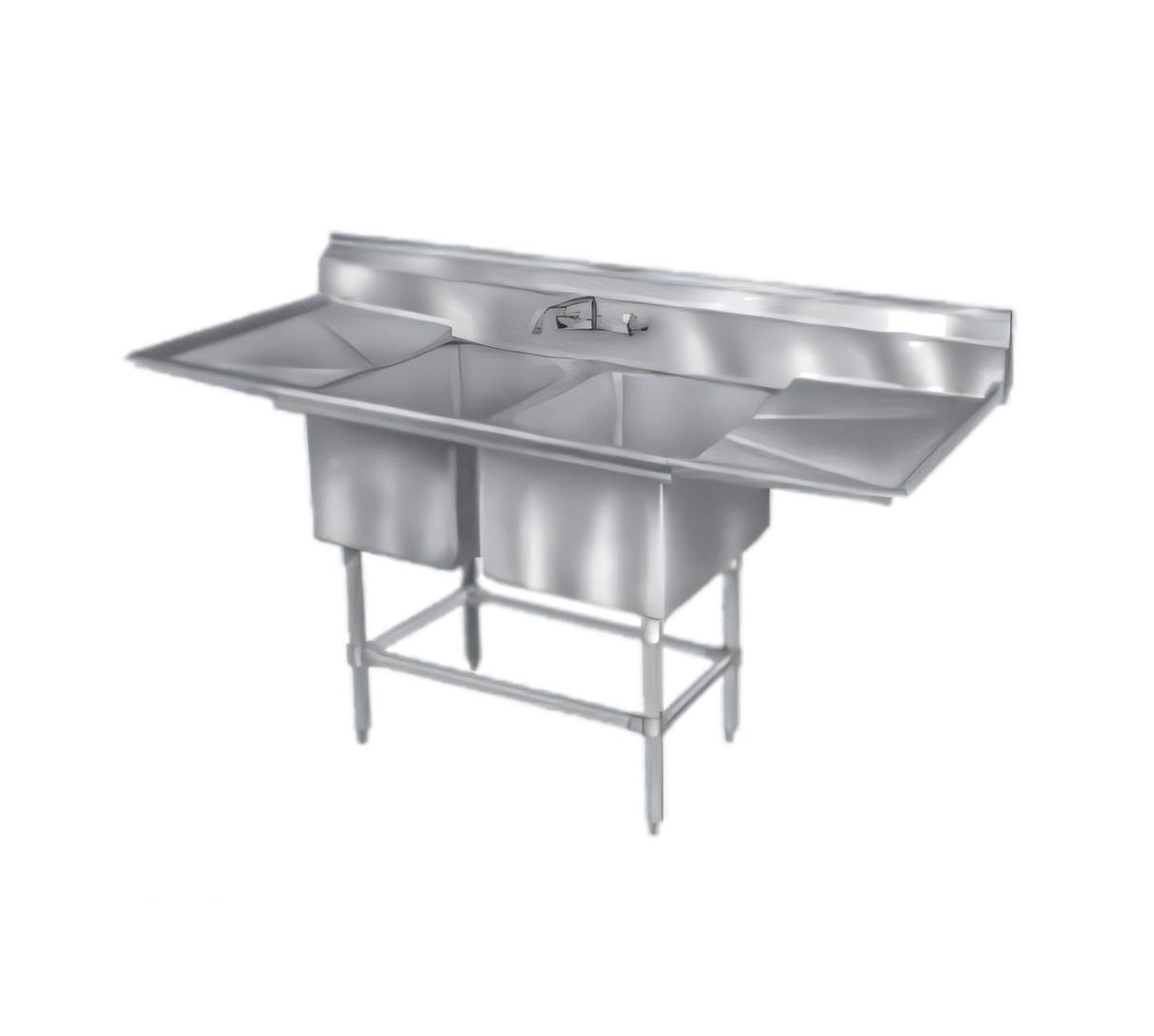

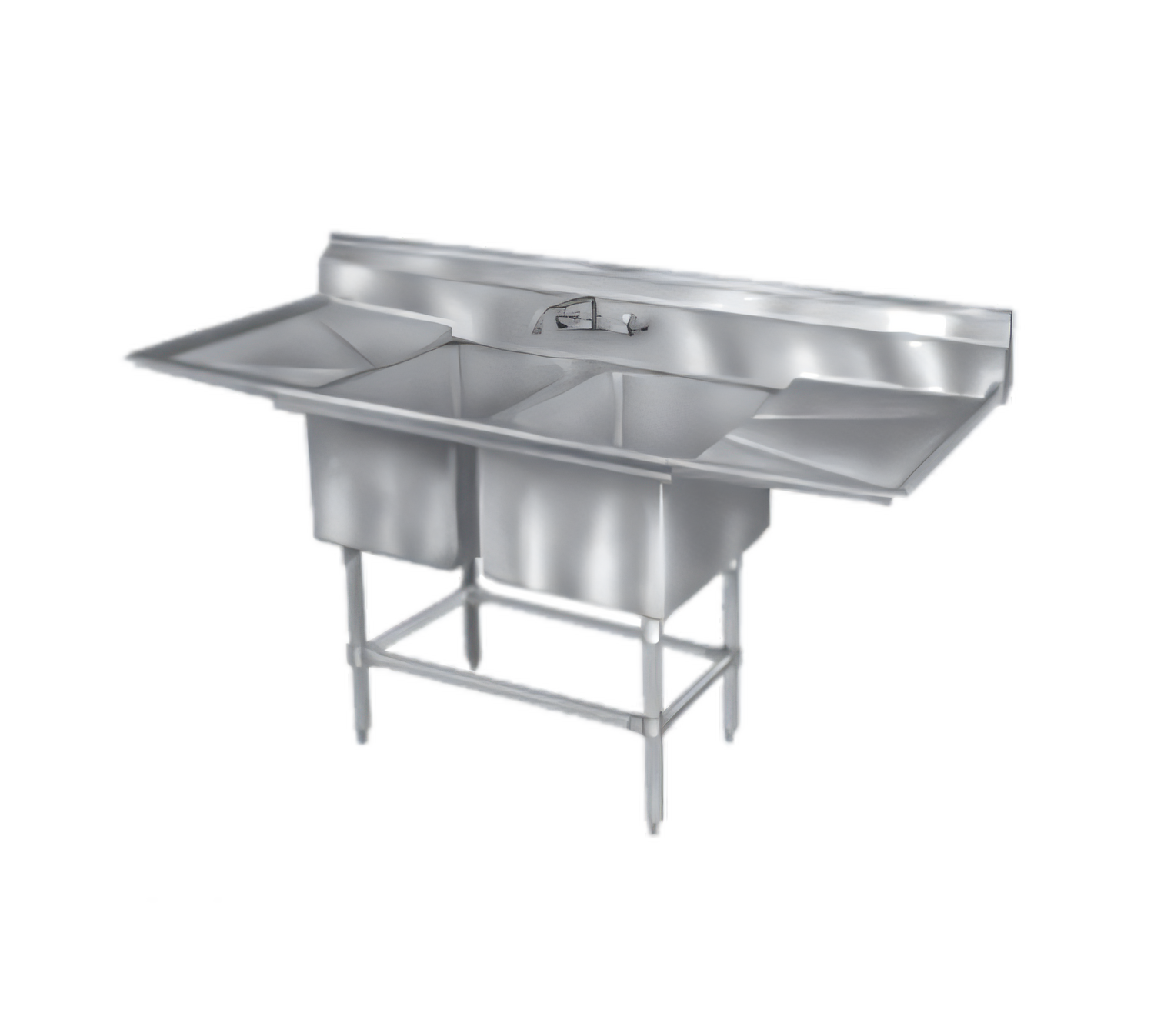

Eagle Spec-Master FN Series Coved Corner Two-Compartment Sink with 36-Inch Left Drainboard, 14-Gauge 300 Series Stainless Steel

73-1/2"W x 27"D x 44-1/2"H; 16" x 20" x 14" Bowls; 9-1/2" Backsplash

A rugged, easy-to-clean sink built around a left-hand 36-inch drainboard, coved corners, and reinforced stainless steel construction.

  • Two-compartment coved-corner sink with a 36-inch left-hand drainboard.
  • 14-gauge 300 series stainless steel top and stainless steel base construction.
  • Each compartment measures 16" wide x 20" front-to-back x 14" deep.
  • 9-1/2" backsplash includes a 1" upturn, tile edge, and 8" O.C. faucet holes.
  • Includes 3-1/2" basket drains, rolled edges, and a fuse-welded one-piece assembly.
  • Adjustable stainless steel bullet feet help level the unit on uneven floors.

Overall Dimensions:

73.5"W x 27.0"D x 44.5"H

Product Weight:

112.0 lb

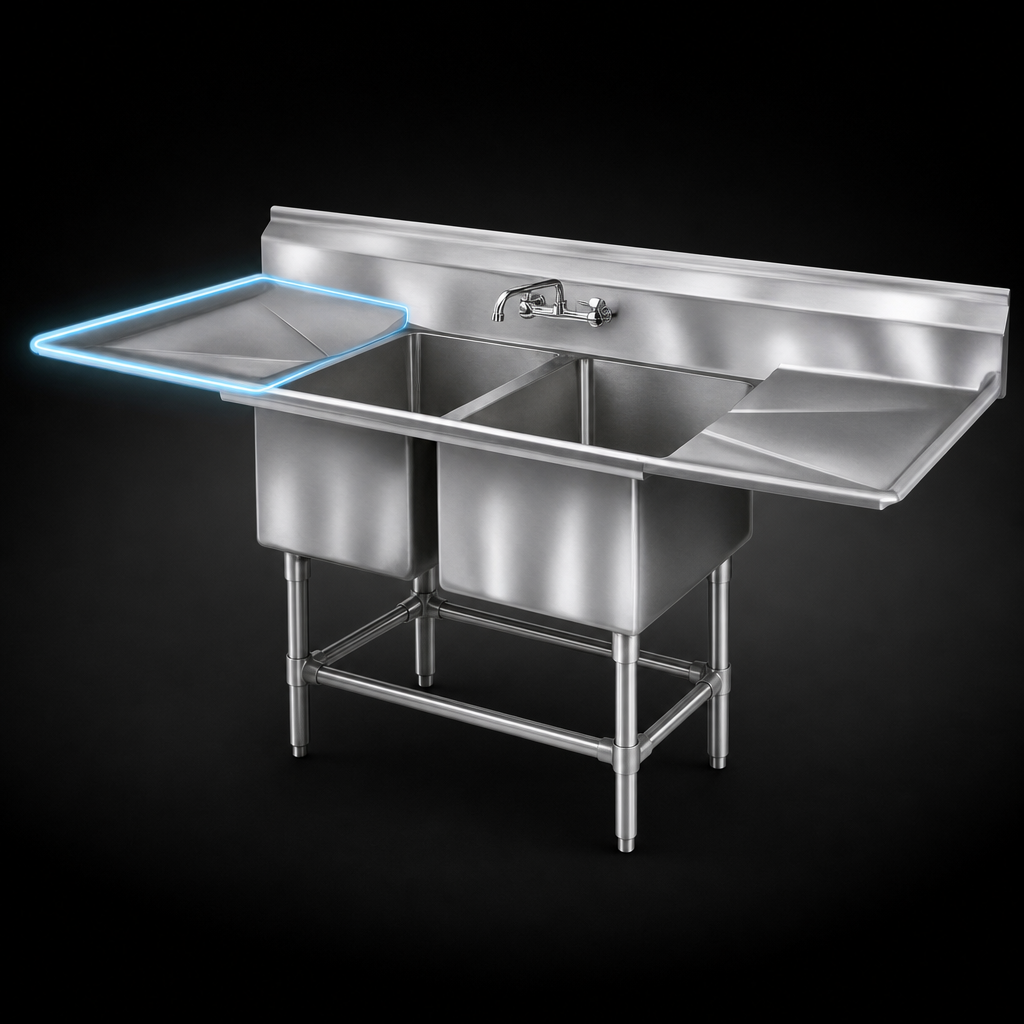

Left-Hand 36-Inch Drainboard

Provides additional landing and prep space on the left side of the sink.

Two Coved-Corner Compartments

Dual bowls with coved corners help simplify cleaning and reduce debris buildup.

14-Gauge 300 Series Stainless Steel Construction

Heavy-duty stainless steel top and bowls are built for durability in demanding kitchens.

9-1/2-Inch Backsplash

Tall backsplash includes a 1-inch upturn and tile edge to help protect the wall behind the sink.

8-Inch O.C. Faucet Holes

Pre-punched splash-mount faucet holes make installation straightforward.

Includes Basket Drains

Supplied with 3-1/2-inch basket drains for immediate setup.

Reinforced Stainless Steel Base

Stainless steel legs, gussets, and crossbracing add stability; adjustable bullet feet help with leveling.

One-Piece Welded Assembly

Fuse-welded and planished construction with rolled front and side edges creates a durable, cleanable sink.

Type Sink
Style Coved Corner
Installation Type Freestanding
Compartments 2
Material Stainless Steel
Top Gauge 14 Gauge
Top Stainless Series 300 Series
Base Type Legs With Crossbracing
Drainboard Side Left
Drainboard Length 36 Inches
Compartment Width 16 Inches
Compartment Length 20 Inches
Sink Depth 14 Inches
Splash Height 9-1/2 Inches
Faucet Hole Diameter 1-1/8 Inches
Faucet Hole Spacing 8 Inches On Center
Basket Drain Size 3-1/2 Inches
Water Level 14 Inches
Selling Unit Each
Units Per Case 1
Shipping Width 74 Inches
Shipping Depth 27 Inches
Shipping Height 45 Inches
Shipping Weight 112 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year limited warranty from date of original installation, not to exceed 18 months from shipment.

Documents

PDF Cutsheet PDF Download PDF Care & maintenance PDF Download PDF Brochure PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

Yes. It includes 3-1/2-inch basket drains.
This model has a 36-inch drainboard on the left side.
Each compartment measures 16 inches wide x 20 inches front-to-back x 14 inches deep.
Yes. The backsplash has 1-1/8-inch faucet holes on 8-inch centers.
The backsplash is 9-1/2 inches high and includes a 1-inch upturn with a tile edge.
