Key specifications

Dimensions
32.63"W × 25.5"D × 15.5"H
Type
Mop Sink
Installation Type
Floor Model
Material
304 Stainless Steel
Finish
Satin
Bowl Width
28 in
Spec sheet
Eagle Group SKU: F2820

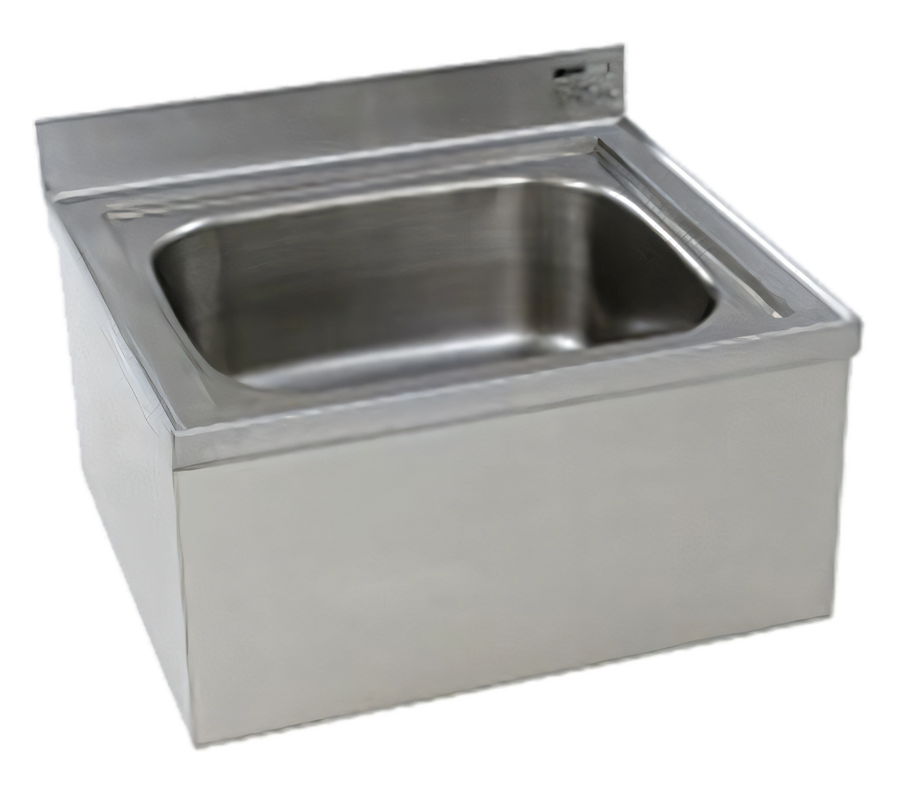

Eagle Group F2820 Floor-Mounted Mop Sink 28 x 20 x 8 in

$1,071.62
/each
Estimated to ship in 3–6 business days
Size
Factory Add-Ons
Service faucets

Need something else? Contact us.

Included: Eagle Group warranty Limited warranty for 1 year from the date of original installation, not to exceed 18 months from the date of shipment

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $99/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Mop Sink
Installation Type Floor Model
Material 304 Stainless Steel
Finish Satin
Bowl Width 28 in
Bowl Front-To-Back 20 in
Bowl Depth 8 in
Top Gauge 16 Gauge
Edge Profile Double-Offset V Edge
Skirt Type Full
Drain Size 2 in NPS
Strainer Type Removable Flat Plate
Water Supply Connection 1/2 in IPS, Hot and Cold

Description

The Eagle Group F2820 is a floor-mounted mop sink with a 28 in wide x 20 in front-to-back x 8 in deep bowl.

It features a 16-gauge type 304 stainless steel top with a double-offset V edge, a full type 304 stainless steel skirt, and a 2 in NPS drain with a removable stainless steel strainer plate.

  • Overall dimensions: 32.63 in W x 25.5 in D x 15.5 in H
  • Hot and cold water supply connection: 1/2 in IPS
  • NSF listed

Overall Dimensions:

32.63"W x 25.5"D x 15.5"H

Product Weight:

68.0 lb

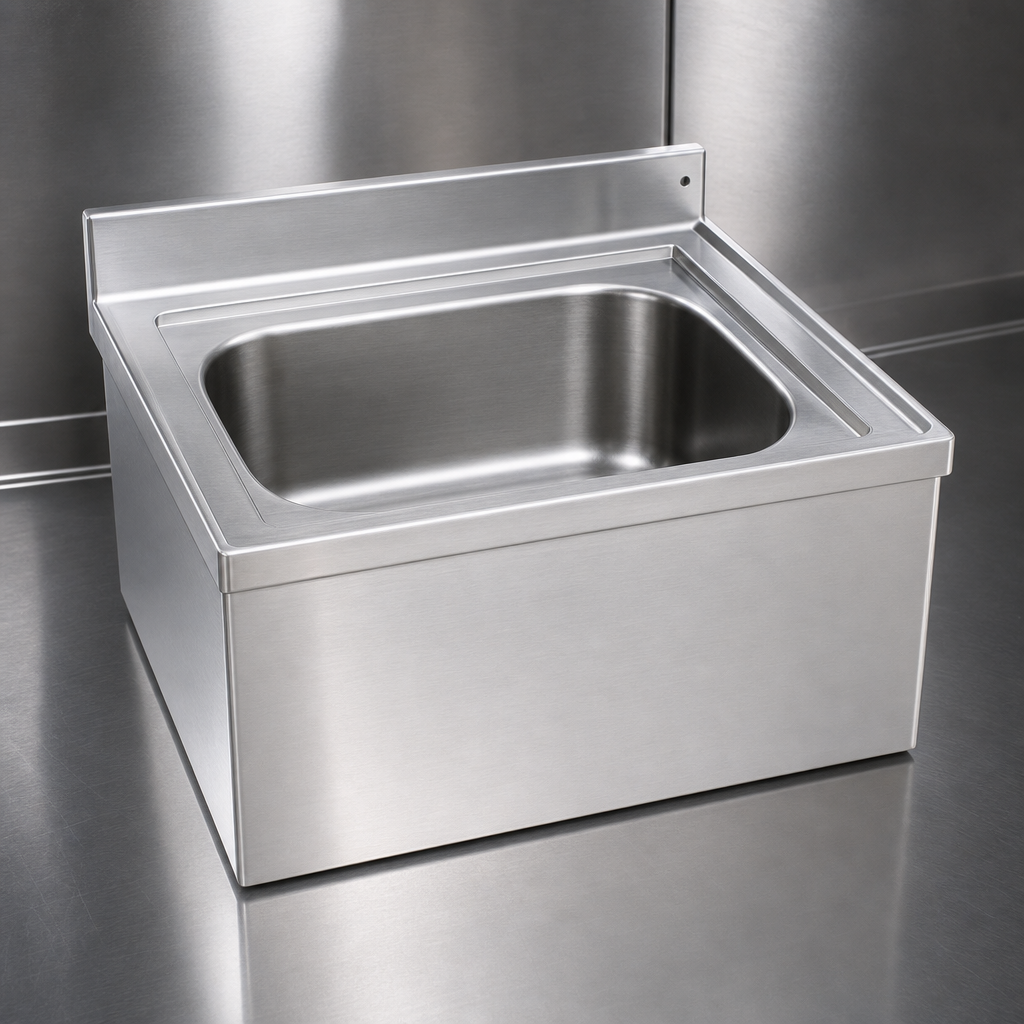

304 Stainless Steel Construction

The bowl, top, and full skirt are constructed of type 304 stainless steel.

Deep-Drawn Bowl

The bowl uses one-piece, seamless deep-drawn construction.

V Edge

The 16-gauge top has a double-offset V edge designed to prevent spillage.

Full Skirt

The full skirt is stud-bolted to the underside of the top and allows for a tight sanitary seal.

Drain and Strainer

The sink has a 2 in NPS drain with a removable stainless steel flat strainer plate.

Water Supply

The water supply is specified for 1/2 in IPS hot and cold lines.

Frequently Asked Questions

The overall dimensions are 32.63 in wide x 25.5 in deep x 15.5 in high.
The bowl is 28 in wide x 20 in front-to-back x 8 in deep.
The bowl, top, and full skirt are made of type 304 stainless steel.
It has a 2 in NPS drain with a removable stainless steel strainer plate.
The water supply is specified for 1/2 in IPS hot and cold lines.
Yes. NSF is listed as an approval for the F2820 mop sink.
