Eagle Group

Eagle Group Floor-Mounted 304 Stainless Steel Mop Sink with 28" x 20" x 12" Bowl

SKU: F2820-12-X
$1,353.60
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Plumbing Supplies Commercial Sinks Eagle Group Mop Sinks Mop Sinks New Arrivals Restaurant Equipment Sinks & Handwashing Stations

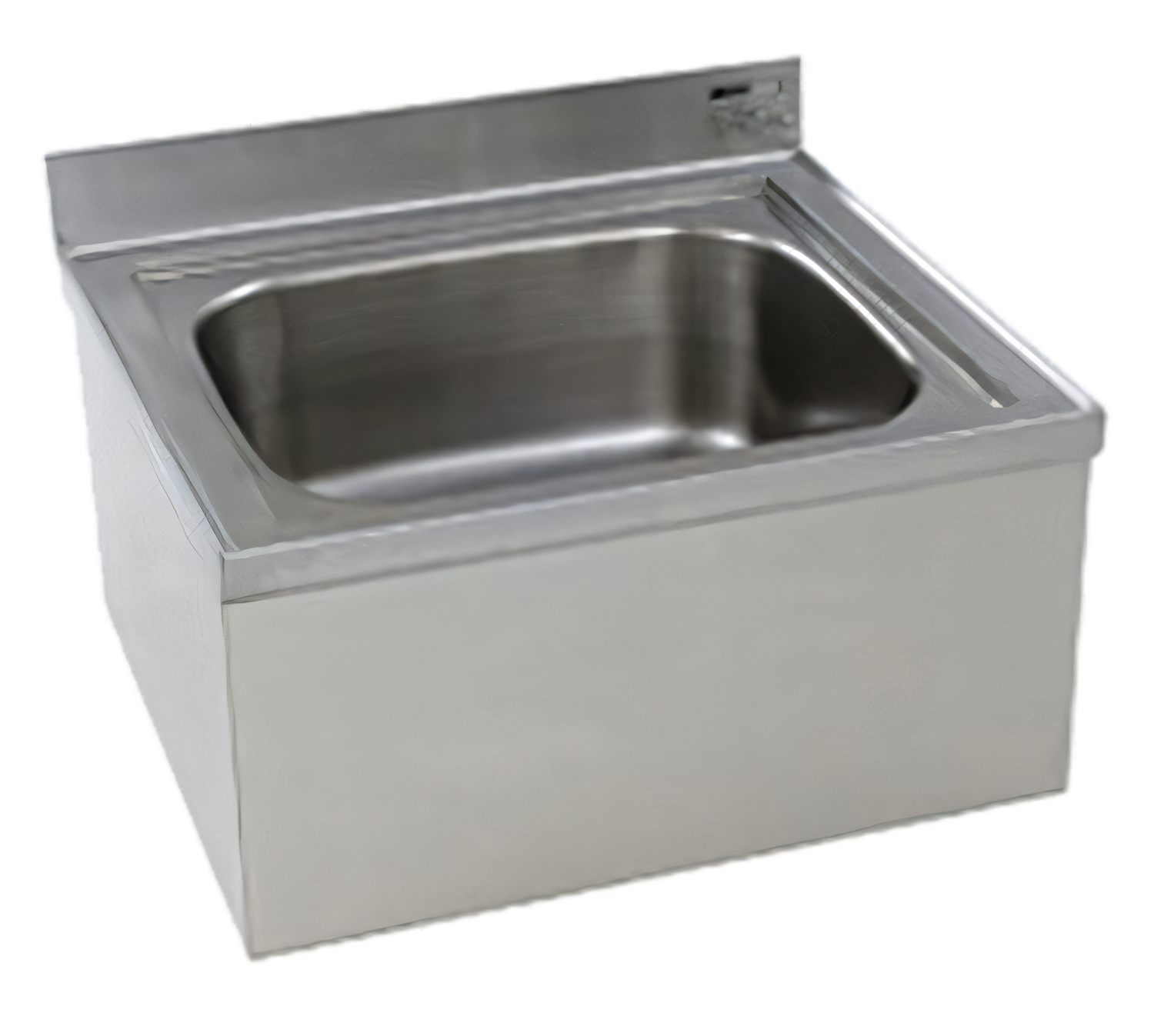

Eagle Group Floor-Mounted 304 Stainless Steel Mop Sink with 28" x 20" x 12" Bowl

16-Gauge Top, Full Skirt, 2" NPS Drain

Built for demanding janitorial areas, this floor-mounted mop sink combines a 12-inch-deep bowl, 304 stainless steel construction, and a sanitary full-skirt design.

  • Floor-mounted mop sink designed for institutional and commercial janitorial use.
  • 28" x 20" x 12" bowl provides a generous work area for mop fill and dump tasks.
  • 304 stainless steel construction with a 16-gauge top for long-lasting durability.
  • Full skirt and seamless welded construction support a cleaner, more sanitary installation.
  • 2" NPS drain includes a removable stainless steel flat strainer plate.
  • NSF listed for commercial sanitation applications.

Overall Dimensions:

32.63"W x 25.5"D x 19.5"H

Product Weight:

82.0 lb

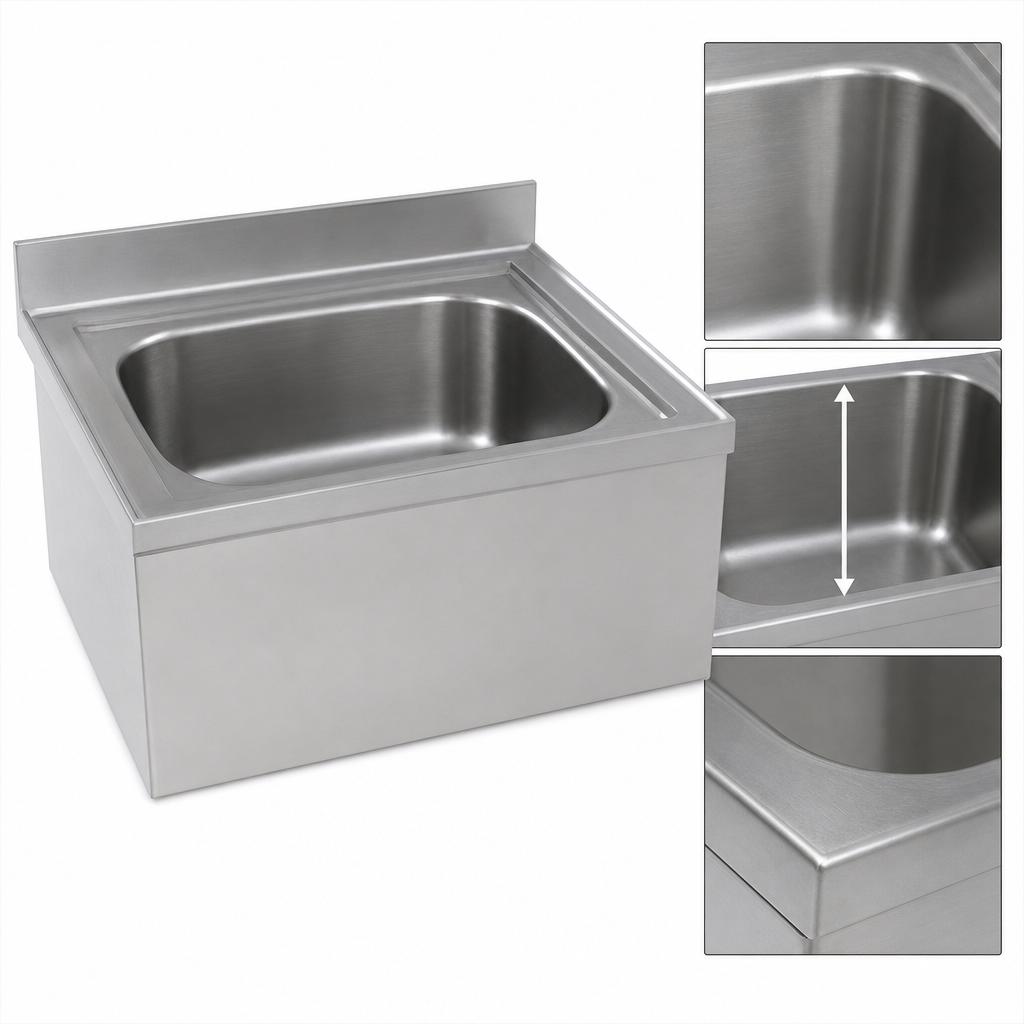

12-Inch Deep Bowl

Deep-drawn, one-piece seamless bowl with coved corners for dependable capacity and easy cleaning.

304 Stainless Steel Construction

Heavy-gauge type 304 stainless steel helps resist corrosion and stand up to daily use.

16-Gauge Top with V Edge

Anti-splash double-offset V edge helps reduce spillage around the sink area.

Full Sanitary Skirt

Heavy-gauge skirt is concealed stud-bolted to the underside of the top for a clean appearance and tight sanitary seal.

2" NPS Drain with Strainer Plate

Includes a removable stainless steel flat strainer plate for straightforward cleanup and drainage.

One-Piece Seamless Construction

Top assembly is fused, welded, and planished, with belt-blended satin finish on welded areas.

Hot and Cold Water Supply Connections

1/2" IPS water supply connections are provided for hot and cold lines.

Type Mop Sink
Style Floor Mounted
Installation Type Floor Model
Material 304 Stainless Steel
Finish Satin
Drain Connection Size 2 Inches NPS
Water Inlet Size 1/2 Inch IPS
Selling Unit Each
Units Per Case 1
Shipping Width 33 Inches
Shipping Depth 26 Inches
Shipping Height 20 Inches
Shipping Weight 82 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year limited warranty from original installation, not to exceed 18 months from shipment.

Documents

PDF Cutsheet PDF Download PDF Care & maintenance PDF Download PDF Owner's manual PDF Download PDF Brochure PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The overall size is 32-5/8" L x 25-1/2" W x 19-1/2" H.
The bowl measures 28" wide x 20" front-to-back x 12" deep.
It is constructed of type 304 stainless steel with a 16-gauge top.
Yes. It includes a 2" NPS drain with a removable stainless steel flat strainer plate.
Available accessories include 3-pole and 4-pole mop holders, a hose and bracket, a service faucet, and splash kits.
