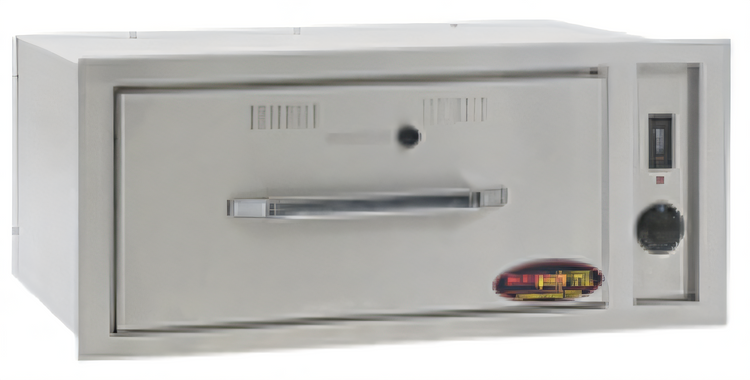

RedHots Built-In Single Drawer Warming Drawer for One 12" x 20" x 6" Pan, Stainless Steel, 120V

Built-In, Standard Drawer, Thermostatic Controls

A compact built-in warming drawer that keeps one full-size pan hot and ready with thermostatic control, stainless steel durability, and simple 120V operation.

  • Built-in warming drawer designed for flush installation in commercial counters.
  • Holds one 12" x 20" x 6" pan for convenient hot holding.
  • Recessed thermostatic control with indicator light for easy temperature management.
  • Stainless steel construction helps provide durability and easy cleaning.
  • 450W, 120V, single-phase operation with a NEMA 5-15P plug.
  • Requires a 29-3/4"W x 23-5/8"D x 10-7/8"H cutout for installation.

Overall Dimensions:

31.0"W x 26.5"D x 10.75"H

Product Weight:

143.0 lb

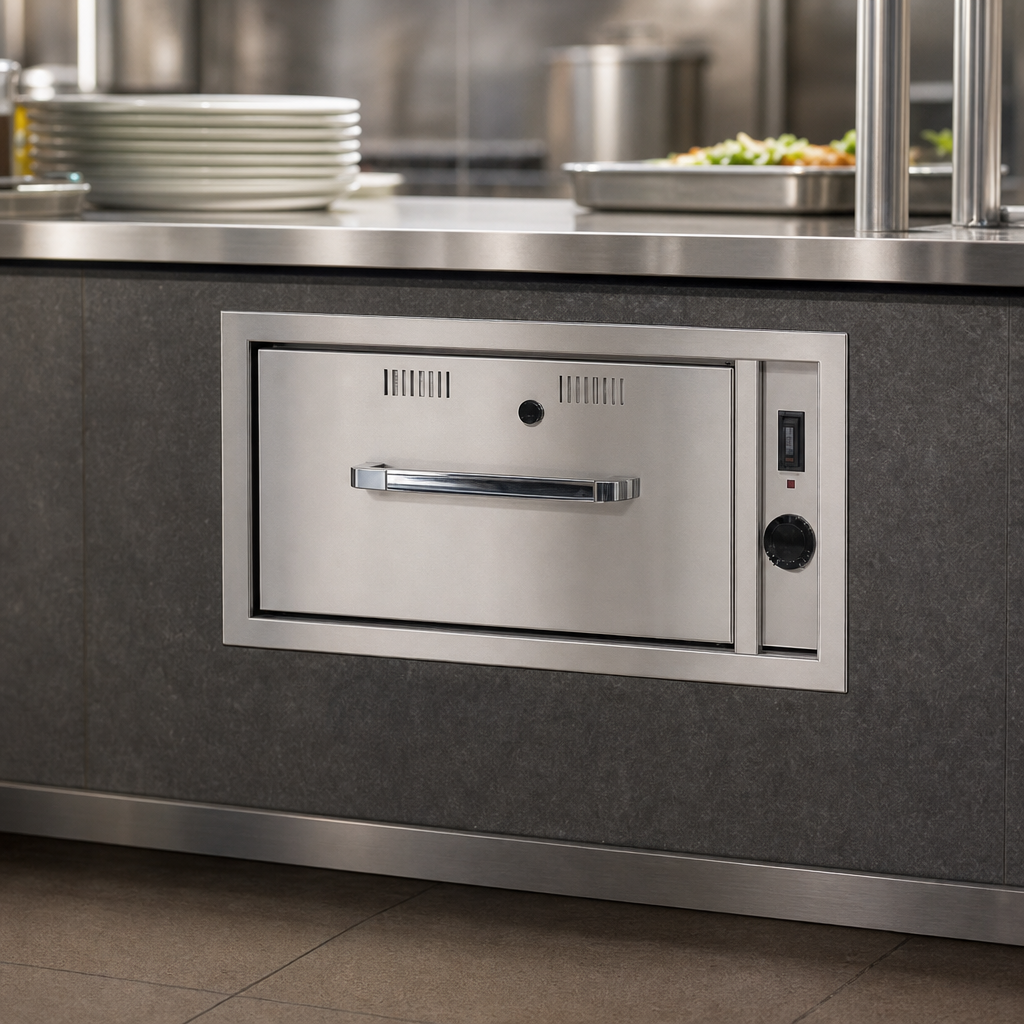

Built-In Installation

Designed for built-in use in a cutout opening for a clean, integrated counter appearance.

Built-In Installation

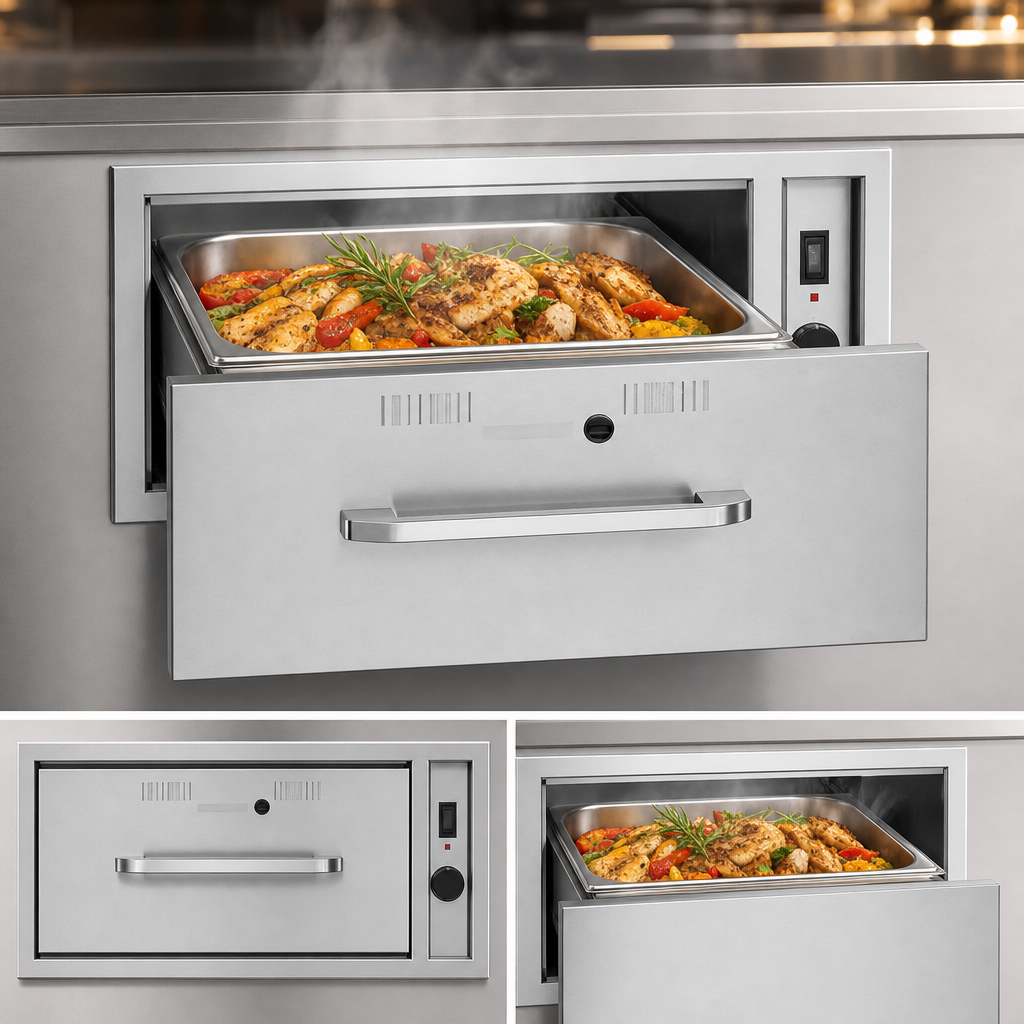

Single-Drawer Design

Provides one warming drawer for holding a single pan at serving temperature.

Single-Drawer Design

Pan Capacity

Holds one 12" x 20" x 6" pan.

Thermostatic Controls

Recessed thermostat with indicator light makes temperature control straightforward.

Stainless Steel Construction

Durable stainless steel construction supports long-term commercial use and easy cleaning.

120V Electrical Operation

Operates on 120 volts, 60 Hz, single-phase power with 450 watts and 3.75 amps.

NEMA 5-15P Plug

Supplied with a standard NEMA 5-15P plug for straightforward electrical connection.

Cutout Requirement

Requires a 29-3/4"W x 23-5/8"D x 10-7/8"H cutout for installation.

Type Warming Drawer
Style Standard Drawer
Installation Type Built-In
Material Stainless Steel
Controls Thermostatic
Pan Capacity 1 Pan
Pan Size 12 Inches x 20 Inches x 6 Inches
Voltage 120 Volts
Watts 450 Watts
Amps 3.75 Amps
Phase 1-Phase
Plug Type NEMA 5-15P
Selling Unit Each
Units Per Case 1
Shipping Width 31 Inches
Shipping Depth 27 Inches
Shipping Height 11 Inches
Shipping Weight 143 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

12 months from shipment or 6 months from first use, whichever comes first.

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Brochure PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It is designed for built-in installation and requires a 29-3/4"W x 23-5/8"D x 10-7/8"H cutout.
It holds one 12" x 20" x 6" pan.
It operates on 120V, 60 Hz, single-phase power and uses 450 watts at 3.75 amps with a NEMA 5-15P plug.
It uses recessed thermostatic controls with an indicator light.
The heated drawer category is covered for 12 months from shipment or 6 months from first use, whichever comes first, under normal use conditions.
